Parts
LINELAZER SPRAYER, ES500, NA
GG 25U546
GG 25U546
LINELAZER SPRAYER, ES500, NA
LineLazer ES 500 Battery-Powered Airless Line StriperThe LineLazer ES 500 is a fully-capable line striper for those small to medium-sized re-stripe jobs—while introducing the benefits of battery-powered technology.
All fluid passageways are upgraded for use with fast-dry, waterborne traffic paints—hose, gun and fittings. NO ENGINE NOISE, VIBRATION OR FUMES
Benefits of Battery Power Over a Gas Engine- Reduce user fatigue while delivering perfect lines
- Improved jobsite conditions
EXTENDED RUNTIME
DEWALT® 9.0 Ah FlexVolt® Battery- Spray up to 10 gallons with two fully charged DEWALT FlexVolt batteries
- Capable of completing 200+ parking lot stalls
FAST CHARGING
DEWALT Fan-Cooled Fast Charger- Quickly charges battery in under 60 minutes
- Allows contractors to finish jobs without interruptions
EASY GUN ADJUSTMENTS
EasyMark Gun Adjustment System- Perfect gun setup every time with easy-to-use Guide Mark System
IMPROVED TRACKING AND LINE QUALITY
Proven Frame Design- Durable, steel construction
- Accepts 15-gallon hopper and EZ Bead System
EASIER MANEUVERABILITY
Front Swivel Wheel- Ability to stripe right up to the curb
- Makes easy work of hard-to-do curves
- Years of dependable operation with tapered locking pin design
THE LONGEST LASTING DRIVE
Advantage Drive- Hardened steel gears provide extremely quiet operation and a lifetime warranty
DURABLE PUMP
Endurance Pump- Last 2X longer than the next leading brand
- Long life V-Max Blue Packings, Chromex rod, and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
ELIMINATE COSTLY DOWNTIME
ProConnect Pump Replacement- Swap pump in minutes—no tools, pins or parts to lose
EASY MAINTENANCE AND LESS CLOGGING
Easy Out Filter- Exclusive inside-out filtering design reduces tip clogs
Call for pricing
LINEDRIVER MODULE, 160CC
GG 262004
GG 262004
LINEDRIVER MODULE, 160CC
LineDriver Ride-On Attachment Why walk when you can ride? Graco LineDriver Systems provide the most innovative, user-friendly ride-on systems in the industry. The LineDriver is the industry standard ride-on system that will help you maximize productivity on any striping, thermoplastic and scarifying application. FlexBeam LED Light System- LED light for improved brightness with long life and less amp draw
- Retractable, breakaway design prevents damage and keeps you striping
- For forward and reverse
- Easily move between jobs without having to push
- Easy Starting
- Up to 50% less pulling effort to start the engine—no more broken recoils
- Outperforms manual pull and electric start systems when the weather starts turning cooler
- Reliable, technologically advanced, and easy to start
- Oil Alert shuts down engine if oil level drops too low, preventing damage
- Contractor preferred
- Gray color stays cool in direct sunlight
- High-back seat for added support
- Extra padding for all-day comfort
$12,760.00
LINEDRIVER MODULE, HD 200CC
GG 262005
GG 262005
LINEDRIVER MODULE, HD 200CC
LineDriver HD Ride-On Attachment Why walk when you can ride? Graco LineDriver Systems provide the most innovative, user-friendly ride-on systems in the industry. The LineDriver HD provides the higher power and performance you need to maximize your productivity on any striping, thermoplastic and scarifying application. FlexBeam LED Light System- LED light for improved brightness with long life and less amp draw
- Retractable, breakaway design prevents damage and keeps you striping
- For forward and reverse
- Easily move between jobs without having to push
- Easy Starting
- Up to 50% less pulling effort to start the engine—no more broken recoils
- Outperforms manual pull and electric start systems when the weather starts turning cooler
- Reliable, technologically advanced, and easy to start
- Oil Alert shuts down engine if oil level drops too low, preventing damage
- Contractor preferred
- Gray color stays cool in direct sunlight
- High-back seat for added support
- Extra padding for all-day comfort
$13,540.00
CONTRACTOR FLAT TIP, SPRAY
GG 269513
GG 269513
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 513 The 513 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.013 inch orifice.
$11.40
CONTRACTOR FLAT TIP, SPRAY
GG 269515
GG 269515
CONTRACTOR FLAT TIP, SPRAY
Contractor Flat Tip, 515 The 515 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.015 inch orifice.
$11.40
CONTRACTOR FLAT TIP, SPRAY
GG 269519
GG 269519
CONTRACTOR FLAT TIP, SPRAY
Graco 269519 Contractor Flat Tip, 519
The 519 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.019 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.38
- Maximum Flow Rate (L/min): 1.44
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.019
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
$11.40

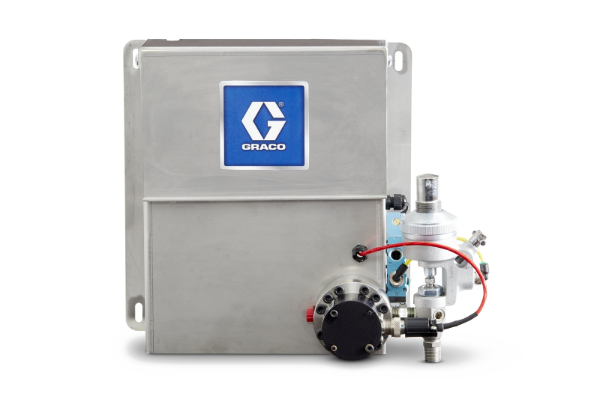

PANEL, FLUID, GREASE/PAINT, G3000
GG 26A131
GG 26A131
PANEL, FLUID, GREASE/PAINT, G3000
Graco 26A131 ProDispense Fluid Panel Kit, Grease/ Paint Meter, wide viscosity, high accuracy
This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for grease and paint applications.
Application: For grease and paint applications- Model: ProDispense
- Air Inlet Size (in): 5/32
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: Push
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- For Use With: G3000 meter
- Maximum Air Pressure (bar): 7.03
- Maximum Air Pressure (kPa): 703
- Maximum Air Pressure (psi): 102
- Maximum Flow Rate (cc/min): 3800
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.8
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (psi): 3000
- Minimum Flow Rate (GPM): 0.02
$12,100.00
PANEL, FLUID, GREASE/PAINT, HELIC
GG 26A132
GG 26A132
PANEL, FLUID, GREASE/PAINT, HELIC
Graco 26A132 ProDispense Fluid Panel Kit, Helical Meter, wide viscosity, high accuracy
This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for high viscosity applications.
Application: For high viscosity applications- HG6000 Helical Gear meter
- Model: ProDispense
- For Use With: HG6000 meter
$13,360.00

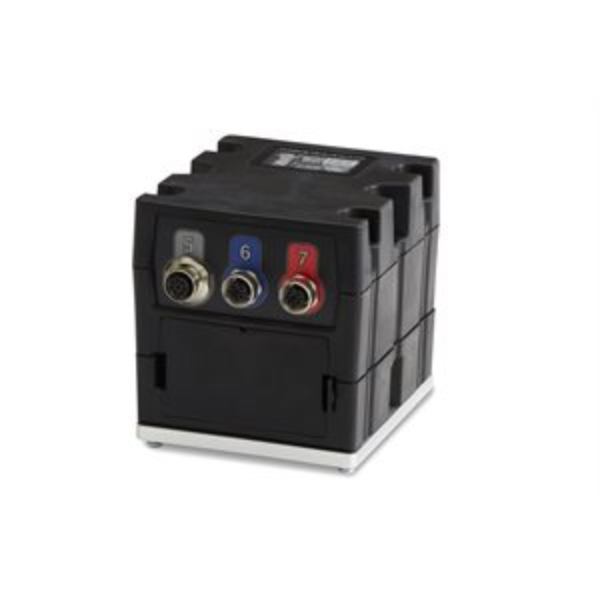

KIT, FCM, FLUIDCTRL, PRODISPENSE
GG 26A134
GG 26A134
KIT, FCM, FLUIDCTRL, PRODISPENSE
Graco 26A134 ProDispense Fluid Control Module
Fluid Control Module (FCM) expands the base ProDispense system by 2 fluid panels.
- A mounting plate makes attachment to the fluid panel easy.
- Up to 3 modules can be used on each system.
- Additional FCM is required only if more than 2 fluid panels need to be controlled.
- Model: ProDispense
- For Use With: ProDispense Electronic Fluid Dispense and Meter System
- Includes: Mounting plate
$2,230.00
PANEL, FLUID, SOLVENT
GG 26A165
GG 26A165
PANEL, FLUID, SOLVENT
Graco 26A165 ProDispense Fluid Panel Kit, Solvent Meter, light viscosity, high accuracy
This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for solvent applications.
Application: For solvent applications- Use S3000 meter with solvents and clear light viscosity materials.
- Model: ProDispense
- For Use With: S3000 meter
$15,220.00
KIT, MIX MANIFOLD, HP
GG 26A225
GG 26A225
KIT, MIX MANIFOLD, HP
ProMix PD2K High Pressure Mix at the Belt Manifold KitMix Manifold Kits
$4,850.00
KIT, MIX MANIFOLD, LP
GG 26A358
GG 26A358
KIT, MIX MANIFOLD, LP
Graco 26A358 ProMix PD2K Low Pressure Mix at the Belt Manifold Kit
Mix Manifold Kits
- Model: ProMix
- Series: PD2K
$4,530.00
GLC CONTROL, X
GG 26A814
GG 26A814
GLC CONTROL, X
Graco 26A814 GLC X Controller
The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity.
- Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites.
- Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators.
- Real-Time System Reporting - Program and display a wide range of customizable functions – including lubrication intervals, pressure limits, lubricant levels and more.
- Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory.
- Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.
- Model: GLC
- Series: X
- Amperage (A): 15
- Application: In-Plant Machinery, Off-Road Equipment, On-Road Vehicles
- Auxiliary Alarm Max Switching Current (A): 10
- Auxiliary Alarm Max Switching Voltage (VDC): 9-30
- Auxiliary Alarm Voltage: 9-30 VDC
- Control Mode: Timer, Pressure, Cycle
- Count Rate (counts/sec @ 50% duty cycle): 5
- Current Consumption (A): 15
- Intrusion Rating: IP69K
- Low Level Alarm Max Switching Current (A): 10
- Low Level Alarm Max Switching Voltage (VDC): 30
- Lubrication Level Input: Input 1: 10V
- Machine Count Control Input: Input 4
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Program Time (min): 99
- Maximum Program Time (sec): 5999
- Maximum Storage Temperature (°C): 70
- Maximum Storage Temperature (°F): 158
- Maximum System Cycle Count: 100
- Maximum Voltage (V dc): 30
- Maximum Voltage (V): 30
- Minimum Ambient Temperature (°F): -22
- Minimum Monitor Time (hrs): 0
- Minimum Monitor Time (min): 1
- Minimum Monitor Time (sec): 0
- Minimum Monitor Time (strokes): 1
- Minimum Operating Temperature (°C): -30
- Minimum Operating Temperature (°F): -22
- Minimum Program Time (hrs): 0
- Minimum Program Time (min): 0
- Minimum Program Time (sec): 10
- Minimum Program Time (strokes): 1
- Minimum Storage Temperature (°C): -30
- Minimum Storage Temperature (°F): -22
- Minimum System Cycle Count: 1
- Minimum Voltage (V dc): 9
- Minimum Voltage (V): 9
- Number of Pieces: 1
- Overall Depth (cm): 5
- Overall Depth (in): 1.98
- Overall Height (cm): 16.9
- Overall Height (in): 6.66
- Overall Height (mm): 169
- Overall Width (cm): 9.2
- Overall Width (in): 3.62
- Overall Width (mm): 92
- Power Consumption (W): 450
$854.00
BOX, TEST, GLCX
GG 26A853
GG 26A853
BOX, TEST, GLCX
Graco 26A853 GLC X Pump Simulator
Pump simulator for the GLC X controller. This tool simply plugs into a wall outlet to quickly program the controller and simulate pump inputs. Great for pre-programming the controller or training.
- Application: In-Plant Machinery, Off-Road Equipment, On-Road Vehicles
$937.00
GLC CONTROL, X WITH CABLE
GG 26A855
GG 26A855
GLC CONTROL, X WITH CABLE
GLC X Controller w/14-Pin Connector, 2-Wire, 10 ft Power In and 12-Wire Color Coded 20 ft Cable, Flying Leads The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity. Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites. Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators. Real-Time System Reporting - Program and display a wide range of customizable functions – including lubrication intervals, pressure limits, lubricant levels and more. Smart Device and Mobile App - With the Auto Lube™ app, monitor lubrication levels, configure settings, track history and share important diagnostics. Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory. Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.
$1,285.00
HARNESS, GLC X, KIT
GG 26A882
GG 26A882
HARNESS, GLC X, KIT
14-Pin Connector, 2-Wire, 10 ft Power In and 12-Wire Color Coded 20 ft Cable, Flying Leads 14-pin connector, 2-wire, 10 foot power in and 12-wire color coded 20 foot cable with flying leads
$453.00
SD SERIES SDP18 VALVE, FC, 1/2NPT, RIDG, OIL
GG 26C356
GG 26C356
SD SERIES SDP18 VALVE, FC, 1/2NPT, RIDG, OIL
Graco 26C356 SDP18 Series Electronic Preset Oil/Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet
Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
- Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
- Large, Intuitive Display—high-contrast display for low and bright light conditions
- Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
- Reliable—time-tested Graco engineering
- Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
- Long battery life—uses 4 AA easy-to-replace batteries
- Model: SDP18
- Compatible Material: Oil, Antifreeze, ATF, Gear Oil
- Dispense Type: Preset
- Display Type: Electronic
- Extension Type: Rigid
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Rigid Extension
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 18
- Maximum Flow Rate (L/min): 68
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Recorded Dispense: 9999
- Maximum Storage Temperature (°C): 70
- Maximum Storage Temperature (°F): 158
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±0.5
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 2.4
- Metering Gun Weight (lb): 5.3
- Minimum Flow Rate (GPM): 0.25
- Minimum Flow Rate (L/min): 0.9
- Minimum Operating Temperature (°C): -16
- Minimum Operating Temperature (°F): 4
- Nozzle Type: Manual
- Outlet Thread Type: Straight Thread O-Ring Boss
- Overall Height (cm): 14.6
- Overall Height (in): 5.75
- Overall Height (mm): 146
- Overall Length (cm): 33
- Overall Length (in): 13
- Overall Length (mm): 330
- Overall Width (cm): 9.5
- Overall Width (in): 3.75
- Overall Width (mm): 95
- Product Type: Meter
- Recommended Environment: Indoor
$1,650.00
SD SERIES SDP18 VALVE, FC, 1/2NPT, FLEX, OIL
GG 26C357
GG 26C357
SD SERIES SDP18 VALVE, FC, 1/2NPT, FLEX, OIL
Graco 26C357 SDP18 Series Electronic Preset Oil/Antifreeze Meter - Flexible Extension - 1/2 in. (13 mm) Inlet
Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
- Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
- Large, Intuitive Display—high-contrast display for low and bright light conditions
- Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
- Reliable—time-tested Graco engineering
- Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
- Long battery life—uses 4 AA easy-to-replace batteries
- Model: SDP18
- Compatible Material: Oil, Antifreeze, ATF, Gear Oil
- Dispense Type: Preset
- Display Type: Electronic
- Extension Type: Flexible
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Flexible Extension
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 18
- Maximum Flow Rate (L/min): 68
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Recorded Dispense: 9999
- Maximum Storage Temperature (°C): 70
- Maximum Storage Temperature (°F): 158
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±0.5
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 2.4
- Metering Gun Weight (lb): 5.3
- Minimum Flow Rate (GPM): 0.25
- Minimum Flow Rate (L/min): 0.9
- Minimum Operating Temperature (°C): -16
- Minimum Operating Temperature (°F): 4
- Nozzle Type: Manual
- Outlet Thread Type: Straight Thread O-Ring Boss
- Overall Height (cm): 14.6
- Overall Height (in): 5.75
- Overall Height (mm): 146
- Overall Length (cm): 33
- Overall Length (in): 13
- Overall Length (mm): 330
- Overall Width (cm): 9.5
- Overall Width (in): 3.75
- Overall Width (mm): 95
- Product Type: Meter
- Recommended Environment: Indoor
$1,650.00

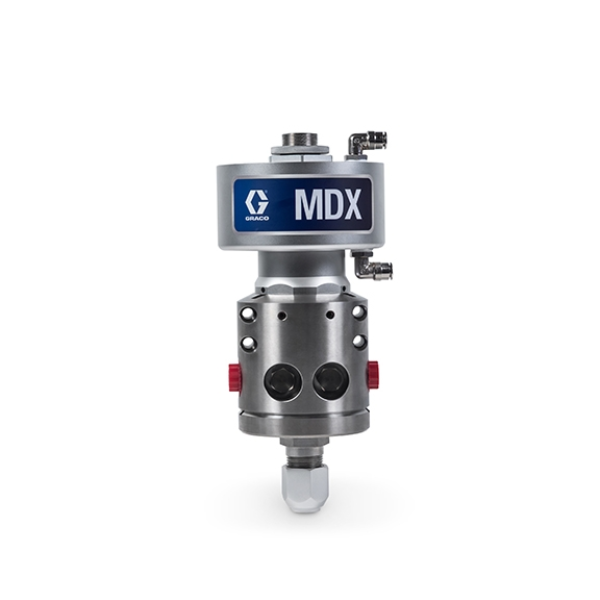

VALVE, DISPENCE, MDX
GG 26D274
GG 26D274
VALVE, DISPENCE, MDX
MDX, High flow valve, 2-component The Graco MDX valve is designed for a two-component high flow dispensing application. The high wear resistance design enables an excellent life performance even with dispensing highly abrasive material such as Thermal Interface Material. It`s a perfect fit in EV battery pack, solar energy, wind power and etc. markets. High flow rate dispensing, 2 component High flow rate Easy intergration for automation High wear resistance for reduced maintainance Wear resistant design handles viscous and abrasive thermal interface material, lessening required maintenance. Recirculation function keeps material from settling.
$15,000.00
PM SERIES VALVE, PM8, NPT, GEAR LUBE
GG 273158
GG 273158
PM SERIES VALVE, PM8, NPT, GEAR LUBE
Graco 273158 PM™ 8 Electronic Preset Gear Lube Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT
Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
- Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
- Durable Cast Body - Designed for heavy duty and harsh applications.
- High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
- Long Battery Life - Features four easily-replaceable AA batteries.
- Series: 8
- Calibration Type: Factory Calibrated
- Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Electronic
- Extension Type: Rigid
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Extension
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- IP Rating: 69K
- Maximum Flow Rate (cc/min): 30283
- Maximum Flow Rate (cc/sec): 505
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30.3
- Maximum Operating Temperature (°C): 52
- Maximum Operating Temperature (°F): 125
- Maximum Recorded Dispense: 19999
- Maximum Storage Temperature (°C): 85
- Maximum Storage Temperature (°F): 185
- Maximum Totalizer: 19999
- Maximum Working Pressure (bar): 102
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy: ±0.5
- Meter Accuracy (%): ±0.5
- Meter Pressure Loss (bar): 4.1 Bar at 6 GPM
- Meter Pressure Loss (psi): 60 PSI at 6 GPM
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 2.4
- Metering Gun Weight (lb): 5.2
- Minimum Flow Rate (GPM): 0.25
- Minimum Operating Temperature (°C): -29
- Minimum Operating Temperature (°F): -20
- Nozzle Type: Manual
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: ORB
- Overall Height (cm): 18.3
- Overall Height (in): 7.2
- Overall Height (mm): 183
- Overall Length (cm): 57.5
- Overall Length (in): 22.6
- Overall Length (mm): 575
- Overall Width (cm): 10.4
- Overall Width (in): 4.1
- Overall Width (mm): 103.5
- Recommended Environment: Indoor/Outdoor
$1,250.00
PM SERIES VALVE, PM20, 1/2"NPT, RIGID
GG 273165
GG 273165
PM SERIES VALVE, PM20, 1/2"NPT, RIGID
Graco 273165 PM™ 20 Electronic Preset Oil Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT
Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
- Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
- Durable Cast Body - Designed for heavy duty and harsh applications.
- High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
- Long Battery Life - Features four easily-replaceable AA batteries.
- Series: 20
- Calibration Type: Factory Calibrated
- Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Electronic
- Extension Type: Rigid
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Extension
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- IP Rating: 69K
- Maximum Flow Rate (cc/min): 75708
- Maximum Flow Rate (cc/sec): 1262
- Maximum Flow Rate (GPM): 20
- Maximum Flow Rate (L/min): 75.7
- Maximum Operating Temperature (°C): 52
- Maximum Operating Temperature (°F): 125
- Maximum Recorded Dispense: 19999
- Maximum Storage Temperature (°C): 85
- Maximum Storage Temperature (°F): 185
- Maximum Totalizer: 19999
- Maximum Working Pressure (bar): 102
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy: ±0.5
- Meter Accuracy (%): ±0.5
- Meter Pressure Loss (bar): 10.3 Bar at 12 GPM
- Meter Pressure Loss (psi): 150 PSI at 12 GPM
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 2.4
- Metering Gun Weight (lb): 5.2
- Minimum Flow Rate (GPM): 0.25
- Minimum Operating Temperature (°C): -29
- Minimum Operating Temperature (°F): -20
- Nozzle Type: Manual
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: ORB
- Overall Height (cm): 18.3
- Overall Height (in): 7.2
- Overall Height (mm): 183
- Overall Length (cm): 54.4
- Overall Length (in): 21.4
- Overall Length (mm): 544
- Overall Width (cm): 10.4
- Overall Width (in): 4.1
- Overall Width (mm): 103.5
- Recommended Environment: Indoor/Outdoor
$1,350.00
RAC 5 TIP, SPRAY
GG 286111
GG 286111
RAC 5 TIP, SPRAY
Graco 286111 RAC 5 SwitchTip, 111
The Reverse-A-Clean (RAC) 111 RAC 5 SwitchTip is designed for narrower surfaces and thin materials. The 111 SwitchTip has a 0.011 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.011
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
$62.75
