Glc Control, X

GG 26A814

GLC CONTROL, X

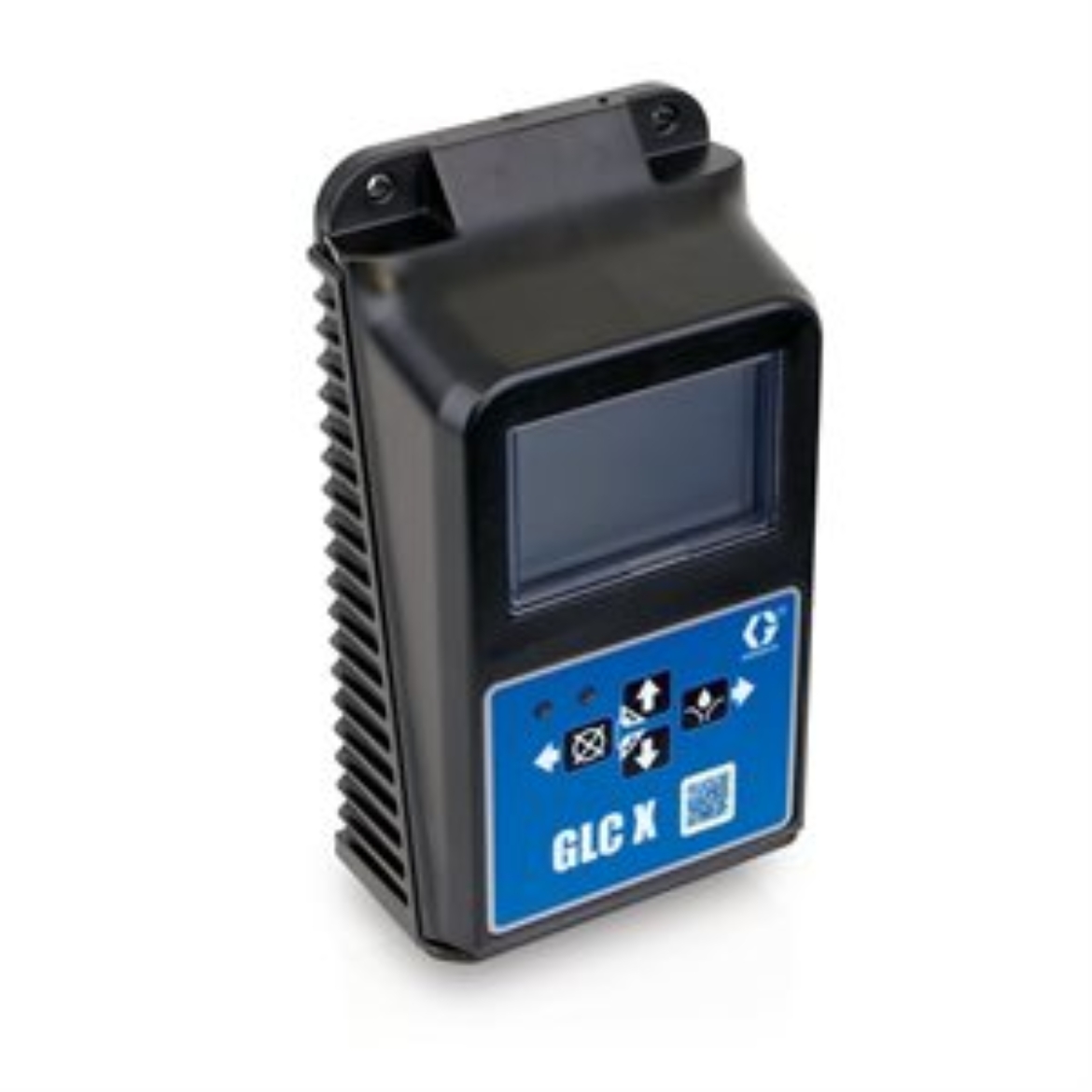

Graco 26A814 GLC X Controller

The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity.

• Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites.
• Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators.
• Real-Time System Reporting - Program and display a wide range of customizable functions - including lubrication intervals, pressure limits, lubricant levels and more.
• Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory.
• Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.

• Model: GLC
• Series: X

• Amperage (A): 15
• Application: In-Plant Machinery, Off-Road Equipment, On-Road Vehicles

• Auxiliary Alarm Max Switching Current (A): 10
• Auxiliary Alarm Max Switching Voltage (VDC): 9-30
• Auxiliary Alarm Voltage: 9-30 VDC

• Control Mode: Timer, Pressure, Cycle

• Count Rate (counts/sec @ 50% duty cycle): 5
• Current Consumption (A): 15

• Intrusion Rating: IP69K

• Low Level Alarm Max Switching Current (A): 10
• Low Level Alarm Max Switching Voltage (VDC): 30

• Lubrication Level Input: Input 1: 10V
• Machine Count Control Input: Input 4

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Program Time (min): 99
• Maximum Program Time (sec): 5999

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158
• Maximum System Cycle Count: 100

• Maximum Voltage (V dc): 30
• Maximum Voltage (V): 30

• Minimum Ambient Temperature ( degree F): -22

• Minimum Monitor Time (hrs): 0
• Minimum Monitor Time (min): 1
• Minimum Monitor Time (sec): 0

• Minimum Monitor Time (strokes): 1
• Minimum Operating Temperature ( degree C): -30
• Minimum Operating Temperature ( degree F): -22

• Minimum Program Time (hrs): 0
• Minimum Program Time (min): 0
• Minimum Program Time (sec): 10
• Minimum Program Time (strokes): 1
• Minimum Storage Temperature ( degree C): -30
• Minimum Storage Temperature ( degree F): -22

• Minimum System Cycle Count: 1
• Minimum Voltage (V dc): 9
• Minimum Voltage (V): 9

• Number of Pieces: 1

• Overall Depth (cm): 5
• Overall Depth (in): 1.98

• Overall Height (cm): 16.9
• Overall Height (in): 6.66
• Overall Height (mm): 169
• Overall Width (cm): 9.2
• Overall Width (in): 3.62
• Overall Width (mm): 92

• Power Consumption (W): 450

• Power Source: Electric

• Pump Control Max Switching Current (A): 10
• Pump Control Max Switching Voltage (VDC): 30
• Pump Control Voltage (VDC): 9-30
