Contractor Flat Tip, Spray

GG 269515

CONTRACTOR FLAT TIP, SPRAY

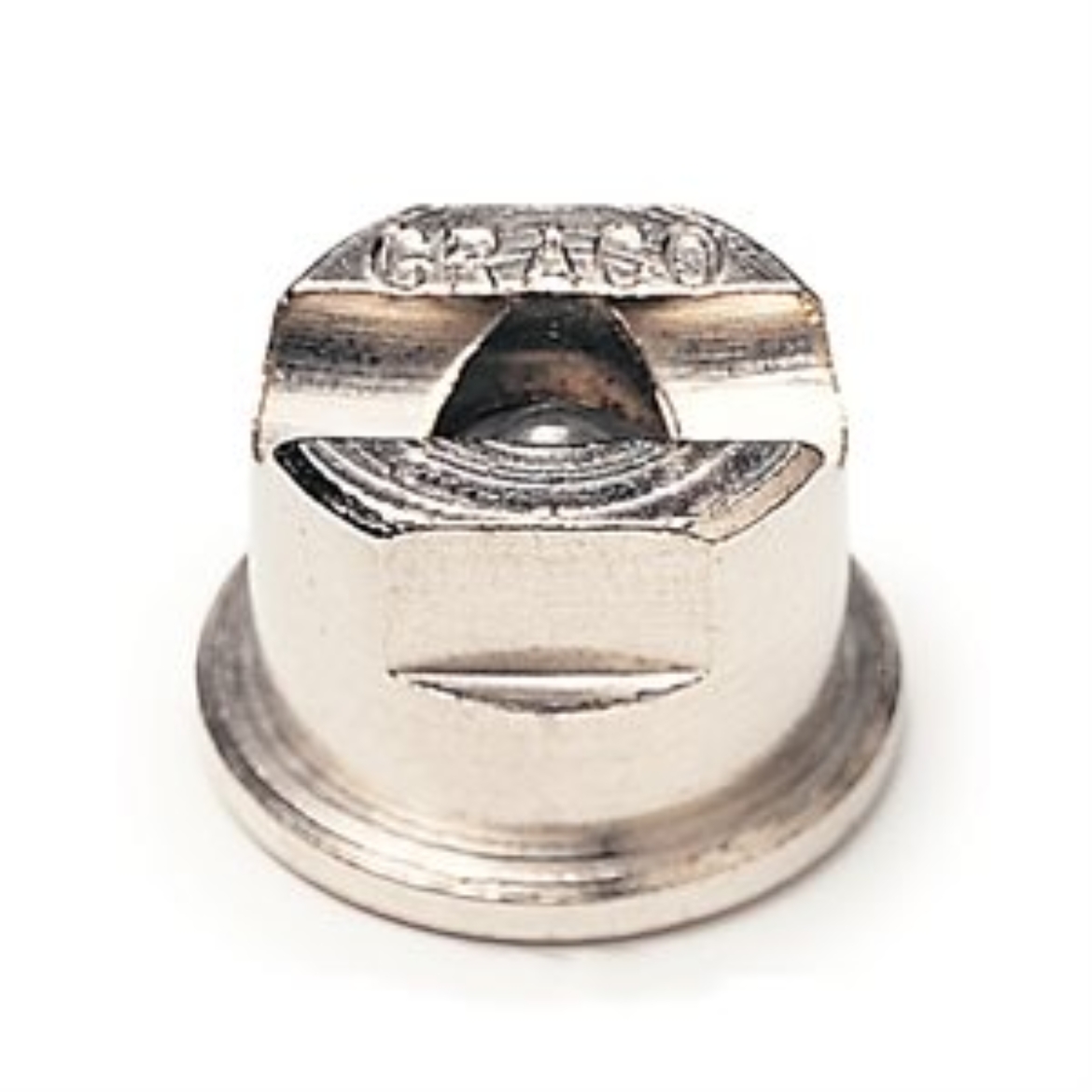

Graco 269515 Contractor Flat Tip, 515

The 515 Contractor Flat Tip produces a 10 to 12 inch fan and has a 0.015 inch orifice.

• Model: Contractor
• Series: Flat Tip

• Compatible Material: Architectural Coating

• For Use With: Silver Plus Airless Spray Gun

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.24
• Maximum Flow Rate (L/min): 0.91

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (psi): 5000

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.015

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8
