PM Series Valve, PM8, Npt, Gear Lube

GG 273158

PM SERIES VALVE, PM8, NPT, GEAR LUBE

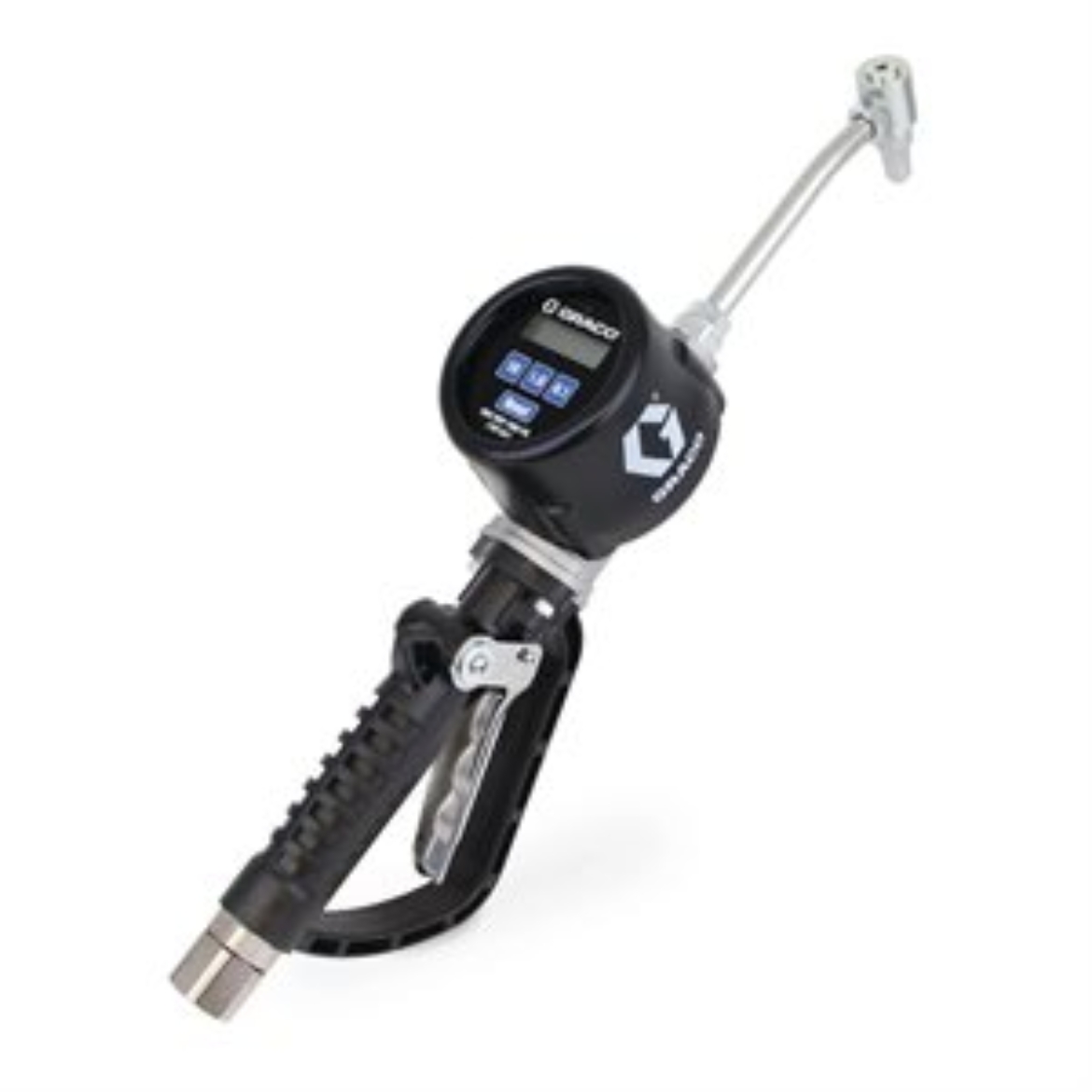

Graco 273158 PM 8 Electronic Preset Gear Lube Meter - Rigid Extension - 1/2 in. (13 mm) Inlet - NPT

Use Graco's PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.

• Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
• Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
• Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
• Durable Cast Body - Designed for heavy duty and harsh applications.
• High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
• Long Battery Life - Features four easily-replaceable AA batteries.

• Series: 8

• Calibration Type: Factory Calibrated

• Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze

• Dispense Type: Preset

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• IP Rating: 69K

• Maximum Flow Rate (cc/min): 30283

• Maximum Flow Rate (cc/sec): 505
• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30.3

• Maximum Operating Temperature ( degree C): 52
• Maximum Operating Temperature ( degree F): 125

• Maximum Recorded Dispense: 19999

• Maximum Storage Temperature ( degree C): 85
• Maximum Storage Temperature ( degree F): 185

• Maximum Totalizer: 19999

• Maximum Working Pressure (bar): 102
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10
• Maximum Working Pressure (psi): 1500
• Meter Accuracy: plus/minus 00.5
• Meter Accuracy (%): plus/minus 00.5
• Meter Pressure Loss (bar): 4.1 Bar at 6 GPM
• Meter Pressure Loss (psi): 60 PSI at 6 GPM
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.2

• Minimum Flow Rate (GPM): 0.25

• Minimum Operating Temperature ( degree C): -29
• Minimum Operating Temperature ( degree F): -20

• Nozzle Type: Manual

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: ORB

• Overall Height (cm): 18.3
• Overall Height (in): 7.2
• Overall Height (mm): 183
• Overall Length (cm): 57.5
• Overall Length (in): 22.6
• Overall Length (mm): 575
• Overall Width (cm): 10.4
• Overall Width (in): 4.1
• Overall Width (mm): 103.5

• Recommended Environment: Indoor/Outdoor
