Nutrunner

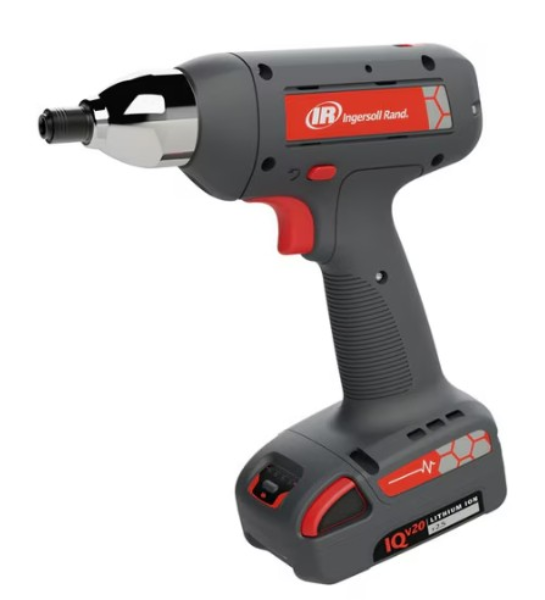

IR QXXD2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

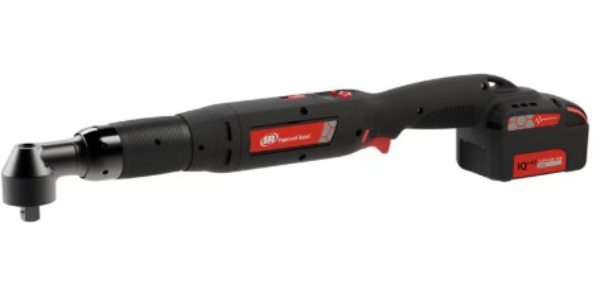

IR QXXD5AT030PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

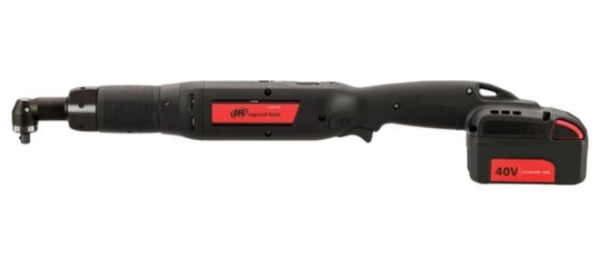

IR QXXD5AT040ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 354 in-lb Torque, 545 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 545
Max Torque (ft-lb): 30
Max Torque (in-lb): 354
Max Torque (nm): 40
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.1
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 5.9-30
Recommended Forward Torque Range (in-lb): 71-354
Recommended Forward Torque Range (nm): 8.0-40
Retainer Type: Pin Detent
Reversible: Reversible
Side

IR QXXN2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25

STR 10011

Torque Transducers: L Series

Model	:		TT 100IO
Torque Range (cNm)	:		7.0 - 70.6 cNM
Torque Range (in-oz)	:		10 - 100 ozf.in
Square	:		1/4 in

Product Description

• Built-in L-bracket for mounting perpendicular to your surface
• Requires detachable cable Part: 10293
• Mounting holes drilled for 5/16 bolts, 3.25 on center

AIM UOW-11-14

Tubenut & Geared Nutrunners 3/8-5/8Hex 15.7Nm 260Rpm Stall 3/8-5/8Hex 15.7Nm 260Rpm

CL 47BAYPB90P4

CLECO WIRELESS NUTSETTER ANGLE

CL CLBAW123-NA

CellClutch cordless right angle tool offering reliable clutch shut-off for consistent torque results.

Cleco CLBAW123-NA cordless right angle nutrunner.

• CellClutch Series
• Right Angle
• North America model

CL CLBAW653-NA

Nutrunner CLW AH - 65 Nm

CL CTBAW503

Nutsetter, CTAH-50nm

IR 9SQ-108

SPINDLE

IR QXFN2AT015PS06

3/8" 20V Cordless QX Precision Fastening Angle Torque Wrench, 133 in-lb, 600 RPM

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV® 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android; Through ICS Software; Through INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 600
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 2.2-11
Recommended Forward Torque Range (in-lb): 27-133
Recommended Forward Torque Range (nm): 3-15
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXXD2AT005PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 44 in-lb Torque, 1213 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1213
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 5
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.5
Recommended Forward Torque Range (ft-lb): 0.7-3.7
Recommended Forward Torque Range (in-lb): 8.9-44
Recommended Forward Torque Range (nm): 1.0-5
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.36
Side to Center Distance (mm): 9
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT018EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 2

JC 0510-0018

Needle Bearing

JC 4194

Closed End Offset Assembly, 13mm Surf Dr. Thru, 23Nm

JC 4194-23

Gear, Idler, 18P, 19T, .312FW, .5630 ID

JC 4194-24

Gear, Socket, 18P, 19T, .312FW, 13mm SD Thru

SX SNR10A10S

Nutrunner, R/A, Stall Drive, 1000 RPM

AA QA1L08C1LD

Q2 Nutrunner W/ E-Chip

CL CCBPW04Q

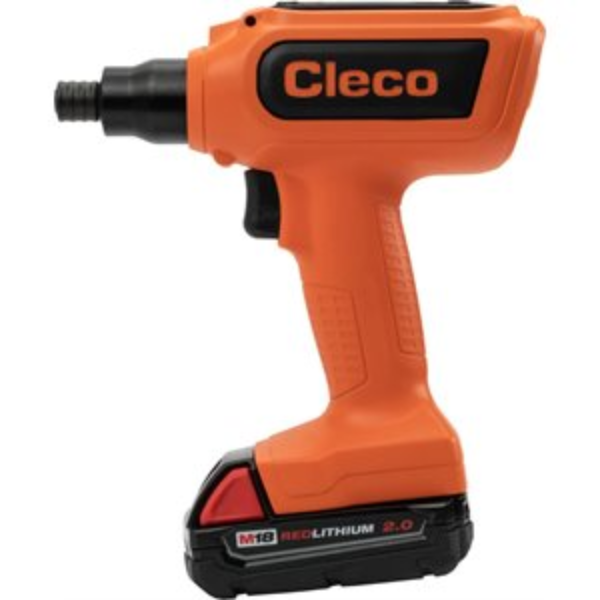

NUTSTR, CC PISTOL - 4NM Q

IR QA1L05D4LD

Q2 NUTRUNNER W/ E-CHIP

IR QA1L05D6LD

Q2 NUTRUNNER W/ E-CHIP

IR QA1L08S1LD

Q2 NUTRUNNER W/ E-CHIP

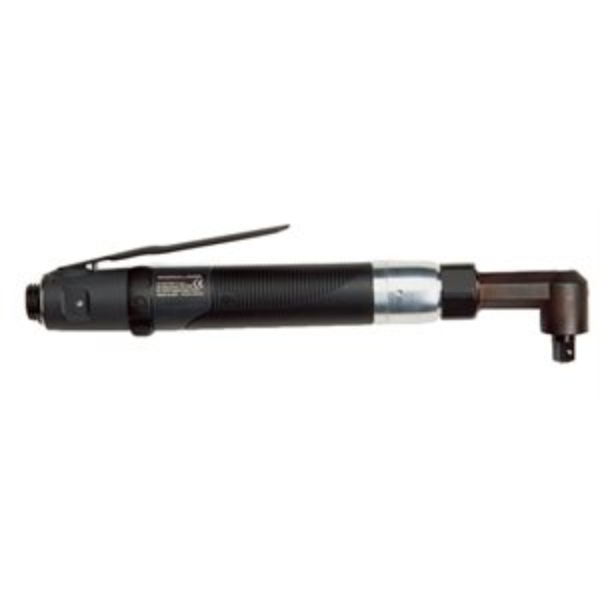

IR QA1L08S6LD

Q2 NUTRUNNER W/ E-CHIP
