Nutrunner

IR QXXN2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback - displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

JC 0116-0500

JC 4194-22

SX SCN12R1032

SX SCN12RM610

AIM AEF35090AVB

CL 34RAA33AX3

IR 7RAK-302

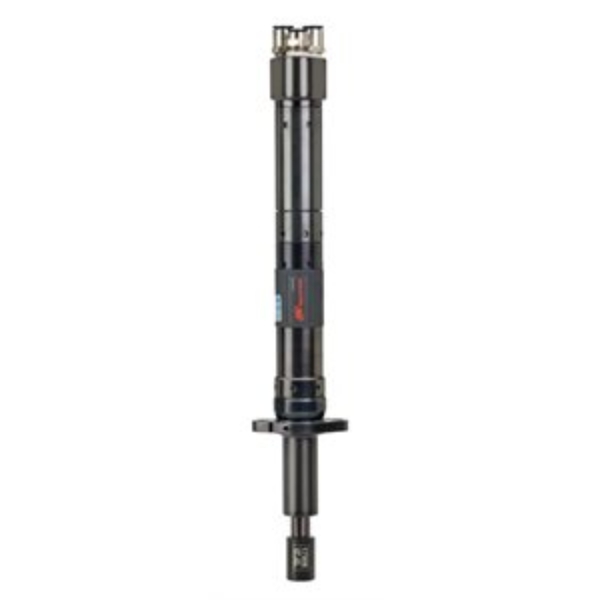

IR QA4ASLS015NP41S06

IR QA8AALS150NP48S08

IR QE2SL007P10Q04

IR QE2TS005P11Q04

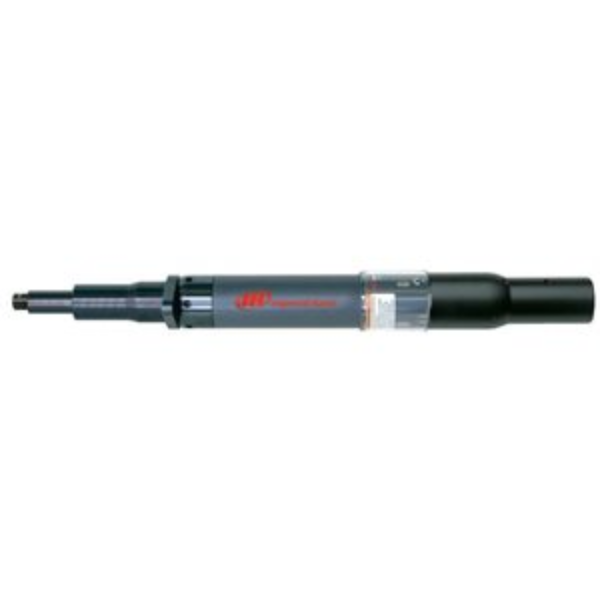

IR QE4SC025B41S06

IR QM9SS315H62S12

IR QXFN2PT018EQ04

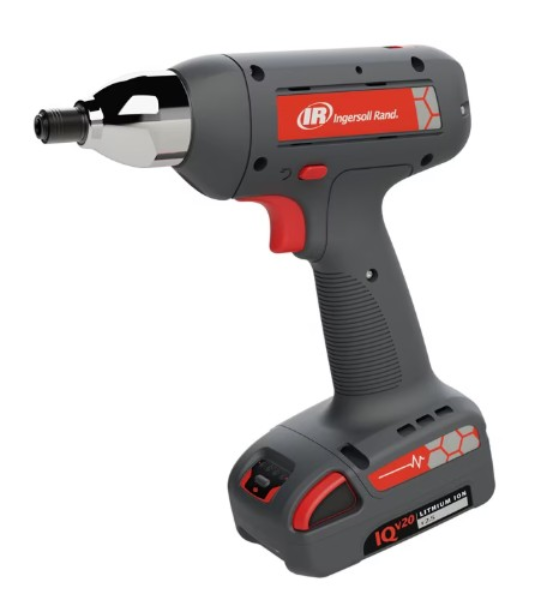

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

Description: Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise - that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol - ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

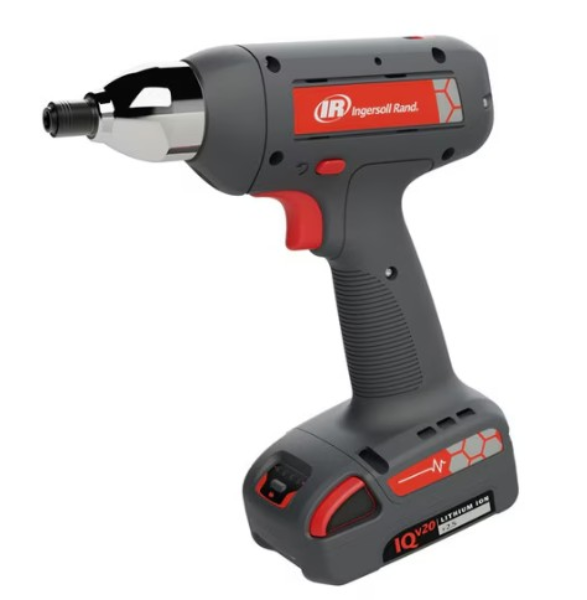

IR QXXD2PT012ES06

3/8in 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise - that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback - displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol - ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 7.99
