Nutrunner

IR QA8ASLS180NF41S08

IR QA8ASRS115NF41S08

IR QA8ASRS180NF41S08

IR QE2TS010P11S04

IR QE6SE033F41S06

IR QE8AT115FA6S08

IR QE8AT400FA8S12

IR QE8SC090F61S08

IR QE8ST150F41S08

IR QM5SS055H92S08

IR QXFN2AT015PS06

3/8" 20V Cordless QX Precision Fastening Angle Torque Wrench, 133 in-lb, 600 RPM

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 600
• Max Torque (ft-lb): 11
• Max Torque (in-lb): 133
• Max Torque (nm): 15
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 20.67

• Product Weight (lb): 2.6
• Recommended Forward Torque Range (ft-lb): 2.2-11
• Recommended Forward Torque Range (in-lb): 27-133
• Recommended Forward Torque Range (nm): 3-15
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.49
• Side to Center Distance (mm): 12

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

IR QXFN2AT027ES06

3/8" 20V Cordless QX Precision Fastening Angle Torque Wrench, 239 in-lb, 330 RPM

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 330
• Max Torque (ft-lb): 20
• Max Torque (in-lb): 239
• Max Torque (nm): 27
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Weight (lb): 3.7
• Recommended Forward Torque Range (ft-lb): 4.0-20
• Recommended Forward Torque Range (in-lb): 48-239
• Recommended Forward Torque Range (nm): 5.4-27
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.68
• Side to Center Distance (mm): 17

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

IR QXFN2PT012EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

Description: Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Ergonomic tightening system to reduce torque reaction experienced by operator.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

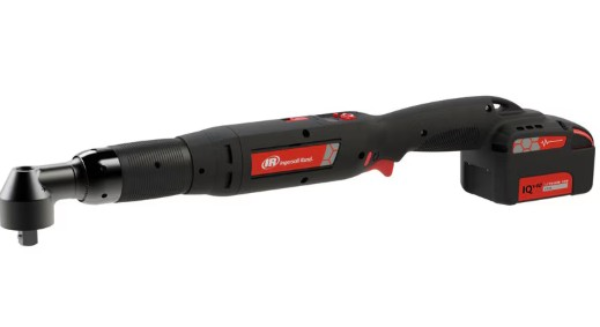

IR QXFN5AT040PS08

1/2" 40V Cordless QX Precision Fastening Angle Screwdriver, 354 in-lb Torque, 545 RPM

Description: Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series IQV 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 545
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 354
• Max Torque (nm): 40
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 5.9-30
• Recommended Forward Torque Range (in-lb): 71-354
• Recommended Forward Torque Range (nm): 8.0-40
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: No Wireless Functionality
• Wireless Tool Tracking: Mini USB

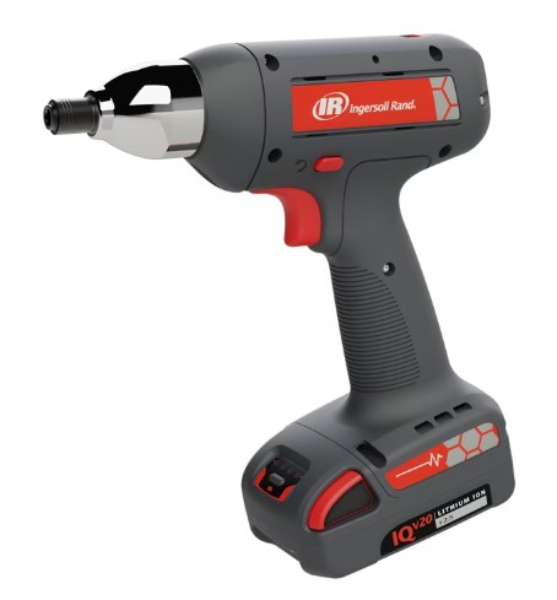

IR QXXD2PT008EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

IR QXXD2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

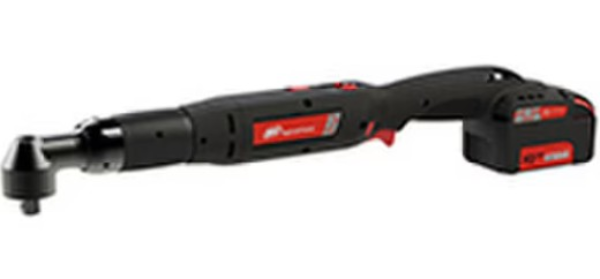

IR QXXD5AT030PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM, Display

Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key on QXXD Models.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 775
• Max Torque (ft-lb): 22
• Max Torque (in-lb): 266
• Max Torque (nm): 30
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 22.91

• Product Height (in): 3.94
• Product Weight (lb): 4.8
• Recommended Forward Torque Range (ft-lb): 4.4-22
• Recommended Forward Torque Range (in-lb): 53-266
• Recommended Forward Torque Range (nm): 6.0-30
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.68
• Side to Center Distance (mm): 17

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

IR QXXN2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb Torque, 330 RPM

Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 330
• Max Torque (ft-lb): 20
• Max Torque (in-lb): 239
• Max Torque (nm): 27
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Weight (lb): 3.7
• Recommended Forward Torque Range (ft-lb): 4.0-20
• Recommended Forward Torque Range (in-lb): 48-239
• Recommended Forward Torque Range (nm): 5.4-27
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.67
• Side to Center Distance (mm): 17

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: USB-C

JC 0170-0201

JC 0510-0018

JC 1515-0015

JC 2234-16547

JC 2424-10536

JC 2514-18639

JC 4194-20
