    Nutrunner

    View as Grid List
    Sort by
    Display items per page
    Picture of Nutsetter, CTAH-50nm

    Nutsetter, CTAH-50nm

    CL CTBAW503

    CL CTBAW503

    Nutsetter, CTAH-50nm
    Designed to ensure safety-critical assembly with best-in-class accuracy, they are also the fastest cordless assembly tools in its class.
    • Connectivity - The most reliable realtime synchronization with manufacturing and engineering systems

    • Speed - Improve your production time with the fastest cordless assembly tools in its class

    • Ergonomic - Sleek and lightweight for the ultimate in comfort and balance

    • Accurate - Ensures safety-critical assembly with best-in-class accuracy and repeatability

    Weight (lbs): 3.5 lb

    Values do not include battery. 2ah Battery weighs 0.43kg. 5ah Battery weighs 0.72kg.
    $12,507.95
    Picture of Throttle Valve Seat

    Throttle Valve Seat

    IR 7RAK-303

    IR 7RAK-303

    Throttle Valve Seat
    $10.90

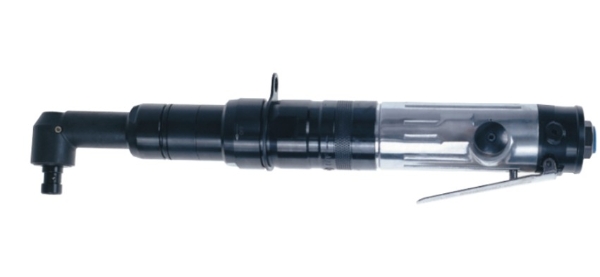

    Picture of Angle Wrench 25-130Inlb

    Angle Wrench 25-130Inlb

    IR 7RLM3C6

    IR 7RLM3C6

    Angle Wrench 25-130Inlb
    $2,117.52
    Picture of Power Unit

    Power Unit

    IR 9RSQ

    IR 9RSQ

    Power Unit
    $3,335.08

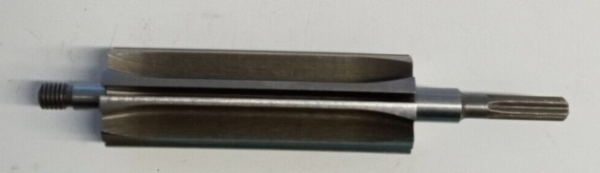

    Picture of Rotor (9Rsm)

    Rotor (9Rsm)

    IR 9SM-53

    IR 9SM-53

    Rotor (9Rsm)
    $764.00
    Picture of Spindle

    Spindle

    IR 9SQ-108

    IR 9SQ-108

    Spindle
    $418.00
    IR QA4AALS030NP28S06.jpg

    Nutrunner, R/A, Lever, Shutoff

    IR QA4AALS030NP28S06

    IR QA4AALS030NP28S06

    Nutrunner, R/A, Lever, Shutoff
    $2,781.88

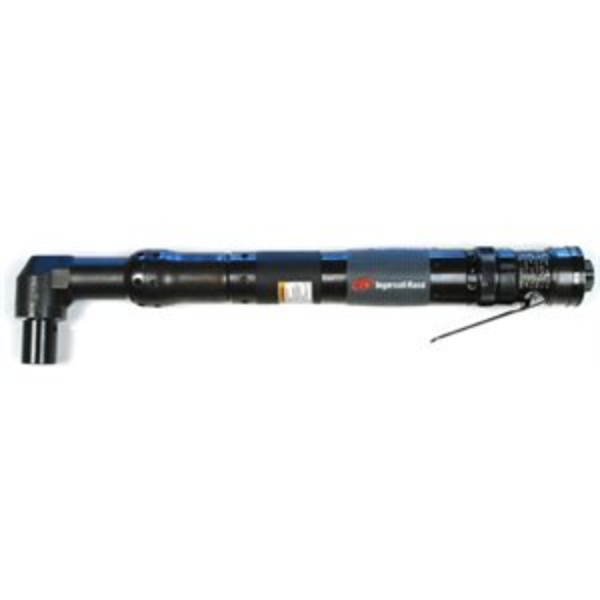

    IR QA4AALS040NP35S06.jpg

    R/A Nutrunner, 40 Nm, 3/8 In Sq Dr.

    IR QA4AALS040NP35S06

    IR QA4AALS040NP35S06

    R/A Nutrunner, 40 Nm, 3/8 In Sq Dr.
    $2,913.80

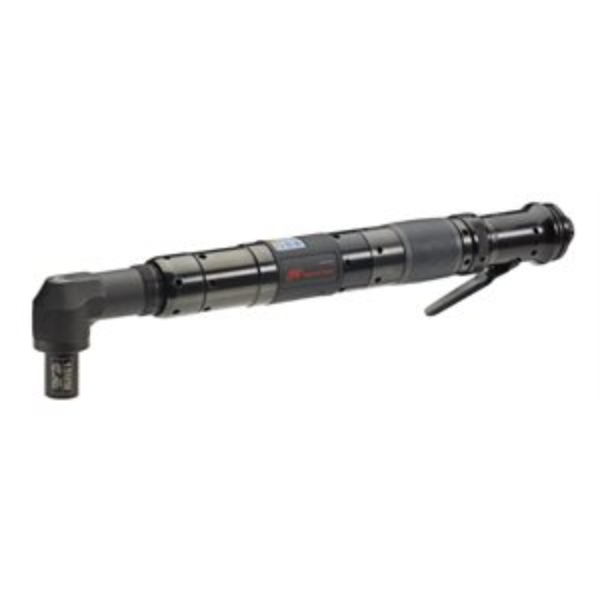

    IR QA6AALD055NP35S08.jpg

    Nutrunner

    IR QA6AALD055NP35S08

    IR QA6AALD055NP35S08

    Nutrunner
    $2,853.96

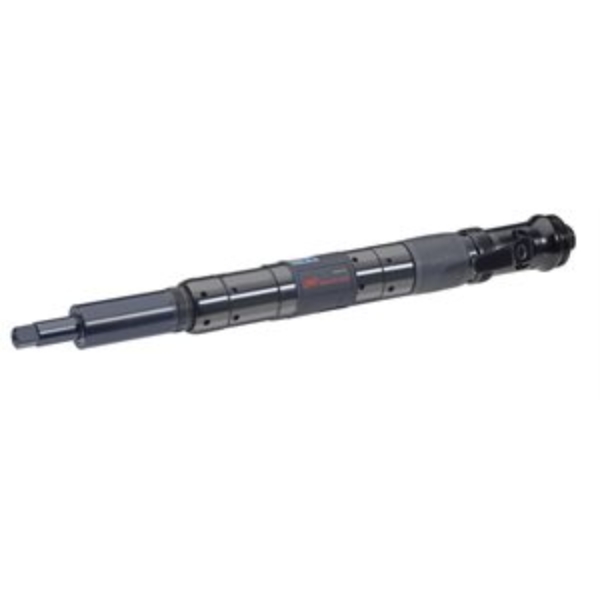

    IR QA6ASLS025NP41S06.jpg

    Nutrunner

    IR QA6ASLS025NP41S06

    IR QA6ASLS025NP41S06

    Nutrunner
    $3,140.24
    IR QA6ASLS040NP41S06.jpg

    Nutrunner

    IR QA6ASLS040NP41S06

    IR QA6ASLS040NP41S06

    Nutrunner
    $3,310.24
    IR QA8AALS070NP43S08.jpg

    Nutrunner

    IR QA8AALS070NP43S08

    IR QA8AALS070NP43S08

    Nutrunner
    $3,824.32

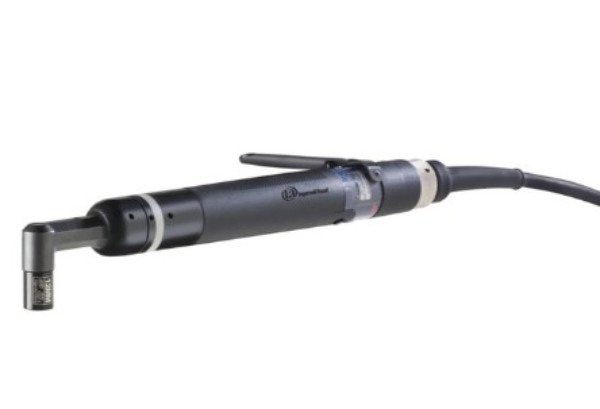

    Picture of Assembly Tool

    Assembly Tool

    IR QE2AL015PA3S06

    IR QE2AL015PA3S06

    Assembly Tool
    Call for pricing

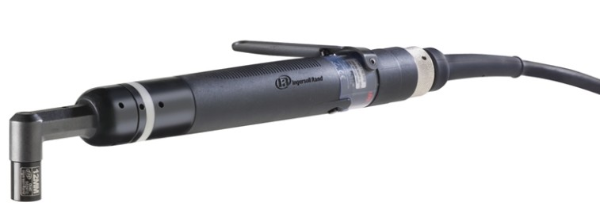

    Picture of Nutrunner R/A Extended DC Electric

    Nutrunner R/A Extended DC Electric

    IR QE4AE020PA2S06

    IR QE4AE020PA2S06

    Nutrunner R/A Extended DC Electric
    Call for pricing

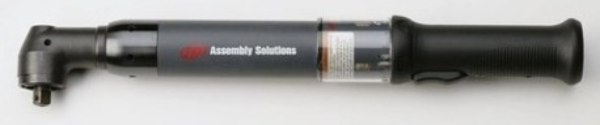

    Picture of Dc Electric, Right Angle, 27Nm, 1/2In Drive

    Dc Electric, Right Angle, 27Nm, 1/2In Drive

    IR QE4AT027PA4S08

    IR QE4AT027PA4S08

    Dc Electric, Right Angle, 27Nm, 1/2In Drive
    Call for pricing
    Picture of Assembly Tool

    Assembly Tool

    IR QE4PT010P10Q04

    IR QE4PT010P10Q04

    Assembly Tool
    Call for pricing

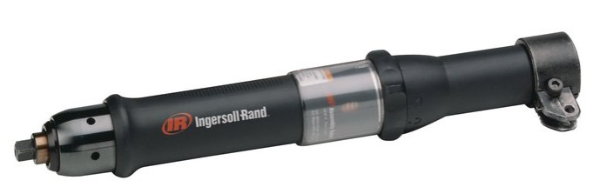

    Picture of Nutrunner, DC, Inline, Trigger Start

    Nutrunner, DC, Inline, Trigger Start

    IR QE4ST015B21S06

    IR QE4ST015B21S06

    Nutrunner, DC, Inline, Trigger Start
    Call for pricing
    Picture of Nutrunner, Inline, 50nm,  1/2 Dr

    Nutrunner, Inline, 50nm, 1/2 Dr

    IR QE6SC050F61S08

    IR QE6SC050F61S08

    Nutrunner, Inline, 50nm, 1/2 Dr
    Call for pricing

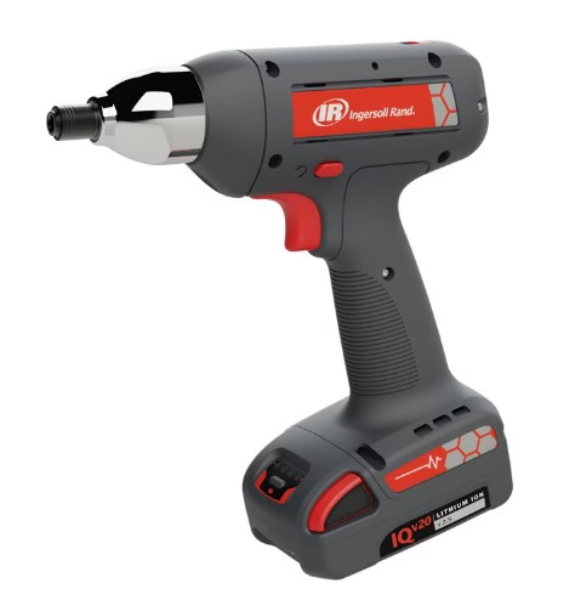

    Picture of Qx No Radio, No Display, 20V Pistol 8 Nm Standard Square 3/8 Inch

    Qx No Radio, No Display, 20V Pistol 8 Nm Standard Square 3/8 Inch

    IR QXFN2PT008PS06

    IR QXFN2PT008PS06

    3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

    Description: Designed to replace traditional clutch tools, the 20V pistol grip QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

    Features And Benefits:

    • Comes with 32 programmable tightening configuration.
    • 1,200 cycles of onboard tightening data storage
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • All QX Series IQV 20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
    • Insight Connect Android APP Link.
    • Programming Methods: Through USB with Insight Connect App available on Android, Through ICS Software, Through INISGHTqcx Controllers.
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: Yes
    • Color: Grey
    • Configuration/Handle Type: Pistol Grip
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 3/8
    • Drive Type: Square
    • Max Free Speed (rpm): 1150
    • Max Torque (ft-lb): 5.9
    • Max Torque (in-lb): 71
    • Max Torque (nm): 8
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 8.35
    • Product Height (in) (with Battery): 10.07
    • Product Weight (lb): 2
    • Recommended Forward Torque Range (ft-lb): 1.2-5.9
    • Recommended Forward Torque Range (in-lb): 14-71
    • Recommended Forward Torque Range (nm): 1.6-8
    • Retainer Type: Pin Detent
    • Reversible: Reversible
    • Side to Center Distance (in): 1
    • Side to Center Distance (mm): 25
    • Sound Pressure/Power Db(A): < 70.0
    • User Interface: No Display
    • Voltage DC: 20
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: No Wireless Functionality
    • Wireless Tool Tracking: Mini USB
    Call for pricing

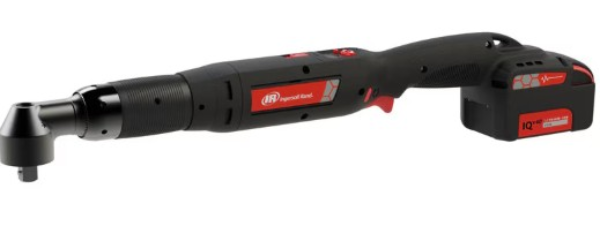

    Picture of Qx No Radio, No Display, 40V Angle 35 Nm Standard Square 3/8 Inch

    Qx No Radio, No Display, 40V Angle 35 Nm Standard Square 3/8 Inch

    IR QXFN5AT035PS06

    IR QXFN5AT035PS06

    3/8" 40V Cordless QX Precision Fastening Angle Screwdriver, 310 in-lb Torque, 640 RPM

    Description: Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

    Features And Benefits:

    • Comes with 32 programmable tightening configuration.
    • 1,200 cycles of onboard tightening data storage.
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • The QX Series IQV 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV Series 40V, 2.5Ah charger BC1161.
    • Insight Connect Android APP Link.
    • Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: No
    • Color: Grey
    • Configuration/Handle Type: Right Angle
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 3/8
    • Drive Type: Square
    • Max Free Speed (rpm): 640
    • Max Torque (ft-lb): 26
    • Max Torque (in-lb): 310
    • Max Torque (nm): 35
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 22.91
    • Product Height (in): 3.94
    • Product Weight (lb): 4.8
    • Recommended Forward Torque Range (ft-lb): 5.2-26
    • Recommended Forward Torque Range (in-lb): 62-310
    • Recommended Forward Torque Range (nm): 7.0-35
    • Retainer Type: Pin Detent
    • Reversible: Reversible
    • Side to Center Distance (in): 0.68
    • Side to Center Distance (mm): 17
    • User Interface: No Display
    • Voltage DC: 40
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: No Wireless Functionality
    • Wireless Tool Tracking: Mini USB
    Call for pricing
    Picture of Qx Zigbee And Bluetooth, Display, 20V Angle 5 Nm Standard Quick Connect 1/4 Inch

    Qx Zigbee And Bluetooth, Display, 20V Angle 5 Nm Standard Quick Connect 1/4 Inch

    IR QXXD2AT005PQ04

    IR QXXD2AT005PQ04

    1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 44 in-lb Torque, 1213 RPM, Display

    Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

    Features And Benefits:

    • Now Comes with 32 programmable tightening configuration.
    • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
    • Enhanced quantitative feedback - displaying the actual measured torque or angle result.
    • 1,200 cycles of onboard tightening data storage.
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
    • Offer option for Insight Connect Android APP LINK
    • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
    • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: No
    • Color: Grey
    • Configuration/Handle Type: Right Angle
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 1/4
    • Drive Type: Hex
    • Max Free Speed (rpm): 1213
    • Max Torque (ft-lb): 3.7
    • Max Torque (in-lb): 44
    • Max Torque (nm): 5
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 21.73
    • Product Height (in) (with Battery): 3.94
    • Product Weight (lb): 2.5
    • Recommended Forward Torque Range (ft-lb): 0.7-3.7
    • Recommended Forward Torque Range (in-lb): 8.9-44
    • Recommended Forward Torque Range (nm): 1.0-5
    • Retainer Type: Quick Change
    • Reversible: Reversible
    • Side to Center Distance (in): 0.36
    • Side to Center Distance (mm): 9
    • User Interface: Display
    • Voltage DC: 20
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: Bluetooth
    • Wireless Tool Tracking: 802.15.4
    • Wireless Tool Tracking: USB-C
    Call for pricing
    Picture of Qx Zigbee And Bluetooth, Display, 20V Angle 18 Nm Standard Quick Connect 1/4 Inch

    Qx Zigbee And Bluetooth, Display, 20V Angle 18 Nm Standard Quick Connect 1/4 Inch

    IR QXXD2AT018PQ04

    IR QXXD2AT018PQ04

    1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM, Display

    Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

    Features And Benefits:

    • Now Comes with 32 programmable tightening configuration.
    • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
    • Enhanced quantitative feedback - displaying the actual measured torque or angle result.
    • 1,200 cycles of onboard tightening data storage.
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
    • Offer option for Insight Connect Android APP LINK
    • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
    • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: No
    • Color: Grey
    • Configuration/Handle Type: Right Angle
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 1/4
    • Drive Type: Hex
    • Max Free Speed (rpm): 500
    • Max Torque (ft-lb): 13
    • Max Torque (in-lb): 159
    • Max Torque (nm): 18
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 24.34
    • Product Height (in) (with Battery): 3.94
    • Product Weight (lb): 2.8
    • Recommended Forward Torque Range (ft-lb): 2.7-13
    • Recommended Forward Torque Range (in-lb): 32-159
    • Recommended Forward Torque Range (nm): 3.6-18
    • Retainer Type: Quick Change
    • Reversible: Reversible
    • Side to Center Distance (in): 0.51
    • Side to Center Distance (mm): 13
    • User Interface: Display
    • Voltage DC: 20
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: Bluetooth
    • Wireless Tool Tracking: 802.15.4
    • Wireless Tool Tracking: USB-C
    Call for pricing
    Picture of Qx Zigbee And Bluetooth, Display, 20V Pistol 12 Nm Standard Square 1/4 Inch

    Qx Zigbee And Bluetooth, Display, 20V Pistol 12 Nm Standard Square 1/4 Inch

    IR QXXD2PT012PS04

    IR QXXD2PT012PS04

    1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

    Description: A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

    Features And Benefits:

    • Now Comes with 32 programmable tightening configuration.
    • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
    • Enhanced quantitative feedback - displaying the actual measured torque or angle result.
    • 1,200 cycles of onboard tightening data storage.
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
    • Offer option for Insight Connect Android APP LINK
    • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
    • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: Yes
    • Color: Grey
    • Configuration/Handle Type: Pistol Grip
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 1/4
    • Drive Type: Square
    • Max Free Speed (rpm): 750
    • Max Torque (ft-lb): 8.9
    • Max Torque (in-lb): 106
    • Max Torque (nm): 12
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 8.2
    • Product Height (in) (with Battery): 10.07
    • Product Weight (lb): 2
    • Recommended Forward Torque Range (ft-lb): 1.8-8.9
    • Recommended Forward Torque Range (in-lb): 21-106
    • Recommended Forward Torque Range (nm): 2.4-12
    • Retainer Type: Pin Detent
    • Reversible: Reversible
    • Side to Center Distance (in): 1
    • Side to Center Distance (mm): 25
    • Sound Pressure/Power Db(A): < 70.0
    • User Interface: Display
    • Voltage DC: 20
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: Bluetooth
    • Wireless Tool Tracking: 802.15.4
    • Wireless Tool Tracking: USB-C
    Call for pricing
    Picture of Qx Zigbee And Bluetooth, Display, 40V Angle 30 Nm Standard Square 3/8 Inch

    Qx Zigbee And Bluetooth, Display, 40V Angle 30 Nm Standard Square 3/8 Inch

    IR QXXD5AT030PS06

    IR QXXD5AT030PS06

    3/8in 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM, Display

    Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

    Features And Benefits:

    • Now Comes with 32 programmable tightening configuration.
    • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
    • Enhanced quantitative feedback - displaying the actual measured torque or angle result.
    • 1,200 cycles of onboard tightening data storage.
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • The QX Connect Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
    • Offer option for Insight Connect Android APP LINK.
    • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
    • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key on QXXD Models.
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: No
    • Color: Grey
    • Configuration/Handle Type: Right Angle
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 3/8
    • Drive Type: Square
    • Max Free Speed (rpm): 775
    • Max Torque (ft-lb): 22
    • Max Torque (in-lb): 266
    • Max Torque (nm): 30
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 22.91
    • Product Height (in): 3.94
    • Product Weight (lb): 4.8
    • Recommended Forward Torque Range (ft-lb): 4.4-22
    • Recommended Forward Torque Range (in-lb): 53-266
    • Recommended Forward Torque Range (nm): 6.0-30
    • Retainer Type: Pin Detent
    • Reversible: Reversible
    • Side to Center Distance (in): 0.68
    • Side to Center Distance (mm): 17
    • User Interface: Display
    • Voltage DC: 40
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: Bluetooth
    • Wireless Tool Tracking: 802.15.4
    • Wireless Tool Tracking: USB-C
    Call for pricing
    Picture of Qx Zigbee And Bluetooth, Display, 40V Angle 40 Nm Ets Square 1/2 Inch

    Qx Zigbee And Bluetooth, Display, 40V Angle 40 Nm Ets Square 1/2 Inch

    IR QXXD5AT040ES08

    IR QXXD5AT040ES08

    1/2in 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 354 in-lb Torque, 545 RPM, Display

    Description: A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn't have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise - that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

    Features And Benefits:

    • Now Comes with 32 programmable tightening configuration.
    • Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
    • Enhanced quantitative feedback - displaying the actual measured torque or angle result.
    • 1,200 cycles of onboard tightening data storage.
    • Configurable preventative maintenance alarms.
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators.
    • The QX Connect Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
    • Offer option for Insight Connect Android APP LINK.
    • Optional ergonomic tightening system to reduce torque reaction experienced by operator.
    • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key on QXXD Models.
    • Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
    • Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
    • Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
    • In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
    • Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
    • Performance Mode: with medium energy pulses, is the best all-purpose mode.
    • Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
    • Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: No
    • Color: Grey
    • Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 1/2
    • Drive Type: Square
    • Max Free Speed (rpm): 545
    • Max Torque (ft-lb): 30
    • Max Torque (in-lb): 354
    • Max Torque (nm): 40
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Product Length (in): 23.1
    Call for pricing
    Refine
    ×
