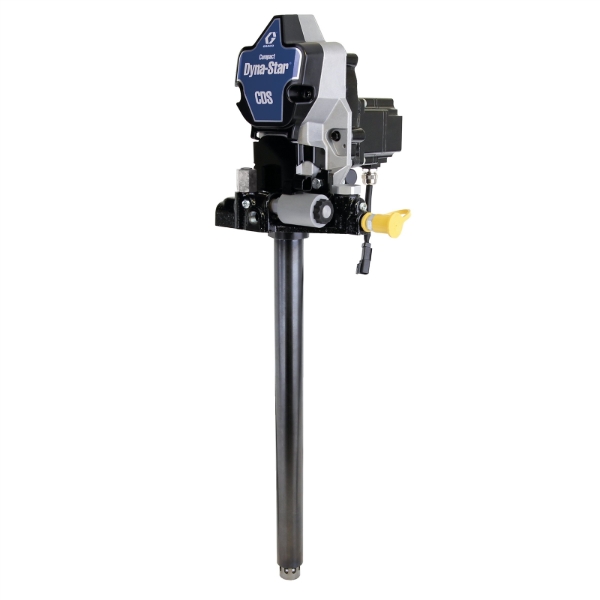

Lube

GG CD2100

DYNA-STAR COMPACT PUMP, 20, BARE

Compact Dyna-Star® 24 VDC Bare Oil or Grease Vent-Valve Pump, 20 L Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

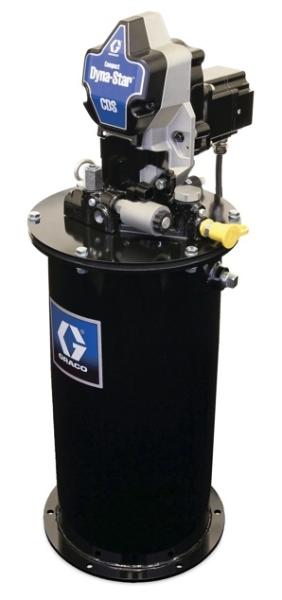

GG CD2221

Dyna-Star Compact Pump, 20L

GG CD2322

DYNA-STAR COMPACT PUMP, 20L

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 20 L Reservoir, Follower Plate, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time.

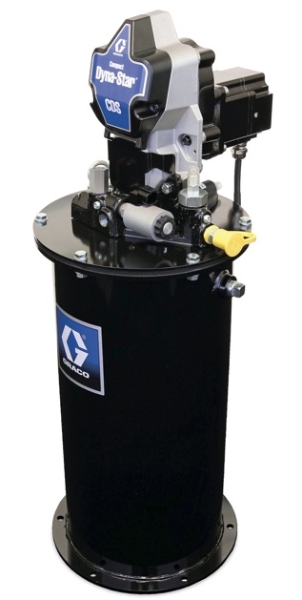

GG CD2324

DYNA-STAR COMPACT PUMP, 20L

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 20 L Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.

GG CD3000

DYNA-STAR COMPACT PUMP, 60#

Compact Dyna-Star® 24 VDC Bare Oil or Grease Pump, 60 lb Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

GG CD3100

DYNA-STAR COMPACT PUMP, 60#

Compact Dyna-Star® 24 VDC Bare Grease Vent-Valve Pump, 60 lb Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

GG CD3261

DYNA-STAR COMPACT PUMP, 60#

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

GG CD3362

DYNA-STAR COMPACT PUMP, 60#

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time.

GG CD3364

DYNA-STAR COMPACT PUMP, 60#

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump and 60 lb Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.

GG LM2533

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 pt. (9.46 liter) Oil Plastic Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM6214

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, Clutch Drive, Low Level

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM6334

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM6514

LUBEMASTER PUMP

Graco LM6514 Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, Low Level

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Application: Built For Severe-Duty Environments.

• Adjustable output
• Broad output range
• Simplified construction
• Soft-seat outlet check valve
• Modular components
• Driven by an electric motor (gear drive)

• Model: Lube Master

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPSF

• Material: Plastic

• Maximum Cycle Rate (strokes/min): 175

• Maximum Flow Rate (ci/min): 8.62

• Maximum Fluid Output Pressure (bar): 345
• Maximum Fluid Output Pressure (psi): 5000

• Maximum Fluid Output Pressure (bar): 345
• Maximum Fluid Output Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 340
• Maximum Working Pressure (kPa): 34000
• Maximum Working Pressure (MPa): 34
• Maximum Working Pressure (psi): 5000

• Minimum Cycle Rate (strokes/min): 1
• Minimum Flow Rate (ci/min): 0.01

• Overall Depth (cm): 26
• Overall Depth (in): 10.25
• Overall Depth (mm): 260

• Overall Height (cm): 67.5
• Overall Height (in): 26.56
• Overall Height (mm): 675
• Overall Width (cm): 19.8
• Overall Width (in): 7.812
• Overall Width (mm): 198

• Power Type: Electric

GG LM6534

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM6544

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Floor Mount, 115/230V, 1/2 HP, 1 PH, 60 Hz, 1140 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM6611

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Plastic Reservoir, 60:1 Wall Mount

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

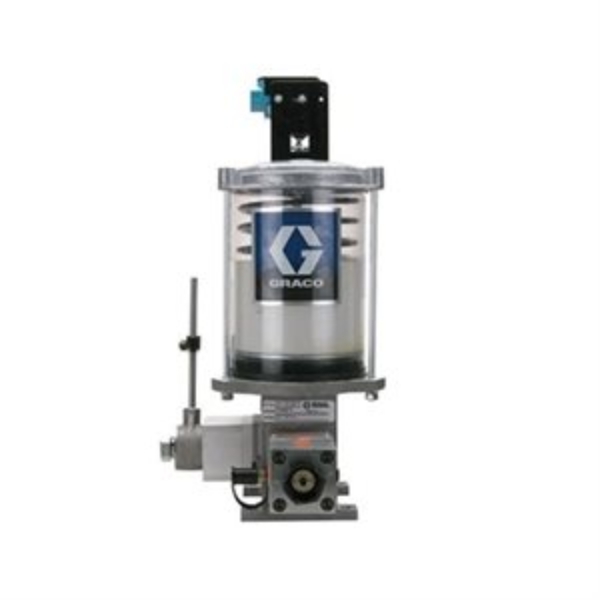

GG LM7214

LUBEMASTER PUMP

Lube Master® Electric Pump, 12 lb. (5.44 kg) Metal Grease Reservoir with Clutch Drive and Low-Level Switch

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM7534

LUBEMASTER PUMP

Lube Master® Electric Pump, 12 lb. (5.44 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM8114

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, Low Level

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM8354

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 10:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1140 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM8534

LUBEMASTER PUMP

Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG LM9521

LUBEMASTER PUMP

Lube Master® Electric Pump, Overhead Supply Reservoir, 60:1 Floor Mount, 115/230V, 1/2 HP, 1 PH, 60 Hz, 1725 RPM

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments. Adjustable output Broad output range Simplified construction Hardened steel piston in steel sleeve Soft-seat outlet check valve Modular components Driven by an electric motor (gear drive)

GG 0553-6

Lubricant, Synthetic, Hi-Temp Grease

GG 132691

Dyna-Star Compact Pump, 20 Liter Cds, Asm, W/Harn

GG 17P750

LUBEPRO A4000 PUMP, RECIP, GREASE

Graco 17P750 LubePro A4000 Reciprocating Grease Pump, 7.5 lb. (3.4 kg) Reservoir, Pneumatic Vent Valve - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. Meet your LubePro. LubePro series pumps leverages the same proven quality and leading technology as Graco's Merkur Air Motor—the leader in durability and quality.

Application: Reciprocating Grease and Oil Pump for Automatic Lubrication Solutions

• LubePro A4000 is compatible with GL-1, GL-1 X, GL-1 XL, GL-32, GL-33, GL-42 and GL-43 injectors
• Pressure Ratio of 40:1
• A4000 delivers a greater output than competitive models at 50 in³ (819 cm³) per minute
• Optional Low Level Detection available, factory installed
• Integrated vent automatically and reliably relieves pressure
• Built with high-quality seals tested to outperform the competition
• High-strength, shatter resistant reservoir
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: A4000

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 275.8
• Maximum Working Pressure (kPa): 27580
• Maximum Working Pressure (MPa): 27.6
• Maximum Working Pressure (psi): 4000

• Overall Height (cm): 50.8
• Overall Height (in): 20
• Overall Height (mm): 508

• Power Type: Pneumatic
