LUBEMASTER PUMP

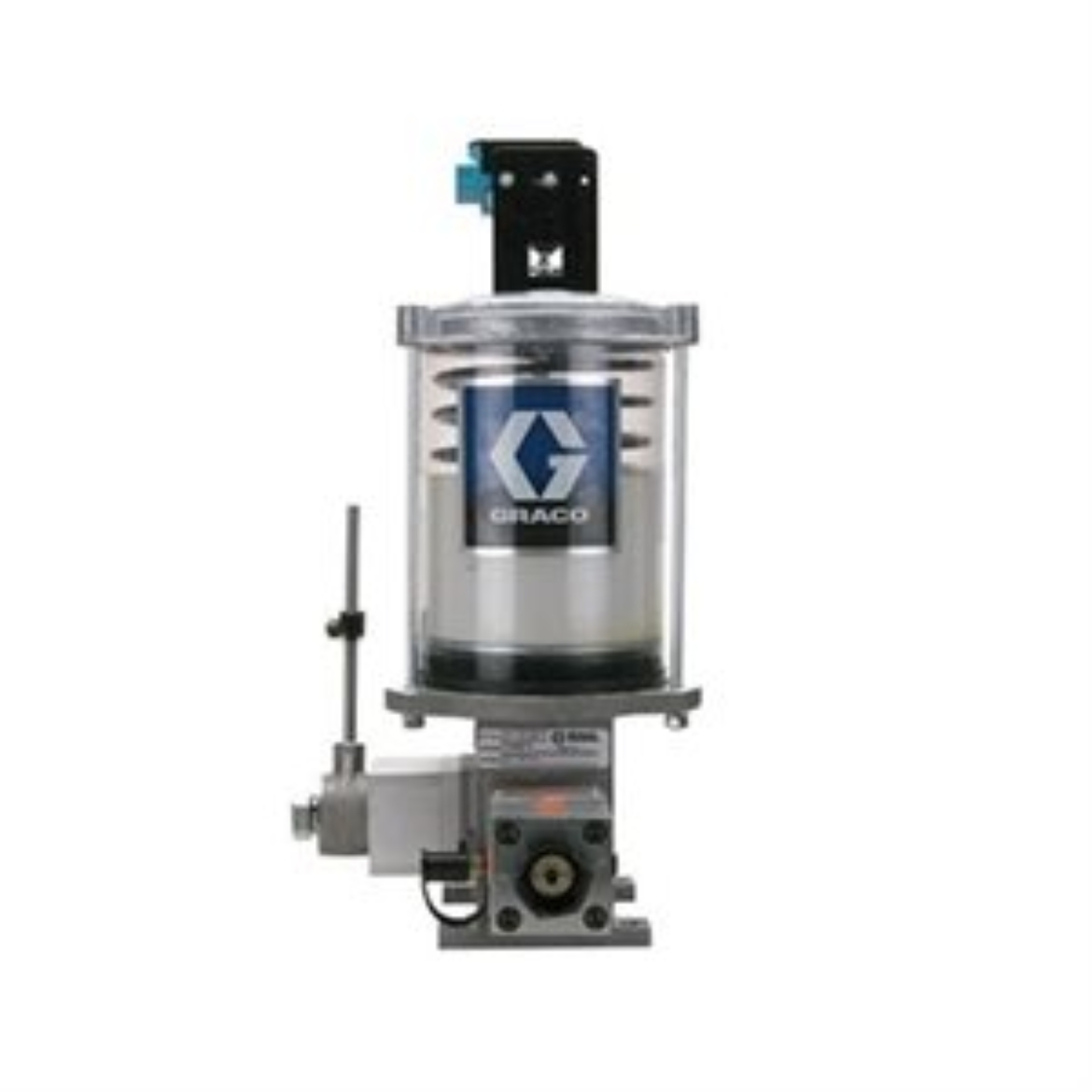

Graco LM7214 Lube Master Electric Pump, 12 lb. (5.44 kg) Metal Grease Reservoir with Clutch Drive and Low-Level Switch

The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

• Adjustable output
• Broad output range
• Simplified construction
• Soft-seat outlet check valve
• Modular components
• Driven by an electric motor (gear drive)

• Model: Lube Master

• Application: In-Plant Machinery

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPSF

• Material: Metal

• Maximum Cycle Rate (strokes/min): 175

• Maximum Flow Rate (ci/min): 8.62

• Maximum Fluid Output Pressure (bar): 345
• Maximum Fluid Output Pressure (psi): 5000

• Maximum Fluid Output Pressure (bar): 345
• Maximum Fluid Output Pressure (psi): 5000

• Maximum NLGI Grade: #2

• Maximum Working Pressure (bar): 340
• Maximum Working Pressure (kPa): 34000
• Maximum Working Pressure (MPa): 34
• Maximum Working Pressure (psi): 5000

• Minimum Cycle Rate (strokes/min): 1
• Minimum Flow Rate (ci/min): 0.01

• Overall Depth (cm): 26
• Overall Depth (in): 10.25
• Overall Depth (mm): 260

• Overall Height (cm): 49.7
• Overall Height (in): 19.56
• Overall Height (mm): 497
• Overall Width (cm): 19.8
• Overall Width (in): 7.812
• Overall Width (mm): 198

• Power Type: Electric
