Lube

GG 96G207

G3 STANDARD PUMP, G-ACNC-8LAA00-LD000000

G3® Standard Grease Lubrication Pump, 90-240 VAC, 8 Liter, Auto-Fill Shut Off, External Low Level, DIN

Extend equipment life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

Auto-Fill Shutoff feature automatically shuts off lubricant flow from a fill pump to the G3 reservoir once the G3 reservoir is full.

GG 96G208

G3 PRO PUMP, G-ACPR-8LAL00-0D000000

G3® Pro Grease Lubrication Pump, 90-240 VAC, 8 Liter, Auto-Fill Shut Off, Low Level with Controller, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

Built-in controller with selectable pump on/pump off timer Low level indicator provides low warning and shut-down alarm Manual run initiates lube cycle on-demand (remote option also available) Password protection safeguards settings Pre-lube function can initiate lube cycle on start-up

GG 96G210

G3 STANDARD PUMP, G-24NC-4LAA00-0D00L000

G3® Standard Grease Lubrication Pump, 24 VDC, 4 Liter, Auto-Fill Shut Off, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

GG 96G213

G3 STANDARD PUMP, G-24NC-8LAA00-0D00L000

G3® Standard Grease Lubrication Pump, 24 VDC, 8 Liter, Auto-Fill Shut Off, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

GG 96G214

G3 PRO PUMP, G-24PR-8LAL05-00C00000

G3® Pro Grease Lubrication Pump, 24 VDC, 8 Liter, Auto-Fill Shut Off, Low Level with Controller, 5 Pin CPC

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

Built-in controller with selectable pump on/pump off timer Low level indicator provides low warning and shut-down alarm Manual run initiates lube cycle on-demand (remote option also available) Password protection safeguards settings Pre-lube function can initiate lube cycle on start-up

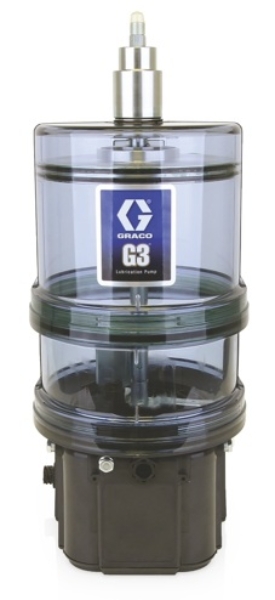

GG 96G217

G3 Standard Pump, G-24Nc-8Laa06-00C00000

GG 96G220

G3 STANDARD PUMP, G-24NC-160A00-L0C00000

G3® Standard Grease Lubrication Pump, 24 VDC, 16 Liter, External Low Level, CPC

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

GG 96G332

G3 STANDARD PUMP, G-12NC-8L0A06-00C00000

G3® Standard Grease Lubrication Pump, 12 VDC, 8 Liter, External Low Level, CPC Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application. No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

GG 96G501

G3 STANDARD PUMP, G-24NC-12TA00-0D00L000

G3® Standard Grease Lubrication Pump, 24 VDC, 12 Liter One-Piece Reservoir, Follower Plate, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

GG 96G502

G3 STANDARD PUMP, G-24NC-15TA00-0D00L000

G3® Standard Grease Lubrication Pump, 24 VDC, 16 Liter One-Piece Reservoir, Follower Plate, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

GG 96G503

G3 STANDARD PUMP, G-24NC-20TA00-0D00L000

G3® Standard Grease Lubrication Pump, 24 VDC, 20 Liter One-Piece Reservoir, Follower Plate, External Low Level, DIN

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Standard has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element - standard, plus room for two more. The ultimate in flexibility - for a high value, custom fit on your application.

No internal controller–use with separate or existing machine control for a low cost solution Capable of sending a low level signal to your external controller or PLC

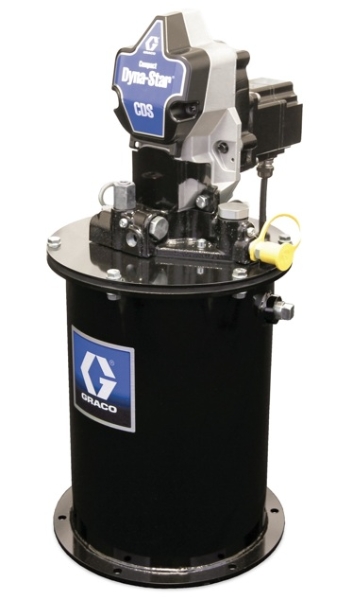

GG CD1011

DYNA-STAR COMPACT PUMP, 12L

Graco CD1011 Compact Dyna-Star® 24 VDC Series progressive Grease Pump and 12 L Reservoir, Follower Plate, Low-Level Switch

The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments.

• Compact Power - Fits easily in space-limited applications, powerful enough to keep up with aggressive lubrication interval.
• Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C.
• Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

• Application: In-Plant Machinery, Off-Road Equipment
• Approvals: CE, RCM

• Compatible Material: Grease
• Compatible Metering Device: Series Progressive

• Component Technology: Brushless Electric Motor, Shovel-loading pump tube

• Control Options: Integrated electrical motor controller

• Fluid Outlet Size (in): 3/8 NPT and/or 1/4 NPT
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: Tapered Pipe Thread (NPT)

• For Use With: ISO 100 Oil up to NLGI #2 Grease

• Input Sensor Voltage (VDC): 24
• Input Voltage (V dc): 24

• IP Rating: IP69K

• Low Level Carry Current (A): 0.02
• Low Level Switch Rating (VDC): 24
• Low Level Switching Current (A): 0.2
• Lower Type: Shovel

• Material: Carbon Alloy Steel

• Maximum Continuous Cycle Rate (CPM): 64
• Maximum cST Grade (cST): NLGI #2 Grease
• Maximum Cycle Rate (CPM): 64

• Maximum Cycle Rate (strokes/min): 64

• Maximum Flow Rate (ci/min): 4.5
• Maximum Flow Rate (L/min): 0.074

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Fluid Output Pressure (bar): 241
• Maximum Fluid Output Pressure (psi): 3500

• Maximum Input Amperage (A): 10

• Maximum NLGI Grade: 2

• Maximum Operating Temperature (°C): 65
• Maximum Operating Temperature (°F): 149

• Maximum Voltage (V dc): 30

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24132
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum Operating Temperature (°C): -40
• Minimum Operating Temperature (°F): -40

• Minimum Voltage (V dc): 18

• Motor Type: Brushless DC

• Number of Pump Elements: 1

• Overall Depth (in): 13.9
• Overall Depth (mm): 353.1

• Overall Height (in): 39.0
• Overall Height (mm): 990
• Overall Width (in): 11.5
• Overall Width (mm): 292
• Package Options: Pump with Reservoir

• Power Connection Type: Deutsch DT04-2P Housing, M12

• Power Rating (HP): 0.25
• Power Type: Electric

GG CD1012

DYNA-STAR COMPACT PUMP, 12L

Compact Dyna-Star® 24 VDC Series progressive Grease Pump and 12 L Reservoir, Follower Plate, Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time.

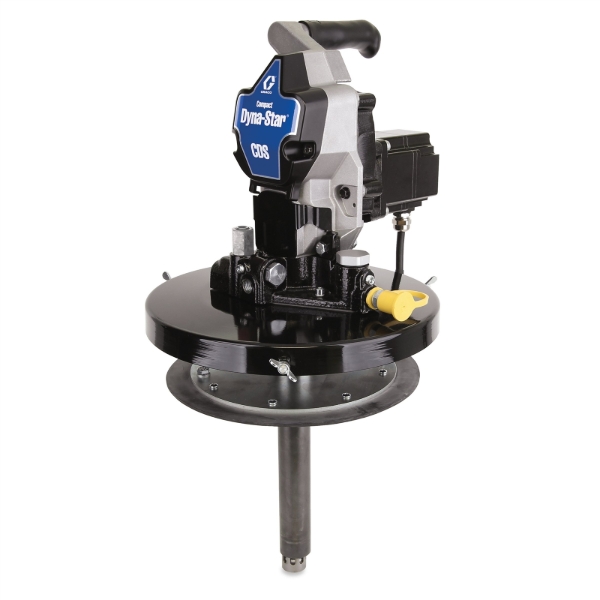

GG CD1030

DYNA-STAR COMPACT PUMP, 35#

Compact Dyna-Star® 24 VDC Series progressive 35 lb Oil or Grease Bucket Kit, Pump, Lifting Handle The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

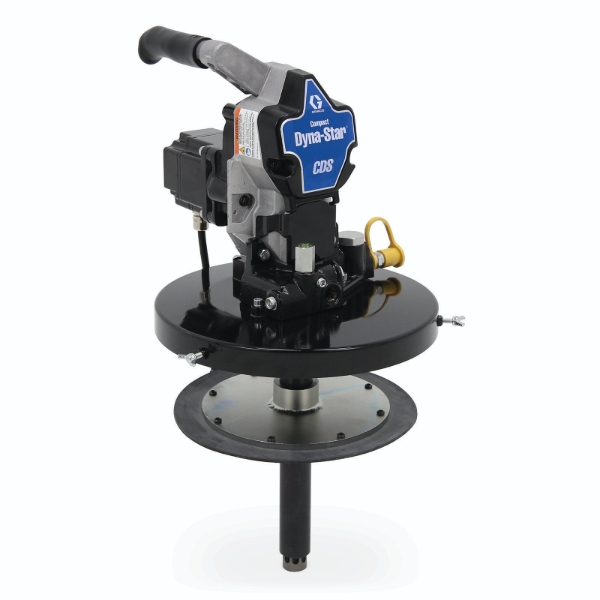

GG CD1031

DYNA-STAR COMPACT PUMP, 35#

Compact Dyna-Star® 24 VDC Series progressive 35 lb Oil or Grease Bucket Kit, Pump, Lifting Handle, Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

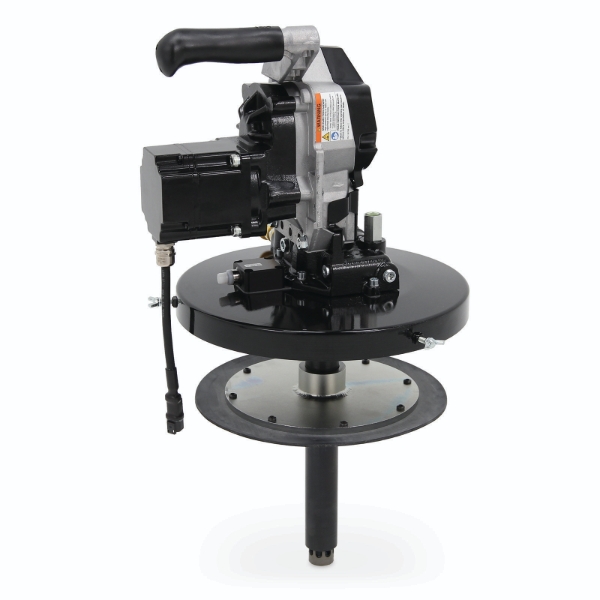

GG CD1032

DYNA-STAR COMPACT PUMP, 35#

Compact Dyna-Star® 24 VDC Series progressive 35 lb Oil or Grease Bucket Kit, Pump, Lifting Handle, Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

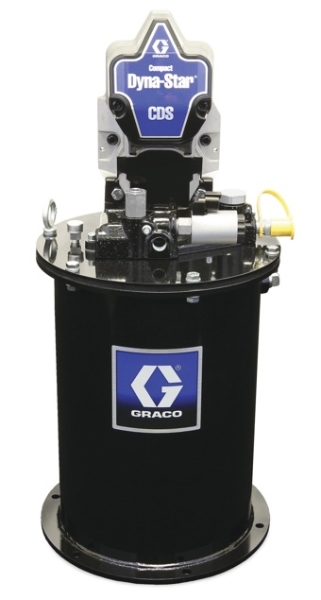

GG CD1111

Dyna-Star Compact Pump, 12L

GG CD1211

DYNA-STAR COMPACT PUMP, 12L

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

GG CD1213

DYNA-STAR COMPACT PUMP, 12L

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Low-Level Switch, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.

GG CD1231

DYNA-STAR COMPACT PUMP, 35#

Compact Dyna-Star® 24 VDC 35 lb Oil or Grease Bucket Kit, Vent-Valve Pump, Lifting Handle, Pressure and Low-Level Switch The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

GG CD1312

DYNA-STAR COMPACT PUMP, 12L

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time.

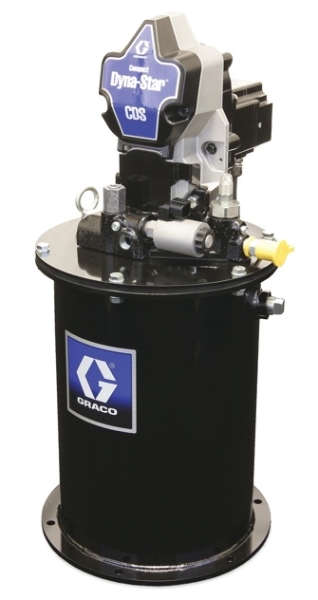

GG CD1314

DYNA-STAR COMPACT PUMP, 12L

Compact Dyna-Star® 24 VDC Vent-Valve Grease Pump, 12 L Reservoir, Follower Plate, Pressure and Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.

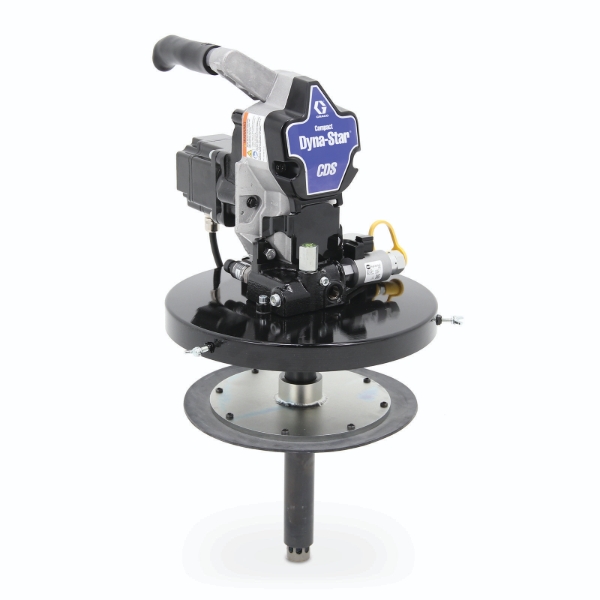

GG CD1332

DYNA-STAR COMPACT PUMP, 35#

Compact Dyna-Star® 24 VDC 35 lb Oil or Grease Bucket Kit, Vent-Valve Pump, Lifting Handle, Pressure and Level Reporting The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

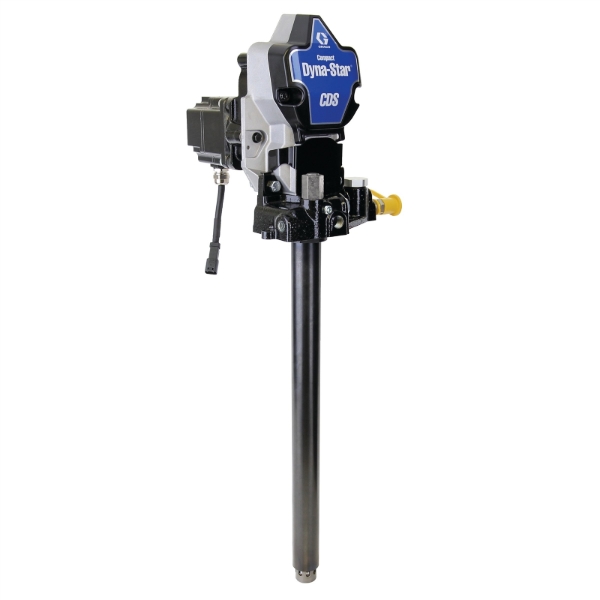

GG CD2000

DYNA-STAR COMPACT PUMP, 20, BARE

Compact Dyna-Star® 24 VDC Bare Oil or Grease Pump, 20 L Length The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments.

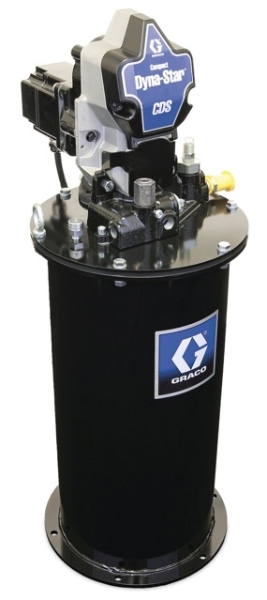

GG CD2024

DYNA-STAR COMPACT PUMP, 20L

Compact Dyna-Star® 24 VDC Series Progressive Grease Pump and 20 L Reservoir, Follower Plate, Level Reporting, Auto-Fill Shut Off The Graco Compact Dyna-Star automatic lubrication system delivers high-capacity flow, robust durability and innovative control in a smaller footprint to extend uptime for today’s toughest earthmoving machines and users in the harshest environments. Compact Power - Fits easily in space-limited applications; powerful enough to keep up with aggressive lubrication interval. Smart Power Train - 24 VDC, brushless motor and zero maintenance gear drive delivers lubricants on time, even at -40° C. Rugged Durability - Metal construction ensures trustworthy operation in the most extreme environments. Intelligent Monitoring - Optional pressure and lubricant level sensors provide useful system information, in real time. Integrated Auto-Fill Shut-Off - Option enables single-person, powered-down, ground-level refills, without the need to climb or worry about spills.
