INGERSOLL-RAND IR TOOL S12880

IR QXWD2AT010PS06

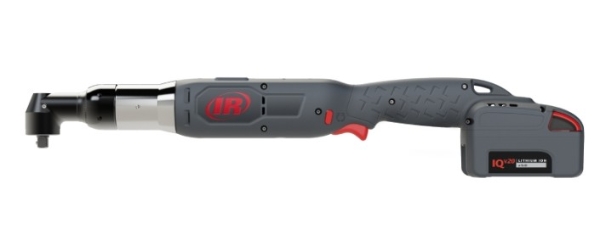

3/8" 20V, Cordless Angle QX Limitless Precision Fastening, 89 in-lb, 936 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 936
Max Torque (ft-lb): 7.4
Max Torque (in-lb): 89
Max Torque (nm): 10
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 1.5-7.4
Recommended Forward Torque Range (in-lb): 18-89
Recommended Forward Torque Range (nm): 2-10
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

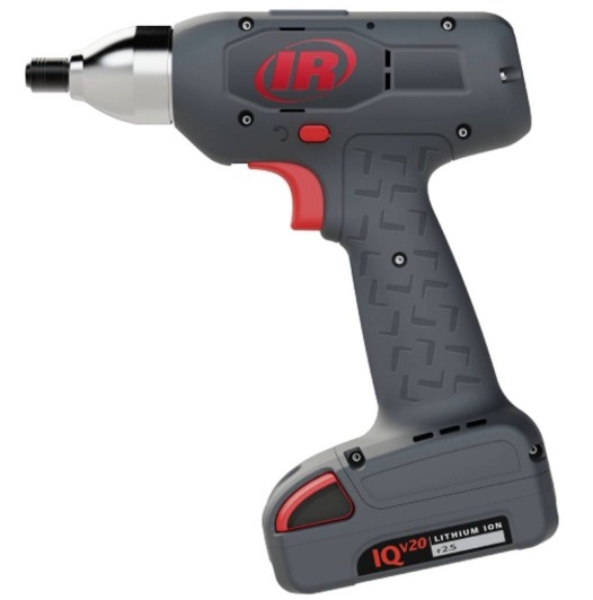

IR QXWD2PT008ES06

3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT008EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT004PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 35 in-lb, 1500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 8.35
Side to Center Distance (mm): 212
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT004PS04

1/4" 20V, Cordless QX Limitless Precision Fastening, 35 in-lb, 1500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 8.2
Side to Center Distance (mm): 208
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT004PQ04

1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 35 in-lb, 1500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 8.48
Side to Center Distance (mm): 215
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT000P000

BACKCAP ASSEMBLY, 20V PISTOL, WIFI, ZIGBEE AND BLUETOOTH, DISPLAY, STANDARD

IR QXWD2PT000E000

Backcap Assembly, 20V Pistol, WIFI, Zigbee and Bluetooth, Display, ETS

IR QXWD2PT008PQ04

1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT008PS04

1/4" 20V, Cordless QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT008PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

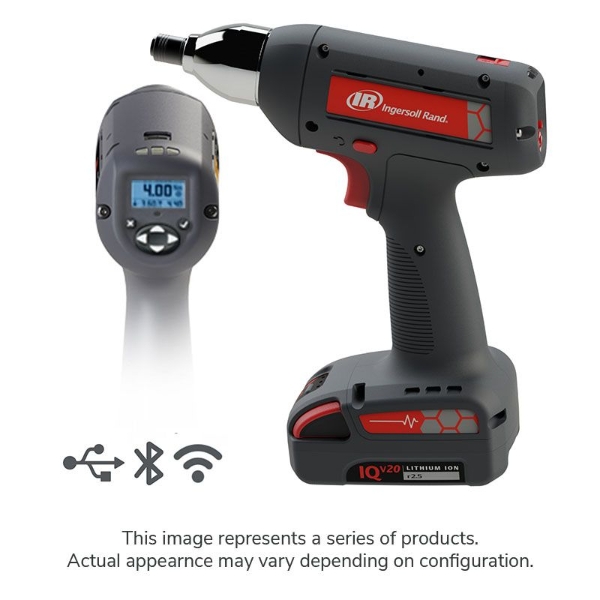

IR QXWD2PT012PQ04

1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT012PS04

1/4" 20V, Cordless QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT012EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 106 in-lb, 750 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT018EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT018ES06

3/8" 20V, Cordless ETS QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2PT018PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT035PS06

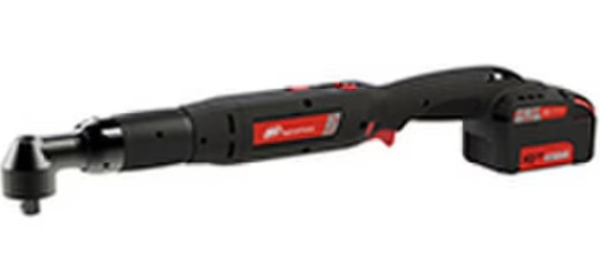

3/8" 40V, Cordless Angle QX Limitless Precision Fastening, 310 in-lb, 640 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT035PS08

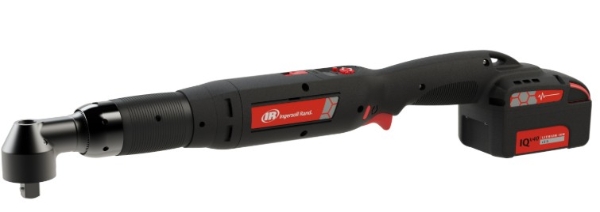

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 310 in-lb, 640 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT030PS06

3/8" 40V, Cordless Angle QX Limitless Precision Fastening, 266 in-lb, 775 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT020PS06

3/8" 40V, Cordless Angle QX Limitless Precision Fastening, 177 in-lb, 1045 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1045
Max Torque (ft-lb): 15
Max Torque (in-lb): 177
Max Torque (nm): 20
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.74
Product Weight (lb): 4.5
Recommended Forward Torque Range (ft-lb): 3.0-15
Recommended Forward Torque Range (in-lb): 35-177
Recommended Forward Torque Range (nm): 4.0-20
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.52
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT000E000

Backcap Assembly, 40V Angle, WIFI, Zigbee and Bluetooth, Display, ETS

IR QXWD5AT040PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 354 in-lb, 545 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 545
Max Torque (ft-lb): 30
Max Torque (in-lb): 354
Max Torque (nm): 40
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 5.9-30
Recommended Forward Torque Range (in-lb): 71-354
Recommended Forward Torque Range (nm): 8.0-40
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

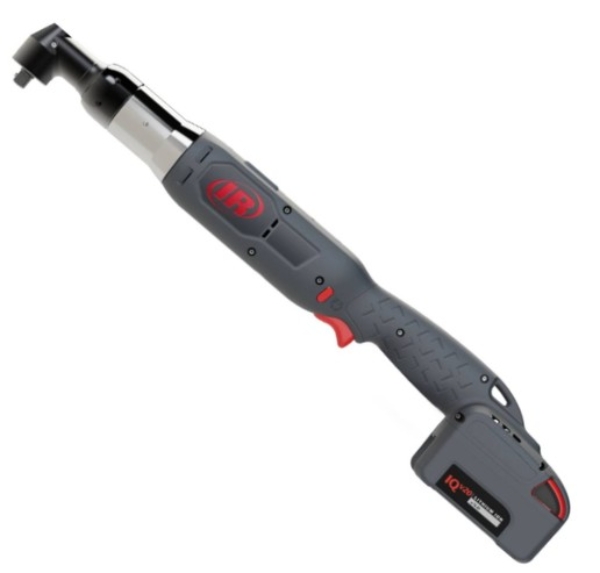

IR QXWD5AT040ES08

1/2" 40V, Cordless Angle ETS QX Limitless Precision Fastening, 354 in-lb, 545 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 545
Max Torque (ft-lb): 30
Max Torque (in-lb): 354
Max Torque (nm): 40
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.1
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 5.9-30
Recommended Forward Torque Range (in-lb): 71-354
Recommended Forward Torque Range (nm): 8.0-40
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT030PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 266 in-lb, 775 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD5AT080PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 708 in-lb, 375 RPM

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): -
Recommended Forward Torque Range (in-lb): -
Recommended Forward Torque Range (nm): 12.0–80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXX2AT18PQ4-L10K

QXA-18NM 1/4 QUICK KIT-10 CELL

IR QXX2PT12NX

POWER UNIT - VIPER 12NM PISTOL W/NORBAR ADAPTER - PRE-PROGRAMMING, WIRELESS

IR QXWD2PT018PQ04

1/4" Hex 20V, Cordless QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we’re adding ‘connected, controlled, and compliant’ to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx™ controllers. Plus, it keeps unwanted connections at bay, meeting more of today’s stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there’s simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.8
Side to Center Distance (mm): 20
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: Bluetooth

IR QXWD2AT010AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 10 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT004AQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 4 NM ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2PT008AQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 8 NM ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2AT005AQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 5 NM ACCESSORY QUICK CONNECT 1/4 INCH

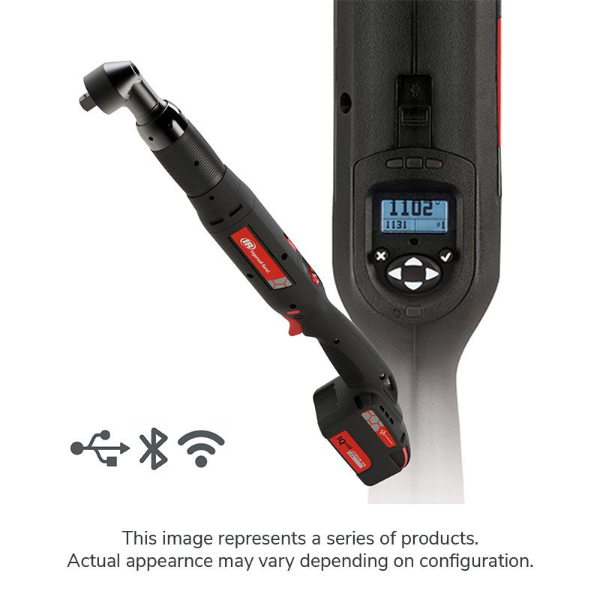

IR QXWD5AT080RS08

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 80 NM ETS ACCESSORY SQUARE 1/2 INCH

IR QXFD2PT012PM00

POWER UNIT - QX, NO RADIO, DISPLAY, 20V PISTOL

IR QXFD2PT008ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT10CPM12-K2

QX KIT, NO RADIO, DISPLAY, 20V PISTOL 1000NM 3/4" SQ, NORTH AMERICA

IR QXFD2PT10CPM12

QX, NO RADIO, DISPLAY, 20V PISTOL 1000NM 3/4" SQ

IR QXFD2PT20CPM16

QX, NO RADIO, DISPLAY, 20V PISTOL 2000NM 1" SQ

IR QXFD2PT13CPM16

QX, NO RADIO, DISPLAY, 20V PISTOL 1350NM 1" SQ

IR QXFD5AT030PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb, 775 RPM, Display

Designed to replace traditional clutch tools, the 40V QXFD Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. QXFD Tools comes with an Additional Display which helps on the Tool Programming and reducing setup time. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Programming Methods: Through USB with Insight Connect App available on Android; ICS Software; Through On Board Tool Display/ Key.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT500PM12

QX, NO RADIO, DISPLAY, 20V PISTOL 500NM 3/4" SQ

IR QXFD5AT080PP00

QX TOOL, NO RADIO, DISPLAY, 40V ANGLE 80 NM STANDARD

IR QXFD5AT080EP00

QX TOOL, NO RADIO, DISPLAY, 40V ANGLE 80 NM ETS STANDARD

IR QXFD5PT000P000

BACK CAP ASSEMBLY, 40V PISTOL, NO RADIO, DISPLAY, SINGLE TRIGGER

IR QXFN5AT030PS06

3/8" 40V Cordless QX Precision Fastening Angle Screwdriver, 266 in-lb Torque, 775 RPM

Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFN5AT035PS08

1/2" 40V Cordless QX Precision Fastening Angle Screwdriver, 310 in-lb Torque, 640 RPM

Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFN5AT030PS08

1/2" 40V Cordless QX Precision Fastening Angle Screwdriver, 266 in-lb Torque, 775 RPM

Designed to replace traditional clutch tools, the 40V high-torque angle QXFN Precision Screwdriver offers the precision and quality of the QX Connect Series in an affordable, simple to set up tool. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Connect Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits

• Comes with 32 programmable tightening configuration.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series™ IQV® 40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQV® Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP Link.
• Programming Methods: Through USB with Insight Connect App available on Android, ICS Software, INISGHTqcx Controllers.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXN2PT04PQ4-L10KCANCB

INCLUDES ADAPTER, LARGE BATTERY AND BLUE COVER

IR QXN2AT15PS6-OEMKIT

QXN 15PS6 TOOL KIT

IR QXN2PT04PS4-OEMKIT

QXN2PT04PS4-OEMKIT AF-30 BATTERY TOOL

IR QXN2PT08PS4-OEMKIT

QXN 08PS4 TOOL KIT

IR QXP70Q4-99

INFORMATION LABEL

IR QXN2PT12PS4-OEMKIT

QXN 12PS4 TOOL KIT

IR QXWD2AT000E000

Backcap Assembly, 20V Angle, WIFI, Zigbee and Bluetooth, Display, ETS

IR QXWD2AT015AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 15 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2AT018AQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 18 NM ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2AT018AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 18 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2AT027RS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 27 NM ETS ACCESSORY SQUARE 3/8 INCH

IR QXWD2AT027AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V ANGLE 27 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT004AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 4 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT004AS04

QX WIFI, 801.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 4 NM ACCESSORY SQUARE 1/4 INCH

IR QXWD2PT008AS04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 8 NM ACCESSORY SQUARE 1/4 INCH

IR QXWD2PT008AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 8 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT012AQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 12 NM ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2PT008RQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 8 NM ETS ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2PT012AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 12 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT012AS04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 12 NM ACCESSORY SQUARE 1/4 INCH

IR QXWD2PT012RS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 12 NM ETS ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT012RQ04

QX WIFI, 802.15.4 and Bluetooth, Display, 20V Pistol 12 NM ETS Accessory Quick Connect 1/4in

IR QXWD2PT018AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 18 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD2PT018AQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 18 NM ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2PT018RQ04

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 18 NM ETS ACCESSORY QUICK CONNECT 1/4 INCH

IR QXWD2PT018RS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 18 NM ETS ACCESSORY SQUARE 3/8 INCH

IR QXWD5AT000P000

BACKCAP ASSEMBLY, 40V ANGLE, WIFI, ZIGBEE AND BLUETOOTH, DISPLAY, STANDARD

IR QXWD2PT024RS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 20V PISTOL 24 NM ETS ACCESSORY SQUARE 3/8 INCH

IR QXWD5AT030AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 30 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD5AT020AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 20 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD5AT030AS08

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 30 NM ACCESSORY SQUARE 1/2 INCH

IR QXWD5AT035AS06

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 35 NM ACCESSORY SQUARE 3/8 INCH

IR QXWD5AT035AS08

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 35 NM ACCESSORY SQUARE 1/2 INCH

IR QXWD5AT040AS08

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 40 NM ACCESSORY SQUARE 1/2 INCH

IR QXWD5AT040RS08

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 40 NM ETS ACCESSORY SQUARE 1/2 INCH

IR QXWD5AT080AS08

QX WIFI, 802.15.4 AND BLUETOOTH, DISPLAY, 40V ANGLE 80 NM ACCESSORY SQUARE 1/2 INCH

IR QXX2A72T1080PS16

QX WIRELESS 40V MULTIPLI ED 1080 NM 1"

IR QXX2AT18PS6J52357

QX CORDLESS 18NM DC ANG WRENCH 1/2 DRIVE JEMMS H

IR QXX2AT18PS6-L10K

QXA-19NM 3/8 SQR DRIVE KIT-10 CELL

IR QXX2AT27PS6-L10K

QXA-27NM 3/8 SQR DRIVE KIT-10 CELL

IR QXX2P1350PS16K2SA1

QXX PISTOL KIT, 1350NM 1" SQ, ARGENTINA

IR QXX2P1000PS12K2SA1

QXX PISTOL KIT, 1000NM 3/4" SQ, ARGENTINA

IR QXX2P200PS12K2SA1

QXX PISTOL KIT, 200NM 3/4" SQ, ARGENTINA

IR QXX2P2000PS16K2SA1

QXX PISTOL KIT, 2000NM 1" SQ, ARGENTINA

IR QXX2P500PS12K2SA1

QXX PISTOL KIT, 500NM 3/4" SQ, ARGENTINA

IR QXWD5AT000R000

Backcap Assembly, 40V Angle, WIFI6, Zigbee and Bluetooth, Display, ETS

IR QXWD2PT000R000

Backcap Assembly, 20V Pistol, WIFI, Zigbee and Bluetooth, Display, ETS

IR QXX5A45T0180PS12

3/4" 40V Cordless Angle Torque Wrench, 1593 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 110
Max Torque (ft-lb): 133
Max Torque (in-lb): 1593
Max Torque (nm): 180
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 12-133
Recommended Forward Torque Range (in-lb): 142-1593
Recommended Forward Torque Range (nm): 16-180
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXX5A45T0270PS12

3/4" 40V Cordless Angle Torque Wrench, 2390 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 77
Max Torque (ft-lb): 200
Max Torque (in-lb): 2390
Max Torque (nm): 270
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 40-200
Recommended Forward Torque Range (in-lb): 478-2390
Recommended Forward Torque Range (nm): 54-270
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD2AT015PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 133 in-lb Torque, 600 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 600
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 2.2-11
Recommended Forward Torque Range (in-lb): 27-133
Recommended Forward Torque Range (nm): 3-15
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXX5A72T1080PS16

1" 40V Cordless Angle Torque Wrench, 9559 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 19
Max Torque (ft-lb): 797
Max Torque (in-lb): 9559
Max Torque (nm): 1080
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 159-797
Recommended Forward Torque Range (in-lb): 1912-9559
Recommended Forward Torque Range (nm): 216-1080
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXX5A52T0880PS12

3/4" 40V Cordless Angle Torque Wrench, 7789 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 23
Max Torque (ft-lb): 649
Max Torque (in-lb): 7789
Max Torque (nm): 880
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 133-649
Recommended Forward Torque Range (in-lb): 1593-7789
Recommended Forward Torque Range (nm): 180-880
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
