INGERSOLL-RAND IR TOOL S12880

IR QXXD2PT004PS06

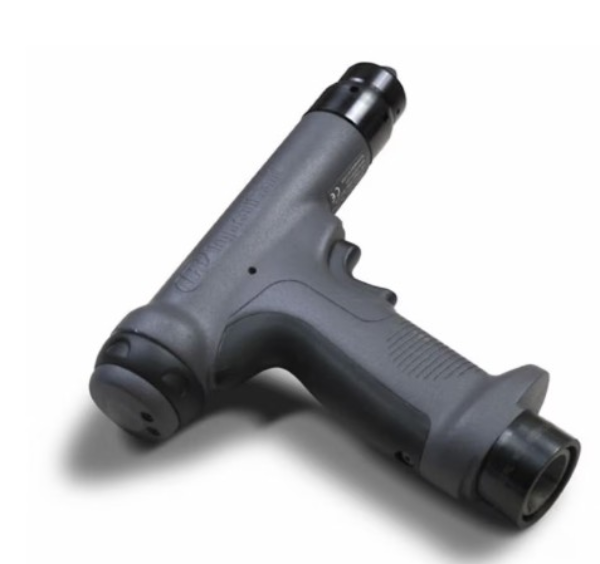

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb Torque, 330 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 330
Max Torque (ft-lb): 20
Max Torque (in-lb): 239
Max Torque (nm): 27
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Weight (lb): 3.7
Recommended Forward Torque Range (ft-lb): 4.0-20
Recommended Forward Torque Range (in-lb): 48-239
Recommended Forward Torque Range (nm): 5.4-27
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.67
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2AT005PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Screwdriver, 44 in-lb Torque, 1213 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1213
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 5
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 21.73
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.5
Recommended Forward Torque Range (ft-lb): 0.7-3.7
Recommended Forward Torque Range (in-lb): 8.9-44
Recommended Forward Torque Range (nm): 1.0-5
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 0.36
Side to Center Distance (mm): 9
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT008PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT012EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible

IR QXXD2PT012ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible

IR QXXD2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT012PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT018EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible

IR QXXD2PT10CPM12-K2

3/4" 20V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

Includes: (2) 20V 5Ah BL2022 Batteries, 20V Battery Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 7
Max Torque (ft-lb): 738
Max Torque (in-lb): 8851
Max Torque (nm): 1000
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD2PT200PM12

3/4" 20V Cordless Torque Wrench, 17701 in-lb, Bare Tool, Bluetooth/802.15.4, Pistol

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 39
Max Torque (ft-lb): 148
Max Torque (in-lb): 1770
Max Torque (nm): 200
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 30-148
Recommended Forward Torque Range (in-lb): 354-1770
Recommended Forward Torque Range (nm): 40-200
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
S

IR QXXD2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD2PT500PM12-K2

3/4" 20V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

Includes: (2) 20V 5Ah BL2022 Batteries, 20V Battery Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 13
Max Torque (ft-lb): 369
Max Torque (in-lb): 4425
Max Torque (nm): 500
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD2TT13CPM16

QX 20V 1" Cordless 2-Speed Torque Multiplier, 996 ft-lb Torque, 25 RPM, Display, Pistol, Bluetooth

The QX Series™ 2-Speed Cordless Torque Multiplier consists of an automatically shifting two-speed gearbox that provides 5x faster run-down speeds and then automatically shifting down to a high torque speed for final torque. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, this tool will fasten the bolt, validate, and record each result, managing your total operation.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Max Free Speed (rpm): 25
Max Torque (ft-lb): 996
Max Torque (in-lb): 11949
Max Torque (nm): 1350
Motor: Brushless Motor
Power Source: Battery Powered
Recommended Forward Torque Range (ft-lb): 249-996
Recommended Forward Torque Range (in-lb): 2992-11949
Recommended Forward Torque Range (nm): 338-1350
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5AT000E000

Backcap Assembly, 40V Pistol, 802.15.4 and Bluetooth, Display, ETS

IR QXXD5AT000P000

Backcap Assembly, 40V Angle, 802.15.4 and Bluetooth, Display, Standard

IR QXXD2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb Torque, 500 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 18
Max Torque (in-lb): 212
Max Torque (nm): 24
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): -
Recommended Forward Torque Range (in-lb): -
Recommended Forward Torque Range (nm): 4.8 – 24
Retainer Type: Pin Detent
Reversible: Reversible
Side to C

IR QXXD2PT10CPM12

3/4" 20V Cordless Torque Wrench, Bare Tool, Bluetooth/802.15.4, Pistol

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 7
Max Torque (ft-lb): 738
Max Torque (in-lb): 8851
Max Torque (nm): 1000
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD2PT200PM12-K2

3/4" 20V Cordless Torque Wrench 2 Battery Kit, 17701 in-lb, Bluetooth/802.15.4, Pistol

Includes: (2) 20V 5Ah BL2022 Batteries, 20V Battery Charger
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 39
Max Torque (ft-lb): 148
Max Torque (in-lb): 1770
Max Torque (nm): 200
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 30-148
Recommended Forward Torque Range (in-lb): 354-1770
Recommended Forward Torque Range (nm): 40-200
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT012PM00

QX No Com Power Unit Only 40V Display Pistol

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Type: Square
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT01KPW16

1" 40V Cordless Torque Wrench, Bare Tool, 8851 in-lb Torque, Bluetooth/802.15.4, Pistol

The Ingersoll Rand® QX Series™ 40V Cordless Torque Multiplier is built with one vital industry in mind: Heavy trucking and transportation. With a custom reaction arm optimized for commercial truck tires, programmable torque up to 750 ft-lbs, and torque recording that helps you maintain real-time records of service and proof of performance, the QX Series™ 40V Cordless Torque Multiplier helps increase efficiency, safety, and power on the shop floor. Even when the job is tough, our tools are tougher.

Features And Benefits

• Power: The brushless motor and premium Norbar® gearbox provide up to 750 ft-lbs of torque.
• Accuracy and Efficiency: Digitally traceable tightening provides consistent, reliable torque within 5% accuracy and reduces the need for manual torqueing and torque wrench confirmation.
• Connectivity: Real-time digital torque recording automatically generates a record of service via Wi-Fi or Bluetooth® Access via the Ingersoll Rand INSIGHT™ Connect Mobile App whenever you need it.
• Comfort: Reaction arm crafted specifically for truck tires and an articulating top handle that moves two axes allows for mounting and maneuvering in almost any configuration.
• Durability: Chemical resistant housing reinforced with an IP5X rating for increased protection in harsh environments. Backed by a 1-year warranty and rigorously tested to ensure peak performance during tough jobs.
• Also available in the QXXD5PT01KPW16K2 kit which includes the QXXD5PT01KPW16 Torque Wrench, (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger, 33mm socket and retainer.

Includes: 33mm socket and retainer. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Designed for the heavy trucking and transportation industry in applications requiring precise torque control, accuracy, consistency and repeatability and are recommended for tightening requirements.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Clutch Type: None
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 15
Max Torque (ft-lb): 738
Max Torque (in-lb): 8851
Max Torque (nm): 1000
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.5
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 148-738
Recommended Forward Torque Range (in-lb): 1770-8851
Recommended Forward Torque Range (nm): 200 - 1000
Retainer Type: Thru-hole
Reversible: Reversible
Speed Setting: Variable Speed
Standards/Certifications: UL/CSA/CE/IP5X
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QXXD5PT01KPW16K2

1" 40V Cordless Torque Wrench 2 Battery Kit, 8851 in-lb Torque, Bluetooth/802.15.4, Pistol

The Ingersoll Rand® QX Series™ 40V Cordless Torque Multiplier is built with one vital industry in mind: Heavy trucking and transportation. With a custom reaction arm optimized for commercial truck tires, programmable torque up to 750 ft-lbs, and torque recording that helps you maintain real-time records of service and proof of performance, the QX Series™ 40V Cordless Torque Multiplier helps increase efficiency, safety, and power on the shop floor. Even when the job is tough, our tools are tougher.

Features And Benefits

• Power: The brushless motor and premium Norbar® gearbox provide up to 750 ft-lbs of torque.
• Accuracy and Efficiency: Digitally traceable tightening provides consistent, reliable torque within 5% accuracy and reduces the need for manual torqueing and torque wrench confirmation.
• Connectivity: Real-time digital torque recording automatically generates a record of service via Wi-Fi or Bluetooth® Access via the Ingersoll Rand INSIGHT™ Connect Mobile App whenever you need it.
• Comfort: Reaction arm crafted specifically for truck tires and an articulating top handle that moves two axes allows for mounting and maneuvering in almost any configuration.
• Durability: Chemical resistant housing reinforced with an IP5X rating for increased protection in harsh environments. Backed by a 1-year warranty and rigorously tested to ensure peak performance during tough jobs.
• Includes: 40V Torque Wrench, (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger, 33mm socket and retainer.

Includes: QXXD5PT01KPW16 40V Torque Multiplier, (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger, 33mm socket and retainer.
Product Application and Uses: Designed for the heavy trucking and transportation industry in applications requiring precise torque control, accuracy, consistency and repeatability and are recommended for tightening requirements.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Clutch Type: None
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 15
Max Torque (ft-lb): 738
Max Torque (in-lb): 8851
Max Torque (nm): 1000
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.5
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 148-738
Recommended Forward Torque Range (in-lb): 1770-8851
Recommended Forward Torque Range (nm): 200 - 1000
Retainer Type: Thru-hole
Reversible: Reversible
Speed Setting: Variable Speed
Standards/Certifications: UL/CSA/CE/IP5X
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

IR QE2PT003P10Q04

ASSEMBLY TOOL

IR QE2PT007P10Q04

ASSEMBLY TOOL

IR QE2AL008PA2Q04

Rt. Angle Nutrunner

IR QCXM13-FM

INSIGHTqcx Cordless Controller, Standard plus DEVICENET Hardware, No Display

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

• SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: No Display
Warranty: 1-year

IR QE2PP010P11Q04

QE2 Series, Pistol Grip, Trigger + PTS Start, 10Nm Max Torque

IR QE2PT005P10Q04

Nutrunner, Pistol Grip, Trigger Start

IR QE2AL003PA1S04

1/4" Electric Angle Screwdriver, 35 in-lb Torque, 2000 RPM

Compact, lightweight and high-speed, the QE2 Angle Series provide superior accuracy, ergonomics and durability to meet your critical fastening requirements and maximize your productivity. Featuring a torque range from 7.1 - 35.4 in-lbs.

Features And Benefits

• Accurate: The closed loop transducerized control provides exceptionable accuracy and traceability for advanced torque control strategies.
• Versatile: Customizable to your needs, these tools allow you to change torque output, body style, actuation and spindle type.
• Reliable: With a heavy duty gear train, a brushless DC motor and non-contacting switches, this series is as reliable as it is efficient.
• Made To Use: With numerous features designed to enhance user experience, the QE2 Angle Series allows you to work well with minimal distractions.
• Safety: ESD-Safe & RoHS compliant options available.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Lever
Anvil Length: Standard
Built-in Light: No
Color: Black
Configuration/Handle Type: Right Angle
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 2000
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Electric
Product Length (in): 12.28
Product Weight (lb): 1.82
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8 - 4
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): < 70
Vibration Level (m/s2): < 2.5
Warranty: 1-year
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QE2PT010P10Q04

ASSEMBLY TOOL

IR QE2SC002F32S06

QE2 DC FASTENING IN-LINE, REMOTE START, 2 NM

IR QE2SC005F32S06

Assembly Tool

IR QE2SC010F32S06

ASSEMBLY TOOL

IR QE2SL002P10Q04

QE2 DC FASTENING IN-LINE LEVER. 2 NM

IR QE2SL005P10Q04

Assembly Tool

IR QE2SL007P10Q04

Nutrunner

IR QE2SL010P10Q04

ASSEMBLY TOOL

IR QE2SP007P11Q04

Nutrunner

IR QE2TS003P11Q04

ASSEMBLY TOOL

IR QE2TS010P11Q04

ASSEMBLY TOOL

IR QE4AE013PA2S04

DC Right Angle Tool

IR QE4AE020PA2S06

Nutrunner R/A Extended DC Electric

IR QE4AT020PA2S06

ASSEMBLY TOOL

IR QE4AT027BA4S06

Nutrunner, DC, R/A, 27 NM, 600 RPM

IR QE4AT027PA4S06

ASSEMBLY TOOL QE4AT027PA4S06

IR QE4AT034PA4S08

ASSEMBLY TOOL QE4AT034PA4S08

IR QE4AT027PA4S08

Dc Electric, Right Angle, 27Nm, 1/2In Drive

IR QE4AT034PA4S06

ASSEMBLY TOOL

IR QE4MT010P

Motor Unit

IR QE4PT015P10Q04

DC Electric Pistol Grip

IR QE4PT010P10Q04

ASSEMBLY TOOL

IR QE4PT025P10S06

Nut Runner, Pistol Grip DC Electric

IR QE4SC010B21S06

Nutrunner, Inline, DC, 10 Nm

IR QE4SC025B41S06

ASSEMBLY TOOL QE4SC025B41S06

IR QE4TS015R11Q04

QE4 DC FASTENING, PUSH-TO-START, 15 NM

IR QE4TS020R11S06

ASSEMBLY TOOL

IR QE6AT040PA4S06

ASSEMBLY TOOL

IR QE4TS025R11S06

QE4 DC FASTENING PUSH-TO-START, 25 NM

IR QE6AT040PA4S08

ASSEMBLY TOOL QE6AT040PA4S08

IR QE8AT090FA6S08

DC Electric Nutrunner

IR QE4ST020R21S06

Inline Nutrunner Trigger Start 3/8 sq dr 20nm

IR QE8AT115FA6S08

Nutrunner, DC Electric

IR QE8AT150FA6S08

ASSEMBLY TOOL

IR QE4ST015B21S06

Nutrunner, DC, Inline, Trigger Start

IR QE6AT055PA5S08

ASSEMBLY TOOL

IR QE4TS015R11S06

Q Series Push To Start

IR QE4TS010R11Q04

Assembly Tool

IR QE8SC150F61S08

QE8 DC FASTENING STRAIGHT, CONTROLLER, 150 NM

IR QE8SC090F61S08

DC Electric Driver, 90nm, 1470 rpm

IR QE4TS015R11S04

Inline DC Electric Nutrunner, 3-12Nm, Push Start, 1/4Sq Dr

IR QE8SE055J41S08

Dc Electric, Straight, 55Nm, 1/2In Drive

IR QXFD2PT004PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT004PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT008EQ04

1/4" Hex Quick Change 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT004PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT008PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT012EQ04

1/4" Hex Quick Change 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD5AT000E000

BACKCAP ASSEMBLY, 40V ANGLE, NO RADIO, DISPLAY, ETS

IR QXFD2PT012PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT018EQ04

1/4" Hex Quick Change 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD5AT000P000

Backcap Asembly, 40V Angle, No Radio, Display, Standard

IR QXFD2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results!

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb Torque, 500 RPM, Display, Pistol

Increase the productivity of your assembly line with 20V pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! Reducing torque reaction doesn’t have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes, simplifying setup; Ergonomic Mode, Performance Mode, Productivity Mode and Standard QX Direct Drive Mode.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 18
Max Torque (in-lb): 212
Max Torque (nm): 24
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): -
Recommended Forward Torque Range (in-lb): -
Recommended Forward Torque Range (nm): 4.8 – 24
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: Mini USB

IR QXFD5PT012PM00

QX BT WIRELESS POWER UNIT ONLY 40V DISPLAY PISTOL

IR QXFD2TT13CPM16

QX 20V 1" Cordless 2-Speed Torque Multiplier, 996 ft-lb Torque, 25 RPM, Display, Pistol

The QX Series™ 2-Speed Cordless Torque Multiplier consists of an automatically shifting two-speed gearbox that provides 5x faster run-down speeds and then automatically shifting down to a high torque speed for final torque. Designed with a premium Norbar™ gearbox and an efficient, time-tested closed-loop transducer, this tool will fasten the bolt, validate, and record each result, managing your total operation.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Max Free Speed (rpm): 25
Max Torque (ft-lb): 996
Max Torque (in-lb): 11949
Max Torque (nm): 1350
Motor: Brushless Motor
Power Source: Battery Powered
Recommended Forward Torque Range (ft-lb): 249-996
Recommended Forward Torque Range (in-lb): 2992-11949
Recommended Forward Torque Range (nm): 338-1350
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

IR QXFD5PT13CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 995.7 Ft-lb Torque, Thru-hole Retainer, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 11
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 16.7
Product Weight (lb): 20
Product Weight (lb) (with Battery): 21.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 200-996
Recommended Forward Torque Range (in-lb): 2390-11949
Recommended Forward Torque Range (nm): 270 - 1350
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

IR QXFD5PT20CPM16

1" 40V Cordless Torque Wrench, Bare Tool, 1475.1 Ft-lb Torque, Thru-hole Retainer, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Gearbox Width (in): 2.8
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 6.8
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 18
Product Weight (lb): 21
Product Weight (lb) (with Battery): 22.5
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 295-1475
Recommended Forward Torque Range (in-lb): 3540-17701
Recommended Forward Torque Range (nm): 400 - 2000
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

IR QXFD5PT200PM12

3/4" 40V Cordless Torque Wrench, Bare Tool, 148.5 Ft-lb Torque, Thru-hole Retainer, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Gearbox Width (in): 2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 83
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 15.4
Product Weight (lb): 13.9
Product Weight (lb) (with Battery): 15.4
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 30-148
Recommended Forward Torque Range (in-lb): 354-1770
Recommended Forward Torque Range (nm): 40 - 200
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality

IR QXFD5PT500PM12

3/4" 40V Cordless Torque Wrench, Bare Tool, 369.9 Ft-lb Torque, Thru-hole Retainer, Pistol

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• PRODUCTIVITY: Integrate together with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller. Share tightening data via email for post processing verification through the free INSIGHT Connect app. Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
• CONFIDENCE: Precision where you need it most. Ingersoll Rand's closed-loop transducer control at the heart of the tool delivers accurate, traceable torque and angle results. Forget manual pen and paper recording. Automatically record every tightening cycle to the day and minute with a persistent internal clock. Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app.
• DURABILITY: Longevity in harsh applications with steel reinforced motor housing. Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating. Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery
• SAFETY: Tethering ring included for safety and drop prevention.
• COMFORT: Dual Axis 360 degree handle provides instant adjustability, maximizing comfort and flexibility when working on multiple joints and applications.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Bolts per Charge (on and Off): 300
Built-in Light: No
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Gearbox Width (in): 2
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 27
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 15.5
Product Weight (lb): 13.9
Product Weight (lb) (with Battery): 15.4
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 74-369
Recommended Forward Torque Range (in-lb): 885-4425
Recommended Forward Torque Range (nm): 100 - 500
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
