INGERSOLL-RAND IR TOOL S12880

IR QXXN2PT008PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT040ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 354 in-lb Torque, 545 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 545
Max Torque (ft-lb): 30
Max Torque (in-lb): 354
Max Torque (nm): 40
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.1
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 5.9-30
Recommended Forward Torque Range (in-lb): 71-354
Recommended Forward Torque Range (nm): 8.0-40
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT080ES08

1/2" 40V Cordless QX Precision Fastening ETS Angle Torque Wrench, 708 in-lb Torque, 375 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.1
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT004PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1500
Max Torque (ft-lb): 3.0
Max Torque (in-lb): 35
Max Torque (nm): 4
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 0.6-3.0
Recommended Forward Torque Range (in-lb): 7.1-35
Recommended Forward Torque Range (nm): 0.8-4
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Vibration Level (m/s2): < 2.5
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT030PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT008PS06

3/8" 20V Cordless QX Precision Fastening Scrwdriver, 70 in-lb Torque, 1150 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.35
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Square
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.2
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.48
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25
Sound Pressure/Power Db(A): < 70.0
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

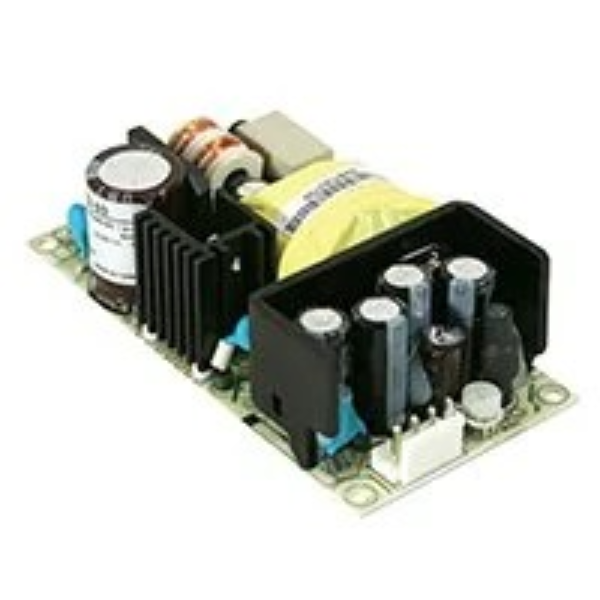

IR RPS-60-24

SWITCHING POWER SUPPLY

IR TA-GEA15-756

QE4 TRANSDUCER ASSEMBLY KIT

IR TA-VA1B-499-3

Power Board Assembly, 20V Angle

IR QXXD2PT008ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb Torque, 1150 RPM, Display, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXD Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode), simplifying setup.
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1150
Max Torque (ft-lb): 5.9
Max Torque (in-lb): 71
Max Torque (nm): 8
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.2-5.9
Recommended Forward Torque Range (in-lb): 14-71
Recommended Forward Torque Range (nm): 1.6-8
Retainer Type: Pin Detent
Reversible: Reversible
Si

IR QXXD5AT020PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 177 in-lb Torque, 1045 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 1045
Max Torque (ft-lb): 15
Max Torque (in-lb): 177
Max Torque (nm): 20
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.74
Product Height (in): 3.94
Product Weight (lb): 4.5
Recommended Forward Torque Range (ft-lb): 3.0-15
Recommended Forward Torque Range (in-lb): 35-177
Recommended Forward Torque Range (nm): 4.0-20
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.52
Side to Center Distance (mm): 13
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5AT030PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 266 in-lb Torque, 775 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 775
Max Torque (ft-lb): 22
Max Torque (in-lb): 266
Max Torque (nm): 30
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 4.4-22
Recommended Forward Torque Range (in-lb): 53-266
Recommended Forward Torque Range (nm): 6.0-30
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5AT035PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM, Display

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXD Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key on QXXD Models.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXD5PT000P000

BACK CAP ASSEMBLY, 40V PISTOL, 802.15.4 AND BLUETOOTH, DISPLAY, SINGLE TRIGGER

IR QXXN2AT010PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 89 in-lb Torque, 936 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 936
Max Torque (ft-lb): 7.4
Max Torque (in-lb): 89
Max Torque (nm): 10
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 20.67
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.6
Recommended Forward Torque Range (ft-lb): 1.5-7.4
Recommended Forward Torque Range (in-lb): 18-89
Recommended Forward Torque Range (nm): 2.0-10
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.49
Side to Center Distance (mm): 12
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2AT018PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 159 in-lb Torque, 500 RPM

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 24.34
Product Height (in) (with Battery): 3.94
Product Weight (lb): 2.8
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.51
Side to Center Distance (mm): 13
User Interface: No Display
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN2PT012EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 750
Max Torque (ft-lb): 8.9
Max Torque (in-lb): 106
Max Torque (nm): 12
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 1.8-8.9
Recommended Forward Torque Range (in-lb): 21-106
Recommended Forward Torque Range (nm): 2.4-12
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm):

IR QXXN2PT018EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 8.13
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Quick Change
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 2

IR QXXN2PT018ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

A member of the QX Connect Series Precision Fastening System, the 20V QXXN Cordless Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this tool is designed to improve accuracy and productivity of your precision fastening and assembly operations. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App. Reducing the torque reaction in your fastening process doesn't have to be complicated. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series™ platform, without the torque reaction.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series™ IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Offer option for Insight Connect Android APP LINK
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Standard QX Direct Drive Mode: when disabling the ETS* Mode, these tools can be used as a QX standard drive mode.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software
• Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process.
• Red tool highlights provide a clear indication of ETS* tool identity vs standard QX tool.
• Continuously blue light above the keypad provides operator assurance that ETS* is ACTIVE.
• In addition to the standard direct drive mode, each tool configuration can be independently programmed to utilize one of the three available ETS* modes (Ergonomic Mode, Performance Mode, Productivity Mode) simplifying setup:
• Ergonomic Mode: with the lowest energy pulses, is ideal for hard joints or when arm, wrist, or tool angles are most difficult.
• Performance Mode: with medium energy pulses, is the best all-purpose mode.
• Productivity Mode: with the highest energy pulses, is the fastest mode. Ideal for soft joints or when high production rates are required.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 500
Max Torque (ft-lb): 13
Max Torque (in-lb): 159
Max Torque (nm): 18
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 7.99
Product Height (in) (with Battery): 10.07
Product Weight (lb): 2
Recommended Forward Torque Range (ft-lb): 2.7-13
Recommended Forward Torque Range (in-lb): 32-159
Recommended Forward Torque Range (nm): 3.6-18
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 1
Side to Center Distance (mm): 25

IR QXXN5AT000E000

Backcap Assembly, 40V Angle, 802.15.4 and Bluetooth, No Display, ETS

IR QXXN5AT000P000

BACKCAP ASSEMBLY, 40V ANGLE, 802.15.4 AND BLUETOOTH, NO DISPLAY, STANDARD

IR QXXN5AT035PS06

3/8" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT035PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 310 in-lb Torque, 640 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 640
Max Torque (ft-lb): 26
Max Torque (in-lb): 310
Max Torque (nm): 35
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 22.91
Product Height (in): 3.94
Product Weight (lb): 4.8
Recommended Forward Torque Range (ft-lb): 5.2-26
Recommended Forward Torque Range (in-lb): 62-310
Recommended Forward Torque Range (nm): 7.0-35
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.68
Side to Center Distance (mm): 17
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR QXXN5AT080PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 708 in-lb Torque, 375 RPM

A member of the QX Connect Series Precision Fastening System, the 40V angle QXXN Precision Screwdriver offer the full feature set of the QX Connect Series. With up to 32 programmable configurations, wireless data transmission and on tool display, Bluetooth connectivity, this angle wrench is designed to improve accuracy and productivity of your precision fastening and assembly operations. Reducing torque reaction doesn’t have to be complicated with the QX Connect Series Ergonomic Tightening System. The Bluetooth capability further enhances mobility by enabling users to wirelessly program the QX Connect Series assembly tools using the INSIGHT Connect App.

Features And Benefits

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Connect Series™ IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer use applications. The 40 volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Offer option for Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Insight Connect Android and IOS App; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Max Free Speed (rpm): 375
Max Torque (ft-lb): 59
Max Torque (in-lb): 708
Max Torque (nm): 80
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 23.07
Product Height (in): 3.94
Product Weight (lb): 5
Recommended Forward Torque Range (ft-lb): 8.9-59
Recommended Forward Torque Range (in-lb): 106-708
Recommended Forward Torque Range (nm): 12.0-80
Retainer Type: Pin Detent
Reversible: Reversible
Side to Center Distance (in): 0.85
Side to Center Distance (mm): 22
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: USB-C

IR RTS025PQ4

RTS 1/4" Hex 20V Mechanical Cordless Pulse Tool, 18ft-lb Torque, 3800PPM, 2700RPM, Quick Change Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS025PQ4-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: Production Environment
Fastener Size: M6-M8
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.1
Product Weight (lb): 2.31
Product Weight (lb) (with Battery): 3.21
Pulses per Minute: 3600-3800
Recommended Forward Torque Range (ft-lb): 5.9-18
Recommended Forward Torque Range (in-lb): 71-221
Recommended Forward Torque Range (nm): 8-25
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): 92 / 100
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.4
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS025PQ4-K2

RTS 1/4" Hex 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 18ft-lb Torque, 3800PPM, 2700RPM, Quick Change Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/4" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 1/4" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/4
Drive Type: Hex
Duty Rating: Production Environment
Fastener Size: M6-M8
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.1
Product Weight (lb): 2.31
Product Weight (lb) (with Battery): 3.21
Pulses per Minute: 3600-3800
Recommended Forward Torque Range (ft-lb): 5.9-18
Recommended Forward Torque Range (in-lb): 71-221
Recommended Forward Torque Range (nm): 8-25
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): 92 / 100
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.4
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PH6

RTS 3/8" 20V Mechanical Cordless Pulse Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru-Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PH6-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.46
Product Weight (lb): 2.35
Product Weight (lb) (with Battery): 3.26
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PH6-K2

RTS 3/8" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 44ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru-Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 3/8" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 3/8" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.46
Product Weight (lb): 2.35
Product Weight (lb) (with Battery): 3.26
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PH8

RTS 1/2" 20V Mechanical Cordless Pusle Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PH8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.4
Product Weight (lb) (with Battery): 3.3
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PH8-K2

RTS 1/2" 20V Mechanical Cordless Pusle Tool 2 Battery Kit, 44ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.4
Product Weight (lb) (with Battery): 3.3
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PS6

RTS 3/8" 20V Mechanical Cordless Pulse Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PS6-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.42
Product Weight (lb): 2.35
Product Weight (lb) (with Battery): 3.26
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PS6-K2

RTS 3/8" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 3/8" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 3/8" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/8
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.42
Product Weight (lb): 2.35
Product Weight (lb) (with Battery): 3.26
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PS8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PS8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.4
Product Weight (lb) (with Battery): 3.3
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS060PS8-K2

RTS 1/2" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.4
Product Weight (lb) (with Battery): 3.3
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS140PH8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 103ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS140PH8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M10-M14
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.42
Product Weight (lb) (with Battery): 3.32
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 22-103
Recommended Forward Torque Range (in-lb): 266-1239
Recommended Forward Torque Range (nm): 30-140
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 11
Vibration Uncertainy K* (m/s2): 1.6
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS140PH8-K2

RTS 1/2" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 103ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 1/2" RTS Pulse Tool, (2) 5.0 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M10-M14
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.42
Product Weight (lb) (with Battery): 3.32
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 22-103
Recommended Forward Torque Range (in-lb): 266-1239
Recommended Forward Torque Range (nm): 30-140
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 11
Vibration Uncertainy K* (m/s2): 1.6
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS140PS8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 103ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS140PS8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M10-M14
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.42
Product Weight (lb) (with Battery): 3.32
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 22-103
Recommended Forward Torque Range (in-lb): 266-1239
Recommended Forward Torque Range (nm): 30-140
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 11
Vibration Uncertainy K* (m/s2): 1.6
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS140PS8-K2

RTS 1/2" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 103ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.

Includes: 1/2" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M10-M14
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.42
Product Weight (lb) (with Battery): 3.32
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 22-103
Recommended Forward Torque Range (in-lb): 266-1239
Recommended Forward Torque Range (nm): 30-140
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 11
Vibration Uncertainy K* (m/s2): 1.6
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS225PH8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 165ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Reatiner

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS225PH8-K2 Kit which includes (2) 5.0 Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M12-M18
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.46
Product Weight (lb) (with Battery): 3.37
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 44-166
Recommended Forward Torque Range (in-lb): 531-1991
Recommended Forward Torque Range (nm): 60-225
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 14.8
Vibration Uncertainy K* (m/s2): 2.7
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS225PH8-K2

RTS 1/2" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 165ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Reatiner

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/4" RTS Pulse Tool, (2) 5.0 Ah Batteries, Charger.

Includes: 1/4" RTS Pulse Tool, (2) 2.5 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M12-M18
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.46
Product Weight (lb) (with Battery): 3.37
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 44-166
Recommended Forward Torque Range (in-lb): 531-1991
Recommended Forward Torque Range (nm): 60-225
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 14.8
Vibration Uncertainy K* (m/s2): 2.7
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS225PS8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 165ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS225PS8-K2 Kit which includes (2) 5.0 Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M12-M18
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.46
Product Weight (lb) (with Battery): 3.37
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 44-166
Recommended Forward Torque Range (in-lb): 531-1991
Recommended Forward Torque Range (nm): 60-225
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 14.8
Vibration Uncertainy K* (m/s2): 2.7
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR RTS225PS8-K2

RTS 1/2" 20V Mechanical Cordless Pulse Tool 2 Battery Kit, 165ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• KIT INCLUDES: 1/2" RTS Pulse Tool, (2) 5.0 Ah Batteries, Charger.

Includes: 1/2" RTS Pulse Tool, (2) 5.0 Ah Batteries, Charger.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M12-M18
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.65
Product Weight (lb): 2.46
Product Weight (lb) (with Battery): 3.37
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 44-166
Recommended Forward Torque Range (in-lb): 531-1991
Recommended Forward Torque Range (nm): 60-225
Retainer Type: Pin Detent
Reversible: Reversible
Sound Pressure/Power Db(A): 95 / 103
Vibration Level (m/s2): 14.8
Vibration Uncertainy K* (m/s2): 2.7
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

IR SPMW1533

ADAPTER FOR QX 40 TO HT 52

IR QXXN2PT000E000

BACKCAP ASSEMBLY, 20V PISTOL, 802.15.4 AND BLUETOOTH, NO DISPLAY, ETS

IR RT

RTS 60Nm 3/8in Pin Retainer, 2.5Ah Bat Kit

IR SW11-L34

GEAR, OUPUT SOCKET

IR SW13-L28

OUTPUT SOCKET GEAR, 10MMEXT

IR SYM-LS3603RS232

KIT, SCANNER-CABLE-P/S

IR T03710-69

PCB DISPLAY

IR T03711-69

PCB, (EXPERT WRENCH) MAI

IR T12119-01

POWER SUPPLY, (PAC SCI)

IR T12162-01

P/S, 24VDC 110VAC OMRON

IR T14154-89

ARM

IR T14328-01

END CAP

IR T14332-01

FRONT PANEL, ENGLISH

IR T14333-01

PLATE

IR T14418-01

CARRY CASE

IR T14661-01

MANUAL

IR T14661-FR

MANUAL, IHW EXPERT(FRENCH)

IR T17691-01

BRACKET, 2" MOTOR CONNECT

IR T19979-125E

PANEL

IR T19979-125F

PANEL

IR T19979-125G

PANEL

IR T19979-125I

PANEL

IR T19979-400E

REAR PANEL ENGLISH 400

IR T21008-84A

KEYPAD, 68000 FRONT PANEL

IR T21015-02

PCB, CPU(CONFIG & TESTED)

IR T21016-02

PCB, MEMORY EXPANSION

IR T21475-69AEF

PANEL

IR T21475-69AEG

PANEL

IR T21475-69AEI

PANEL

IR T21475-AEE

PANEL, FRONT, EXP, AUDIT, EN

IR T21521-69

ASSY, CRT AND RACK

IR T21543-89

PCB, SPINDLE CONTROL

IR T21582-79

DISPLAY, FRONT PANEL PCB

IR T25198-02

CONNECTOR

IR T25286-01

CONNECTOR, 10 PIN(FEMALE)

IR T28088-01

PLUG

IR T28653-01

CIRCLIP

IR T29850-71

FLOAT ASSEMBLY, SZ2 (6.31" )1/2DR 50MM

IR T29850-72

ADAPTER, FLOAT

IR T29861-01

FLOAT ASSEMBLY, SZ1 50MM3/8DR

IR T29875-01

COLLAR, SZ3 FLOAT SPLIT

IR T29944-02

DRIVE, 5/8" SQUARE

IR T29968-01

HOUSING, SZ2 DRIVE

IR T33196-04

MOTOR, ELECTRIC, PAC SCI

IR T34085-01

OUTPUT DRIVE, SZ2 INLINE(D20)

IR T34293-02

OUTPUT SPINDLE, SZ1INLINE (D15)

IR T34293-07

SHAFT, SZ2 OUPUT

IR T34294-02

OUTPUT SPINDLE, SZ2INLINE (D25)

IR T35111-01

SHAFT, 300NM TRANSDUCER

IR T35126-01

XDUCER, ANGULAR

IR T51122-02

SWITCH

IR T53125-89

CARRY CASE

IR T55035-02

POT, SANDBLASTED
