INGERSOLL-RAND IR TOOL S12880
INGERSOLL-RAND IR TOOL S12880 branded products
CONTROL ASS.1PH 1S+NA, 230/42V GP250/500
IR 9512.1052.2
IR 9512.1052.2
CONTROL ASS.1PH 1S+NA, 230/42V GP250/500
$855.00
CONTROL ASS.1PH 1S+NA, 115/42V GP250/500
IR 9512.1053.2
IR 9512.1053.2
CONTROL ASS.1PH 1S+NA, 115/42V GP250/500
$855.00
CONTROL ASS. 2S+NA, 42V, GP 250/500
IR 9512.1100.2
IR 9512.1100.2
CONTROL ASS. 2S+NA, 42V, GP 250/500
$645.00
CONTROL ASS. 2S+NA, 110V, GP 250/500
IR 9512.1101.2
IR 9512.1101.2
CONTROL ASS. 2S+NA, 110V, GP 250/500
$605.00
CONTROL ASSEMBLY. 42V, DUAL SPEED
IR 9517.1100.2
IR 9517.1100.2
CONTROL ASSEMBLY. 42V, DUAL SPEED
$820.00
MOTOR
IR M007RVR004AR4
IR M007RVR004AR4
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 4450 RPM, 0.67 HP, 3.51 NM, Reversible
Features And Benefits- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 4:1
Gear Reduction: Single
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 4450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 2.6
Max Torque (in-lb): 31
Max Torque (nm): 3.51
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.06
Rated Power (hp): 0.67
Rated Power (kW): 0.5
Reversible: Reversible
Speed at Max Power (rpm): 2225
Standards/Certifications: ATEX
Starting Torque (ft-lb): 1.9
Starting Torque (nm): 2.63
Warranty: 1-year
$2,130.00
MOTOR
IR M007RVR027AR4
IR M007RVR027AR4
Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 675 RPM, 0.64 HP, 20.1 NM, Reversible
Features And Benefits- Safety: Meets ATEX Standards
Air Consumption at Max HP (scfm): 33
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide and Anodize
Gear Ratio: 27:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 675
Max Pressure (bar): 6.2
Max Torque (ft-lb): 15
Max Torque (in-lb): 178
Max Torque (nm): 20.1
Motor: Rotary Vane
Motor: In line
Mounting Type: Flanged Mounting
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 3.5
Rated Power (hp): 0.64
Rated Power (kW): 0.48
Reversible: Reversible
Speed at Max Power (rpm): 335
Standards/Certifications: ATEX
Starting Torque (ft-lb): 12
Starting Torque (nm): 15.7
Warranty: 1-year
$2,340.00
Spare Kit (Vane)
IR SM1AMA-005-A
IR SM1AMA-005-A
Vane Kit for Ingersoll Rand SM1AMA-A AIngersoll Rand Motor
Includes: (4) VanesProduct Application and Uses: For use with SM1AMA-A Air Motor
For Use With
- SM1AMA-A
$31.00
Spare Kit- Foot
IR SM1AM-AG587-A
IR SM1AM-AG587-A
Mounting Foot for Ingersoll Rand SM1AMA-A AIngersoll Rand Motor
Includes: Mounting foot, (3) screws, (3) washers, (3) lock washersProduct Application and Uses: For use with SM1AMA-A Air Motor
Housing Material: Carbon Steel
For Use With
- SM1AMA-A
$26.00
Spare Kit (Vane)
IR SM1AMAL-005-A
IR SM1AMAL-005-A
Vane Kit for Ingersoll Rand SM1AMAL-A AIngersoll Rand Motor
Includes: (4) Rotor BladesProduct Application and Uses: For use with SM1AMAL-A Air Motor
For Use With
- SM1AMAL-A
$32.00
Spare Kit- Foot
IR SM1AMAL-AG587-A
IR SM1AMAL-AG587-A
Mounting Foot for Ingersoll Rand SM1AMAL-A AIngersoll Rand Motor
Includes: Mounting Foot Bracket, (3) Allen Bolts, (3) Spring Washers, (3) Plain WashersProduct Application and Uses: For use with SM1AMAL-A Air Motor
Housing Material: Carbon Steel
For Use With
- SM1AMAL-A
$26.00
Lube-Free Multi-Vane Air Motor .45Hp (Left-Hand Bias)
IR SM1AMAL-A
IR SM1AMAL-A
Lube-Free Multi-Vane Air Motor, 3/8 Round Keyless, 0.45HP, 0.4ft-lb, 15000 RPM, Left-Hand Bias, Foot/Face/Hub Mount
The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.Features And Benefits
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 20
Air Inlet: 1/8"-27 NPT
Air Pressure (psi): 90
Drive Length (in): 1.12
Drive Size (in): 3/8
Drive Type: Round Keyless
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.6
Max Torque (in-lb): 6.8
Max Torque (nm): 0.77
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Mounting Type: Hub
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 4.13
Product Width (in): 2.58
Product Height (in): 4.7
Product Weight (lb): 2.43
Rated Power (hp): 0.45
Rated Power (kW): 0.34
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 0.4
Starting Torque (nm): 0.55
Warranty: 1-year
$365.00

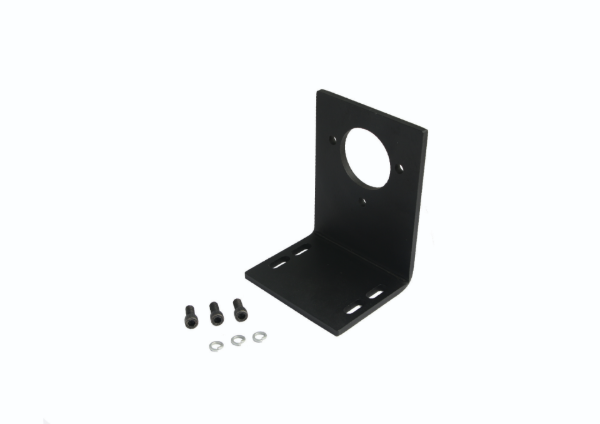

Spare Kit- Foot
IR SM4AM-AH634-A
IR SM4AM-AH634-A
Mounting Foot for Ingersoll Rand SM4AMB-A AIngersoll Rand Motor
Includes: Mounting foot, (3) screws, (3) washers, (3) lock washersProduct Application and Uses: For use with SM4AMB-A Air Motor
Housing Material: Carbon Steel
For Use With
- SM4AMB-A
$82.00

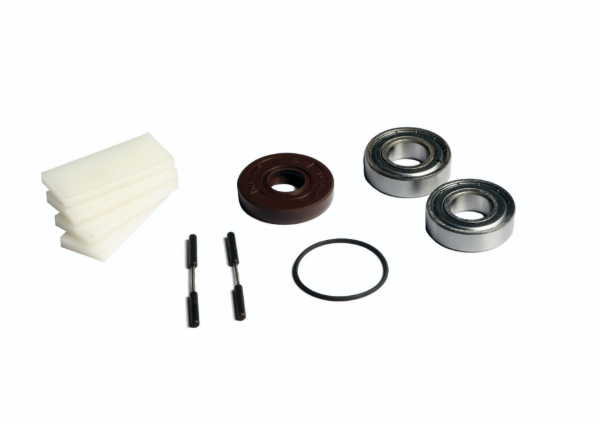

Tune-Up Kit
IR SM4AMAN-TK1-A
IR SM4AMAN-TK1-A
Tune-Up Kit for Ingersoll Rand SM4AMAN-A AIngersoll Rand Motor
Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap GasketProduct Application and Uses: For use with SM4AMAN-A Air Motor
For Use With
- SM4AMAN-A
$109.00

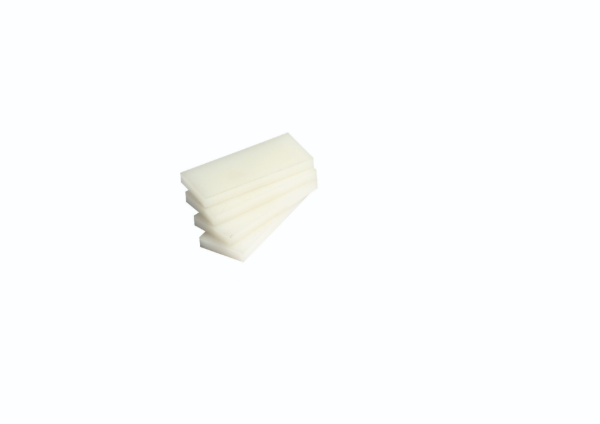

Spare Kit (Vane)
IR SM4AMAN-005-A
IR SM4AMAN-005-A
Vane Kit for Ingersoll Rand SM4AMAN-A/SM4AMB-A AIngersoll Rand Motor
Includes: (4) VanesProduct Application and Uses: For use with SM4AMAN-A and SM4AMB-A Air Motors
For Use With
- SM4AMAN-A
- SM4AMB-A
$44.00

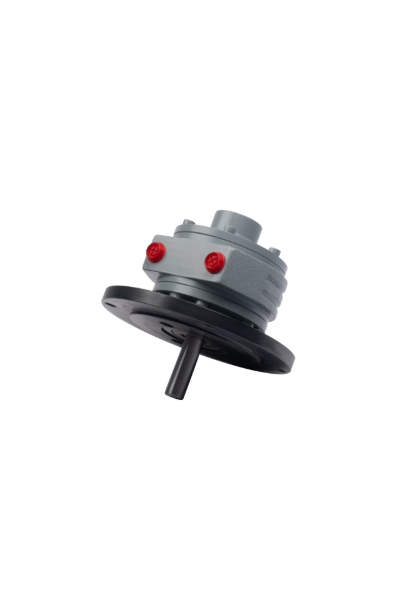

Lube-Free Multi-Vane Air Motor 1.5Hp (Woodruff Key)
IR SM4AMB-A
IR SM4AMB-A
Lube-Free Multi-Vane Air Motor, 1/2 Round Woodruff Key, 1.5HP, 2.6ft-lb, 7900 RPM, Foot/Face Mount
The Ingersoll Rand® SM Series Lube Free Air Motors reduces the need for frequent maintenance and delivers maximum horsepower in a compact size, making them ideal for applications requiring portability and space efficiency. Tackle Harsh Environments with a self-regulating cooling system that maintains optimal temperatures for consistent performance and longevity. Easy Installation with multiple mounting options including Foot, Flange, Hub and NEMA for compatibility with a wide range of setups.Features And Benefits
- Efficiency: Lube free airline operation provides clean, consistent performance that minimizes downtime – making maintenance quick and cost-effective.
- Performance: Get seamless control in dynamic environments with easy throttling and quick response times that ensure instant start and stop.
- Durability: Auto-stop mechanism protects the motor to deliver longevity and reliability under overload conditions.
- Safety: ATEX and CE certified for reliable performance in hazardous environments requiring intrinsically safe components.
Product Application and Uses: Paint Mixing, Conveyers, Pipe Cutting, Industrial Equipment, pre-lube and post-lube pumps
Air Consumption at Max HP (scfm): 67
Air Inlet: 1/2"-14 NPT
Air Pressure (psi): 90
Drive Length (in): 1.12
Drive Size (in): 1/2
Drive Type: Round Woodruff
Finish: Paint, Gray
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Gearless
Housing Material: Steel
Keyaway Length (in): 0.13
Max Free Speed (rpm): 7900
Max Pressure (bar): 6.2
Max Torque (ft-lb): 4.1
Max Torque (in-lb): 50
Max Torque (nm): 5.6
Motor: Rotary Vane
Motor: In line
Motor: Direct Drive
Mounting Type: Foot or Face
Operating Temperature Range: 33.8F to 104F
Power Source: Air Powered
Product Length (in): 5.67
Product Width (in): 3.9
Product Height (in): 7
Product Weight (lb): 11.22
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Reversible: Reversible
Standards/Certifications: ATEX and CE certified
Starting Torque (ft-lb): 2.6
Starting Torque (nm): 3.5
Warranty: 1-year
$475.00

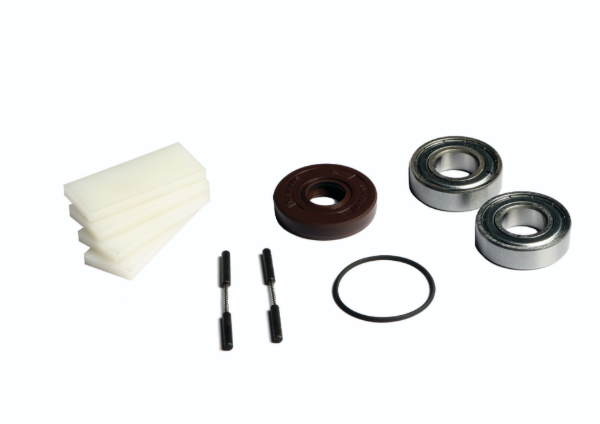

Tune-Up Kit
IR SM4AMB-TK1-A
IR SM4AMB-TK1-A
Tune-Up Kit for Ingersoll Rand SM4AMB-A AIngersoll Rand Motor
Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap GasketProduct Application and Uses: For use with SM4AMB-A Air Motor
For Use With
- SM4AMB-A
$94.00

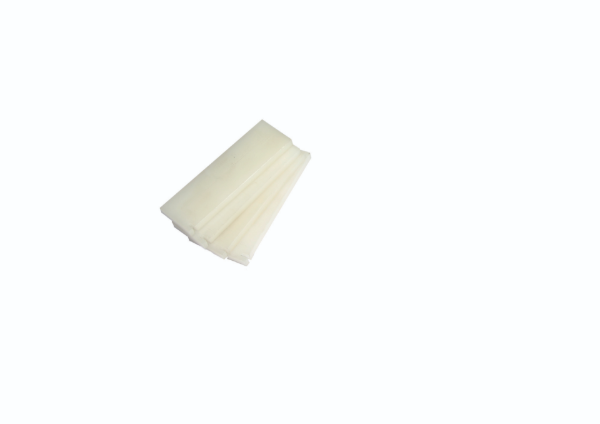

Spare Kit (Vane)
IR SM6AMA-005-A
IR SM6AMA-005-A
Vane Kit for Ingersoll Rand SM6AMA-A/SM6AMAN-A AIngersoll Rand Motor
Includes: (4) VanesProduct Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motors
For Use With
- SM6AMA-A
- SM6AMAN-A
$54.00
MCE POWER BOARD 220V 4000889-220
IR 4000889-220
IR 4000889-220
MCE POWER BOARD 220V 4000889-220
Call for pricing
NEEDLE BEARING HOUSINGLUBBERING
IR 42700004
IR 42700004
NEEDLE BEARING HOUSINGLUBBERING
Call for pricing
HOLD'N DRIVE SHAFT WITH15/16" HEX & SET SCREWS
IR 4314-27
IR 4314-27
HOLD'N DRIVE SHAFT WITH15/16" HEX & SET SCREWS
Call for pricing
