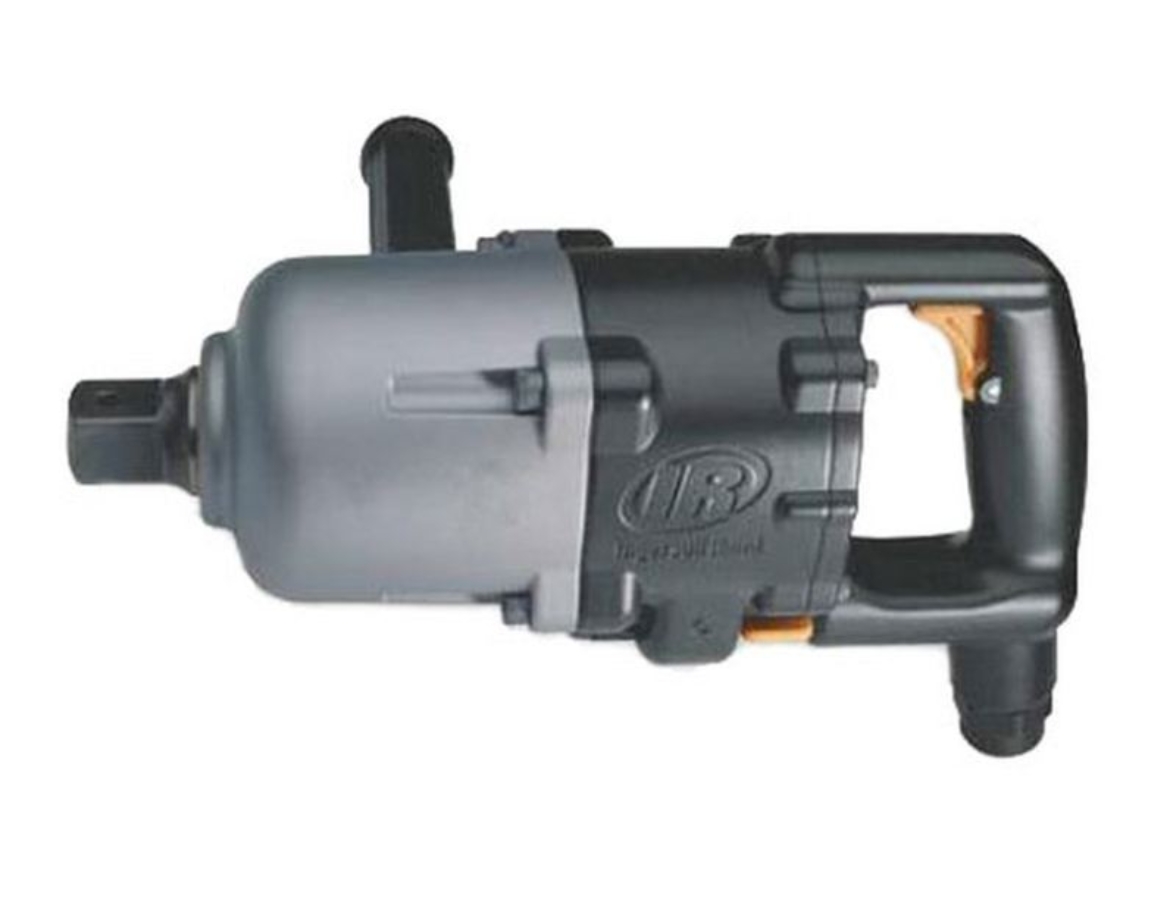

IR 2940B1

No. 5 Spline Impact Wrench, 1600 ft-lb Torque, D-Handle Inside Trigger

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 850

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): No. 5
• Drive Type: Spline
• Duty Rating: Industrial Duty

• Exhaust Location: Bottom

• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Power Source: Air Powered
• Product Length (in): 10.2

• Product Width (in): 22.1
• Product Height (in): 6.5
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170

• Side to Center Distance (in): 11.1
• Side to Center Distance (mm): 282

• Sound Pressure/Power Db(A): 94.8 / 105.8

• Tool Type: Full-size
• Vibration Level (m/s2): 17.8
• Vibration Uncertainy K* (m/s2): 3.4
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-A703
• Parts: 2940-TK3
