Impacts

IR 8U-191

SHAFT (105534)

IR A-9

HANDLE BOLT

IR AS-194

SPRING

IR ILA578A1-720

COVER

IR ILA578A1-728

SPRING

IR ILA578A1-A727

Aluminum Hammer Case Assembly Service Part for Ingersoll Rand 5980 Series Impact Wrench

For Use With

• 5980A1

IR ILA582A1-A727

Aluminum Hammer Case Assembly Service Part for Ingersoll Rand 5982 Series Impact Wrench

For Use With

• 5982A1

MPT MP-1437RA

Right Angle Impact Ratchet, 3/8in Square Drive, Pneumatic, 180 ft-lb

SUM IPW-2328LB

3/8in Sq. Dr. Auto Shut-Off Clutch Oil Pulse Wrench w/Retaing Pin

U UT8065P

3/8in Composite Impact Wrench

IR 1702P4

3/8" Air Impact Wrench, 125 ft-lb Torque, Quick Change Retainer, Pistol

The 1702 Series Impact Wrench’s steel hammer case and metal housing ensure a tough, durable tool that’ll help you breeze through any job without having to worry about your tools giving up.

Features And Benefits

• Power: With a jumbo hammer impact mechanism and power regulation, the 1702 Series is powerful and easy to control.
• Reliable: No matter how often you use it, the 1702 Series Impact Wrench will deliver the same high-quality output every time. Comes with a 1-year warranty.

Product Application and Uses: These air impact wrenches are designed to remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 15
Air Consumption @ Load (l/min): 425
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1500
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/8
Drive Type: Hex
Duty Rating: General Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 96.0 / 107.0
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 92.2 / 103.2
Max Bolt Diameter (in): 0.4375
Max Free Speed (rpm): 10000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 125
Max Torque (in-lb): 1496
Max Torque (nm): 169
Min Hose Size (in): 5/16
Motor: Non-Biased
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 2.7
Product Height (in): 6.3
Product Weight (lb): 2.75
Recommended Forward Torque Range (ft-lb): 20-100
Recommended Forward Torque Range (in-lb): 239-1204
Recommended Forward Torque Range (nm): 27-136
Retainer Type: Quick Change
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 2.7
Warranty: 1-year

Similar IR

• 1702P1

IR 1712B2

1" Air Impact Wrench, Heavy Duty, 1400 ft-lb Torque, Thru-hole Retainer, D-handle Inside Trigger

The 1712B2 Impact Wrench features a jumbo hammer impact mechanism and a square thru hole anvil. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.

Features And Benefits

• Power: Vane motor and jumbo hammer
• Durability: Steel hammercase
• Productivity: Thru-hole 1" square drive and D-handle with auxiliary handle

Includes: Bare Tool
Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 47
Air Consumption @ Load (l/min): 1331
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 800
Color: Black
Configuration/Handle Type: D-Handle
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Bronze
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 107.7 / 118.7
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 103.0 / 114.0
Max Bolt Diameter (in): 1-1/4
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1400
Max Torque (in-lb): 16800
Max Torque (nm): 1898
Min Hose Size (in): 3/4
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 73.7
Product Length (in): 11.25
Product Width (in): 10.24
Product Height (in): 6.3
Product Weight (lb): 18.25
Recommended Forward Torque Range (ft-lb): 451-1003
Recommended Forward Torque Range (in-lb): 5417-12037
Recommended Forward Torque Range (nm): 612-1360
Retainer Type: Thru-hole
Side to Center Distance (in): 5.1
Side to Center Distance (mm): 130
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 19.7
Warranty: 1-year

IR 1720P1

3/4" Air Impact Wrench, Heavy Duty, 1100 ft-lb Torque, Thru-hole Retainer, Pistol

The 1720 Series Impact Wrench features a jumbo hammer impact mechanism with an optimized power-to-weight ratio. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.

Features And Benefits

• Different Trigger Styles Available: Featuring both trigger and butterfly actuation, this tool is ready for anything.
• Durability: Ingersoll Rand has built the 1720 Series Impact Wrench to last. Even through frequent dropping and harsh environments, this tool is reliable from its first use to its last.

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1132
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Blows per Min: 1000
Color: Black
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
End Plates: Cast Iron
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3
Hammer Case: Steel
Housing Material: Aluminum
Impact Mechanism: Jumbo Hammer
Impacting Sound Pressure/Power Db(A): 98.4 / 109.4
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1100
Max Torque (in-lb): 13196
Max Torque (nm): 1491
Min Hose Size (in): 1/2
Motor: Non-Biased
Number of Power Settings: Continuous
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 8
Product Length (in): 7.63
Product Width (in): 11.4
Product Height (in): 5
Product Weight (lb): 12.4
Recommended Forward Torque Range (ft-lb): 200-600
Recommended Forward Torque Range (in-lb): 2399-7196
Recommended Forward Torque Range (nm): 271-813
Retainer Type: Thru-hole
Side to Center Distance (in): 5.7
Side to Center Distance (mm): 145
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 10.4
Warranty: 1-year

IR 2015-A42-6

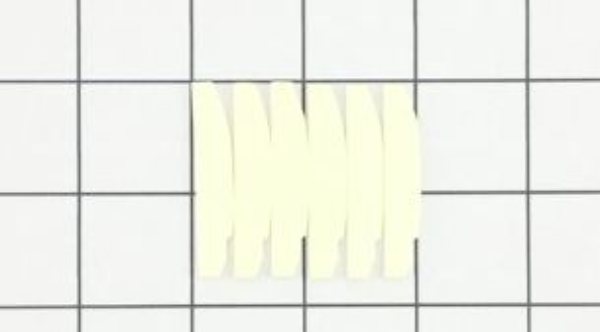

VANE PACK

IR 2015-TK

Tune-up Kit for Ingersoll Rand 2015 Series Impact Wrench

Includes: End plate assembly, O-Rings, Throttle pin, Vane pack, Inlet parts kit, Seals, Gaskets and exhaust Deflector Seals

For Use With

• 2015MAX
• 2025MAX

IR 2130-36

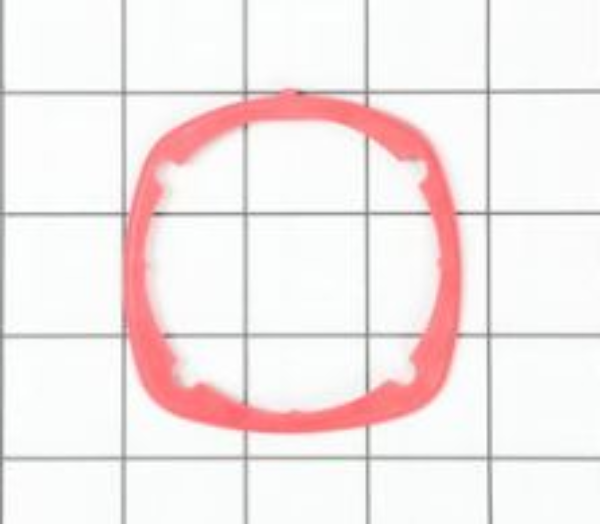

GASKET

IR 2130-75

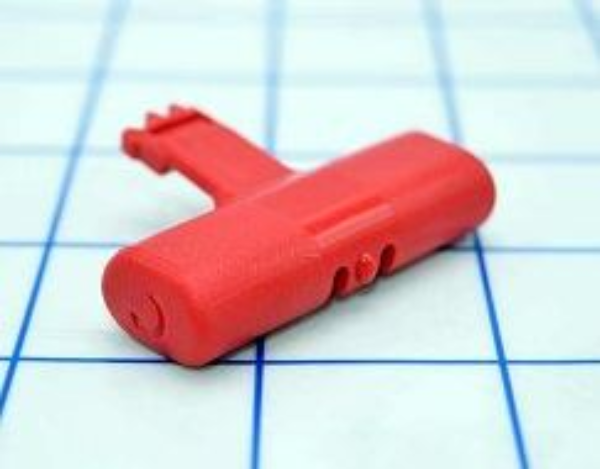

REVERSE BUTTON

IR 2130-D329

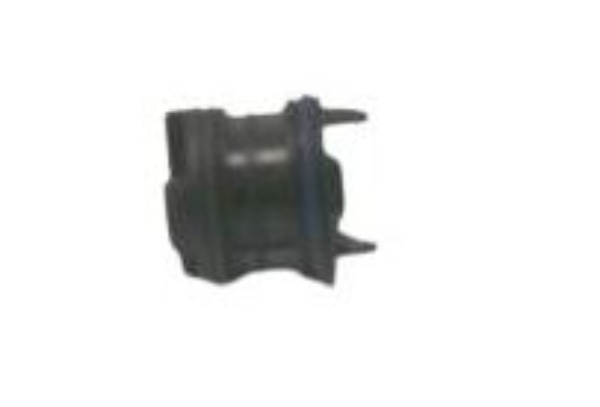

REV VALVE ASSEMBLY

IR 2135M-BOOT

Protective Tool Boot for Ingersoll Rand 2235 Series Impact Wrenches

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Product Application and Uses: For use with Ingersoll Rand 2135 Series Impact wrenches.
Color: Grey

For Use With

• 2135PQXPA
• 2135PTIMAX
• 2135QXPA
• 2135QXPA-2

IR 2146Q1MAX-3

3/4" Air Impact Wrench, 3" Ext Anvil, Quiet, 2,000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

The 2146MAX Series Impact Wrenches- including the 2146Q1MAX-3, is the most powerful 3/4" impact in its class. These tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less; the 2146MAX Series helps you do what you do best.

Features And Benefits

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand’s Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 8.8 lbs
• Extended reach 3" anvil provides better accessibility to bolts
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 396
Blows per Min: 1075
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.3 /105.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1453
Max Torque (in-lb): 17436
Max Torque (nm): 1970
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 24003
Nut-busting/Breakaway Torque (nm): 2712
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 227.3
Product Length (in): 11.5
Product Width (in): 3.5
Product Height (in): 8.2
Product Weight (lb): 8.8
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 200-900
Recommended Forward Torque Range (in-lb): 2390-10798
Recommended Forward Torque Range (nm): 270-1220
Recommended Reverse Torque (ft-lb): 199-1003
Recommended Reverse Torque (nm): 270-1360
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.73
Side to Center Distance (mm): 44
Special Features: Quiet, Air Pressure Gauge, Cold Forged Twin Hammers, Hard Anodized Wear Plates
Standards/Certifications: CE, UKCA, EAC
Vanes: 6
Vibration Level (m/s2): 8.4
Warranty: 2-year

Similar IR

• 2146Q1MAX
• 2146Q1MAX-6
• 2146Q2MAX

Supersedes

• 2145QIMAX-3

IR 2146Q1MAX-6

3/4" Air Impact Wrench, 6" Ext Anvil, Quiet, 2,000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol

The 2146MAX Series Impact Wrenches- including the 2146Q1MAX-6, is the most powerful 3/4" impact in its class. These tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less; the 2146MAX Series helps you do what you do best.

Features And Benefits

• Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
• Steel hammer case stands up to drops and everyday abuse
• Patented one-hand forward/reverse and feather-touch trigger provides maximum control
• Ingersoll Rand’s Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
• Pressure gauge improves productivity and prolongs product life
• A lightweight, balanced, air impact wrench that weighs just 10.1 lbs
• Long reach 6" extended anvil for improved access to bolts
• Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
• Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction

Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 396
Blows per Min: 1075
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.3 /105.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1453
Max Torque (in-lb): 17436
Max Torque (nm): 1970
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 24003
Nut-busting/Breakaway Torque (nm): 2712
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 198
Product Length (in): 14.5
Product Width (in): 3.5
Product Height (in): 8.2
Product Weight (lb): 10.1
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 200-900
Recommended Forward Torque Range (in-lb): 2390-10798
Recommended Forward Torque Range (nm): 270-1220
Recommended Reverse Torque (ft-lb): 199-1003
Recommended Reverse Torque (nm): 270-1360
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.73
Side to Center Distance (mm): 44
Special Features: Quiet, Air Pressure Gauge, Cold Forged Twin Hammers, Hard Anodized Wear Plates
Standards/Certifications: CE, UKCA, EAC
Vanes: 6
Vibration Level (m/s2): 8.4
Warranty: 2-year

Similar IR

• 2146Q1MAX-3
• 2146Q1MAX
• 2146Q2MAX

Supersedes

• 2145QIMAX-6

IR 2161-118

Retaining Ring Service Part for Ingersoll Rand Power Tools

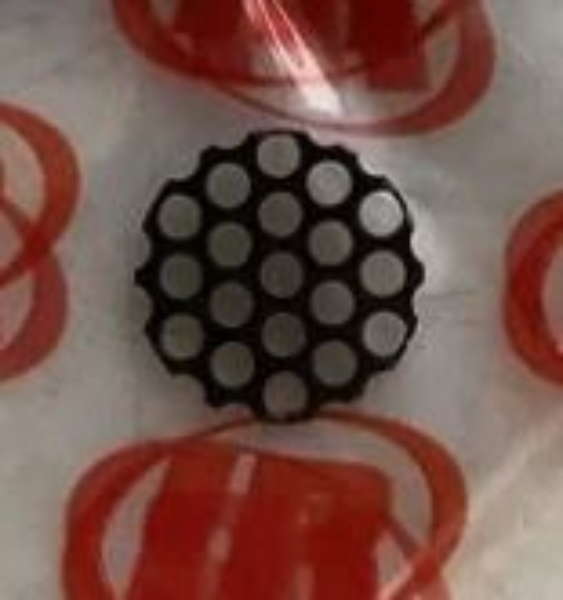

IR 2161-23

DEFLECTOR

IR 2161-329

Reverse Valve for Ingersoll Rand 2161 and 2171 Series Impact Wrench

Product Application and Uses: For use with Ingersoll Rand 2161XP, 2161XP-6, 2171XP, 2161P, 2171P Impacts

For Use With

• 2161XP
• 2161XP-6
• 2171XP
• 2161P
• 2171P

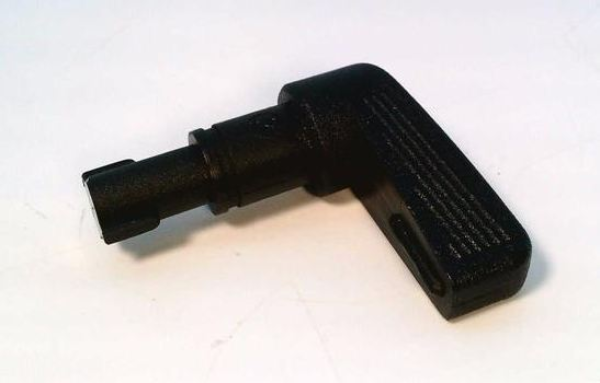

IR 2161-658

LEVER
