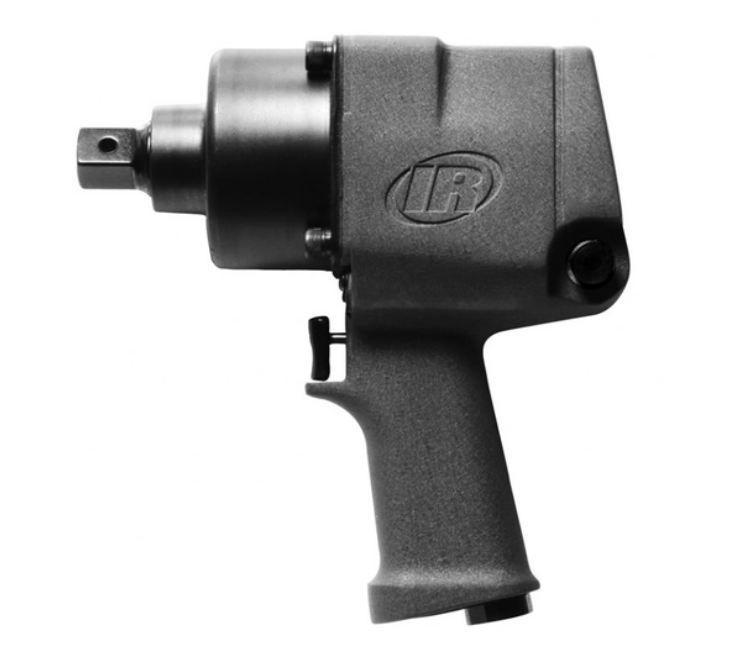

Heavy Duty Impactool

IR 1720P1

3/4" Air Impact Wrench, Heavy Duty, 1100 ft-lb Torque, Thru-hole Retainer, Pistol

Description: The 1720 Series Impact Wrench features a jumbo hammer impact mechanism with an optimized power-to-weight ratio. Paired with its steel hammer case and metal housing, this tool is ready for even the toughest jobs.

Features And Benefits:

• Different Trigger Styles Available: Featuring both trigger and butterfly actuation, this tool is ready for anything.
• Durability: Ingersoll Rand has built the 1720 Series Impact Wrench to last. Even through frequent dropping and harsh environments, this tool is reliable from its first use to its last.

Product Application and Uses:

Vehicle Repair, General Industrial, Facility Maintenance

• Includes: Bare Tool
• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 40
• Air Consumption @ Load (l/min): 1132
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 1000

• Color: Black
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Cast Iron
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 100.3 / 111.3

• Hammer Case: Steel
• Housing Material: Aluminum
• Impact Mechanism: Jumbo Hammer
• Impacting Sound Pressure/Power Db(A): 98.4 / 109.4

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 5500
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1100
• Max Torque (in-lb): 13196
• Max Torque (nm): 1491
• Min Hose Size (in): 1/2
• Motor: Non-Biased

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 8
• Product Length (in): 7.63

• Product Width (in): 11.4
• Product Height (in): 5
• Product Weight (lb): 12.4
• Recommended Forward Torque Range (ft-lb): 200-600
• Recommended Forward Torque Range (in-lb): 2399-7196
• Recommended Forward Torque Range (nm): 271-813
• Retainer Type: Thru-hole

• Side to Center Distance (in): 5.7
• Side to Center Distance (mm): 145

• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 10.4
• Warranty: 1-year

• Accessories: SK6H8N

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 1711B-826
• Parts: 1720B-TK2

• Parts: 1720P-23
• Parts: 2920P-465
• Parts: 910-36
