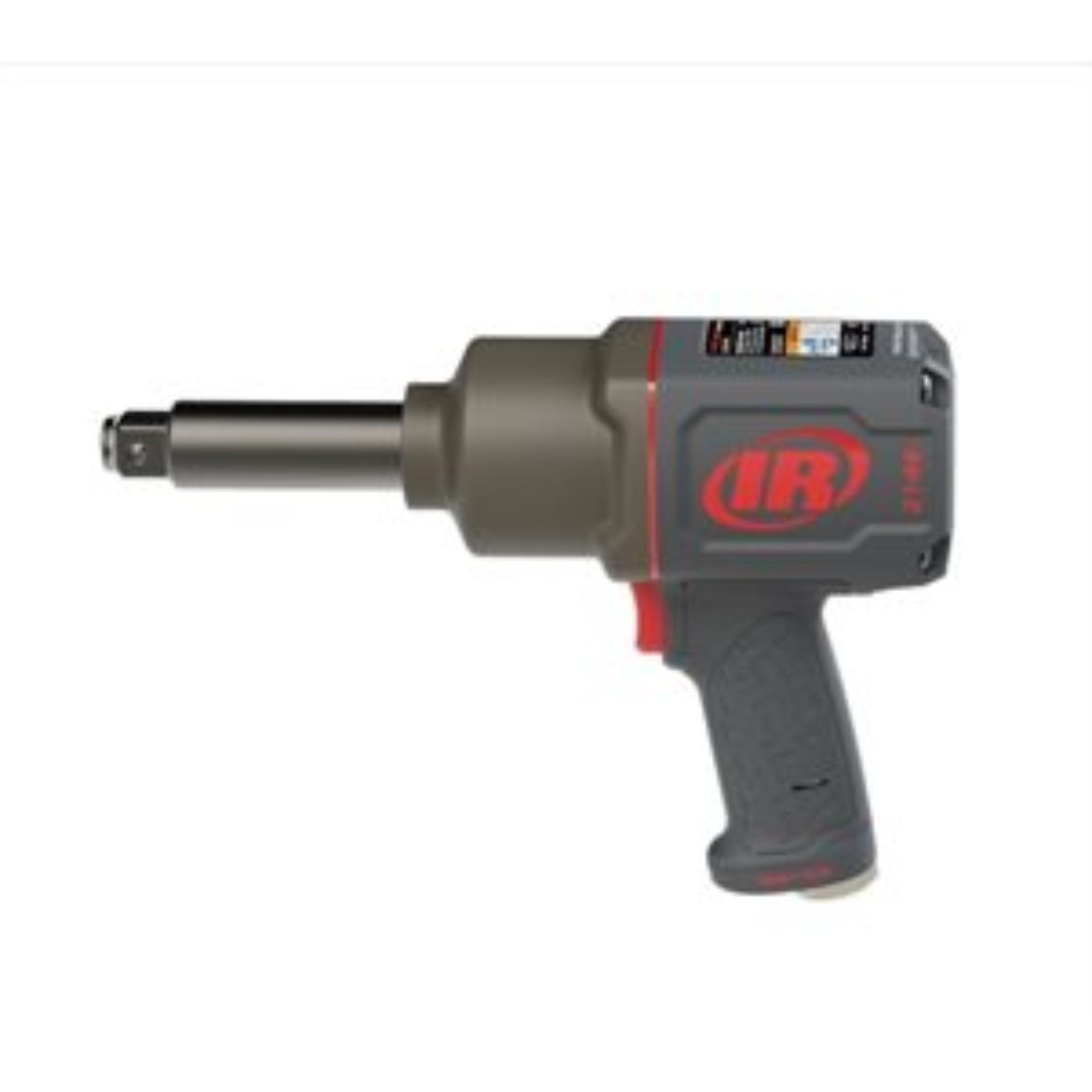

IR 2146Q1MAX-3
3/4" Air Impact Wrench, 3" Ext Anvil, Quiet, 2,000 ft-lb Torque, Friction Ring-Thru-hole Retainer, Pistol
The 2146MAX Series Impact Wrenches- including the 2146Q1MAX-3, is the most powerful 3/4" impact in its class. These tools have been engineered with an innovative pressure gauge that ensures optimized air flow and pressure. These quiet impact wrenches help you maximize productivity across a range of jobs and tackle anything that comes your way. And because you can avoid operating below and above the recommended 90 PSI air pressure, your tool will last longer and perform more reliably. Work more and spend less; the 2146MAX Series helps you do what you do best.
Features And Benefits
- Cold-forged twin hammer impact mechanism and motor deliver 2,000 ft-lbs of Nut Busting Torque, durability, and efficiency
- Steel hammer case stands up to drops and everyday abuse
- Patented one-hand forward/reverse and feather-touch trigger provides maximum control
- Ingersoll Rand’s Quiet Technology reduces the sound of the tool, sparing your ears without sacrificing a single ounce of power
- Pressure gauge improves productivity and prolongs product life
- A lightweight, balanced, air impact wrench that weighs just 8.8 lbs
- Extended reach 3" anvil provides better accessibility to bolts
- Impact and chemical-resistant housing protects against repeated drops and exposure to shop fluids
- Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding and construction
Includes: Bare Tool
Product Application and Uses: Vehicle Repair, General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 36
Air Consumption @ Load (l/min): 1090
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Anvil Length: 3" Extended
Average Air Consumption (cfm): 14
Average Air Consumption (l/min): 396
Blows per Min: 1075
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 88.8 / 99.8
Hammer Case: Steel
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 94.3 /105.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 5500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1453
Max Torque (in-lb): 17436
Max Torque (nm): 1970
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 2000
Nut-busting/Breakaway Torque (in-lb): 24003
Nut-busting/Breakaway Torque (nm): 2712
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 227.3
Product Length (in): 11.5
Product Width (in): 3.5
Product Height (in): 8.2
Product Weight (lb): 8.8
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 200-900
Recommended Forward Torque Range (in-lb): 2390-10798
Recommended Forward Torque Range (nm): 270-1220
Recommended Reverse Torque (ft-lb): 199-1003
Recommended Reverse Torque (nm): 270-1360
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.73
Side to Center Distance (mm): 44
Special Features: Quiet, Air Pressure Gauge, Cold Forged Twin Hammers, Hard Anodized Wear Plates
Standards/Certifications: CE, UKCA, EAC
Vanes: 6
Vibration Level (m/s2): 8.4
Warranty: 2-year
Similar IR
- 2146Q1MAX
- 2146Q1MAX-6
- 2146Q2MAX
Supersedes
