Grinders

DY 46002

20,000 RPM, Spiral-Geared, Extended Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

• HP: 0.4
• Max. RPM: 20000.0
• Motor RPM: 20,000

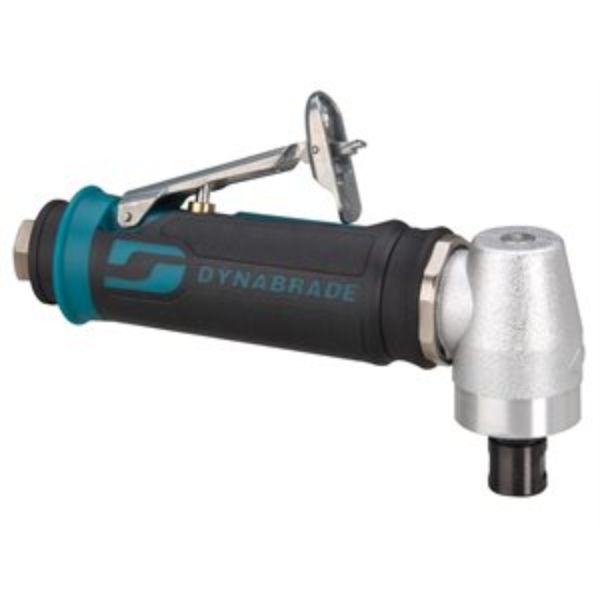

DY 48316

15,000 RPM, Spiral-Geared, Rear Exhaust, 1/4in Collet

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

• HP: 0.4
• Max. RPM: 15000.0
• Motor RPM: 15,000

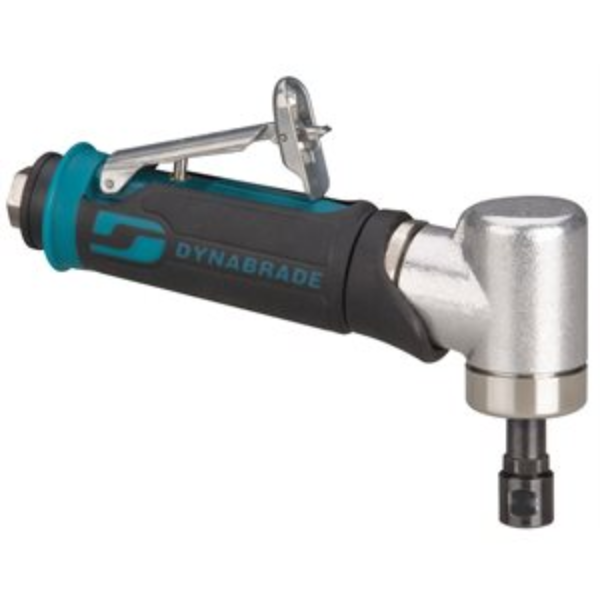

DY 48325

25,000 RPM, Gearless, Rear Exhaust, 1/4in and 6 mm Collets, Standard Muffler

.4 hp Dynabrade Die Grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more! Dynabrade's .4 hp (298 W) Die Grinders are designed for peak efficiency and longer life! Ideal for rapid material removal, deburring, finishing and polishing, these tools represent the finest in Dynabrade quality and innovation!

Integrated Safety-Lock Throttle Lever has a contoured shape for operator comfort, with new dowel-pin that minimizes lever wear. Increased Tool Life due to Unique Pre-Filter that provides extra defense against contaminants in air stream.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

DY 48500

.4 hp, 25,000 RPM, Gearless, Extended Rear Exhaust, Locking-Type Female Pad

Includes 51348 Locking-Type Pad (2in diameter).

Handle is offset 7 degree for greater operator comfort and control. Gearless for reduced maintenance and down-time.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

DY 50318

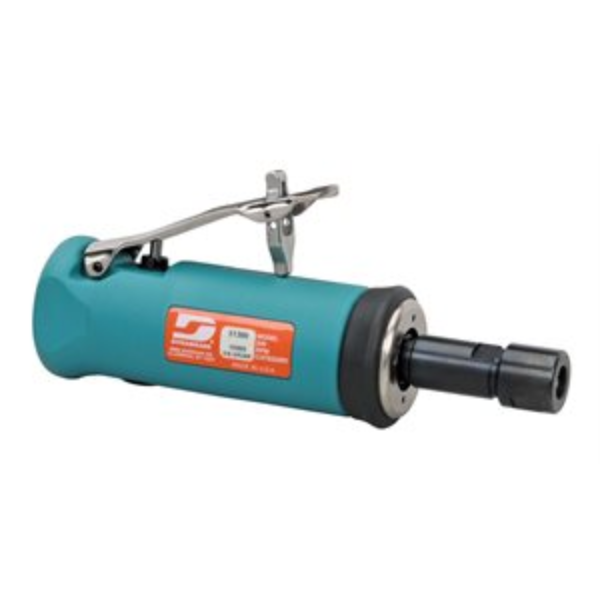

DY 51300

15,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 15000.0
• Motor RPM: 15000

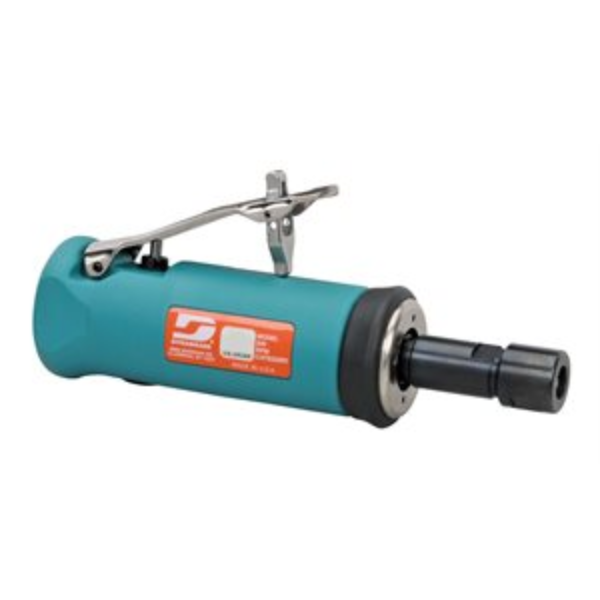

DY 51301

18,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 51700

60,000 RPM, Turbine Air Motor, Rear Exhaust, 1/8in Collet

Tool has integrated collet with 1/8in Collet Insert (51659)

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

• HP: 0.1
• Max. RPM: 60000.0
• Motor RPM: 60000

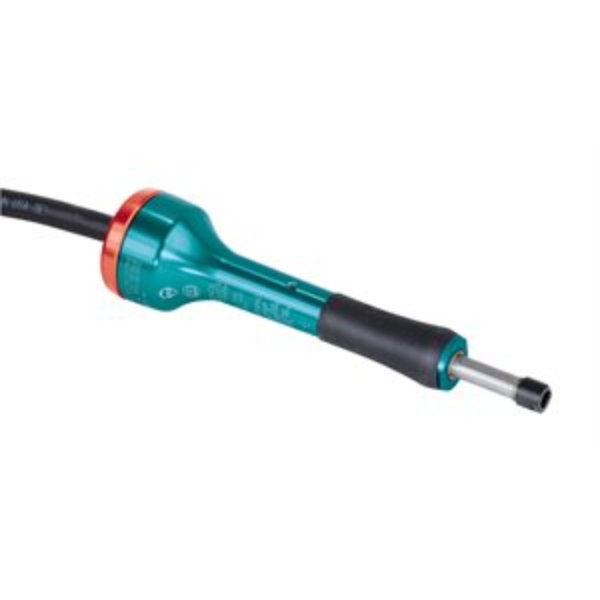

DY 51756

35,000 RPM, Turbine Air Motor, Rear Exhaust, 1/8in Collet

Tool has integrated collet with 1/8in Collet Insert (51659)

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

• HP: 0.1
• Max. RPM: 35000.0
• Motor RPM: 35000

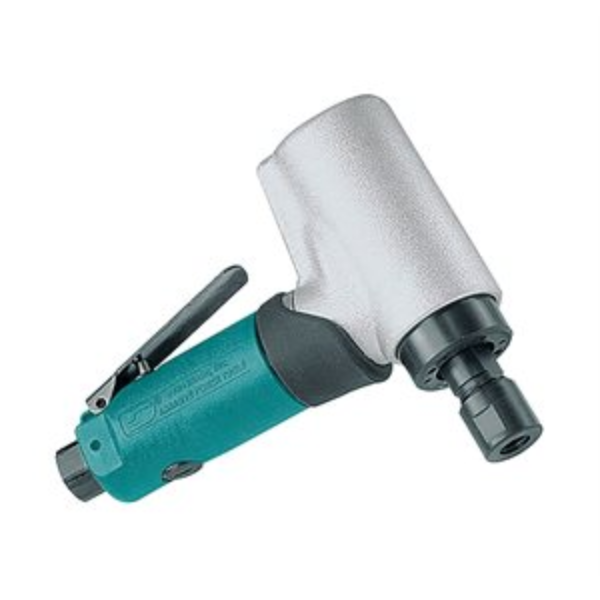

DY 52211

18,000 RPM, Gearless, Front Exhaust, Short Shank, 1/4in and 6mm Collets

High-Quality Air-powered Die Grinder 7 Degree Offset, Short Shank, Gearless, Front Exhaust

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

DY 52258

20,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52538

.4 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Vacuum Cut-Off Wheel Tool, for efficient cutting with dust and debris removal.

3in Diameter, Right Angle, .4 hp, 12,000 RPM, Rear Exhaust. Ideal for use with optional 3in diameter Diamond Cut-Off Wheels.

• HP: 0.4
• Max. RPM: 12000.0
• Motor RPM: 12,000

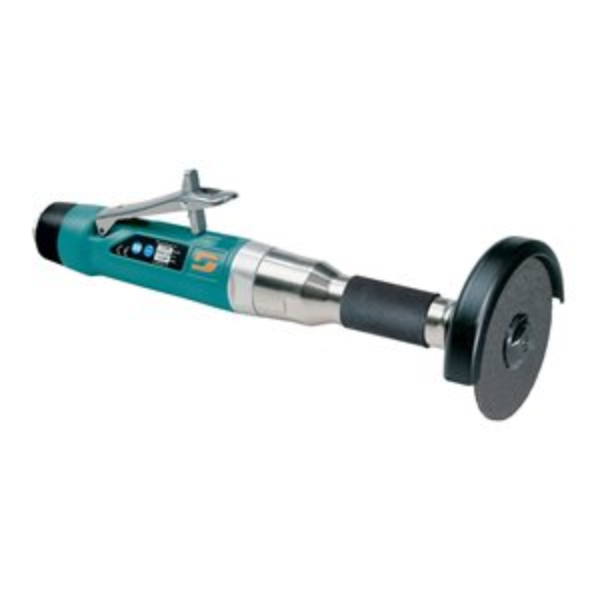

DY 52579

1 hp, 15,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

4in Diameter, Straight Line, 1 hp, 6in Extension, 15,000 RPM.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15,000

DY 52667

15,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 52675

9,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 9000.0
• Motor RPM: 9,000

DY 52678

18,000 RPM, Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts. fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

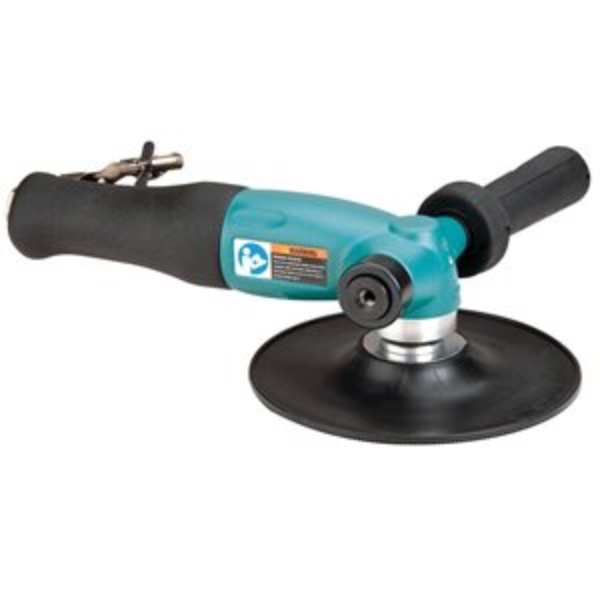

DY 52802

1.3 hp, 7,200 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

Includes 51151 Backing Pad, 7in (178 mm) diameter, plus mounting hardware. Accepts optional 7in (178 mm) diameter Abrasive Discs with 7/8in (22 mm) center hole.

Dynabrade's 1.3 hp (970 W) Right Angle Sander offer countless grinding and material removal solutions to industries such as metal/stainless steel fabrication, composites, masonry, ironwork and general welding. Designed to the Dynabrade standard of excellence, these tools offer a wide array of features to increase efficiency and maximize operator comfort!Vibration Dampening Side Handle Specially designed to reduce vibration transfer to operator. Removable for left or right hand use. Rotational Exhaust System Rotates a full 360 degree to ensure that exhaust is directed away from operator.

• HP: 1.3
• Max. RPM: 7200.0
• Motor RPM: 7,200

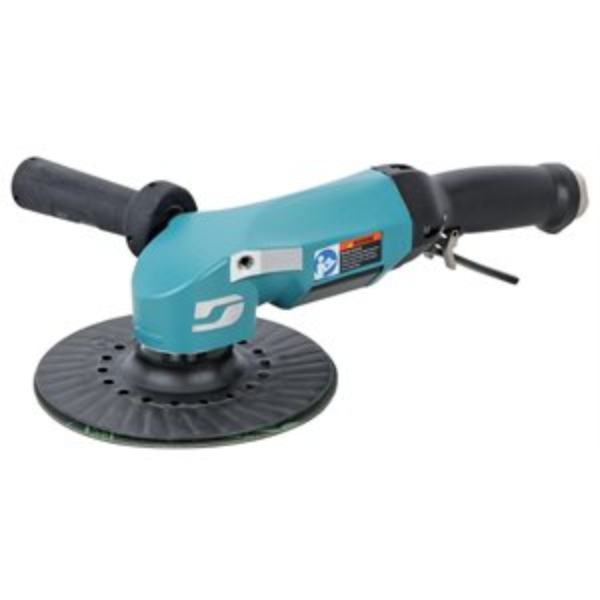

DY 53270

2.8 hp, 8,500 RPM, Adjustable Exhaust, 5/8in -11 Spindle Thread

Rebel 2.8 hp series grinders and sanders are powerful tools designed to overcome the challenges of heavy-duty industrial applications

Durability has been elevated to a new level. with 1,000+ hours of use between recommended maintenance, the Rebel 2.8 hp is a tool to depend upon

• HP: 2.8
• Max. RPM: 8500.0
• Motor RPM: 8,500

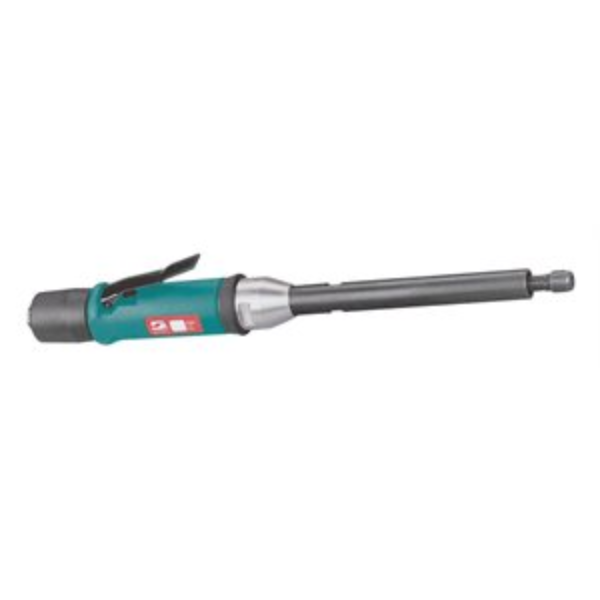

DY 53502

20,000 RPM, Extended Rear Exhaust, 1/4in and 6 mm Collets

Includes 1/4in (01485) and 6 mm (01497) Collet Inserts. fits optional 1/8in (01495)

Extension Die Grinder has 7-1/4in workable reach.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

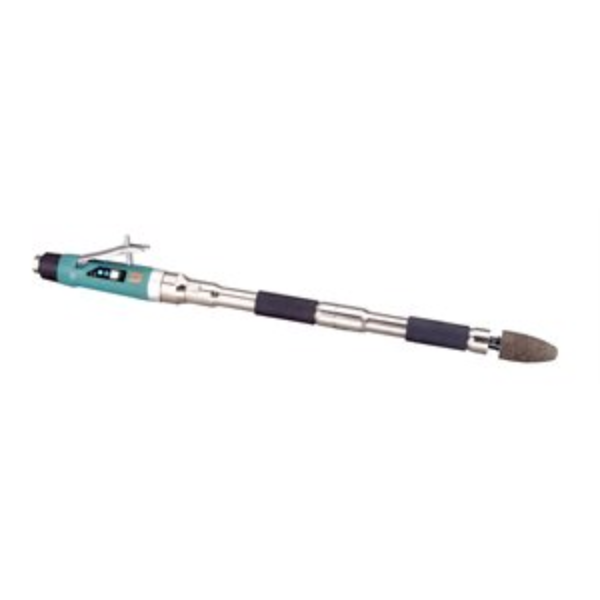

DY 53532

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

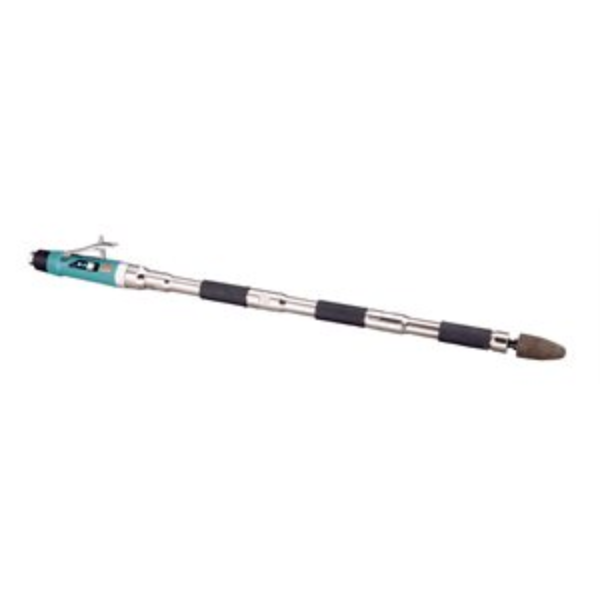

DY 53533

1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Includes 3/8in -24 Male Threaded Adapter (53610)

Extension Grinders allow operator to extend into work pieces and reach lengthy distances.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18,000

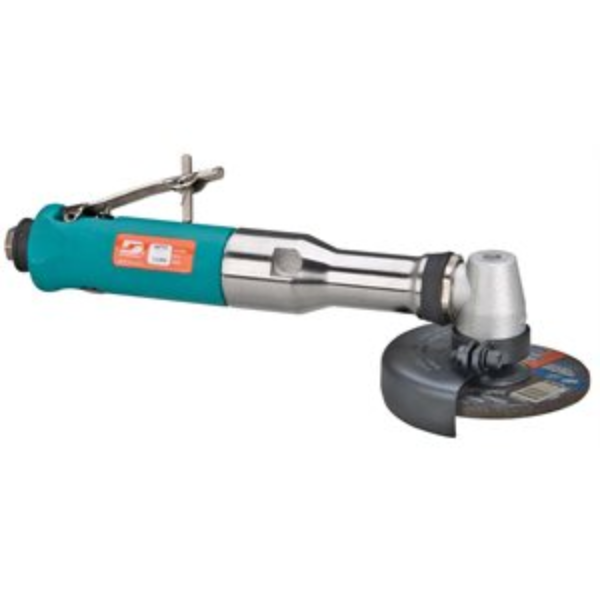

DY 54773

.7 hp, 12,000 RPM, Composite

Model accepts optional 4in (102 mm) diameter Type 27 reinforced Depressed Center Wheels, with 3/8in (10 mm) center hole. wheel width of 1/8in to 1/4in (3 mm to 6 mm).

Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.

• HP: 0.7
• Max. RPM: 13500.0
• Motor RPM: 12,000

IR 301BK

Angle Air Die Grinder Stone Kit, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

Description: As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes 10 mounted grinding tips and a Blow-molded case.

Features And Benefits:

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: 10 mounted grinding tips and a Blow-molded case.

Product Application and Uses:

Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.

• Includes: 301B Angle Die Grinder, 10 mounted grinding tips, Blow-molded case, 1/4" collet, (2) Wrenches and Manuals.
• Actuation/Throttle Type/Switch Location: Bottom
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 24
• Air Consumption @ Load (l/min): 680
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Average Air Consumption (cfm): 6
• Average Air Consumption (l/min): 170

• Bearing Type: Ball Bearing

• Configuration/Handle Type: Right Angle
• Duty Rating: Medium Duty

• Exhaust Location: Front

• Grinder Type: Die Grinder
• Handle Material: Aluminum
• Height Over Spindle (in): 3
• Housing Material: Aluminum
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 21000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 5.27

• Product Width (in): 3.5
• Product Height (in): 2
• Product Weight (lb): 1.02
• Rated Power (hp): 0.25
• Right Angle Length (in): 2
• Right Angle Length (mm): 51

• Side to Center Distance (in): 0.54
• Side to Center Distance (mm): 14

• Sound Pressure/Power Db(A): 91.8 / 104.8
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744

• Vibration Level (m/s2): 5.9
• Warranty: 1-year
• Wheel Type: Burr

• Complete Tool Kits: 301B2MK
• Complete Tool Kits: 301B3MK
• Complete Tool Kits: 301B32MK

• Lubrication: 10G
• Lubrication: 10P
• Parts: 02A-VAR-KIT
• Parts: 301-42-4

• Parts: 301-K591A

IR 314AC4A

IR 422G-42-4
