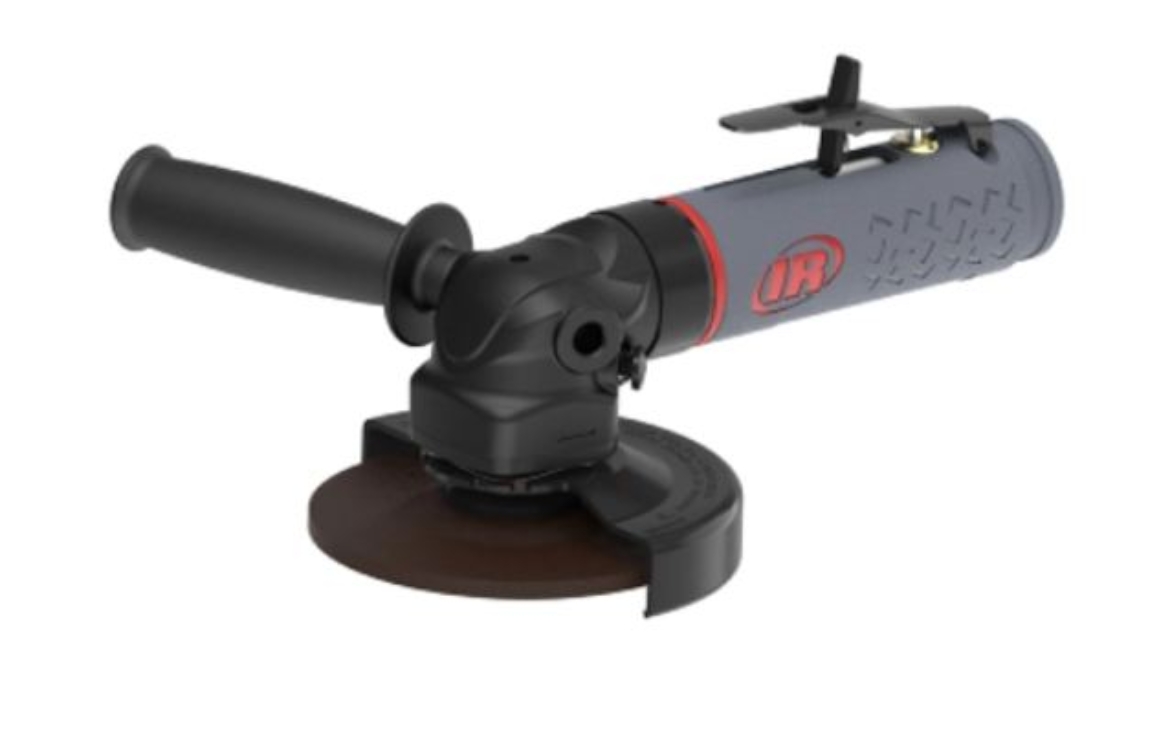

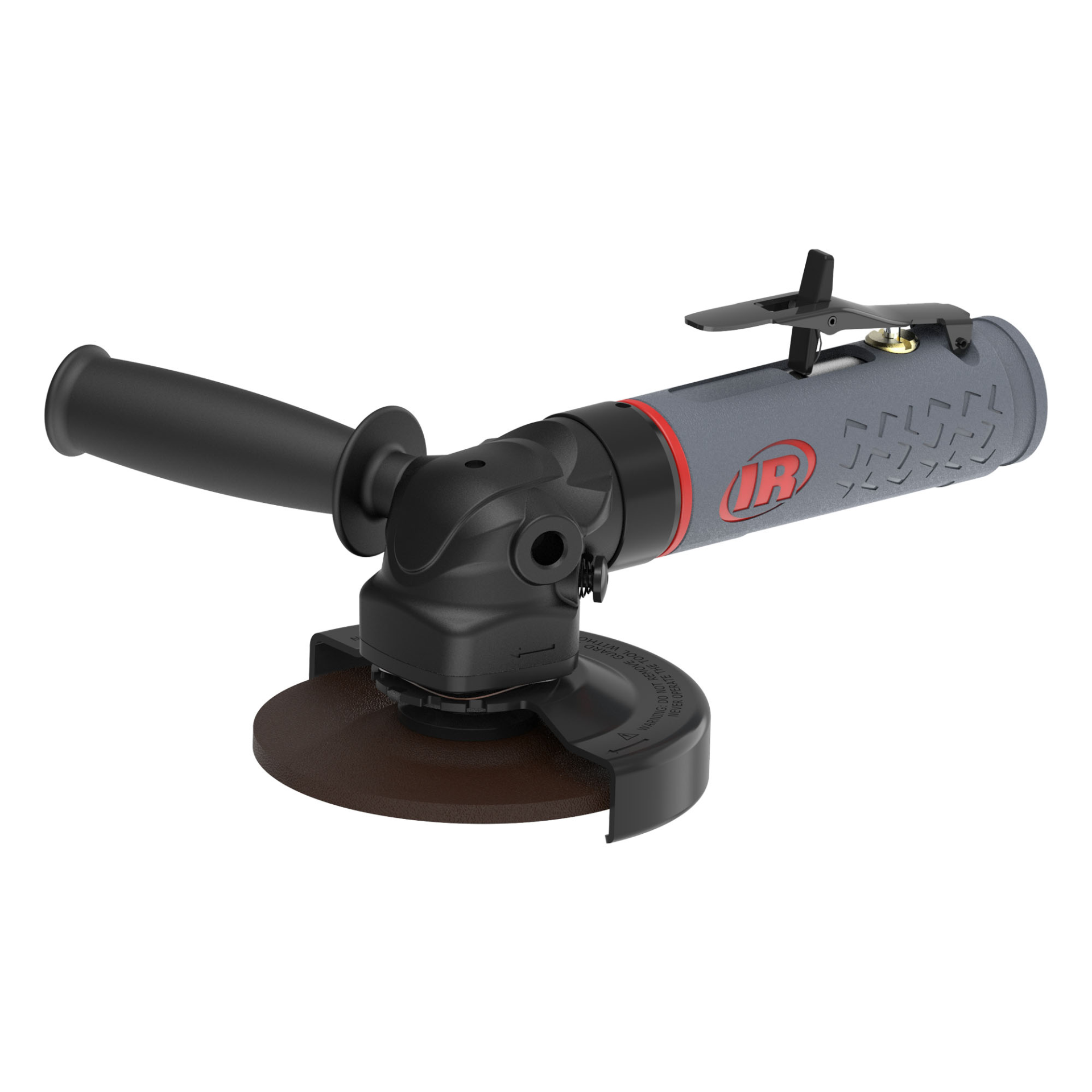

IR 545MAX
Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 2.5 HP, 5/8"-11 Thread, Rear Exhaust
Take your productivity to the MAX with the 5445MAX and 545MAX Series 2.5 HP Air Angle Grinders from Ingersoll Rand®. Featuring a 2.5 hp motor that delivers the best power-to-weight ratio to maximize material removal, dramatically reducing job completion time on even the hardest alloys. At just over 4lbs, its compact construction is comfortable for all day use without operator fatigue. Durable, high strength internal components are built for long run times, reducing maintenance costs and operator downtime. An governed motor optimizes air consumption for the task at hand, delivering more power when you need it while increasing the life of abrasives and reducing consumable costs. A tool-free adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single spanner wrench. For colossal power in a compact size, keep your operators running with the 545MAX Series Angle Grinders.
Features And Benefits
- Power: 2.5 hp motor delivers the best power-to-weight ratio to maximize material removal, dramatically reducing job completion time on even the hardest alloys.
- Performance: Governed motor optimizes air consumption for the task at hand, delivering more power when you need it while increasing the life of abrasives and reducing consumable costs.
- Productivity: No more excessive accessories. A tool-free adjustable guard allows for orientation changes in seconds and spindle lock enables quick abrasive changeovers with a single spanner wrench.
- Durability: Durable, high strength internal components are built for long run times, reducing maintenance costs and operator downtime.
- Comfort: At just over 4lbs, its compact construction packs a punch with a best-in-class power-to-weight ratio for all day use without operator fatigue.
Includes: Tool, 1 Wrench, Safety Manual, Auxiliary Handle, Allen wrench, Screw
Product Application and Uses: Designed for material removal using a rotated abrasive wheel for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 32.33
Air Consumption @ Free Speed (l/min): 916
Air Consumption @ Load (cfm): 76.75
Air Consumption @ Load (l/min): 2174
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 76.75
Average Air Consumption (l/min): 2174
Bearing Type: Ball Bearing
Bearing Type: Needle Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Industrial Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Gripping Length (in): 5.4
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 4.17
Housing Material: Aluminum core with composite sleeve
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 9.33
Product Height (in): 5.5
Product Weight (lb): 4.12
Rated Power (hp): 2.5
Rated Power (kW): 1.86
Side to Center Distance (in): 33.9
Side to Center Distance (mm): 861
Sound Pressure/Power Db(A): 95.1/106.1
Special Features: Tool free adjustable guard, spindle lock
Speed Setting: Variable Speed
Standards/Certifications: CE, UKCA
Vibration Level (m/s2): 8.38
Vibration Uncertainy K* (m/s2): 1.32
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27
