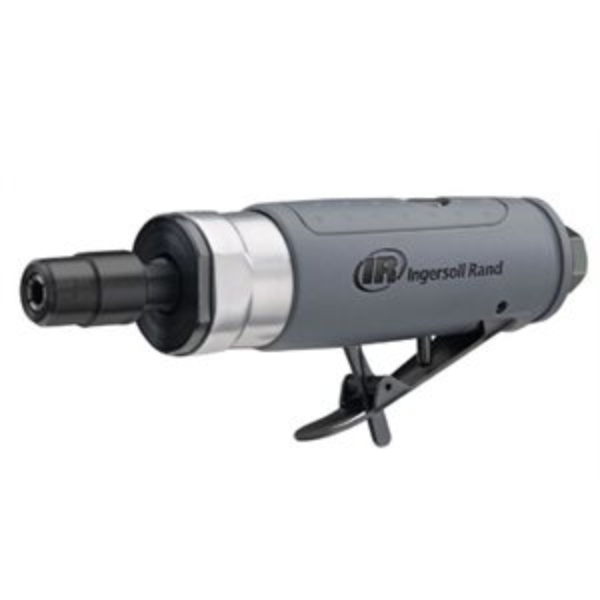

IR 308B

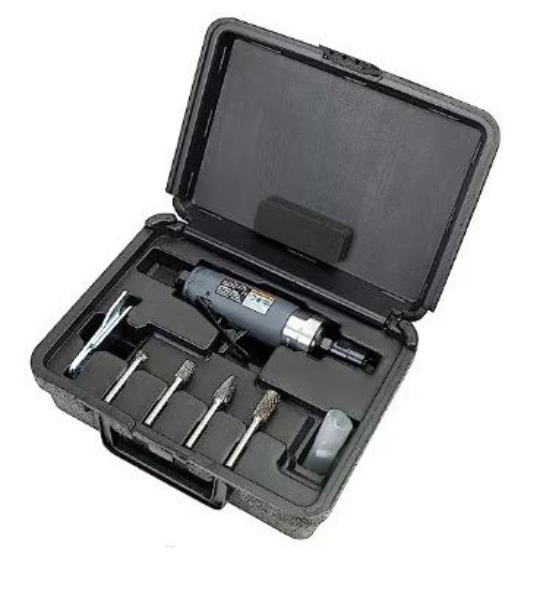

IR 308BK

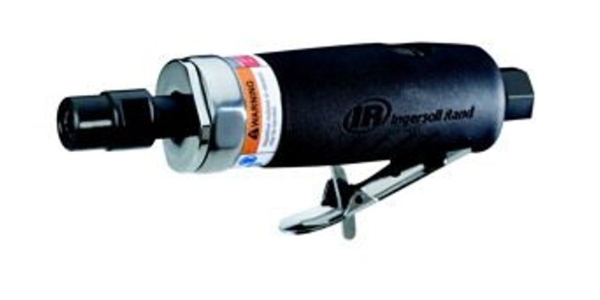

IR 3107G

Air Die Grinder, 27,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Description: Ingersoll Rand's EDGE Series 3017G 1/4" Air Straight Die Grinder is the right tool for the job. It offers a ball-bearing construction that is sturdy yet lightweight. Features include a 1/3-horsepower motor, a 1/4-inch collet, a rear exhaust, and a self-locking throttle. An ergonomic grip makes this pneumatic grinder comfortable to hold and use and provides exceptional torque accuracy. Offering longer life and higher free speed at 27,000 rpm, this general purpose air grinder is designed for finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.

Features And Benefits:

• Powered by compressed air and comes with a 1/3 HP motor, a 1/4" collet, rear exhaust and a self-locking throttle. With 27,000 rpm, it will power through difficult jobs.
• Contoured grip gives greater comfort and control. Its ergonomic design delivers exceptional torque precision, as well as increased productivity and safety.
• The 3107G is light and sturdy at only 1 lb. It has a ball bearing construction and is exceptionally rugged, compact and lightweight.
• Use this air grinder as a handheld power rotary tool for grinding, cutting, polishing and more.
• Each componet, mechanism and function has undergone rigerous testing to ensure its long-lasting performace.

Product Application and Uses:

Finishing, cutting, polishing, porting, light weld grinding, and breaking sharp edges.

• Includes: tool, Large Wrench, Small Wrench
• Actuation/Throttle Type/Switch Location: Handle
• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Consumption @ Free Speed (cfm): 3
• Air Consumption @ Free Speed (l/min): 85
• Air Consumption @ Load (cfm): 18
• Air Consumption @ Load (l/min): 500
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Average Air Consumption (cfm): 3
• Average Air Consumption (l/min): 85

• Bearing Type: Ball Bearing

• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Guard Material: Steel
• Handle Material: Composite
• Height Over Spindle (in): 2.36
• Housing Material: Composite
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 27000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 6.6

• Product Width (in): 2.87
• Product Height (in): 1.46
• Product Weight (lb): 1
• Rated Power (hp): 0.33
• Right Angle Length (in): 4.92
• Right Angle Length (mm): 125

• Side to Center Distance (in): 0.67
• Side to Center Distance (mm): 17

• Sound Pressure/Power Db(A): 92.4 / 103.4

• Vibration Level (m/s2): 2.6
• Warranty: 1-year

• Accessories: 9800

• Lubrication: 10P
• Parts: 02A-VAR-KIT
• Parts: 03A-VAR-KIT

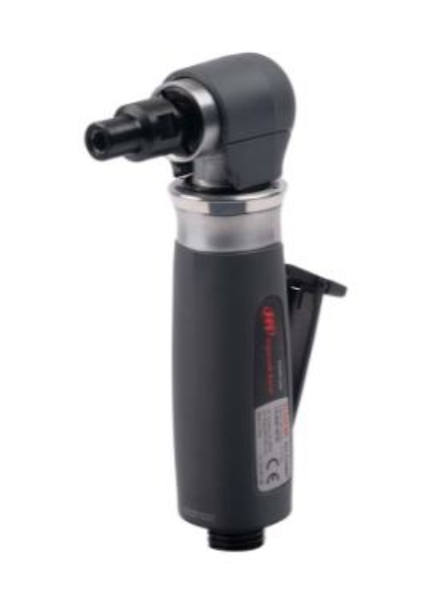

IR 314AC4A

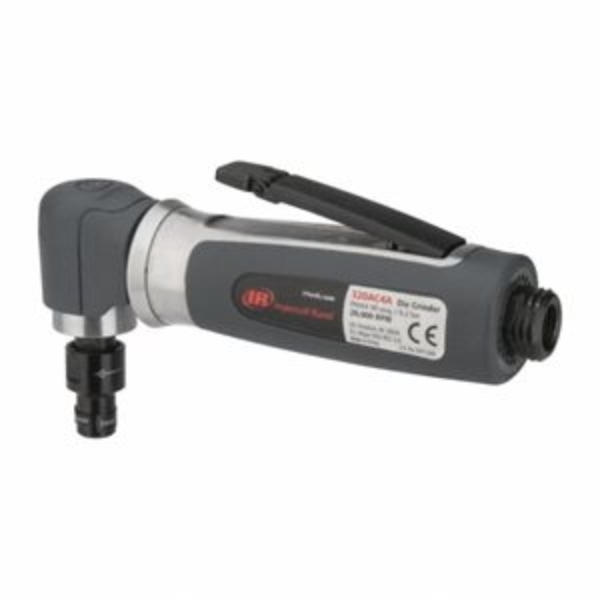

IR 320AC4A

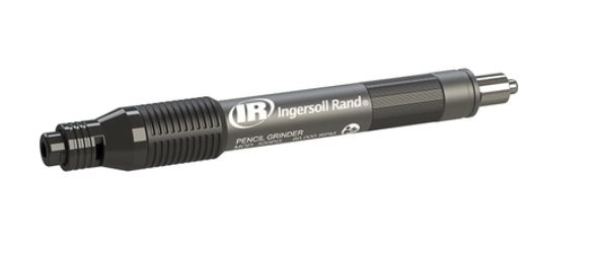

IR 320PG

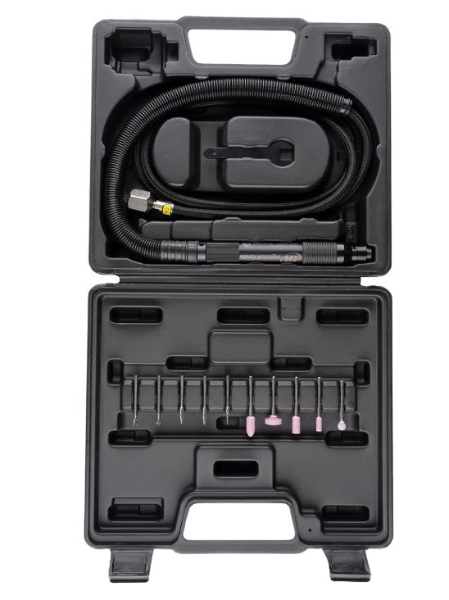

IR 320PGK

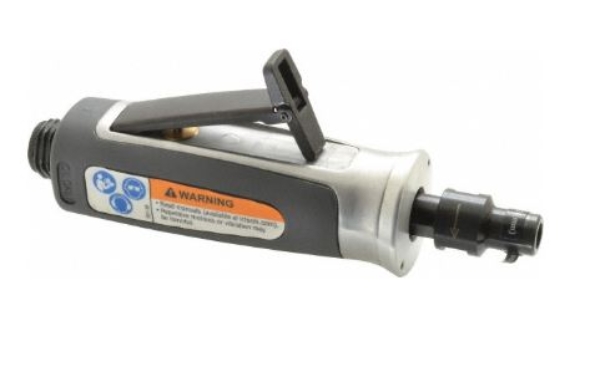

IR 325SC4A

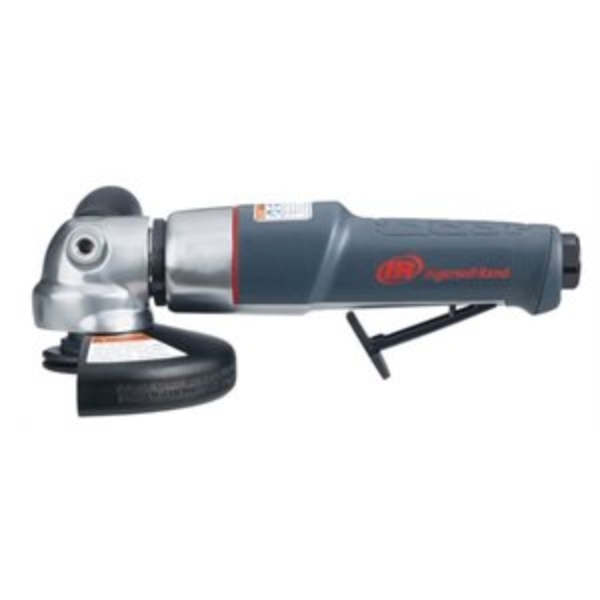

IR 3445MAX

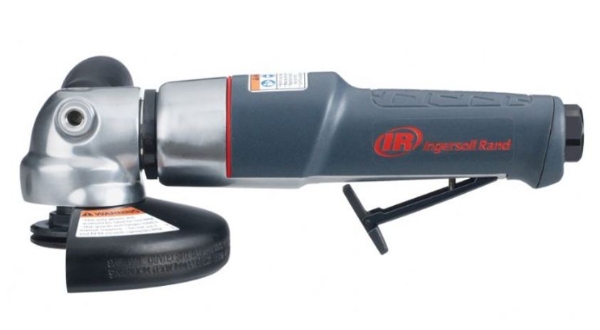

IR 3445MAX-M

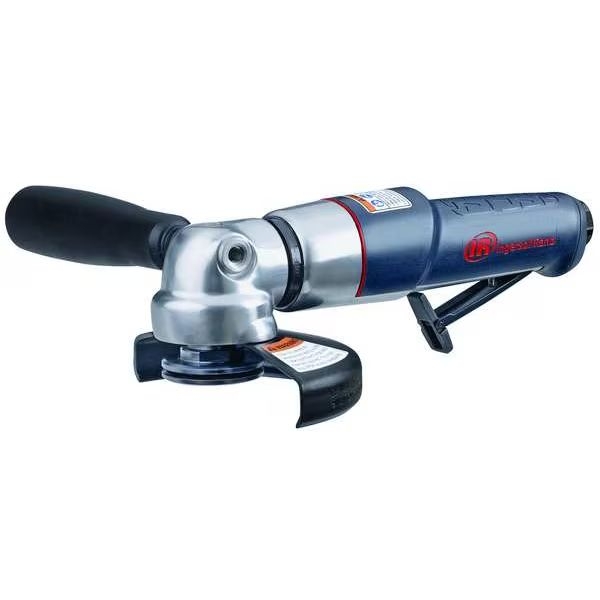

IR 345MAX

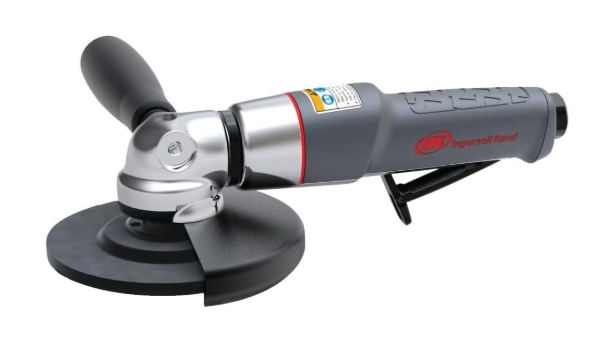

IR 345MAX-M

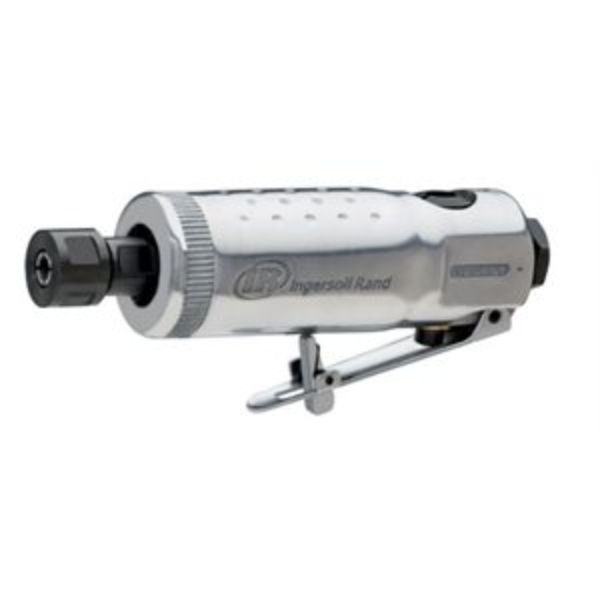

IR 409

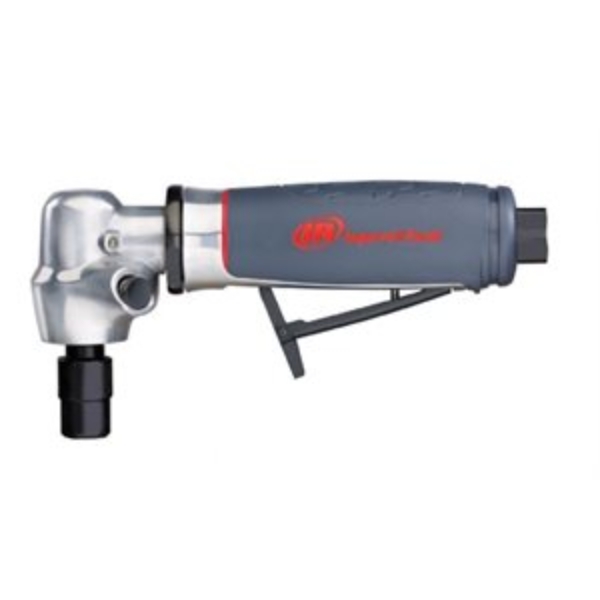

IR 5102MAX

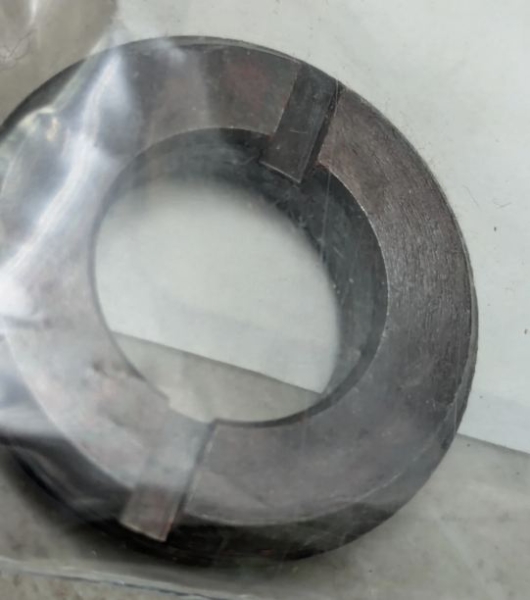

IR 5102MAX-531

IR 5102MAX-591A

IR 5102MAX-A552-1.25

IR 5104MAX

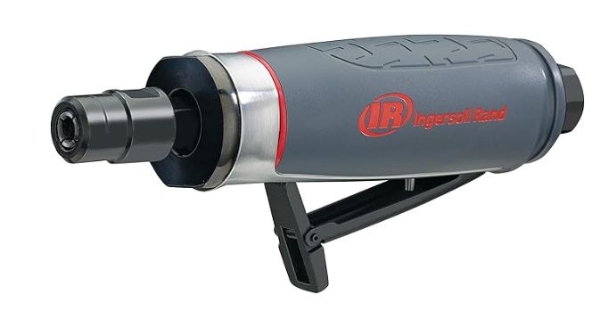

IR 5107MAX

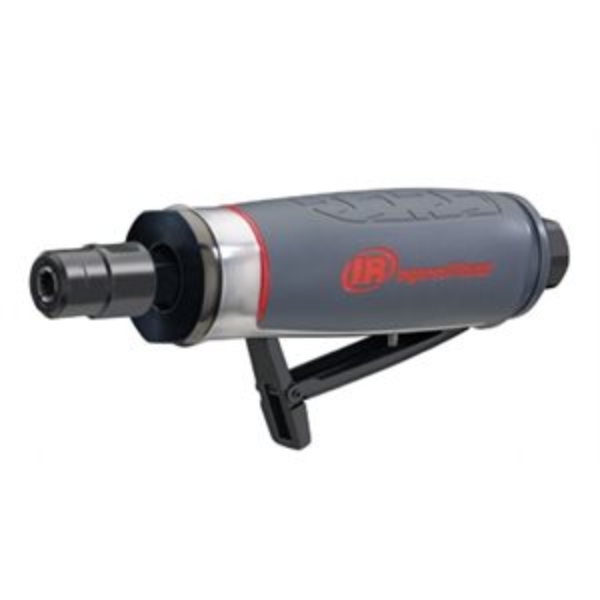

IR 5108MAX

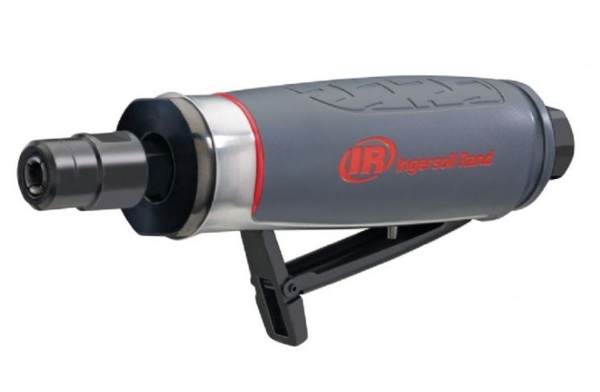

IR 5109MAX-24

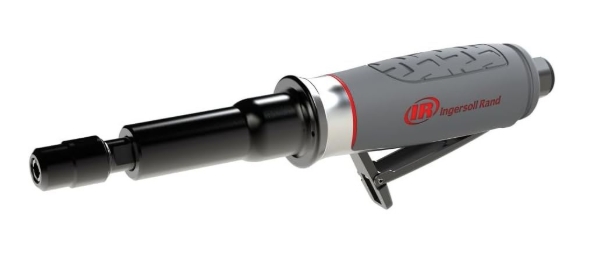

IR 5208MAX

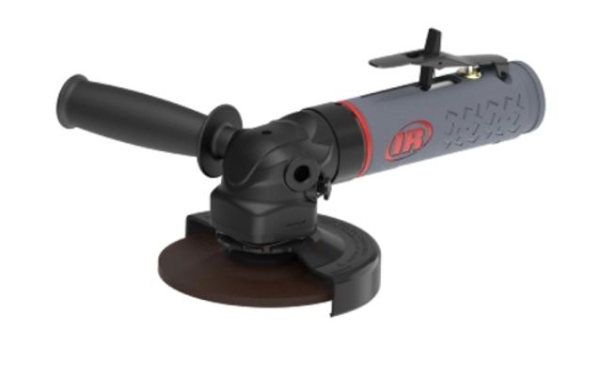

IR 545MAX

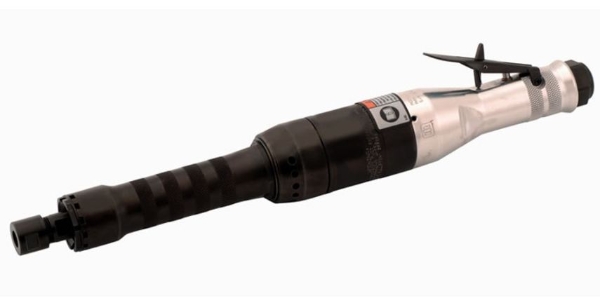

IR 61H120G4
