Grinders

SX 5054A

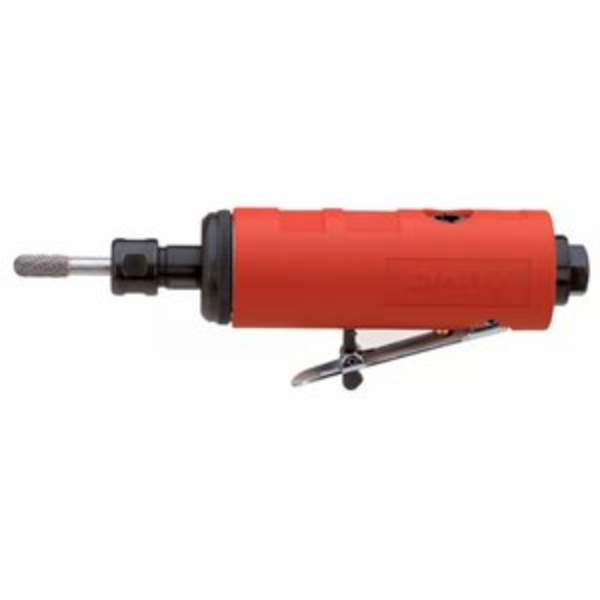

Grinder Straight

IR 80123136

BEARING, BALL 7 X 17 X 5, 2Z

DY 48355

.4 hp Straight-Line Die Grinder

35,000 RPM, Gearless, Rear Exhaust, 1/4in and 6 mm Collets, Extended Muffler

.4 hp Dynabrade Die Grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more! Dynabrade's .4 hp (298 W) Die Grinders are designed for peak efficiency and longer life! Ideal for rapid material removal, deburring, finishing and polishing, these tools represent the finest in Dynabrade quality and innovation!

Integrated Safety-Lock Throttle Lever has a contoured shape for operator comfort, with new dowel-pin that minimizes lever wear. Increased Tool Life due to Unique Pre-Filter that provides extra defense against contaminants in air stream.

• HP: 0.4
• Max. RPM: 35000.0
• Motor RPM: 35,000

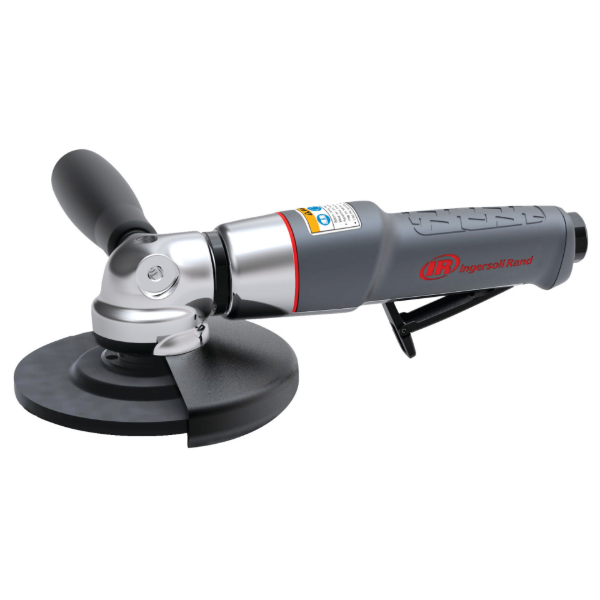

IR 345MAX

Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With a .88 HP motor, 12,000 RPM and weighing less than 3.5 lbs., the 345MAX has an ideal power-to-weight ratio. The Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication. Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.
• Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.

Includes: Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 10
Air Consumption @ Free Speed (l/min): 283
Air Consumption @ Load (cfm): 41
Air Consumption @ Load (l/min): 1161
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 292
Bearing Type: Needle Bearing
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 2.8
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.6
Product Width (in): 5.2
Product Height (in): 5
Product Weight (lb): 3.37
Rated Power (hp): 0.88
Right Angle Length (in): 8.27
Right Angle Length (mm): 210
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 79.6 / 90.6
Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
Vibration Level (m/s2): 7.9
Vibration Uncertainy K* (m/s2): 2.5
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

Similar IR

• 3445MAX
• G5351

IR AG1-42-5

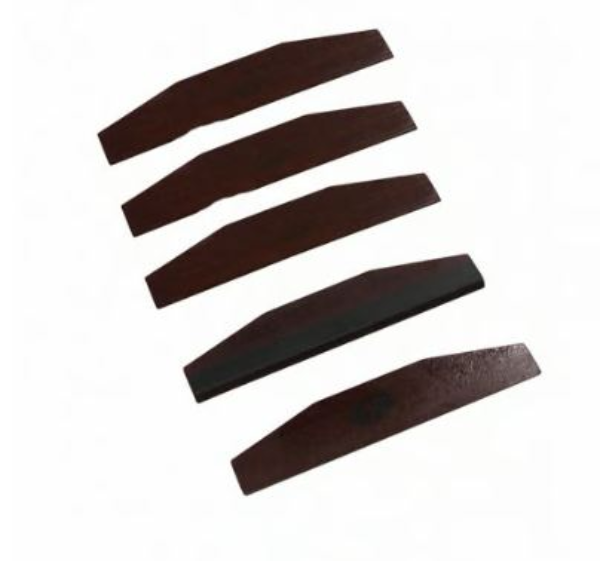

RVW Eng. Vane Pack

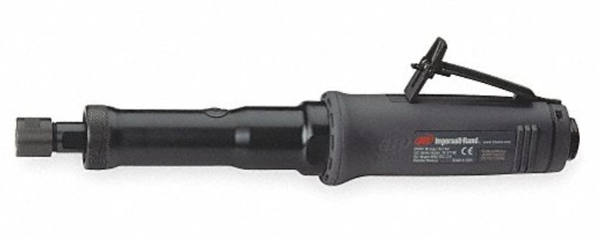

IR G1X250RG4

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.1 / 94.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X200RG4
• 5208MAX

DY 52850

0.1 hp Straight-Line Variable Speed Pencil Grinder

35-60,000 RPM, Rotary Vaned Air Motor, 1/8in Collet

Dynabrade's Variable Speed Pencil Grinder offers precision deburring, finishing and engraving, with easily adjustable speed to suit each application. This is an essential tool for turbine blade manufacturers, tool and die shops, machine shops, investment castings, jewelry, medical implants, composites and more!

High-Quality Air Line. 1/4in (6 mm) in diameter and 5 feet (1.5 m) in length. Over-hose Assembly. Helps direct air and excess oil away from operator - 12in (305 mm) in length. Variable Speed Flow Control. Adjust your desired speed with dial, up to 60,000 RPM. Unlike roll valves, your speed stays set when turning tool off and on. One Touch Starts Tool at Desired Speed. Handy push-button for simple on/off operation. Tool comes on at same speed as when you shut it off!

• HP: 0.1
• Max. RPM: 60000.0
• Motor RPM: 60,000

DY DGR31

.3 hp Right Angle Die Grinder

18,000 RPM, Rotational Side Exhaust, 1/4in Collet

Compact, lightweight contemporary tool design permits easy access to tight areas

Thermoplastic rubber tool grip reduces cold air transmission and absorbs vibration

• HP: 0.3
• Max. RPM: 18000.0
• Motor RPM: 18,000

IR 99V60P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 6,000 RPM, 3 HP, 5/8 in-11 Thread, Side Exhaust

The 99 Series Vertical Grinders are tough and reliable, with a number of features that help you get the job done faster, easier and safer.

Features And Benefits

• Power: The 99 Series Vertical Grinder sports a powerful vane motor and an ideal power-to-weight ratio at 2.8 lbs and 6,000 RPM.
• Safety: The included guard on the 99 Series block sparks and debris from flying back at you, while the locking throttle lever prevents accidental throttle operation.
• Reliable: Made with you in mind, the 99 Series Vertical Grinder is a trusted tool that will last you years to come. Comes with a 1-year warranty.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 84
Air Consumption @ Load (l/min): 2379
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Grinder Type: Vertical Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 6.9
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 6.88
Product Weight (lb): 8.8
Rated Power (hp): 3
Right Angle Length (in): 7.95
Right Angle Length (mm): 202
Sound Pressure/Power Db(A): 81.4 / 92.4
Vibration Level (m/s2): 2.8
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P109

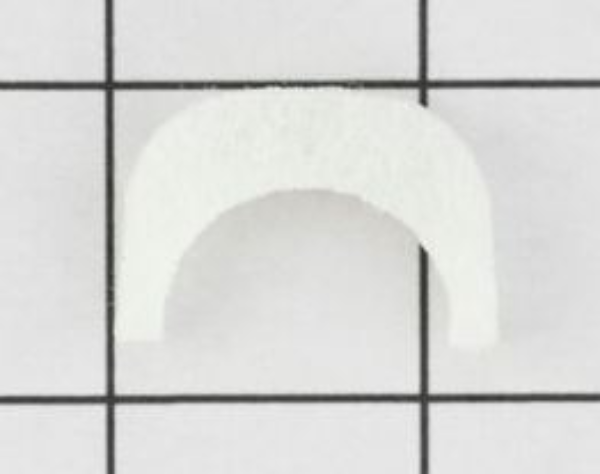

IR AG3-311B

MUFFLER

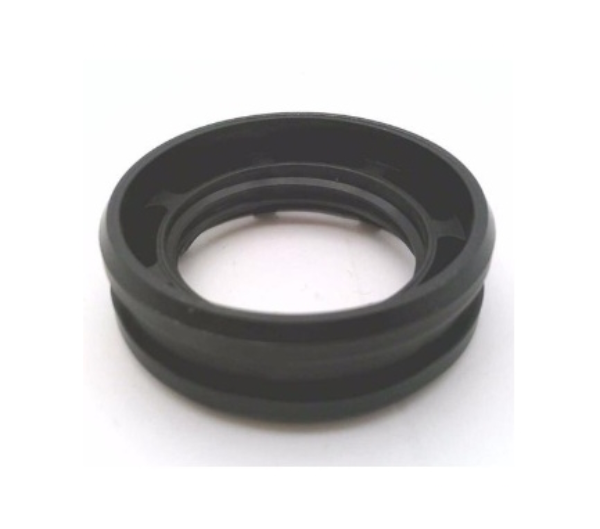

IR LG2-184

ADAPTER (49450-18)

IR MG1-311

MUFFLER

DY 47802

.4 hp Right Angle Die Grinder

20,000 RPM, Spiral-Geared, Front Exhaust, 1/4in and 6mm Collets

All models have air passage to continually cool the gear box. gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.

Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.

• HP: 0.4
• Max. RPM: 20000.0
• Motor RPM: 20,000

IR 409

Air Die Grinder, 27,000 RPM, 0.5HP, 1/4" & 6mm Collets, Front Exhaust

With a powerful vane motor and ergonomic front exhaust to direct air away from your workspace, the 409 Die Grinder is a tough tool to have in your arsenal.

Features And Benefits

• Comfort: This die grinder is lightweight and ergonomic, so you can do more work for longer stretches of time.
• Access: The compact 409 Die Grinder allows you to reach tighter spaces with ease.
• Increased Safety: With a locking throttle lever that resets each time the lever is released, the 409 increases operator safety by preventing accidental throttle operation.

Includes: Tool, (2) Wrenches, 6mm Collet and Manuals
Product Application and Uses: De-burring, Polishing, Porting, Smoothing Edges, Weld Grinding
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 27000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.87
Product Width (in): 3.46
Product Height (in): 2.36
Product Weight (lb): 1.2
Rated Power (hp): 0.5
Side to Center Distance (in): 1.73
Side to Center Distance (mm): 44
Sound Pressure/Power Db(A): 90.9 / 101.9
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, Iso 28927-12, Iso 15744, Iso 11148-9
Vibration Level (m/s2): 6.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 307B
• 308B
• 5108MAX

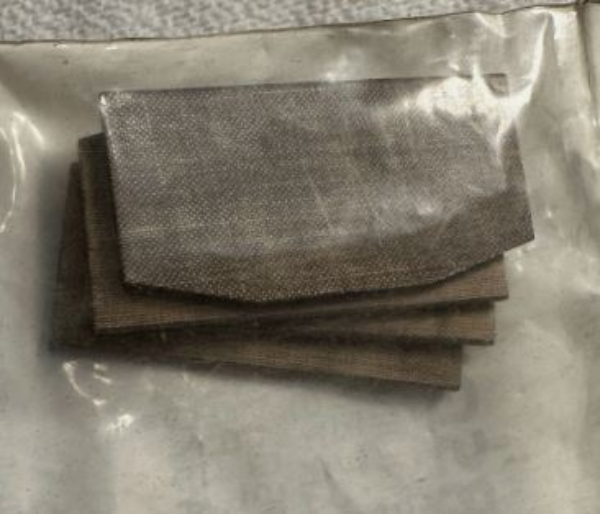

IR 88V60-42-4

VANE PACK (03643707)

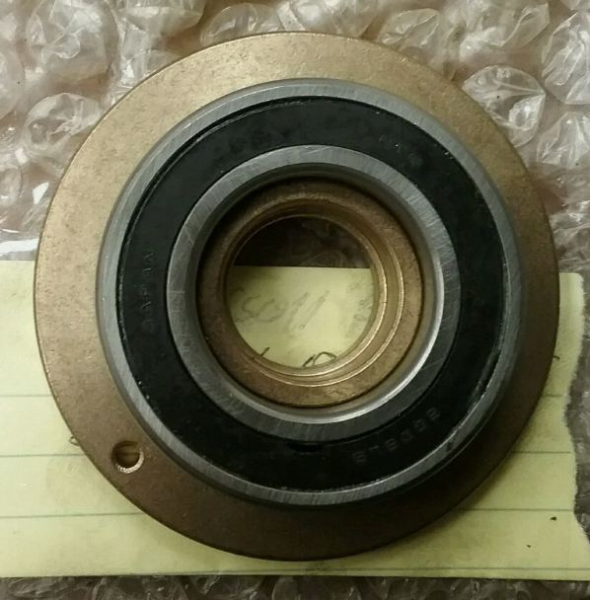

IR 88V60-A28

SEAL ASSEMBLY (49845-160)

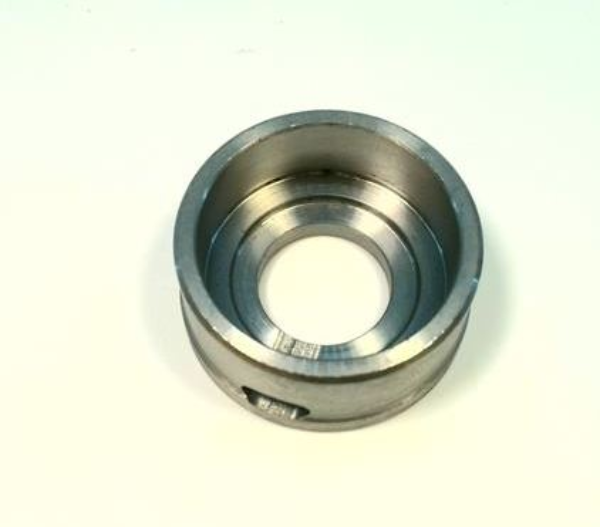

IR MG1-11

FRONT ENDPLATE

MPT NAG-1FLW

4" Angle Grinder

IR 88V60-739

REAR END PLATE GASKET

IR AG3-123

REAR EXHAUST DIFFUSER

IR AG3-4-105

ARBOR, 5/8" -11 THD.

IR MG1-A550

ASSEMBLY, ANGLE HEAD

DY 53280

7in (180 mm) Diameter Right-Angle Depressed Center Wheel Grinder

2.8 hp, 8,500 RPM, 5/8in -11 Spindle Thread

Rebel 2.8 hp series grinders and sanders are powerful tools designed to overcome the challenges of heavy-duty industrial applications

Durability has been elevated to a new level. with 1,000+ hours of use between recommended maintenance, the Rebel 2.8 hp is a tool to depend upon

• HP: 2.8
• Max. RPM: 8500.0
• Motor RPM: 8,500

IR 77H120L10

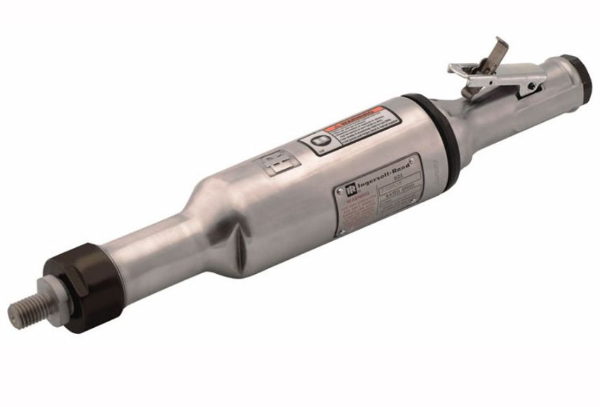

Cone and Plug Air Grinder, 12000 RPM, 1.5 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Versatile: Compatible with piped-away exhaust kits to make your job easier.

Product Application and Uses: Specially designed for heavy duty applications best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.
Air Consumption @ Load (cfm): 39
Air Consumption @ Load (l/min): 1104
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Configuration/Handle Type: Straight
Exhaust Location: Side
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 16.44
Product Weight (lb): 6
Rated Power (hp): 1.5
Rated Power (kW): 1.1
Vibration Level (m/s2): 4.2
Vibration Uncertainy K* (m/s2): 3.5
Warranty: 1-year
Wheel Type: Cone

IR 99V60-A524

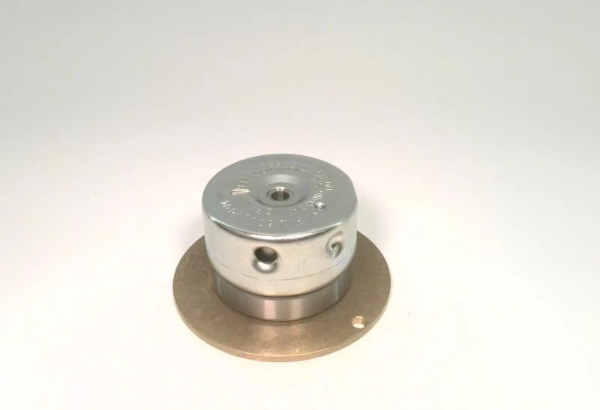

CONTROLLER (-A424)
