Grinders

DC 12L2580-01

DY 49420

3,200 RPM, Planetary-Geared, Rear Exhaust, 1/4in Collet

Includes 50055 Collet Assembly and extended rear exhaust muffler to reduce noise levels.

Governor-controlled motor maintains speed under load.

• HP: 0.4
• Max. RPM: 3200.0
• Motor RPM: 3,200

DY 52102

4,500 RPM, Planetary-Geared, Extended Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Extended rear exhaust muffler design.

• HP: 0.7
• Max. RPM: 4500.0
• Motor RPM: 4500

DY 52376

1 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

3in Diameter, Straight Line, 1 hp, 6in Extension, 12,000 RPM.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 52439

.4 hp, 12,000 RPM, Rear Exhaust, 3/8in -24 Spindle Thread

Accepts optional 3in (76 mm) diameter Diamond Cut-Off Wheels with 3/8in (10 mm) diameter center hole.

Ideal for cutting thick fiberglass over-wrap and fiber spray.

• HP: 0.4
• Max. RPM: 12000.0
• Motor RPM: 12000

DY 52615

1.3 hp, 12,000 RPM, Rotational Exhaust, 3/8in -24 Spindle Thread

Tool accepts optional 5in (127 mm) Diameter Diamond Cut-Off Wheels with 3/4in (19 mm) Diameter center hole. Adjustable wheel guard has vacuum port 1-1/4in (32 mm) outside Diameter that diverts airborne dust and debris to optional vacuum source. Excellent for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites.

Non-marring composite base is removable to utilize maximum blade depth of 1-3/16in (30 mm). Optional composite base is available for scoring. Shroud/Guide Plate design allows cutting as close as 1/8in (3 mm) to leading edge of work piece.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 52630

1.3 hp, 13,500 RPM, Rotational Exhaust, 3/8in -24 Spindle Thread

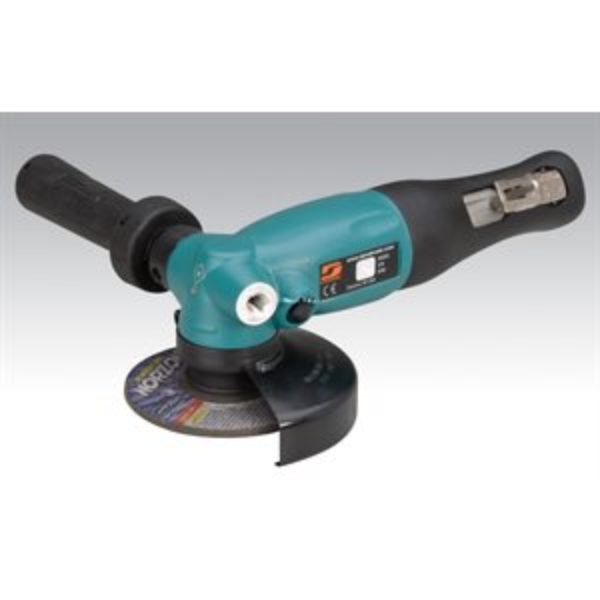

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

13,500 RPM, 3/8in -24 Spindle Thread.

• HP: 1.3
• Max. RPM: 13500.0
• Motor RPM: 13,200

DY 52633

1.3 hp, 12,000 RPM, Rotational Exhaust, 5/8in -11 Spindle Thread

1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.

12,000 RPM, 5/8in -11 Spindle Thread.

• HP: 1.3
• Max. RPM: 12000.0
• Motor RPM: 12,000

DY 54359

18,000 RPM, Composite, Geared, Rear Exhaust, 1/4in and 6 mm Collet

Dynabrade's .7 hp Die Grinders are ideal for rapid material removal, deburring, finishing and polishing, in an ergonomic right angle design. These top-quality tools accept optional carbide burrs and mounted points, providing countless solutions to manufacturing and fabrication industries, foundries, die shops, welding operations, nuclear facilities, shipyards and more!

All models include 1/4in and 6 mm Collet Insert.

• HP: 0.7
• Max. RPM: 18000.0
• Motor RPM: 18,000

DY DGS31

25,000 RPM, Rotational Side Exhaust, 1/4in Collet

Compact, lightweight contemporary tool design

Thermoplastic rubber tool grip reduces cold air transmission and absorbs vibration

• HP: 0.3
• Max. RPM: 25000.0
• Motor RPM: 25,000

IR 320AC4A

IR 77A60P107

Air Angle Grinder, 7" Type 27/28 Wheel, 6000 RPM, 1.5 HP, 5/8" -11 Thread, Side Exhaust

• Air Pressure (psi): 90

• Configuration/Handle Type: Right Angle

• Max Pressure (bar): 6.2

• Power Source: Air Powered

• Warranty: 1-year

IR 99V60-204-P10

IR 99V60-262

IR 99V60-A216A

IR AG1-TK1

Tune-up Kit for Ingersoll Rand G1 Series Grinders

• For Use With: G1A120RG4
• For Use With: G1A200RG4
• For Use With: G1H200RG4
• For Use With: G1H250RG4

IR AG2-202

IR AG3-51

IR AG3-53-4A

IR AG3-A106-5

IR G1X250RG4

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

Description: The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits:

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Product Application and Uses:

Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks

• Includes: Tools, Large Wrench, Small Wrench
• Actuation/Throttle Type/Switch Location: Handle
• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Consumption @ Load (cfm): 25
• Air Consumption @ Load (l/min): 708
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"

• Bearing Type: Ball Bearing

• Color: Black
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Guard Material: Steel
• Handle Material: Composite
• Height Over Spindle (in): 1.73
• Housing Material: Composite
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 25000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 9.13

• Product Weight (lb): 1.3
• Rated Power (hp): 0.4

• Sound Pressure/Power Db(A): 83.1 / 94.1

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 10P
• Parts: LG1-K284

IR G3X180RG4

Extended Air Die Grinder, 18,000 RPM, 1/4" Collet, Rear Exhaust

Description: The G3 Series die Grinders are backed by Ingersoll Rand's longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits:

• Power: Powerful 1.35 18,000 RPM vane motor that won't let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses:

Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"

• Color: Black

• Grinder Type: Die Grinder

• Max Free Speed (rpm): 18000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/2

• Power Source: Air Powered

• Sound Pressure/Power Db(A): 87.6 / 98.6

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

IR HG1-338

IR HG2-123

IR HG2-A465
