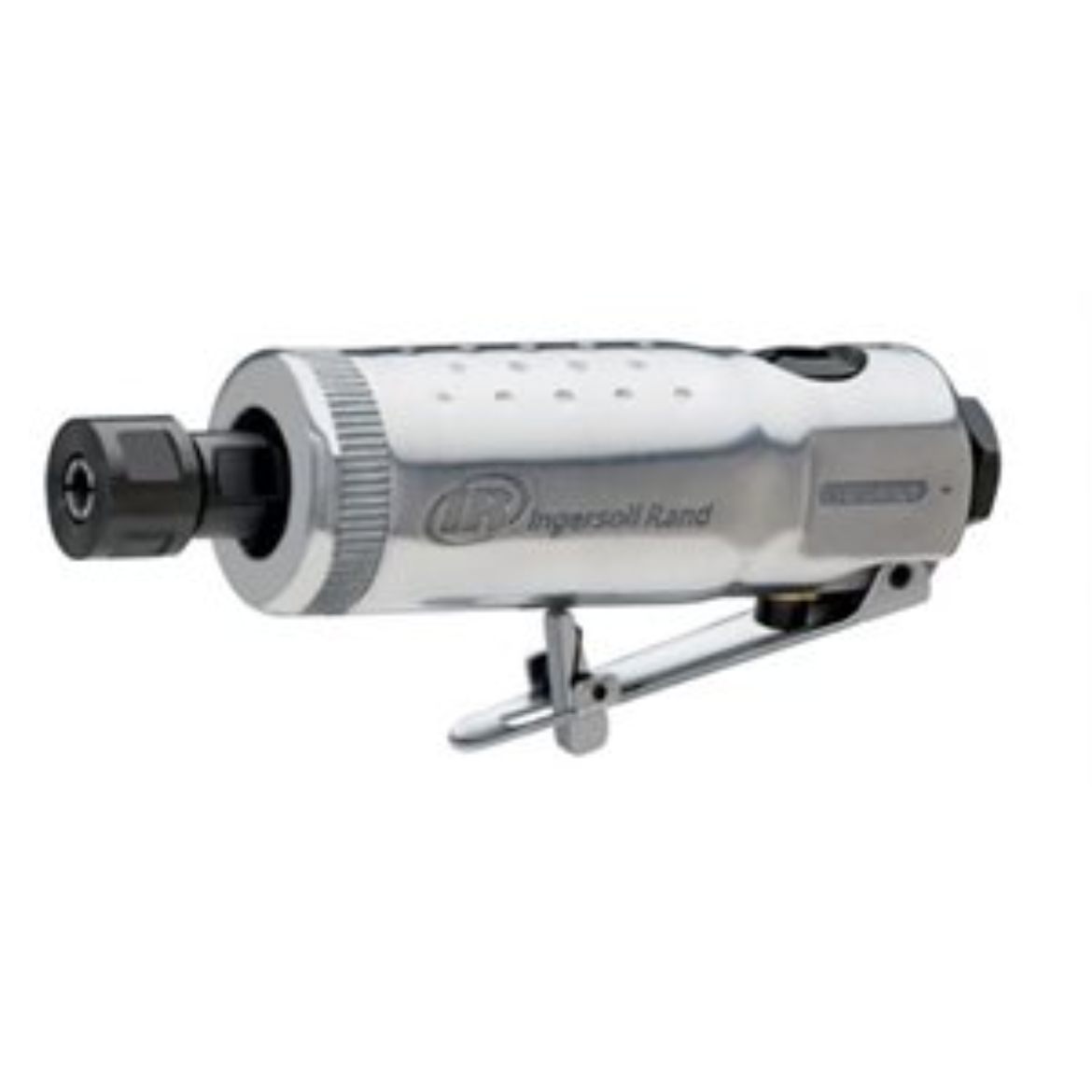

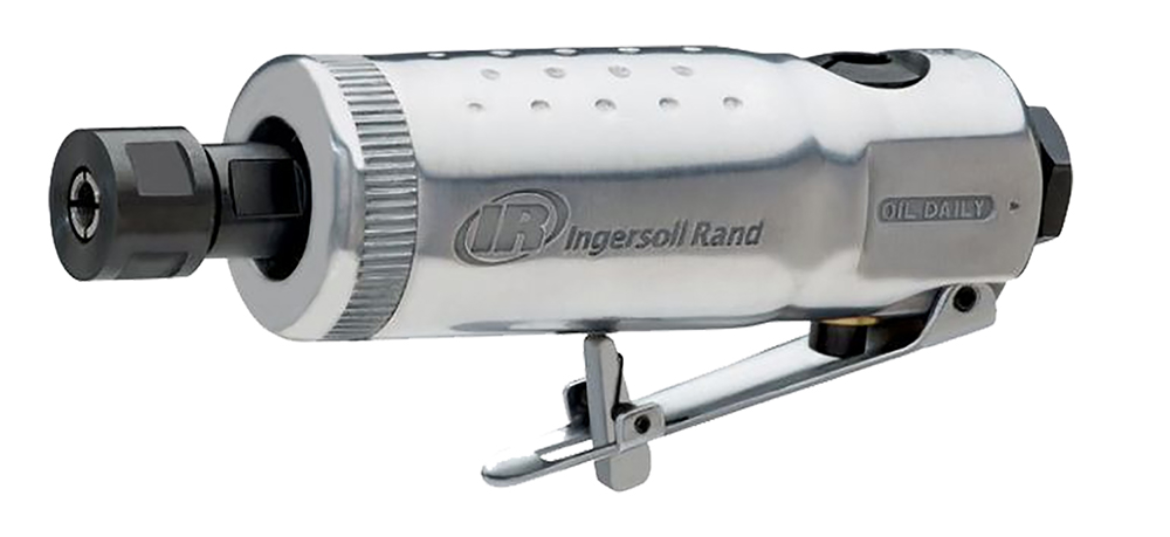

IR 409
Air Die Grinder, 27,000 RPM, 0.5HP, 1/4" & 6mm Collets, Front Exhaust
Description: With a powerful vane motor and ergonomic front exhaust to direct air away from your workspace, the 409 Die Grinder is a tough tool to have in your arsenal.
Features And Benefits:
- Comfort: This die grinder is lightweight and ergonomic, so you can do more work for longer stretches of time.
- Access: The compact 409 Die Grinder allows you to reach tighter spaces with ease.
- Increased Safety: With a locking throttle lever that resets each time the lever is released, the 409 increases operator safety by preventing accidental throttle operation.
Product Application and Uses:
De-burring, Polishing, Porting, Smoothing Edges, Weld Grinding
- Includes: Tool, (2) Wrenches, 6mm Collet and Manuals
- Actuation/Throttle Type/Switch Location: Bottom
- Actuation/Throttle Type/Switch Type: Lever
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 1/4"
- Arbor/Collet: 6mm
- Bearing Type: Ball Bearing
- Configuration/Handle Type: Straight
- Duty Rating: Medium Duty
- Grinder Type: Die Grinder
- Housing Material: Aluminum
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 27000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/8
- Power Source: Air Powered
- Product Length (in): 5.87
- Product Width (in): 3.46
- Product Height (in): 2.36
- Product Weight (lb): 1.2
- Rated Power (hp): 0.5
- Side to Center Distance (in): 1.73
- Side to Center Distance (mm): 44
- Sound Pressure/Power Db(A): 90.9 / 101.9
- Speed Setting: Variable Speed
- Standards/Certifications: 2006/42/Ec, Iso 28927-12, Iso 15744, Iso 11148-9
- Vibration Level (m/s2): 6.4
- Warranty: 1-year
- Wheel Type: Burr
- Lubrication: 10G
- Lubrication: 10P
- Parts: 03A-VAR-KIT
- Parts: 308A-42-4
