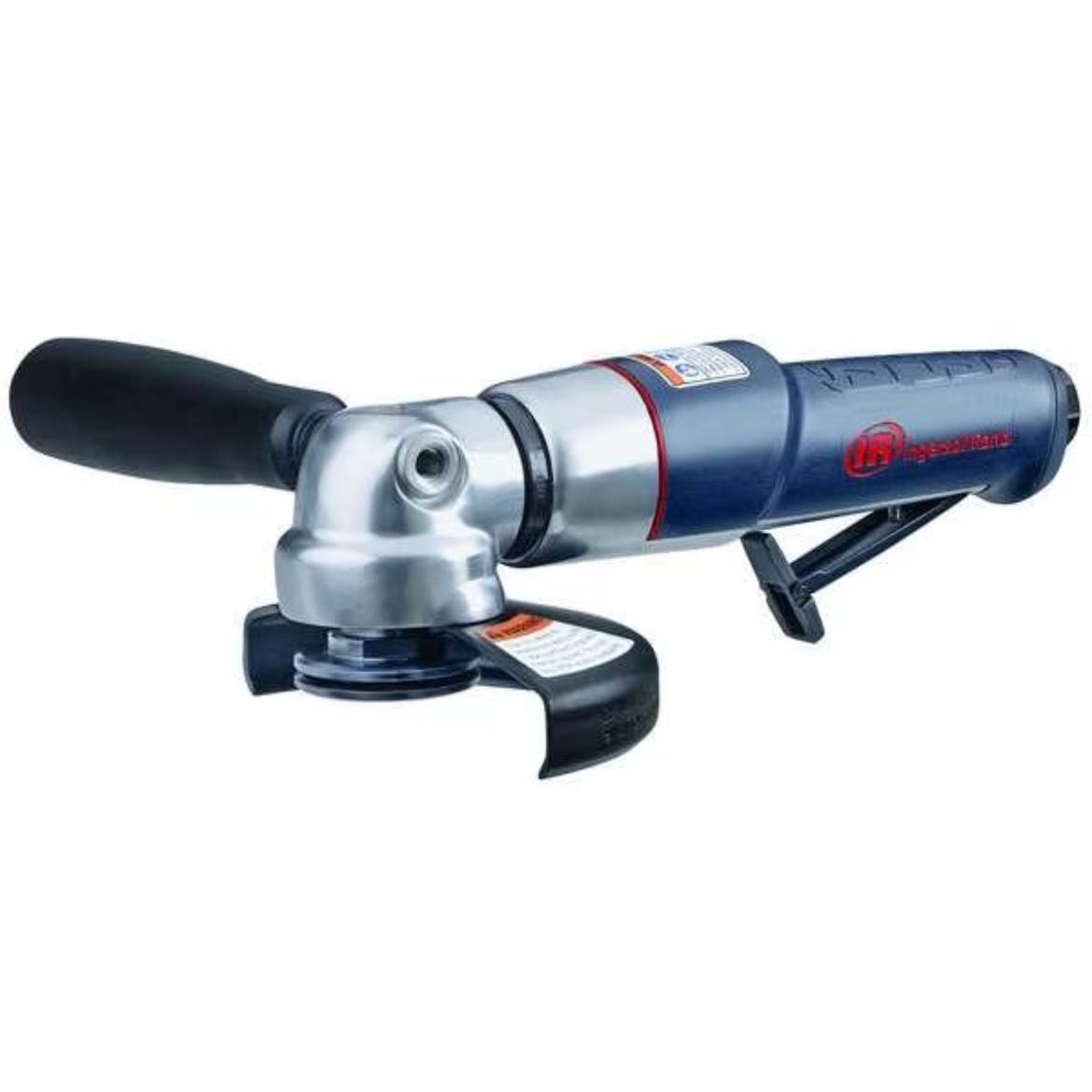

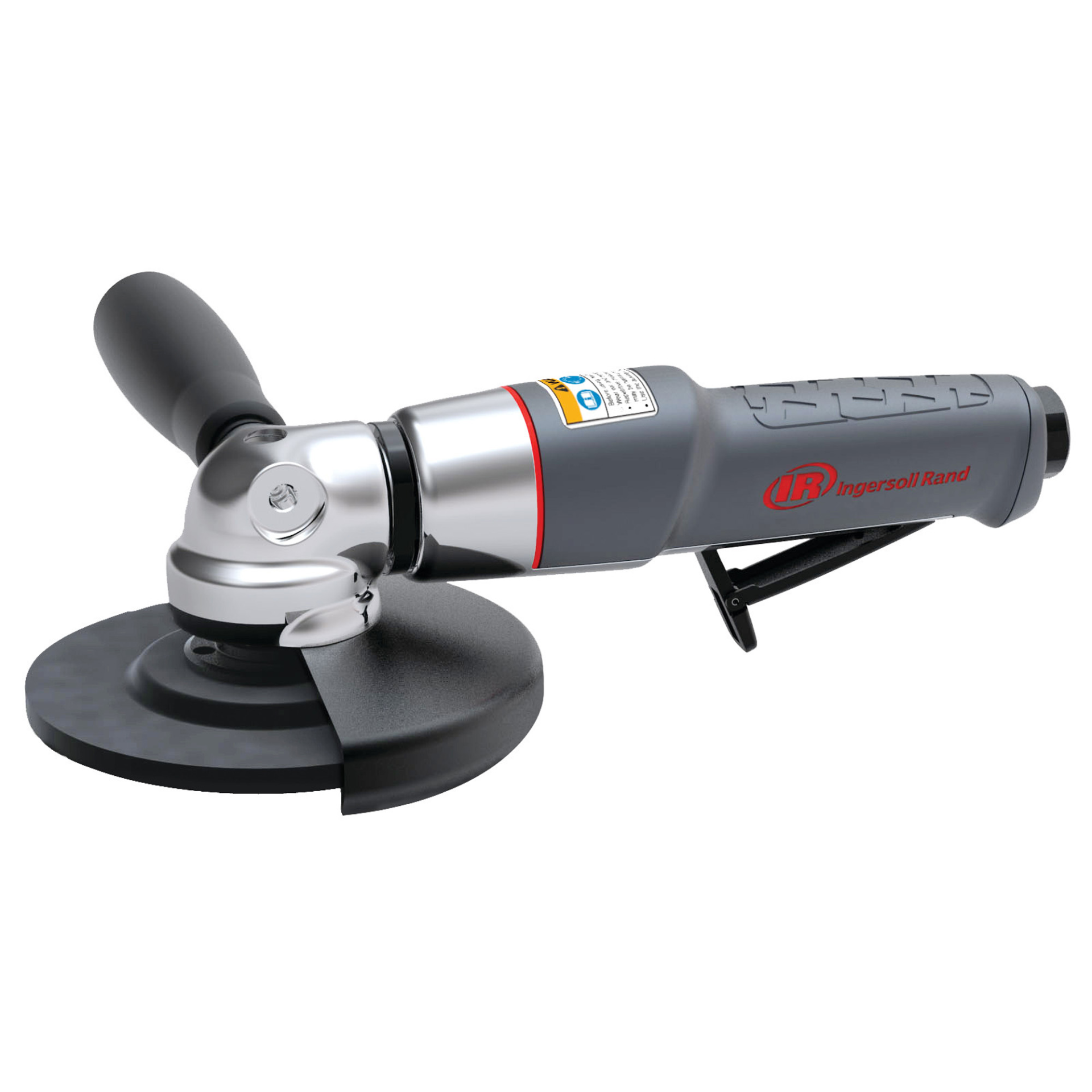

IR 345MAX
Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, 5/8" -11 Thread, Rear Exhaust
Description: In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.
Features And Benefits:
- Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
- Power: With a .88 HP motor, 12,000 RPM and weighing less than 3.5 lbs., the 345MAX has an ideal power-to-weight ratio. The Max Series Angle Grinders are great for high-performance material removal.
- Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication. Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.
- Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.
Product Application and Uses:
These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.
- Includes: Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust
- Actuation/Throttle Type/Switch Location: Handle
- Actuation/Throttle Type/Switch Type: Safety Lever
- Air Consumption @ Free Speed (cfm): 10
- Air Consumption @ Free Speed (l/min): 283
- Air Consumption @ Load (cfm): 41
- Air Consumption @ Load (l/min): 1161
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Arbor/Collet: 5/8" -11 Thread
- Average Air Consumption (cfm): 10
- Average Air Consumption (l/min): 292
- Bearing Type: Needle Bearing
- Bearing Type: Ball Bearing
- Color: Grey
- Configuration/Handle Type: Right Angle
- Duty Rating: Maintenance Duty
- Grinder Type: Angle Grinder
- Guard Material: Steel
- Handle Material: Composite
- Height Over Spindle (in): 2.8
- Housing Material: Composite
- Lock Mechanism: Lever lock in off position
- Max Free Speed (rpm): 12000
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/8
- Power Source: Air Powered
- Product Length (in): 9.6
- Product Width (in): 5.2
- Product Height (in): 5
- Product Weight (lb): 3.37
- Rated Power (hp): 0.88
- Right Angle Length (in): 8.27
- Right Angle Length (mm): 210
- Side to Center Distance (in): 1.3
- Side to Center Distance (mm): 33
- Sound Pressure/Power Db(A): 79.6 / 90.6
- Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
- Vibration Level (m/s2): 7.9
- Vibration Uncertainy K* (m/s2): 2.5
- Warranty: 1-year
- Wheel Diameter (in): 5
- Wheel Thickness (in): 1/4
- Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)
