Grinders

SX SDG03S25

Die Grinder, 25,000 rpm, 1/4 In. 0.3 Hp

SX SDG05S23

Die Grinder, 23,000 rpm, 1/4 In. 0.5 Hp

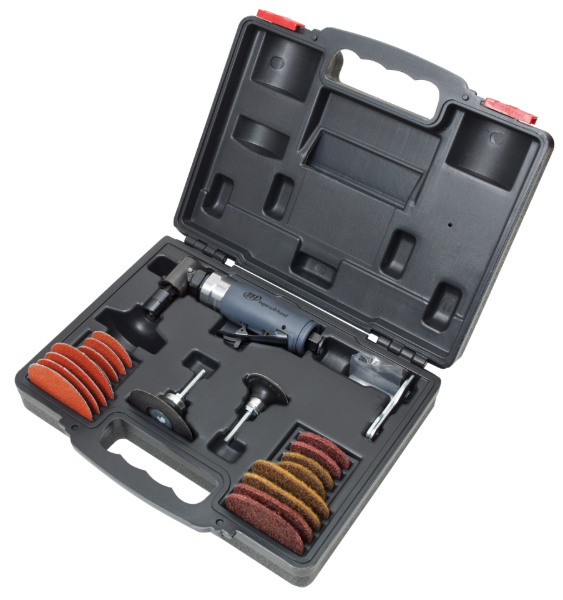

IR 302BK

Angle Air Die Grinder 2" & 3" Pad Kit, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polish-ing and grinding. Kit includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Features And Benefits

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.
• Kit Includes: 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Includes: Right Angle 302B Die Grinder, 2” and 3” Quick Change Backing Pads, A Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, Blow-molded Carrying Case, 1/4" Collet.
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2
Pad Diameter or Size (in): 3
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

• 301BK
• 301B2MK
• 301B32MK

GG 19B341

Grindlazer Hose, Inlet Mc

GG 18B126

Grindlazer Hose, 4000 Psi Hose 3/4In X 14In

IR 5104MAX

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 12,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.4
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7
Product Height (in): 3.43
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 85.6 / 96.6
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4
Vibration Uncertainy K* (m/s2): 1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5102MAX
• G1A120RG4
• G1A120PS4
• G1A120FG4
• 302B
• 301B

Supersedes

• 312AC4A
• 314AC4A

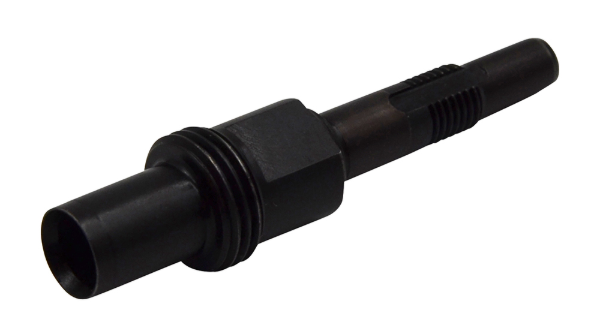

IR AG210-4-G4

Arbor for Ingersoll Rand G1 and G2 Die Grinder

IR 320PGK

Air Pencil Grinder Kit, 60,000 RPM, 5 Mounted Points & 5 Carbide Burrs

A slim profile pencil grinder makes it ideal for intricate spaces, precise grinders to final cleaning and polishing dies, to mold finishing, light deburring and flash removal. Also includes 5 assorted mounted points and carbide burrs in a hard case.

Features And Benefits

• COMFORT: Complete with a custom TPU grip, low vibration and noise and an oversized speed control knob, the 320PG was designed for enhanced user comfort and safety.
• PRODUCTIVITY: The countless capabilities of the 320PG allow for more tasks to be completed with a singular tool, allowing for maximum versatility and productivity.
• VALUE: Affordability across the board is a top priority for the 320PG, which provides high quality performance at a budget-conscious price point.
• Includes 5 assorted mounted points and 5 assorted carbide burrs.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust; 5 Mounted points; 5 Carbide Burrs
Product Application and Uses: For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 220
Air Inlet: 1/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Handle Material: Alloy with TPU Grip
Hose Length (ft): 4.75
Housing Material: Aluminum Alloy
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.74
Power Source: Air Powered
Product Length (in): 5.51
Product Width (in): 0.74
Product Height (in): 0.74
Product Weight (lb): 0.51
Rated Power (hp): 0.1
Side to Center Distance (in): 0.37
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 78 / 89
Speed Setting: Variable Speed
Spindle Offset (in): 0.37
Standards/Certifications: CE, EAC, UKCA
Vibration Level (m/s2): <3.2
Warranty: 1-year
Wheel Type: Burr, Mounted Points

Similar IR

• 320PG
• GH011A-600-1
• 7978
• 140EP
• EP51
• EP51K

IR LG3-53-4

ROTOR (49460-15)

IR 5208MAX

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Extended Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.6
Product Height (in): 1.6
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 85.5 / 86.5
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 2.98
Vibration Uncertainy K* (m/s2): 0.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• G1X250RG4
• G1X200RG4
• G3X180RG4
• G1X350RG4

Supersedes

• 330XC4A
• 325XC4A

IR 23A-VAR-GR

Surface Prep Accessory Kit, 50-Piece

Includes: (4) 1/4" Shank Carbide Burs; (5) 1/8" Shank Mounted Points; (5) 1/4" Shank Mounted Points; (1) 2" Quick Change Disc Backing Pad; (1) 3" Quick Change Disc Backing Pad; (6) 2" 36 Grit Sanding Discs; (9) 2" Various Grit Surface and Conditioning Discs; (2) 2" Paint and Corrosion Removal Discs; (2) 2" High Strength Buffing Discs; (5) 3" 36 Grit Sanding Discs; (9) 3" Various Grit Surface Conditioning Discs; (1) Carrying Case
Product Application and Uses: For use with 1/4" Collet Die Grinders
Arbor/Collet: 1/4"

IR LG2-40

MOTOR HOUSING

IR HG2-GTKl

Tune-Up Kit

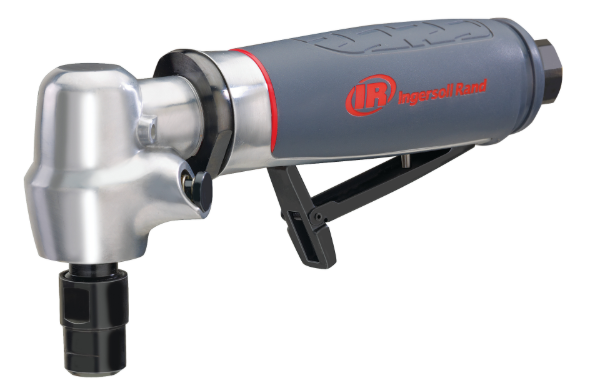

IR 5102MAX

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 20,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Productivity: Spindle lock feature allows for quick abrasive changeovers reducing operator downtime.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (2) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.4
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 1.89
Product Width (in): 7.09
Product Height (in): 3.43
Product Weight (lb): 1.4
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 84.1 / 95.1
Special Features: Lube-free Motor, Spindle Lock
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5104MAX
• 302B
• G1A200RG4
• 301B

Supersedes

• 320AC4A

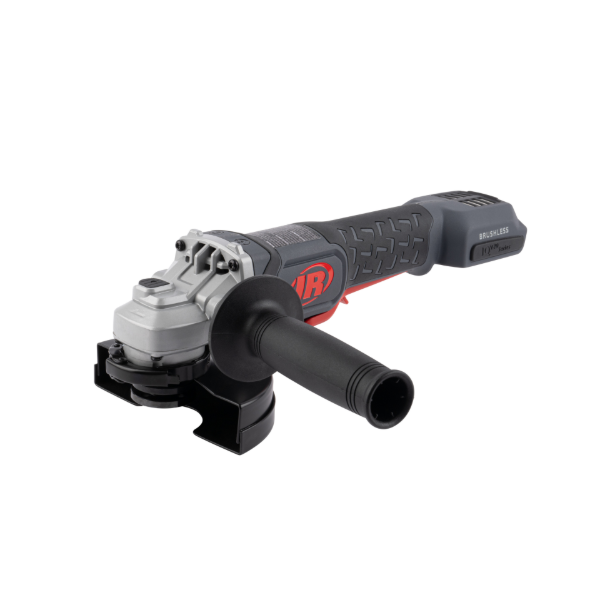

IR G5351

20V Cordless Angle Grinder/Cut-off Tool, 8000 RPM, 1HP, 4.5" Wheel, Bare tool

Break free from the cord with the G5351 20V Cordless 4.5/5.0” Angle Grinder & Cut-Off Tool that brings the power of a corded tool with the mobility of a cordless. Slim and well-balanced, G5351 allows access to tight spaces and weighs 20% less than leading competitor. Tool features an extended paddle switch and unique inline battery design that eliminates interference from the forearm during use. The G5351 couples a high-performance Brushless Motor with advanced features like Anti-Kickback and overload protection for safe, reliable performance. Slim handle with rubberized grip makes the G5351 Cordless Grinder comfortable to use for long periods. Tool-free guard attachment and Spindle-lock button allow quick, easy accessory changes. Also available in the G5351-K22 kit which includes (2) 20V 5Ah batteries, and a charger.

Features And Benefits

• 1.0 HP brushless motor delivers up to 8,000 RPM and makes short work of material removal on a variety of surfaces.
• The G5351 is a lightweight and compact tool weighing 5 lbs. (including battery) and 13.25" length, improving control and access to tight spaces.
• Extended paddle switch with lock-off lever prevents accidental triggering and provides a more comfortable grip when maneuvering.
• Spindle-lock design with simple button press to disengage. Spindle can be used with all 5/8”-11 and 4.5”-5.0” wheels.
• Automatic anti-kickback protection and overload protection with E-brake.
• Change guards with tool-free quick release; use with included grinding guard for material removal and surfacing, or with the included cut-off guard for fast metal cutting.
• Slim body and comfortable rubber grip provide more tool control and reduce fatigue during extended use.
• Included side-handle attaches on the left or right side
• Compatible with IQV® 20 Series Battery System.

Includes: G5351 Grinder, Type 1 (Cutting) Guard; Type 27 (Grinding) Guard; Handle, flange, nut, Spanner Wrench, Manuals. Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Material Removal, Surface Preparation, Blade Sharpening, Metal Cutting. Removes material from a variety of sources including wood, steel, aluminum, ceramic, glass, concrete and stone. Optimized for industrial and automotive applications.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Paddle Switch
Anti-Restart Technology: Yes
Anti-Vibration Technology: No
Arbor/Collet: 5/8"-11 Thread
Brake Type: Electronic
Clutch Type: Electronic Anti-Kickback Clutch
Color: Grey
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Angle Grinder
Guard Material: Steel
Handle Material: TPE Composite
Head Style: Standard Head
Height Over Spindle (in): 3.11
Housing Material: Impact and chemical-resistant composite housing
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 8000
Motor: Brushless Motor
Power Source: Battery Powered
Product Length (in): 13.25
Product Width (in): 3.11
Product Height (in): 4.4
Product Weight (lb): 3.5
Rated Power (hp): 1
Rated Power (kW): 0.75
Right Angle Length (in): 13.25
Right Angle Length (mm): 337
Side to Center Distance (in): 1.42
Side to Center Distance (mm): 36
Sound Pressure/Power Db(A): 76.3
Speed Setting: Single speed
Standards/Certifications: UL/CSA/EN/IEC 62841-1, UL/CSA/EN/IEC 62841-2-3
Tether Style: Not Tether Capable
Vibration Level (m/s2): 6.6
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wheel Diameter (in): 4.5
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

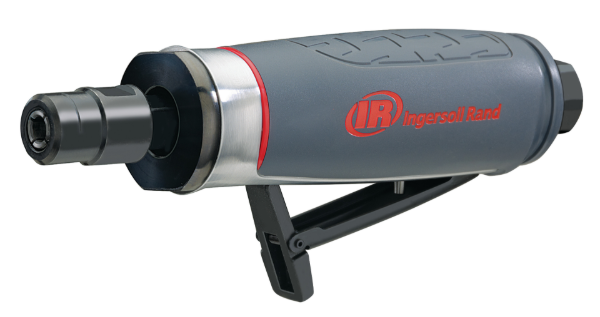

IR 5107MAX

Air Die Grinder, 30,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 30,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 30000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.56
Product Height (in): 1.6
Product Weight (lb): 1
Rated Power (hp): 0.4
Rated Power (kW): 0.29828000000000005
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 81.6 / 92.6
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 1.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5108MAX
• 308B
• G1H350RG4
• 307B

Supersedes

• 330SC4A

IR 5108MAX

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

MAX Series premium die grinders are now offered in more configurations and speeds, ensuring you have the best tool for any job. A powerful 0.4HP motor and speeds ranging from 12,000 to 35,000 RPM in angle, straight, and extended tools adds greater flexibility to your tool box. Designed for everyday use in vehicle repair and industrial settings, you won’t have to choose between topnotch performance or your wallet.

Features And Benefits

• MAX Power: With a 0.4HP (0.3kW) motor and speeds up to 25,000 RPM, MAX Series Die Grinders deliver best in class power to tackle the toughest jobs.
• MAX Comfort: Enhanced ergonomic grip design and low profile level throttle reduces operator fatigue & maximizes operator comfort during extended runtimes.
• MAX Cleanliness: Optimal lube-free vanes eliminates the need for daily oiling and oil contamination of the work piece and surrounding environment.

Includes: Tool, (3) Wrenches, 1/4" Collet, Piped Away Exhaust Kit, Service Clamp Block and Manuals
Product Application and Uses: Grinding welds, prepping quarter panels for primer and paint, cleaning wheel hubs, removing glue and gasket adhesives, cutting sheet metal, brackets, and bolts, and polishing surfaces.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Free Speed (cfm): 25
Air Consumption @ Free Speed (l/min): 708
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.56
Product Width (in): 7.09
Product Height (in): 1.6
Product Weight (lb): 1
Rated Power (hp): 0.4
Rated Power (kW): 0.298
Side to Center Distance (in): 0.79
Side to Center Distance (mm): 20
Sound Pressure/Power Db(A): 83.3 / 94.3
Special Features: Lube-Free Motor
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 1.8
Vibration Uncertainy K* (m/s2): 0.8
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 5107MAX
• G1H250RG4
• G1H250FG4
• 308B
• 307B

Supersedes

• 325SC4A

IR AG3-20-5

EXTENSION HOUSING

IR AG3-4-95

ARBOR, M14 THD.

IR 99V60-53

ROTOR

IR AG1-A3

CYLINDER ASSEMBLY

IR AG2-A3

ASSEMBLY.G2 GRINDER 0.75 HP

IR AG3-4

ARBOR EXTENSION

IR HG2-DGTKA

TUNE-UP KIT

DY DGR51

.5 hp Right Angle Die Grinder

14,000 RPM, Rotational Side Exhaust, 1/4in Collet

Compact, lightweight contemporary tool design permits easy access to tight areas

Thermoplastic rubber tool grip reduces cold air transmission and absorbs vibration

• HP: 0.5
• Max. RPM: 14000.0
• Motor RPM: 14,000
