Pencil Grinder Kit

IR 320PGK

Air Pencil Grinder Kit, 60,000 RPM, 5 Mounted Points & 5 Carbide Burrs

Description: A slim profile pencil grinder makes it ideal for intricate spaces, precise grinders to final cleaning and polishing dies, to mold finishing, light deburring and flash removal. Also includes 5 assorted mounted points and carbide burrs in a hard case.

Features And Benefits:

• COMFORT: Complete with a custom TPU grip, low vibration and noise and an oversized speed control knob, the 320PG was designed for enhanced user comfort and safety.
• PRODUCTIVITY: The countless capabilities of the 320PG allow for more tasks to be completed with a singular tool, allowing for maximum versatility and productivity.
• VALUE: Affordability across the board is a top priority for the 320PG, which provides high quality performance at a budget-conscious price point.
• Includes 5 assorted mounted points and 5 assorted carbide burrs.

Product Application and Uses:

For precision grinding and applications in confined spaces. Used for final cleaning and polishing of dies, mold finishing, intricate grinding applications, light deburring and flash removal.

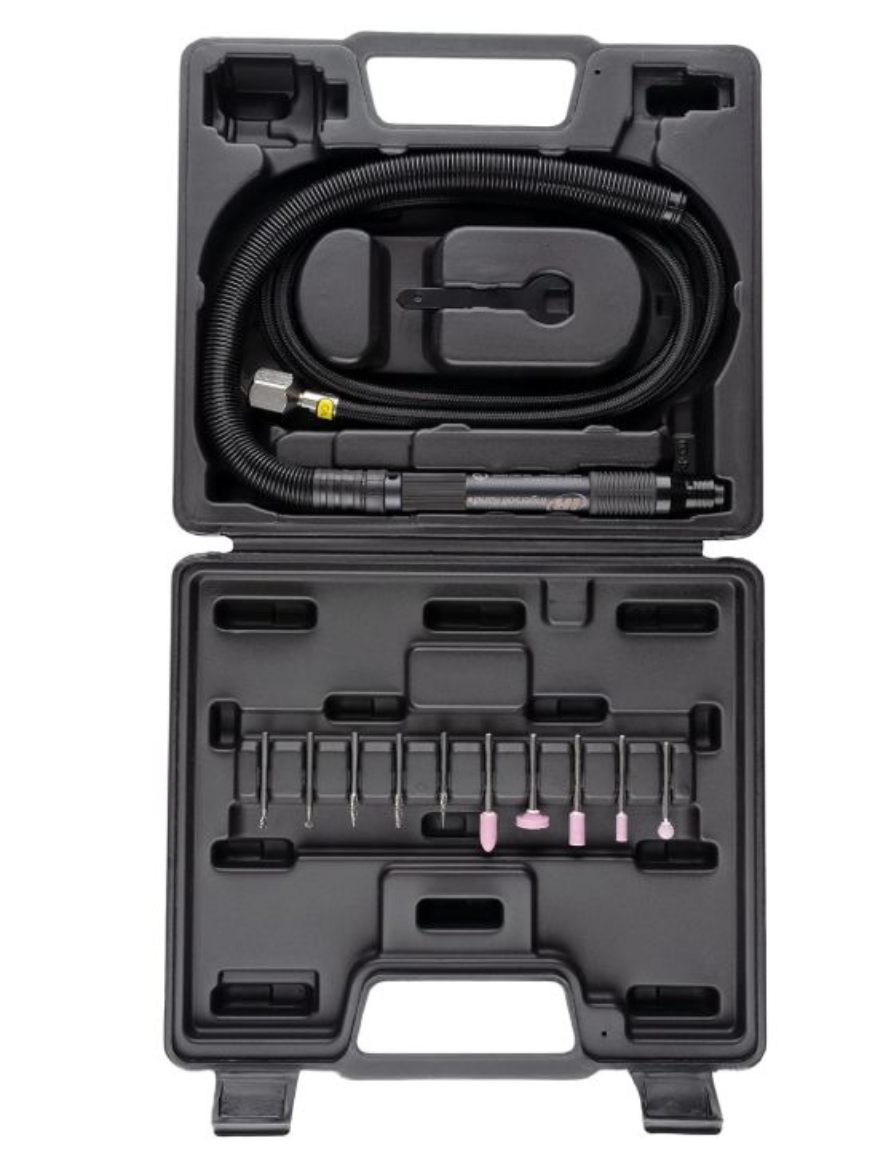

• Includes: (1) Tool, (2) Wrench, (1) Hose Assy, (1) Sleeve Exhaust, 5 Mounted points, 5 Carbide Burrs
• Actuation/Throttle Type/Switch Type: Twist
• Air Consumption @ Load (cfm): 8
• Air Consumption @ Load (l/min): 220
• Air Inlet: 1/8" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/8"

• Bearing Type: Ball Bearing

• Color: Grey
• Configuration/Handle Type: Straight
• Duty Rating: Maintenance Duty

• Exhaust Location: Rear

• Grinder Type: Pencil Grinder
• Handle Material: Alloy with TPU Grip
• Hose Length (ft): 4.75
• Housing Material: Aluminum Alloy

• Max Free Speed (rpm): 60000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/4

• Pencil Diameter (in): 0.74
• Power Source: Air Powered
• Product Length (in): 5.51

• Product Width (in): 0.74
• Product Height (in): 0.74
• Product Weight (lb): 0.51
• Rated Power (hp): 0.1

• Side to Center Distance (in): 0.37
• Side to Center Distance (mm): 9

• Sound Pressure/Power Db(A): 78 / 89
• Speed Setting: Variable Speed
• Spindle Offset (in): 0.37
• Standards/Certifications: CE, EAC, UKCA

• Vibration Level (m/s2): <3.2
• Warranty: 1-year
• Wheel Type: Burr, Mounted Points

• Accessories: 320-KCB5
• Accessories: 320-KMP5

• Lubrication: 10G
• Lubrication: 10P
• Parts: 320-26
• Parts: 320-40

• Parts: 320-747
• Parts: 320PGK-75
