Grinders

DC 12L2001-01

GRINDR ERGO,FE,20K,1/4" COLLET

DY 52335

.4 hp 7 Degree Die Grinder

25,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

• Motor RPM: 25,000

IR G1H200PG4M

G1 HOR DIE GRINDER-6MM COLLET-REAR EXHAUST

IR 80148083

HARNESS TOOL CONNECTOR

GG 17X248

Grindlazer Valve, Emergency Vac Release

IR G1H350FG4

Air Die Grinder, 35,000 RPM, 0.4 HP, 1/4" Collet, Front Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 35000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 85 / 96
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1H250FG4

DC 10L1000-36

GRINDER,FE,30K,1/4" COLLET

IR G1H200FG4

Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Front Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 82.1 / 93.1
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.9
Warranty: 1-year

Similar IR

• G1H200RG4

DY 52206

.4 hp 7 Degree Offset Die Grinder

30,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in (01485) and 6 mm (01497) Collet Inserts, fits optional 1/8in (01495), 3 mm (01496)

Kevlar phenolic vanes for longer life. Lightweight ergonomic design for greater comfort and control.

• HP: 0.40
• Max. RPM: 30000.0
• Motor RPM: 30000

DY 52204

.4 hp 7 Degree Offset Die Grinder

25,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in (01485) and 6 mm (01497) Collet Inserts, fits optional 1/8in (01495), 3 mm (01496)

Kevlar phenolic vanes for longer life. Lightweight ergonomic design for greater comfort and control.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25000

GG 18B190

Grindlazer Valve, Cushion Relief Low Flow

IR G1H250FG4

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Front Exhaust

Air Consumption @ Load (cfm): 20
Air Consumption @ Load (l/min): 566
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Front
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Power Source: Air Powered
Product Length (in): 6.1
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Warranty: 1-year

Similar IR

• 5108MAX

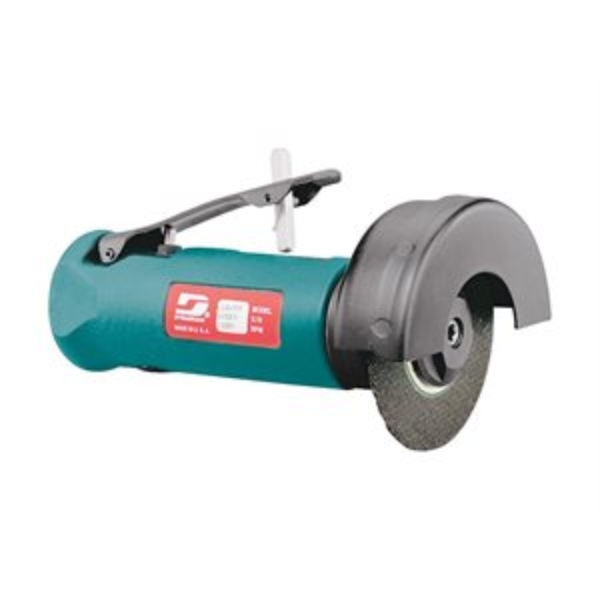

DY 52434

3in (76 mm) Diameter Straight-Line Cut-Off Wheel Tool

.5 hp, 20,000 RPM, Front Exhaust, 3/8in -24 Spindle Thread

Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

3in Diameter, Straight Line, .5 hp, 20,000 RPM, Front Exhaust.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 51300

.5 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 51302

.5 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 51303

.5 hp Straight-Line Die Grinder

24,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 24000.0
• Motor RPM: 24000

DY 51301

.5 hp Straight-Line Die Grinder

18,000 RPM, Gearless, Front Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 0.5
• Max. RPM: 18000.0
• Motor RPM: 18000

IR G1H250RG4

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it’s right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you’re repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you’ll get more done with less fatigue.
• At .4 hp, the G1 Series packs a lot of power in a small package
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
• Ergonomically designed D-shaped grip
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 20
Air Consumption @ Load (l/min): 566
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Width (in): 6.5
Product Height (in): 2.75
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Side to Center Distance (in): 0.87
Side to Center Distance (mm): 22
Sound Pressure/Power Db(A): 82.9 / 93.9
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 2.5
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2H250RG4
• G1H250FG4
• G1H200RG4
• 5108MAX

IR G1H350RG4

Air Die Grinder, 32,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 32000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.2 / 95.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1H250RG4

GG 18B135

Grindlazer Control, Flow Control 50Gpm

DY 48201

.4 hp Straight-Line Die Grinder

25,000 RPM, Gearless, Rear Exhaust, 1/4in and 6 mm Collets, Extended Muffler

.4 hp Dynabrade Die Grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more! Dynabrade's .4 hp (298 W) Die Grinders are designed for peak efficiency and longer life! Ideal for rapid material removal, deburring, finishing and polishing, these tools represent the finest in Dynabrade quality and innovation!

Integrated Safety-Lock Throttle Lever has a contoured shape for operator comfort, with new dowel-pin that minimizes lever wear. Increased Tool Life due to Unique Pre-Filter that provides extra defense against contaminants in air stream.

• HP: 0.4
• Max. RPM: 25000.0
• Motor RPM: 25,000

DC 12L2000-01

GRINDR ERGO, FE, 25K,1/4 COL

IR 88H60-961A

GUARD

GG 18B143

Grindlazer Valve, Tamper Proof Relief Valve

IR 99V60-A302

VALVE
