Grinders

IR G1X200RG4

Extended Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 82.3 / 93.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X250RG4

DC 12LF280-36

RA SNDR/GRD,RE,12K,1/4" COLLET

DC 12LF200-36

RA SNDR/GRD,12K,1/4" COLLET

IR G1X250RG4

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.1 / 94.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X200RG4
• 5208MAX

DY 56759

.7 hp Straight-Line Die Grinder, Central Vacuum

15,000 RPM, Gearless, Rear Exhaust, 1/4in and 6 mm Collets, Extended Muffler

Dynabrade .7 hp Vacuum Die Grinders are ideal for rapid material removal, finishing, removing parting-lines and flash.

For use with carbide burrs, rotary files, mounted points, roll cartridges, wheels and discs. Sold separately.

• HP: 0.7
• Max. RPM: 15000.0
• Motor RPM: 15,000

MPT G14990RE4-C4

Grinder, Extended 1/4in Angle Die

DY 52242

.7 hp 7 Degree Offset Die Grinder

20,000 RPM, Gearless, Front Exhaust, Long Shank, 1/4in and 6mm Collets

Includes 1/4in (50013) and 6 mm (50016) Collet Inserts, fits optional 1/8in (50065), 3/8in (50014), 8 mm (50039)

Gearless motors decrease downtime and lessen repair expense when compared to geared tools.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

IR 88V60-A25

CYL CASE ASSEMBLY (49845-221)

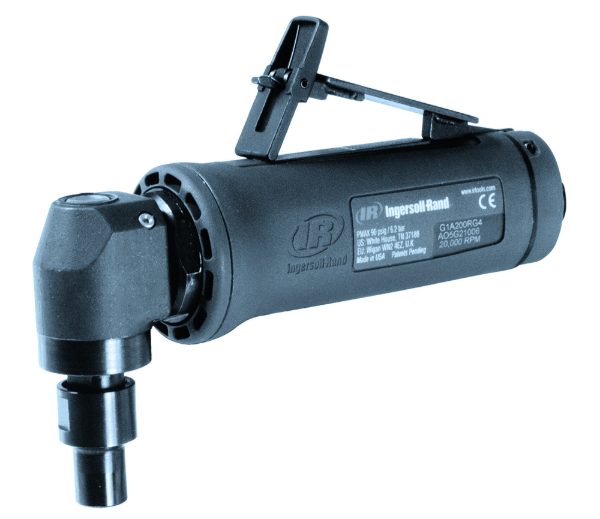

IR G1A200RG4

Angle Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.1
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 12.5
Product Height (in): 2.5
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 3
Right Angle Length (mm): 76
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 83.6 / 94.6
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.6
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A180RG4
• G1A120RG4
• G1A200FG4

AIM SG-125H-1M-R

Grinder w/Rear Exhaust w/ Whip hose, 7500RPM, 1.28hp

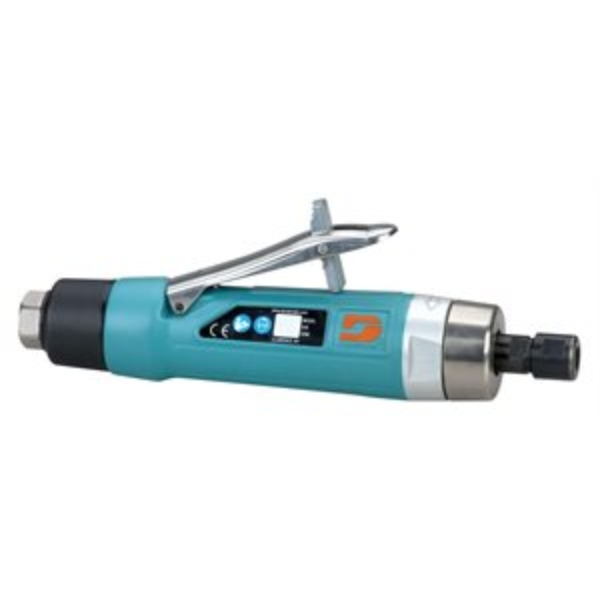

DY 52665

1 hp Straight-Line Die Grinder

9,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 9000.0
• Motor RPM: 9000

DY 52667

1 hp Straight-Line Die Grinder

15,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 15000.0
• Motor RPM: 15000

DY 52666

1 hp Straight-Line Die Grinder

12,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 12000.0
• Motor RPM: 12000

DY 52669

1 hp Straight-Line Die Grinder

20,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 52668

1 hp Straight-Line Die Grinder

18,000 RPM, Gearless, Rear Exhaust, 1/4in and 6mm Collets

Includes 1/4in Collet Insert (50013), fits optional 1/8in (50065), 3/8in (50014), 6 mm (50016), 8 mm (50039)

Gearless for reduced maintenance and downtime.

• HP: 1.0
• Max. RPM: 18000.0
• Motor RPM: 18000

IR GH011A-600-1

Air Pencil Grinder, 60,000 RPM, 0.1 HP, 1/8" Collet

A durable metal housing and powerful vane motor give the Ingersoll Rand Pencil Grinders the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Features And Benefits

• Comfort: Lightweight at 2.6 lbs. with a rubber grip, this tool’s ease of use makes longer jobs easier.
• Access: True to its name, this pencil-thin grinder can reach the tightest of spaces, leaving no work left undone.
• Versatile: A durable metal housing and powerful vane motor give this pencil grinder the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust
Product Application and Uses: Final Cleaning And Polishing Of Dies, Mold Finishing, Intricate Grinding Applications, Light Deburring And Flash Removal
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 7
Air Consumption @ Load (l/min): 198
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 3.3
Bearing Type: Ball Bearing
Color: Silver
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Gripping Length (in): 2.4
Housing Material: Steel
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.68
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 6.5
Product Height (in): 2.3
Product Weight (lb): 2.6
Rated Power (hp): 0.1
Side to Center Distance (in): 0.34
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 76
Speed Setting: Variable Speed
Spindle Offset (in): 0.34
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 3.2
Warranty: 1-year
Wheel Type: Burr
Whip Hose (in): 7/32

Similar IR

• 7978
• 320PG
• 320PGK

IR G1A120RG4

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3.1
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6
Product Width (in): 12.5
Product Height (in): 2.5
Product Weight (lb): 1.1
Rated Power (hp): 0.4
Right Angle Length (in): 3
Right Angle Length (mm): 76
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 82.4 / 93.4
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 3.4
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2A120RG4
• G1A200RG4
• G1A120FG4

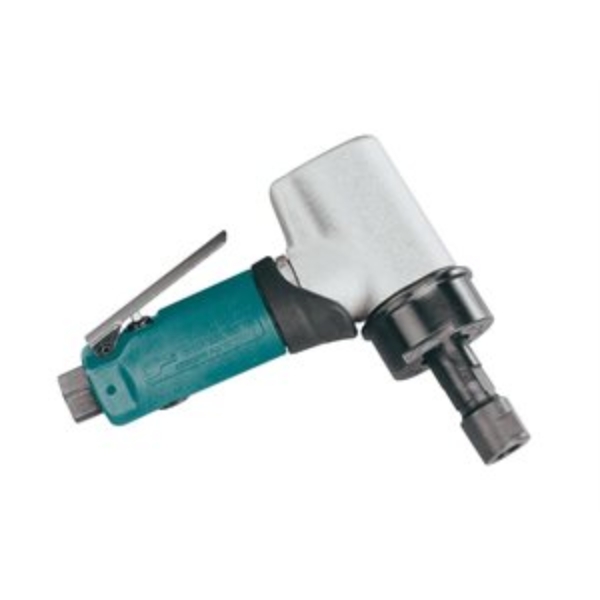

DY 52290

.7 hp 7 Degree Offset Die Grinder

20,000 RPM, Gearless, Front Exhaust, Short Shank, 1/4in and 6mm Collets

High-Quality Air-Powered Die Grinder 7 Degree Offset, Long Shank, Gearless, Front Exhaust Model

Gearless for reduced maintenance and downtime.

• HP: 0.7
• Max. RPM: 20000.0
• Motor RPM: 20000

DY 51622

.1 hp Straight-Line Pencil Grinder, Central Vacuum

35,000 RPM, Turbine Air Motor, Rear Exhaust, 1/8in Collet

Tool has integrated collet with 1/8in Collet Insert (51659)

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

• HP: 0.1
• Max. RPM: 35000.0
• Motor RPM: 35,000

DY 51756

.1 hp Straight-Line Extension Pencil Grinder

35,000 RPM, Turbine Air Motor, Rear Exhaust, 1/8in Collet

Tool has integrated collet with 1/8in Collet Insert (51659)

Turbine-Driven Air Motor Models are ideal for precision deburring and finishing on a variety of surfaces. High-efficiency air motor has no wearable gears, vanes or blades. Oil-free operation minimizes maintenance time and repair costs. Air motor is controlled with patented governor, providing constant tool speed under load. Quality high-speed bearings are included.

• HP: 0.1
• Max. RPM: 35000.0
• Motor RPM: 35000

AA 7978

Air Pencil Grinder, 60,000 RPM, 0.1 HP, 1/8" or 1/4" Collet, Front Exhaust

Description: A durable metal housing and powerful vane motor give the Ingersoll Rand Pencil Grinders the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Features And Benefits:

• Comfort: Lightweight and easy to handle, this tool’s ease of use makes longer jobs easier.
• Access: True to its name, this pencil-thin grinder can reach the tightest of spaces, leaving no work left undone.
• Versatility: Accepts 1/8" or 1/4" collets.

Product Application and Uses:

Final Cleaning And Polishing Of Dies, Mold Finishing, Intricate Grinding Applications, Light Deburring And Flash Removal

• Includes: (1) Tool; (1) Wrench; (1) Hose Assy
• Actuation/Throttle Type/Switch Type: Slide/Zoom
• Air Consumption @ Load (cfm): 6
• Air Consumption @ Load (l/min): 170
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"
• Arbor/Collet: 1/8"
• Average Air Consumption (cfm): 6
• Average Air Consumption (l/min): 2.8

• Bearing Type: Ball Bearing

• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Front

• Grinder Type: Pencil Grinder
• Gripping Length (in): 3.2
• Housing Material: Steel

• Max Free Speed (rpm): 60000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/4

• Pencil Diameter (in): 0.67
• Power Source: Air Powered
• Product Length (in): 5.6

• Product Width (in): 6.4
• Product Height (in): 2.3
• Product Weight (lb): 2.6
• Rated Power (hp): 0.1

• Side to Center Distance (in): 0.35
• Side to Center Distance (mm): 9

• Sound Pressure/Power Db(A): 76.0 / Na
• Speed Setting: Variable Speed
• Spindle Offset (in): 0.4
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744

• Vibration Level (m/s2): < 2.5
• Warranty: 1-year
• Wheel Diameter (in): 0.25
• Wheel Type: Burr
• Whip Hose (in): 3/16

• Lubrication: 10G
• Lubrication: 10P

DC 10L1082-36

GRINDER,RE,25K,1/4" COLLET

DC 12L2500-36

GRINDR ERGO,FE,23K,1/4" COLLET

IR G1H200RH63

Air Grinder, 3" Type 1 Wheel, 20,000 RPM, 0.4 HP, 3/8"-24 Thread, Rear Exhaust

The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options. A motor controller helps maintain tool speed to maximize removal rate and increase operator safety by preventing overspeeding.

Features And Benefits

• Power: At 0.4 HP and 20,000 RPM, the G1 Series packs a lot of power in a small package.
• Comfort: At home, in industrial, heavy machinery, construction environments and more, this lightweight tool features an ergonomic design and low vibrations that make even the toughest jobs a little bit easier.
• Reduced Vibration: Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

Product Application and Uses: Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Horizontal Grinder
Guard Material: Steel
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.0 / 94.0
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 1

IR G1X200PG4M

G1 HOR EXT DIE GRINDER, 6MM COLLET
