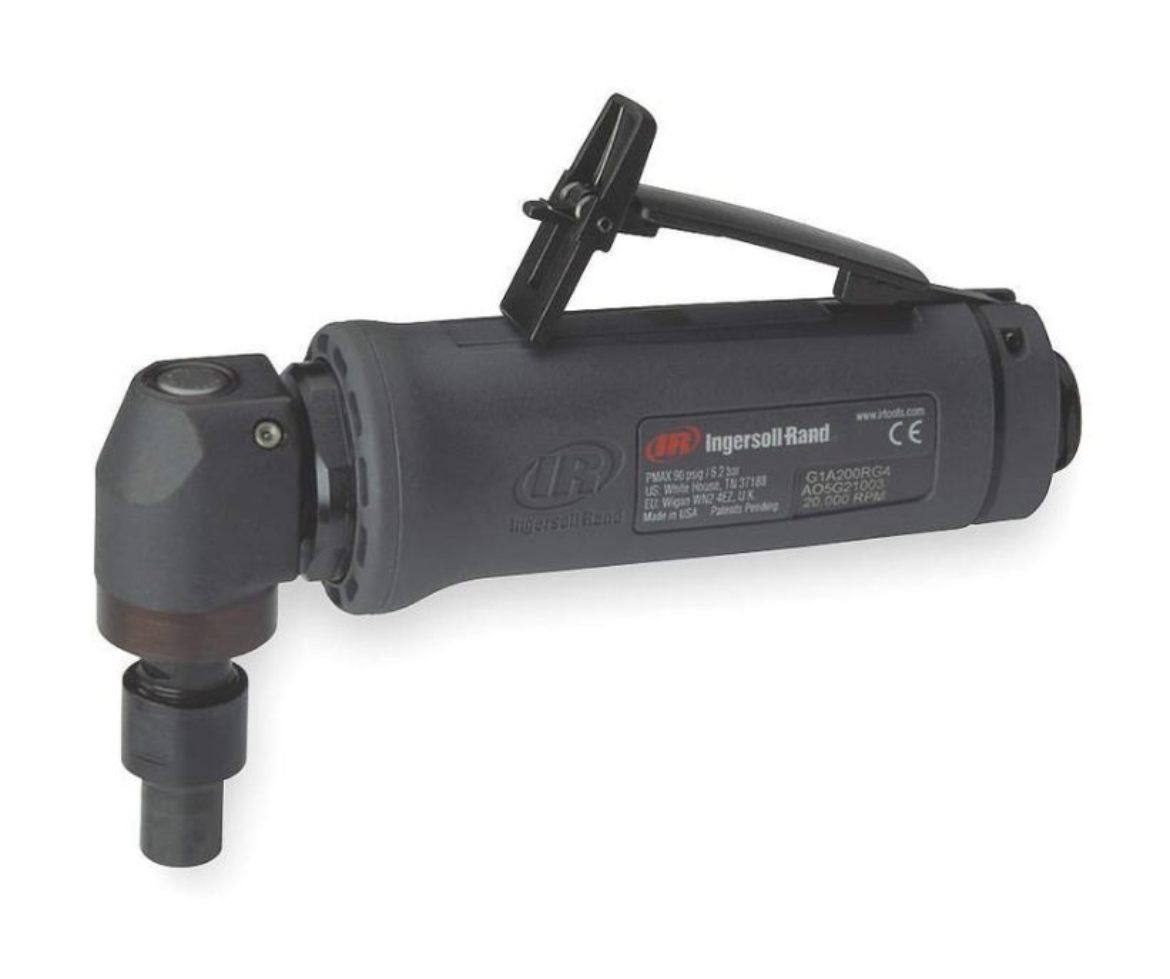

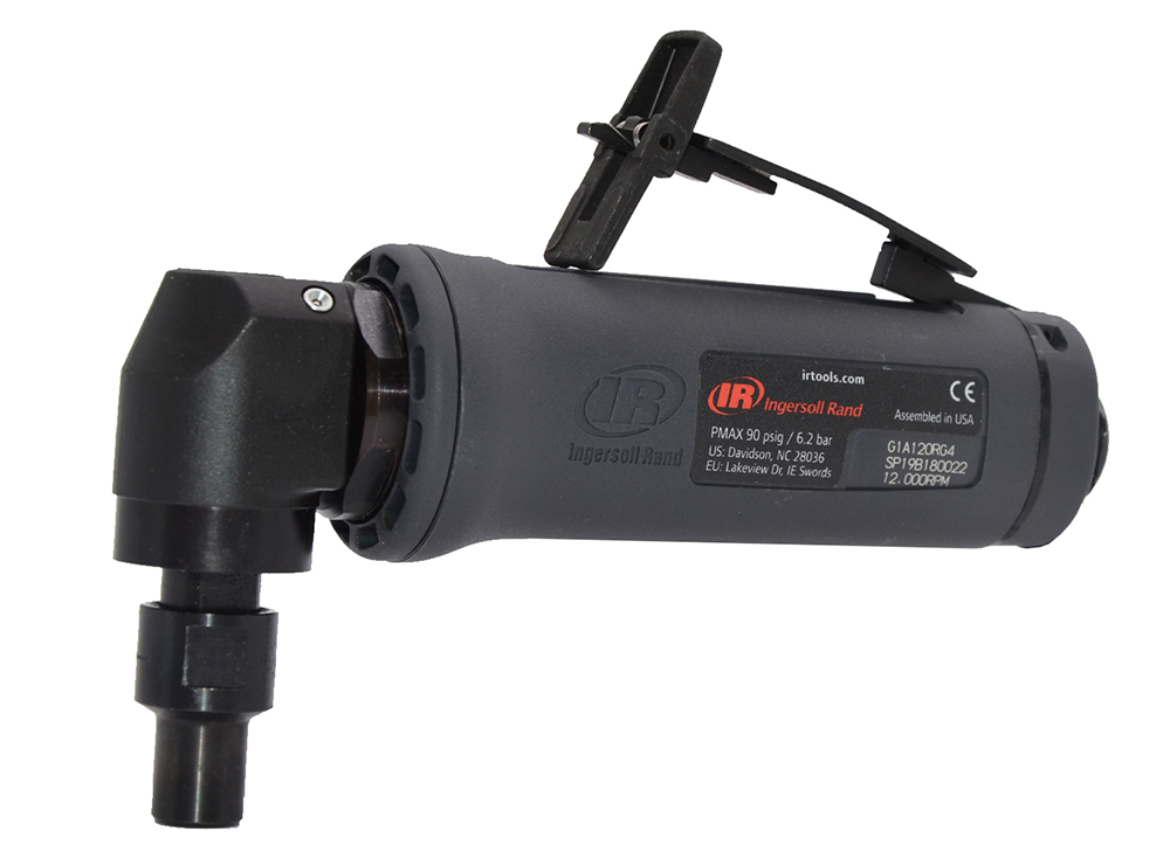

G1 Angle Die Grinder, 1/4" Collet, Rear Exhaust

IR G1A120RG4

Angle Air Die Grinder, 12,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

Description: The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits:

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Product Application and Uses:

Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal

• Includes: Tool, (2) Collet Wrenches, Manuals
• Actuation/Throttle Type/Switch Location: Top, Bottom (straight tool)
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"

• Bearing Type: Ball Bearing

• Color: Black
• Configuration/Handle Type: Right Angle
• Duty Rating: Heavy Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Handle Material: Composite
• Height Over Spindle (in): 3.1
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 12000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 6

• Product Width (in): 12.5
• Product Height (in): 2.5
• Product Weight (lb): 1.1
• Rated Power (hp): 0.4
• Right Angle Length (in): 3
• Right Angle Length (mm): 76

• Side to Center Distance (in): 0.54
• Side to Center Distance (mm): 14

• Sound Pressure/Power Db(A): 82.4 / 93.4
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744

• Vibration Level (m/s2): 3.4
• Warranty: 1-year
• Wheel Type: Burr

• Accessories: DG110-700-G2

• Lubrication: 10G
• Lubrication: 10P
• Parts: AG1-TK1
• Parts: LG1-K284
