GRACO INC. S10595
GRACO INC. S10595 branded products
Kit, Needle Assy (Sst/Delrin)
GG 288190
GG 288190
KIT, NEEDLE ASSY (SST/DELRIN)
Graco 288190 Fluid Needle, SST ball, acid catalyzed materials/very low viscosity materials
$239.00
Kit, Diffuser Airless
GG 288196
GG 288196
KIT, DIFFUSER AIRLESS
Graco 288196 Ball Seat Diffuser- 3/16 in
$95.25

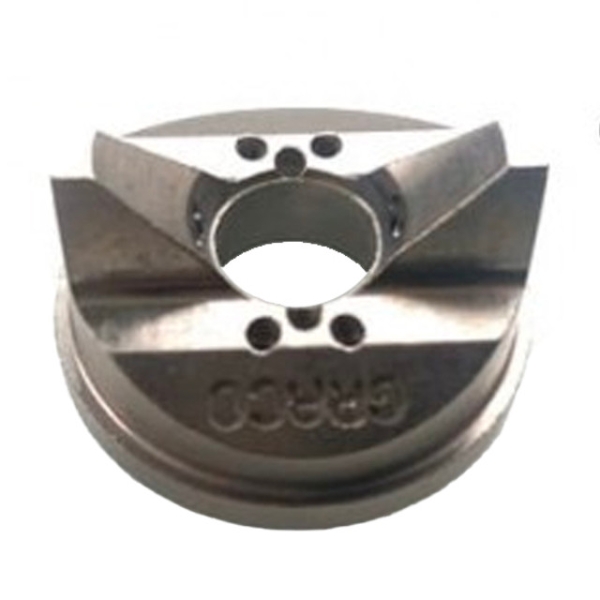

Kit, Aircap Assy, H.P.
GG 288194
GG 288194
KIT, AIRCAP ASSY, H.P.
Graco 288194 Standard Air Cap used with AAP, GG4, GG5, and AAM Series
- Compatible Material: Solvents, Paint, Coating, Lubrication-Fluid
$155.00
Kit, Diffuser Assy
GG 288192
GG 288192
KIT, DIFFUSER ASSY
Graco 288192 Diffuser-Seat, carbide seat, standard viscosity/standard flow
$120.00
Manifold, Bottom Inlet (In)
GG 288221
GG 288221
MANIFOLD, BOTTOM INLET (IN)
Graco 288221 Manifold with bottom fluid ports
$428.00
Manifold, Adjustable, Delta, High Prs
GG 288224
GG 288224
MANIFOLD, ADJUSTABLE,DELTA,HIGH PRS
Graco 288224 High Pressure Air Assisted Manifold with side fluid ports and manual fan adjustment valve
$428.00

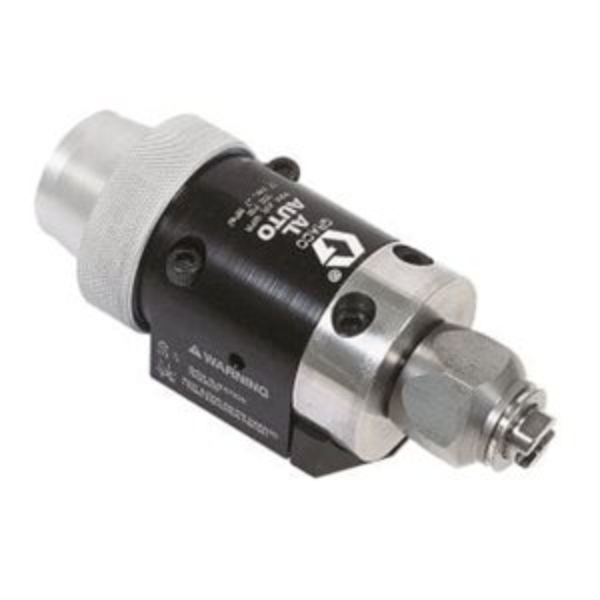

AL AUTO GUN, AIRLESS AUTO
GG 288048
GG 288048
AL AUTO GUN, AIRLESS AUTO
AL Automatic Airless Spray Gun, includes GG0 spray tip of choiceA compact, lightweight automatic spray gun design that increases production speeds and provides a quality finish with a low cost of ownership.
Achieve quality finishes and higher production speeds for general metal finishing applications. Lightweight and compact rounded gun design Capable of handling high production speeds Durable stainless steel construction handles the toughest materials Fewer parts means an overall lower cost of repair Wide range tip line for a variety of applications
$1,300.00
Manifold, Adjustable, Delta, Low Prs
GG 288223
GG 288223
MANIFOLD, ADJUSTABLE,DELTA,LOW PRS
Graco 288223 North America Low Pressure Manifold with side fluid ports and fan adjustment valve
$438.00
Manifold, Side Inlet (In)
GG 288217
GG 288217
MANIFOLD, SIDE INLET (IN)
Graco 288217 North America Manifold with Side Fluid Ports
$428.00

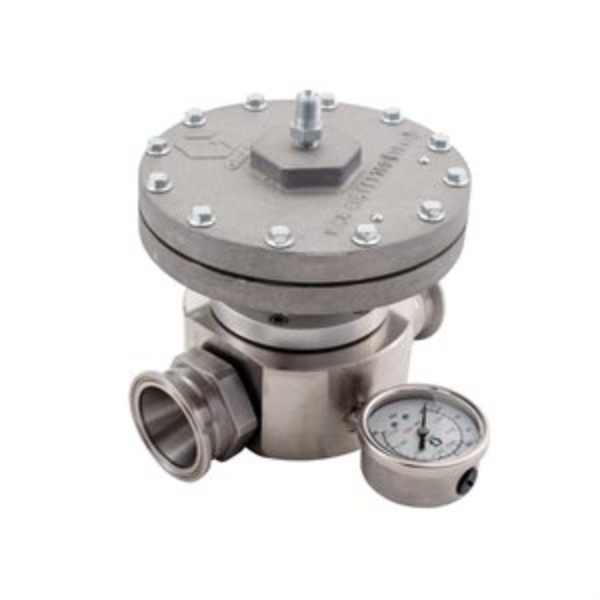

REGULATOR, BACK PRESSURE
GG 288311
GG 288311
REGULATOR, BACK PRESSURE
Graco 288311 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 1-1/2 npt
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Air operated for remote automated control to eliminate operator interference
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 3.81
- Inlet Size (in): 1-1/2
- Inlet Size (mm): 38.1
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 70
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 20
- Maximum Flow Rate (L/min): 75.7
- Maximum Regulated Pressure (bar): 17.2
- Maximum Regulated Pressure (kPa): 1720
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 1.7
- Minimum Regulated Pressure (kPa): 170
- Minimum Regulated Pressure (MPa): 0.017
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.81
- Outlet Size (in): 1-1/2
- Outlet Size (mm): 38.1
- Outlet Thread Type: NPT
$4,160.00

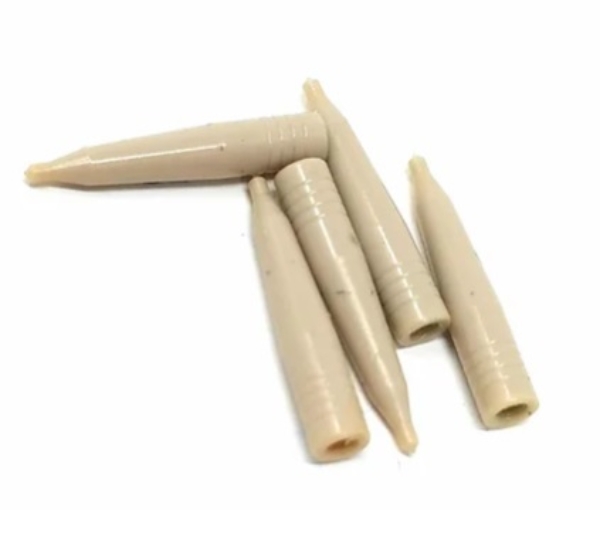

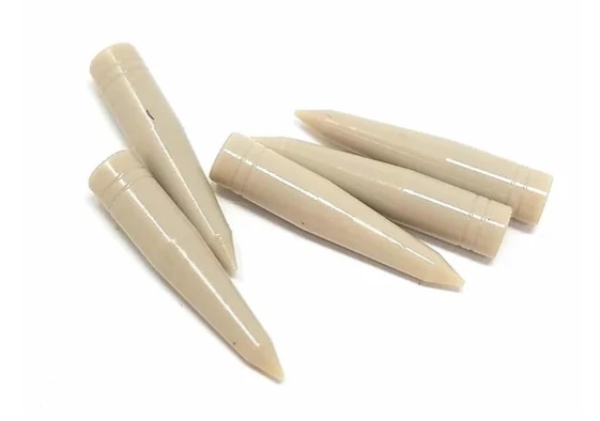

KIT, PEEK NEEDLE TIP , 055
GG 288185
GG 288185
KIT, PEEK NEEDLE TIP , 055
Needle Tip Kit (5-pack, 4 grooves) for AirPro Guns with 0.047-0.070 in (1.2-1.8 mm) Nozzle
$60.25
REGULATOR, BACK PRESSURE
GG 288262
GG 288262
REGULATOR, BACK PRESSURE
Graco 288262 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 2 inch tri-clamp
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Air operated for remote automated control to eliminate operator interference
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 5.08
- Inlet Size (in): 2
- Inlet Size (mm): 50.8
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 70
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 20
- Maximum Flow Rate (L/min): 75.7
- Maximum Regulated Pressure (bar): 17.2
- Maximum Regulated Pressure (kPa): 1720
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 1.7
- Minimum Regulated Pressure (kPa): 170
- Minimum Regulated Pressure (MPa): 0.017
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 5.08
- Outlet Size (in): 2
- Outlet Size (mm): 50.8
$4,120.00

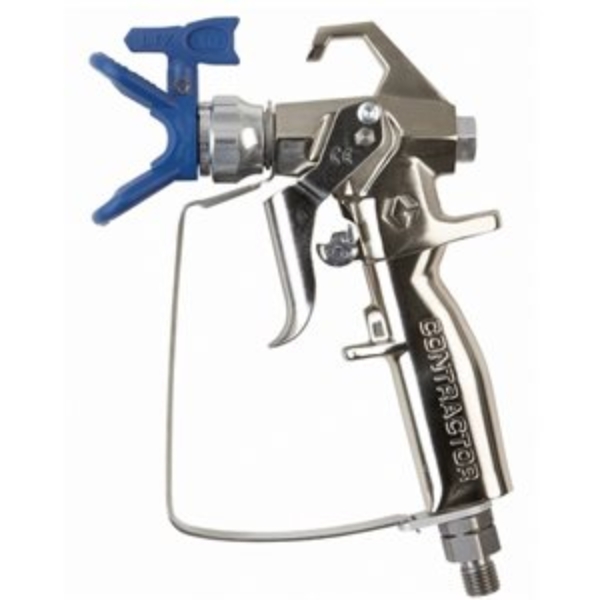

CONTRACTOR GUN, RAC X(PKGD)
GG 288420
GG 288420
CONTRACTOR GUN, RAC X(PKGD)
Contractor Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip The Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard. Exclusive FlexSeal Needle- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Simply remove the trigger cross pin and unthread front housing to change out needle
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
$470.00

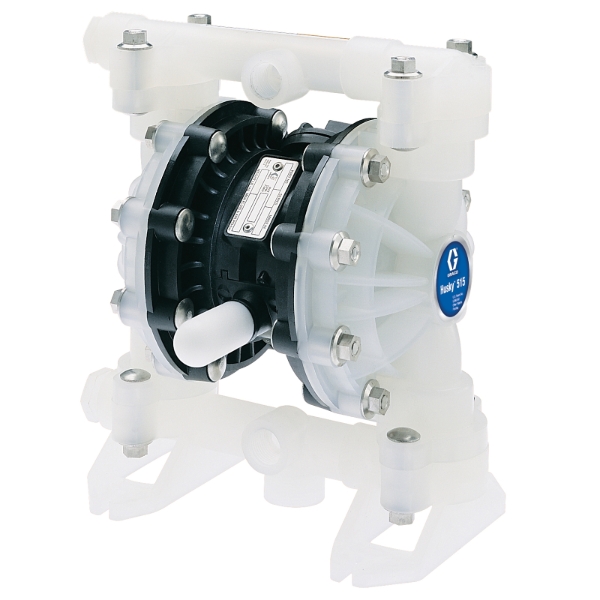

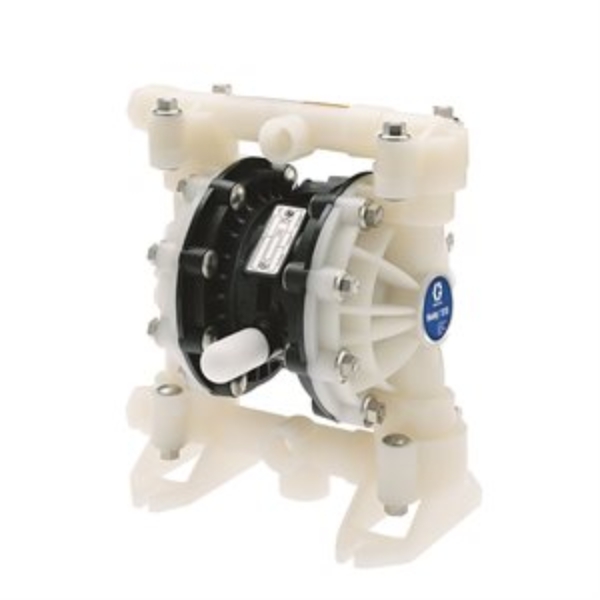

HUSKY PUMP, 515P-PP01AP3SSSSSPPT0
GG D52336
GG D52336
HUSKY PUMP, 515P-PP01AP3SSSSSPPT0
Graco D52336 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SS Balls & SP Diaphragm
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Model: Husky
- Series: 515
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: 316 Stainless Steel
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: Santoprene
- Diaphragm Material: Santoprene
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Polypropylene
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
$1,295.00
HUSKY PUMP, 515P-PP01AP3PPPTPTPT0
GG D52911
GG D52911
HUSKY PUMP, 515P-PP01AP3PPPTPTPT0
Graco D52911 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Model: Husky
- Series: 515
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: PTFE
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE/EPDM 2-Piece
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Polypropylene
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
- Overal
$1,185.00

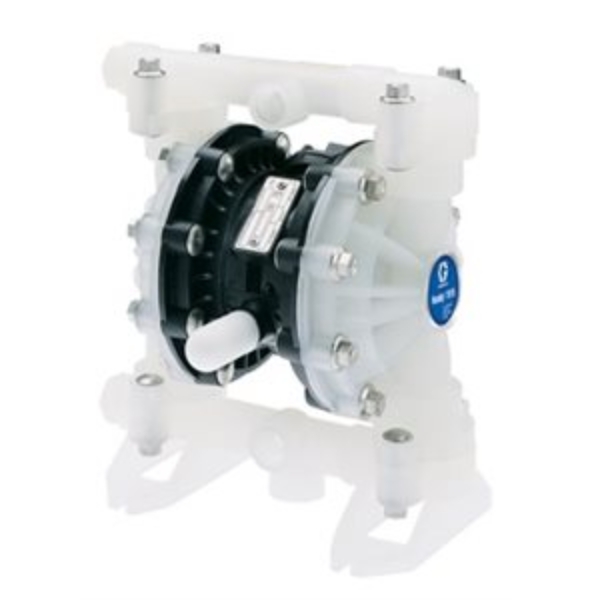

HUSKY PUMP, 515P-PP01AP3PPTPTPPT0
GG D52955
GG D52955
HUSKY PUMP, 515P-PP01AP3PPTPTPPT0
Graco D52955 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, TPE Balls & TPE Diaphragm
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Model: Husky
- Series: 515
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: TPE (Hytrel)
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: TPE
- Diaphragm Material: TPE (Hytrel)
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Polypropylene
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
- Overal
$921.00
HUSKY PUMP, 515P-PP01AP3PPSSTPPT0
GG D52935
GG D52935
HUSKY PUMP, 515P-PP01AP3PPSSTPPT0
Graco D52935 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SS Balls & TPE Diaphragm
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Model: Husky
- Series: 515
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: 316 Stainless Steel
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: TPE
- Diaphragm Material: TPE (Hytrel)
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Polypropylene
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
Call for pricing
HUSKY PUMP, 515P-PP01AP3PPBNBNPT0
GG D52977
GG D52977
HUSKY PUMP, 515P-PP01AP3PPBNBNPT0
Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, BN Balls & BN DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,015.00
HUSKY PUMP, 515P-PP01AP3PPSPSPPT0
GG D52966
GG D52966
HUSKY PUMP, 515P-PP01AP3PPSPSPPT0
Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance.
$860.00
HUSKY PUMP, 515P-PP01AP3UD0SP-0
GG D52D06
GG D52D06
HUSKY PUMP, 515P-PP01AP3UD0SP-0
Husky 515 1/2 in NPT PP Pump, PP Center Section, Urethane Duckbill Seats & SP DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$887.00
HUSKY PUMP, 515P-PP01AP3PPFKFKPT0
GG D52988
GG D52988
HUSKY PUMP, 515P-PP01AP3PPFKFKPT0
Graco D52988 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, FKM Balls & FKM Diaphragm
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
- Model: Husky
- Series: 515
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: Fluoroelastomer
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: FKM
- Diaphragm Material: Fluoroelastomer
- Fluid Inlet Size (cm): 1.27
- Fluid Inlet Size (in): 1/2
- Fluid Inlet Size (mm): 12.7
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.27
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Polypropylene
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 15
- Maximum Flow Rate (L/min): 56.8
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
$1,320.00
HUSKY PUMP, 716A-PP01AA1ACPTPTPT0
GG D53211
GG D53211
HUSKY PUMP, 716A-PP01AA1ACPTPTPT0
Graco D53211 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, PTFE Ball, & PTFE Diaphragm
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
- Center- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- 3/4 in (19.05 mm) center- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Model: Husky
- Series: 716
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: PTFE
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE/EPDM 2-Piece
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Aluminum
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Aluminum
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 16
- Maximum Flow Rate (L/min): 60.6
- Maximum Fluid Pressure (bar): 6.9
- Maximum Fluid Pressure (kPa): 690
- Maximum Fluid Pressure (MPa): 0.69
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 6.9
- Maximum Fluid Pressure (kPa): 690
- Maximum Fluid Pressure (MPa): 0.69
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 107
- Maximum Operating Temperature (°F): 225
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
- Power Source: Air
$1,345.00
HUSKY PUMP, 716A-PP01AA1ACTPTPPT0
GG D53255
GG D53255
HUSKY PUMP, 716A-PP01AA1ACTPTPPT0
Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, TPE Ball, and TPE DiaphragmThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,165.00

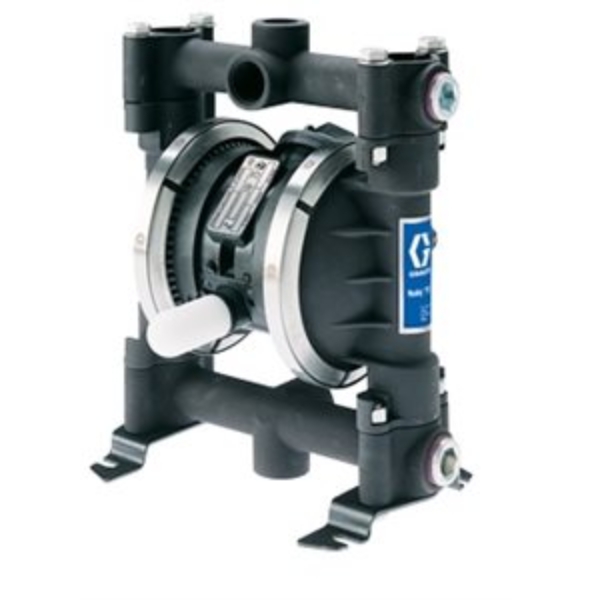

HUSKY PUMP, 716A-PP01AA1ACSPSPPT0
GG D53266
GG D53266
HUSKY PUMP, 716A-PP01AA1ACSPSPPT0
Husky 716 AL Air Operated Double Diaphragm Metal Pump with Open Downward PortThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,165.00
HUSKY PUMP, 716A-PP01AA1ACFKFKPT0
GG D53288
GG D53288
HUSKY PUMP, 716A-PP01AA1ACFKFKPT0
Graco D53288 Husky 716 Al (3/4 in. NPT) Standard Pump, PP Center Section, AC Seats, FKM Balls & FKM Diaphragm
The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
- Center- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- 3/4 in (19.05 mm) center- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Model: Husky
- Series: 716
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: Fluoroelastomer
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: FKM
- Diaphragm Material: Fluoroelastomer
- Fluid Inlet Size (cm): 1.905
- Fluid Inlet Size (in): 3/4
- Fluid Inlet Size (mm): 19.05
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Aluminum
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Aluminum
- Maximum Air Consumption (SCFM): 28
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 400
- Maximum Flow Rate (GPM): 16
- Maximum Flow Rate (L/min): 60.6
- Maximum Fluid Pressure (bar): 6.9
- Maximum Fluid Pressure (kPa): 690
- Maximum Fluid Pressure (MPa): 0.69
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 6.9
- Maximum Fluid Pressure (kPa): 690
- Maximum Fluid Pressure (MPa): 0.69
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 107
- Maximum Operating Temperature (°F): 225
- Maximum Solid Size (cm): 0.2383
- Maximum Solid Size (in): 0.09375
- Maximum Solid Size (mm): 2.4
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
- Overall Height (in): 10.43
- Power Source: Air
$1,415.00
HUSKY PUMP, 716A-PP01AA1ACBNBNPT0
GG D53277
GG D53277
HUSKY PUMP, 716A-PP01AA1ACBNBNPT0
Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, Buna Ball, & Buna DiaphragmThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,095.00
PROMIX 2KE PROPORTIONER, METER, ACID
GG 24Z014
GG 24Z014
PROMIX 2KE PROPORTIONER, METER, ACID
ProMix 2KE Acid Catalyst Meter, 3 color/1 catalyst, IS, intrinsically safe alternator power The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate. Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion. Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1 Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter Off-ratio material will not reach your product – eliminating expensive re-work Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
$33,510.00

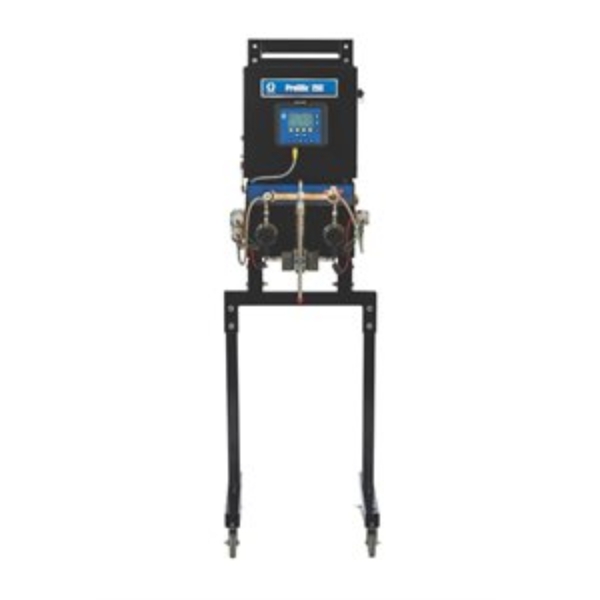

PROMIX 2KE PROPORTIONER, METER, ACID
GG 24Z016
GG 24Z016
PROMIX 2KE PROPORTIONER, METER, ACID
Graco 24Z016 ProMix 2KE Acid Catalyst Meter, 3 color/1 catalyst, non intrinsically safe AC powered
The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate.
- Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion.
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Model: ProMix
- Series: 2KE
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Includes: 2KE Meter-Based Proportioner, G3000 (A), G3000A (B), 3 Color, 1 Catalyst, Non Intrinsically Safe AC Powered
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 206.8
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
- Measuring Type: Meter
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 3
- Number of Resin Colors: 3
- Power Source: Electric
- Proportioning Type: Manual Electronic
- Pump Ratio: Meter only
$32,580.00
CSP VALVE, 16 OUTLET, NPT, IND, PKG
GG 24Z509
GG 24Z509
CSP VALVE, 16 OUTLET, NPT, IND, PKG
CSP Divider Valve, 1/8 inch NPT, 16 Outlets, Indicator IncludedCompact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
1/8 inch NPT inlet Space efficient design with 16 outlets, with indicator Outlets can be combined to meet larger bearing needs Built-in durability with Zinc Iron plating to stand up to harsh environments High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease
$520.00

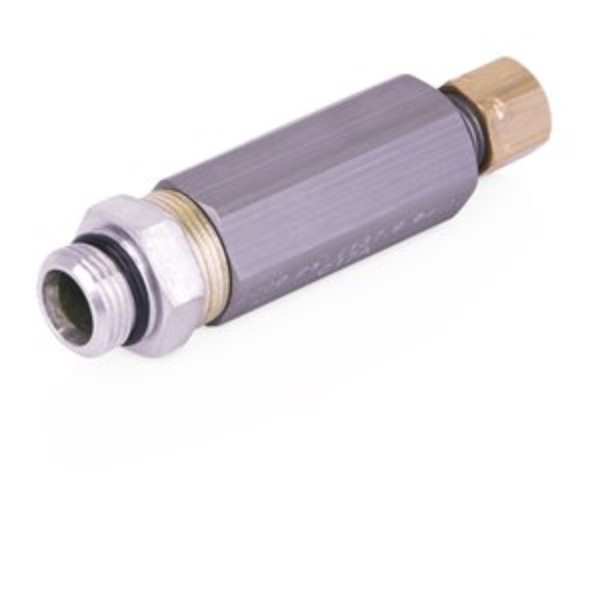

GREASE JOCKEY INJECTOR, MTR, ASSY, #4
GG 24Z686
GG 24Z686
GREASE JOCKEY INJECTOR, MTR, ASSY, #4
Grease Jockey® Injector - #4, 4 Output Spacers, 0.015 cu in (0.25 cc)Designed for frequent, medium-pressure metering and includes system pressure monitoring.
For use with Grease Jockey Lubrication Solutions. Two piece compression fitting included for fast, easy installation. Bundled system tubing available for easy installation. Threaded outlet allows for manifold mounting. Adjustable output volume. Grease Jockey Injector Size #4 4 Output Spacers
$47.10

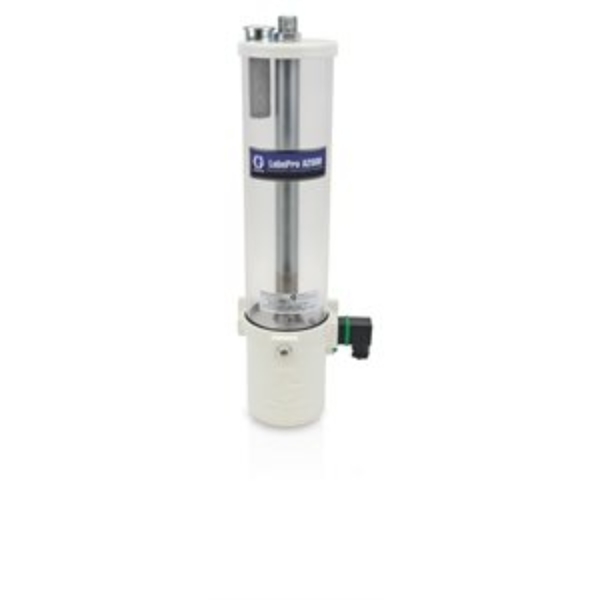

LUBEPRO A2800 PUMP, OIL, 2.0L, N.C, LL
GG 24Z028
GG 24Z028
LUBEPRO A2800 PUMP, OIL, 2.0L, N.C, LL
LubePro™ A2800 Vertical Oil Pumps, 2 liter Reservoir, Normally Closed, Low Level - NPTWithout proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball pump - the leader in durability and quality for over 50 years.
Single Stroke Oil Pump for Automatic Lubrication LubePro A2800 is compatible with GL-1, GL-32 and GL-33 injectors Pressure Ratio of 28:1 A2800 delivers a greater output than competitive models at 0.56 in³ (9.18 cm³) per stroke Pneumatic power makes it easy to install into existing air line Factory installed Low Level Detection available Integrated vent automatically and reliably relieves pressure on return stroke, no pressure switch or wiring required Built with high-quality seals tested to outperform the competition High-strength, shatter resistant, 2 liter reservoir Optimally lubricates while your machines are running Provides accurate, reliable lubrication for every lube point Provides higher lube output and faster lubrication cycle
$1,320.00

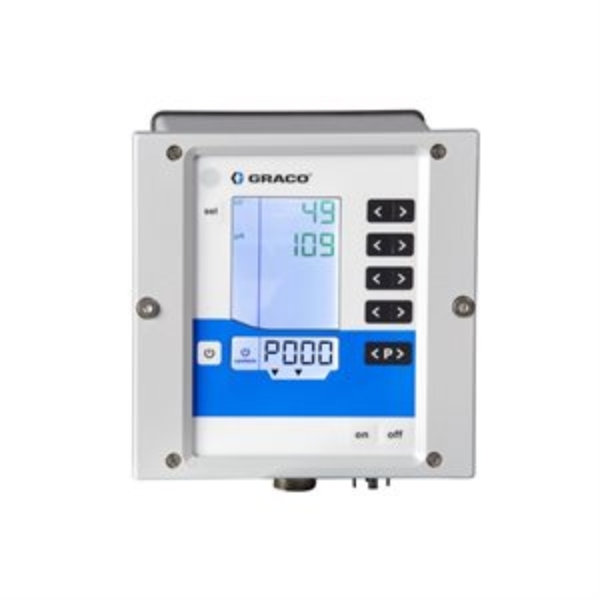

KIT, CONTROLLER-VOLT, BELL-SB
GG 24Z098
GG 24Z098
KIT, CONTROLLER-VOLT, BELL-SB
Graco 24Z098 ProBell Electrostatic Controller for Solvent borne. Maximum voltage output at applicator is 100 kV.
Electrostatic Controller, for waterborne applications, includes power supply cord and I/O cable
- Voltage and current can be independently adjusted to meet specific manufacturing requirements
- Full system integration with PLC or switch box control
- Improves safety by automatically shutting off electrostatics when the part is too close to the gun
- Model: ProBell
$8,720.00
PROMIX 2KE PROPORTIONER, METER, ACID
GG 24Z013
GG 24Z013
PROMIX 2KE PROPORTIONER, METER, ACID
Graco 24Z013 ProMix 2KE Acid Catalyst Meter, 1 color/1 catalyst, IS, intrinsically safe alternator power
The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate.
- Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion.
- Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1
- Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter
- Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
- Model: ProMix
- Series: 2KE
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Activation: Manual
- Includes: 2KE Meter-Based Proportioner, G3000 (A), G3000A (B), 1 Color, 1 Catalyst, Intrinsically Safe Alternator Power
- Material Type: Two Component
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Fluid Viscosity (cP): 5000
- Maximum Fluid Viscosity (cP): 5000
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 206.8
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
- Measuring Type: Meter
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: N/A
- Number of Colors: 1
- Number of Resin Colors: 1
- Power Source: Electric
- Proportioning Type: Manual Electronic
- Pump Ratio: Meter only
$30,080.00
Kit, Repair, Tof 200 Platen Rtd
GG 24Z095
GG 24Z095
KIT,REPAIR,TOF 200 PLATEN RTD
KIT INCLUDES: HARNESS, INPUT, MZLP1, RTD, OT, TOF [QTY. 1], CONNECTOR, 3 CONDUCTOR, LEVERLOCK [QTY. 1], CONNECTOR, 2 CONDUCTOR, LEVERLOCK [QTY. 2], SENSOR, RTD, W/600V HEATSHRINK [QTY. 1], FERRULE, LT BLUE, 24AWG [QTY. 2]
$1,360.00
PROMIX 2KE PROPORTIONER, METER, ACID
GG 24Z015
GG 24Z015
PROMIX 2KE PROPORTIONER, METER, ACID
ProMix 2KE Acid Catalyst Meter, 1 color/1 catalyst, non intrinsically safe alternator power The ProMix 2KE meter-based system manages tough acid catalyst materials, such as conversion varnish for cabinetry and bar counter tops. The compact, entry-level proportioner easily handles strong acid catalysts with its corrosion resistant fluid section and smart fluid plate. Made with durable, high grade, stainless steel components like gears with ceramic bearings, the G3000A meter gauges the exact mix ratio while withstanding corrosion. Choose between pump-based or meter-based plural component systems with mix ratios up to 30:1 Stay on ratio within predefined tolerance limits, down to ±2% with the pump version, ±1% with meter Off-ratio material will not reach your product – eliminating expensive re-work Easy-to-use LCD display allows you to track material usage, display mix ratio, program maintenance reminders operate, control operation functions and more
$28,740.00

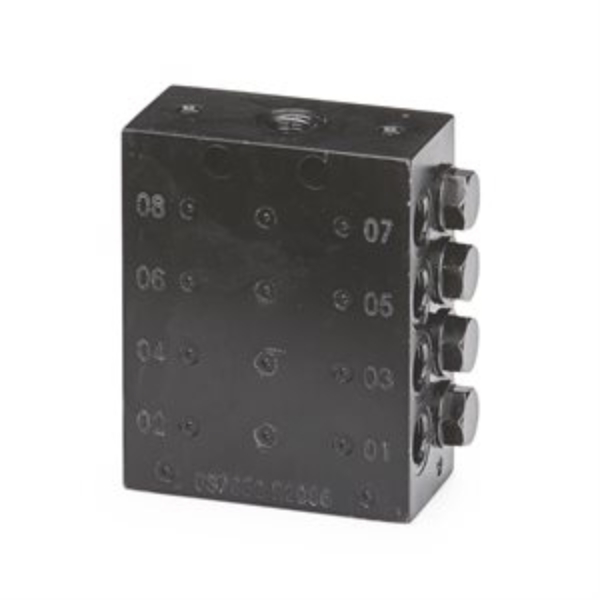

CSP VALVE, 8 OUTLET, NPT, PKG
GG 24Z487
GG 24Z487
CSP VALVE, 8 OUTLET, NPT, PKG
Graco 24Z487 CSP Divider Valve, 1/8 inch NPT, 8 Outlets
Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
- 1/8 inch NPT inlet
- Space efficient design with 8 outlets, without indicator
- Outlets can be combined to meet larger bearing needs
- High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease
- Model: Trabon
- Series: CSP
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: CSP
- Inlet Size (cm): 0.3175
- Inlet Size (in): 1/8
- Inlet Size (mm): 3.175
- Inlet Thread Type: NPT
- Material: Carbon Steel
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 100
- Maximum Operating Temperature (°F): 212
- Maximum Working Pressure (bar): 350
- Maximum Working Pressure (kPa): 35000
- Maximum Working Pressure (psi): 5076
- Minimum Output Volume (cm³): 0.2
- Minimum Working Pressure (bar): 15
- Minimum Working Pressure (kPa): 1500
- Minimum Working Pressure (psi): 217.5
- Number of Outlets: 8
- Outlet Thread Gender: Female
- Outlet Thread Type: NPT
$202.50
Lsr Valve, 2-Way, Pneu, Sst, 3K Max
GG 24Z119
GG 24Z119
Lsr Valve, 2-Way, Pneu, Sst, 3K Max
$1,380.00

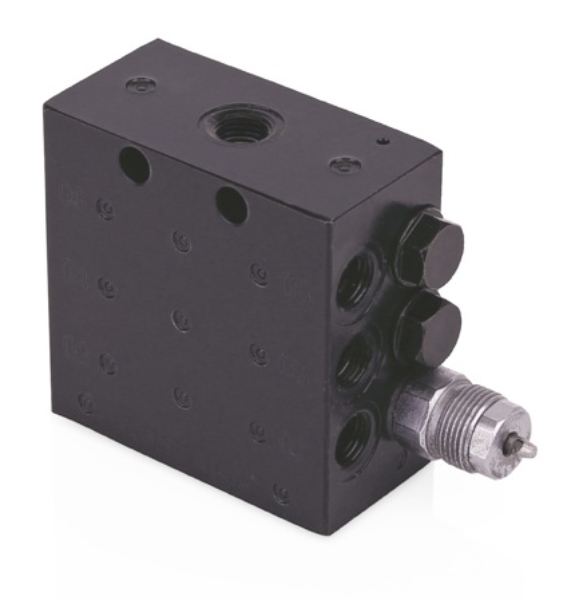

CSP VALVE, 6 OUTLET, NPT, IND, PKG
GG 24Z504
GG 24Z504
CSP VALVE, 6 OUTLET, NPT, IND, PKG
CSP Divider Valve, 1/8 inch NPT, 6 Outlets, Indicator IncludedCompact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
1/8 inch NPT inlet Space efficient design with 6 outlets, with indicator Outlets can be combined to meet larger bearing needs Built-in durability with Zinc Iron plating to stand up to harsh environments High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease
$198.00

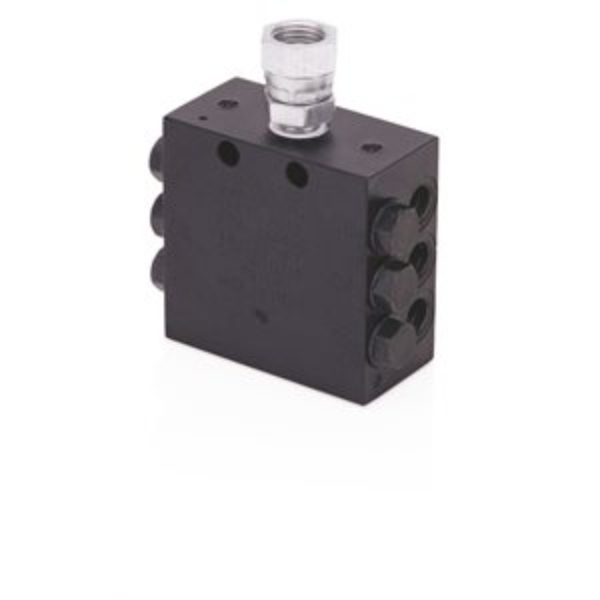

CSP VALVE, 6 OUTLET, NPT, PKG
GG 24Z486
GG 24Z486
CSP VALVE, 6 OUTLET, NPT, PKG
Graco 24Z486 CSP Divider Valve, 1/8 inch NPT, 6 Outlets
Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
- 1/8 inch NPT inlet
- Space efficient design with 6 outlets, without indicator
- Outlets can be combined to meet larger bearing needs
- High output pressure - maximum working pressure of 5,076 psi (350 bar) for both oil and grease
- Model: Trabon
- Series: CSP
- Application: On-Road Vehicles, Off-Road Equipment
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: CSP
- Inlet Size (cm): 0.3175
- Inlet Size (in): 1/8
- Inlet Size (mm): 3.175
- Inlet Thread Type: NPT
- Material: Carbon Steel
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 100
- Maximum Operating Temperature (°F): 212
- Maximum Working Pressure (bar): 350
- Maximum Working Pressure (kPa): 35000
- Maximum Working Pressure (psi): 5076
- Minimum Output Volume (cm³): 0.2
- Minimum Working Pressure (bar): 15
- Minimum Working Pressure (kPa): 1500
- Minimum Working Pressure (psi): 217.5
- Number of Outlets: 6
- Outlet Thread Gender: Female
- Outlet Thread Type: NPT
$160.50

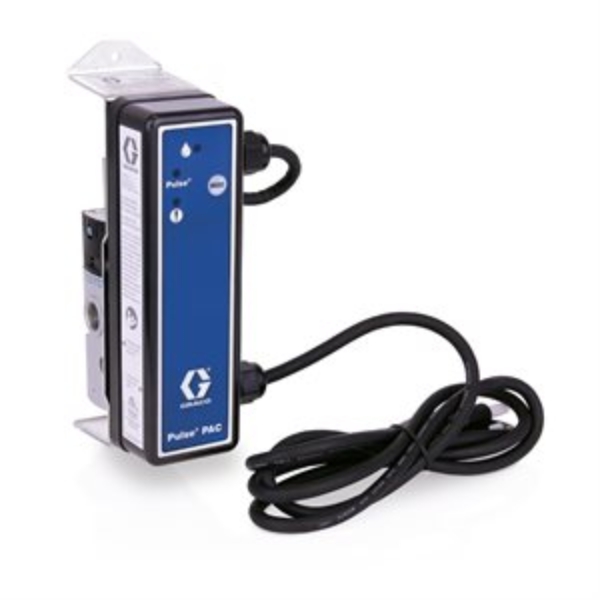

PULSE PRO PUMP AIR CONTROL VALVE, NPT
GG 24Z728
GG 24Z728
PULSE PRO PUMP AIR CONTROL VALVE, NPT
Pulse® Pump Air Control - NPT with NEMA 5-15 PlugGraco’s Pulse® Pump Air Control (PAC) is integral to the Pulse fluid management system. These reliable devices prevent unauthorized access to fluid inventory.
Ensure better inventory control Built with Graco quality for a long life When combined with other components of the Pulse fluid management system you’ll improve shop efficiency Flexible—the PAC supports a variety pneumatic of pumps Installs easily—built-in mounting bracket Simple wireless setup—automatically identifies networks High-volume air valve supports a variety of pump
$1,485.00

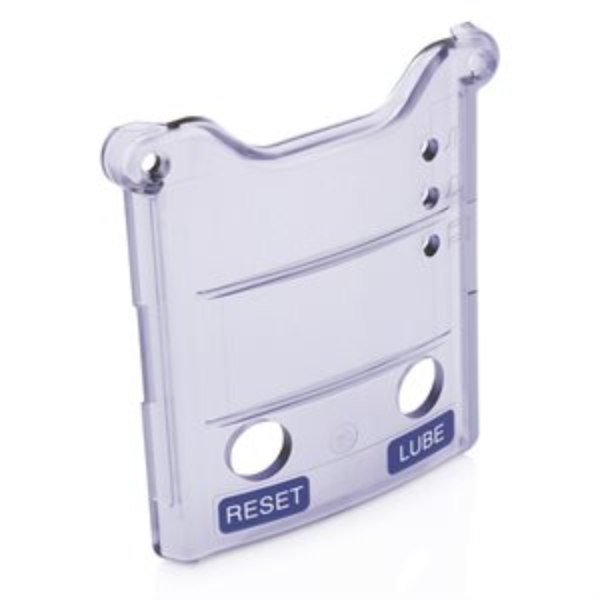

KIT, COVER, FRONT, NO LOGO, CLEAR
GG 24Z962
GG 24Z962
KIT, COVER, FRONT, NO LOGO, CLEAR
Graco 24Z962 Electric Grease Jockey® Pump Protective Pump Cover
Application: For increased control panel impact protection on Electric Grease Jockey, G3, and G1 Automatic Lubrication Pumps
- Protective pump cover
- Model: Grease Jockey
- For Use With: Grease Jockey Pumps
- Number of Pieces: 3
$65.00

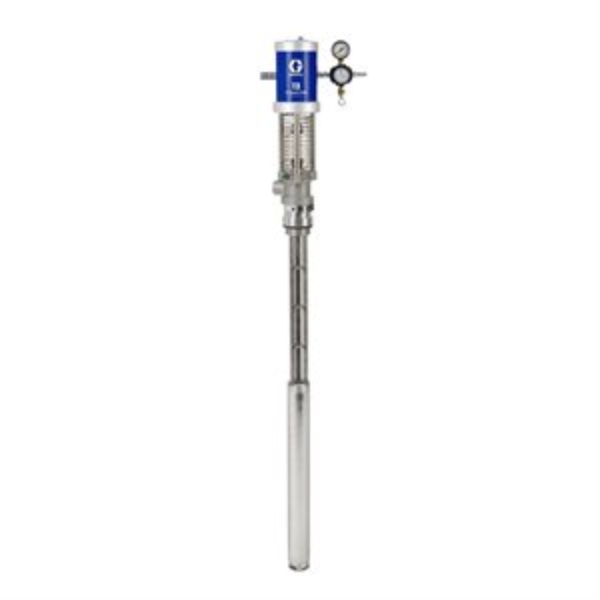

T3 PUMP, CS
GG 24Z834
GG 24Z834
T3 PUMP, CS
T3 Supply Pump (Carbon Steel): 3:1 Fluid to Air Ratio Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required. Easier to maneuver - The overall height of the T3 is 3.7 inches (9.4 cm) shorter above the drum than the T2, making it easier to remove from the drum inside of a spray rig. More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump. Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switchingis purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanicalreversing mechanism in the air-motor
$1,695.00

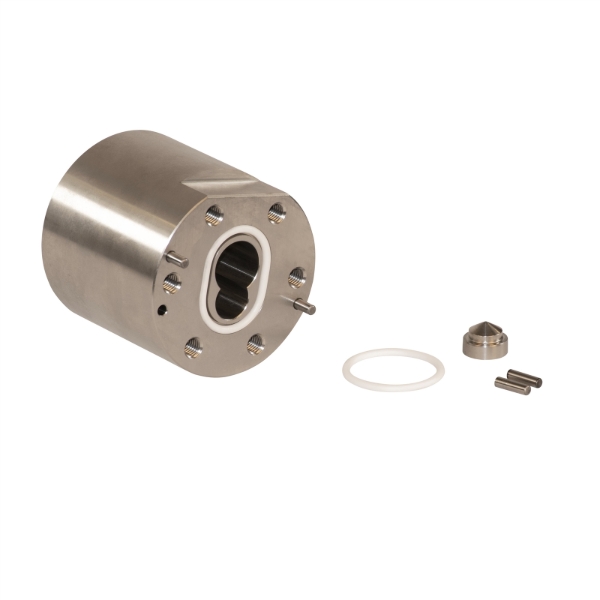

Kit, Repair, Brg, Helical Flwmtr
GG 253215
GG 253215
KIT, REPAIR, BRG, HELICAL FLWMTR
KIT INCLUDES: HOUSING, MIDDLE, HELICAL GEAR MTR [QTY. 1], INSERT, BEARING, HELICAL GEAR MTR [QTY. 2], INSERT, BEARING, HELICAL GEAR MTR [QTY. 1], BEARING, GEAR [QTY. 3], BALL, BEARING [QTY. 3], O-RING, SEAL, HELICAL GEAR METER [QTY. 2], LUBRICANT, GREASE [QTY. 1], PIN, DOWEL, .550 in. [QTY. 2], PIN, DOWEL, .750 in. [QTY. 2]
$2,290.00
Kit, Repair, Hose/Spring Tof55
GG 253289
GG 253289
KIT,REPAIR,HOSE/SPRING TOF55
KIT INCLUDES: HOSE, FOLLOWER, 1 in. [QTY. 2], CLAMP, TIRE [QTY. 1]
$1,695.00
Kit, Repair, Throat Seal, Hotmlt
GG 253545
GG 253545
KIT,REPAIR,THROAT SEAL,HOTMLT
KIT INCLUDES: NUT, PACKING [QTY. 1], PACKING, U-CUP [QTY. 2], WASHER, SEAL, BACK-UP [QTY. 1], PACKING, O-RING [QTY. 1], LUBRICANT, TUBE, 1 OZ [QTY. 1], WASHER, ROD, SCRAPER [QTY. 1], WASHER, SCRAPER, GREASE ZONE [QTY. 1], LUBRICANT, SYNTHETIC, GREASE, 3 OZ [QTY. 1]
$986.00
Seat, Valve
GG 253483
GG 253483
SEAT, VALVE
Graco 253483 Intake Valve Seat with Pressure Relief Valve, Carbide Seat
$646.00
Pump, Disp, Recip, Max WPR 1000PS
GG 253597
GG 253597
PUMP, DISP, RECIP MAX WPR 1000PS
Graco 253597 Dura-Flo 1000 cc Lower, Carbon Steel, UHMWPE/Leather Packings
$10,280.00
KIT, DIAPHRAGM, PTFE-EPDM, 1040
GG 253626
GG 253626
KIT, DIAPHRAGM, PTFE-EPDM, 1040
PTFE/EPDM Overmold Diaphragm Kit for 1-inch Pump
$1,045.00
Frame, Accy, Stand, Pump
GG 253692
GG 253692
FRAME, ACCY, STAND, PUMP
Graco 253692 Floor Stand for NXT, E-Flo DC and Viscount Motors (750-2000 cc)
$1,405.00
Kit, Repair, Packing
GG 253744
GG 253744
KIT, REPAIR, PACKING
Graco 253744 UHMWPE and Leather Packings Repair Kit, for Dura-Flo 1800 (standard for 249992, L430SM, L430CM)
KIT INCLUDES: GLAND, PACKING, MALE [QTY. 1], GLAND, PACKING, FEMALE [QTY. 1], PACKING, VEE [QTY. 3], GLAND, PACKING, FEMALE [QTY. 1], PACKING, VEE [QTY. 3], PACKING, VEE, UHMWPE, SUBMICRON [QTY. 2], GLAND, PACKING, MALE [QTY. 1], PACKING, VEE, LEATHER [QTY. 4 ], PACKING, O-RING [QTY. 1], SEAL, ACETAL [QTY. 2], PACKING, O-RING [QTY. 1]
$1,230.00
Kit, Repair, Packings
GG 253745
GG 253745
KIT, REPAIR, PACKINGS
Graco 253745 UHMWPE and Leather Packings Repair Kit, for Dura-Flo 2400 (standard for 249991, L580SM)
KIT INCLUDES: PACKING, VEE [QTY. 3], GLAND, PACKING, MALE [QTY. 1], GLAND, PACKING, FEMALE [QTY. 1], PACKING, VEE [QTY. 3], GLAND, PACKING, MALE [QTY. 1], GLAND, PACKING, FEMALE [QTY. 1], PACKING, VEE, UHMWPE, [QTY. 2], PACKING, VEE, LEATHER [QTY. 4 ], PACKING, O-RING [QTY. 1], SEAL, ACETAL [QTY. 2], PACKING, O-RING [QTY. 1]
$652.00
KIT, DIAPHRAGM-F2 PT
GG 255060
GG 255060
KIT, DIAPHRAGM-F2 PT
PTFE Diaphragm Kit for 1.5-inch Pump
$994.00
KIT, REPAIR, AIR VALVE, SST
GG 255061
GG 255061
KIT, REPAIR, AIR VALVE, SST
Air Valve Repair Kit
$125.00
Kit, Bracket, Mounting
GG 255143
GG 255143
KIT, BRACKET, MOUNTING
Graco 255143 NXT Wall Mounting Kit
$740.00
Kit, Repair, Seat/Needle
GG 255160
GG 255160
KIT, REPAIR,SEAT/NEEDLE
Graco 255160 Needle/ Seat Repair Kit for G40 Air Assisted Spray Gun
$315.00
MD2 VALVE, DISPENSE, 1:1, SOFT SEATS
GG 255179
GG 255179
MD2 VALVE, DISPENSE, 1:1, SOFT SEATS
MD2 Valve, 1:1 Ratio, Soft Seat, Adjustable Snuff-back Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. 1:1 ratio nose handles a wide range of material. Soft seats with ultra-high molecular weight polyethylene (UHMWPE) seals are good for precise snuff-back control. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Adjustable snuff-back control finetunes shut-off performance for a clean bead dispense. Maximum flow rate is 25 cc/s, depending on material viscosity. Independent air cylinder improves mean time to repair (MTTR). No unique tools are required for maintenance or repair.
$5,230.00
MD2 VALVE, DISPENSE, 1:1 HARD SEATS
GG 255180
GG 255180
MD2 VALVE, DISPENSE, 1:1 HARD SEATS
MD2 Valve, 1:1 Ratio, Hard Seat, Non-adjustable Snuff-back Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. 1:1 ratio nose handles a wide range of material. Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity. No unique tools are required for maintenance or repair. Grease isolation chamber protects moisture sensitive materials and has accessible grease fittings for easy maintenance
$5,230.00
MD2 VALVE, DISPENSE, 10:1, SOFT SEATS
GG 255181
GG 255181
MD2 VALVE, DISPENSE, 10:1, SOFT SEATS
MD2 Valve, 10:1 Ratio, Soft Seat, Adjustable Snuff-back Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. 10:1 ratio nose handles a wide range of material. Soft seats with ultra-high molecular weight polyethylene (UHMWPE) seals are good for precise snuff-back control. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Adjustable snuff-back control finetunes shut-off performance for a clean bead dispense. Maximum flow rate is 25 cc/s, depending on material viscosity. Independent air cylinder improves mean time to repair (MTTR). No unique tools are required for maintenance or repair.
$6,040.00

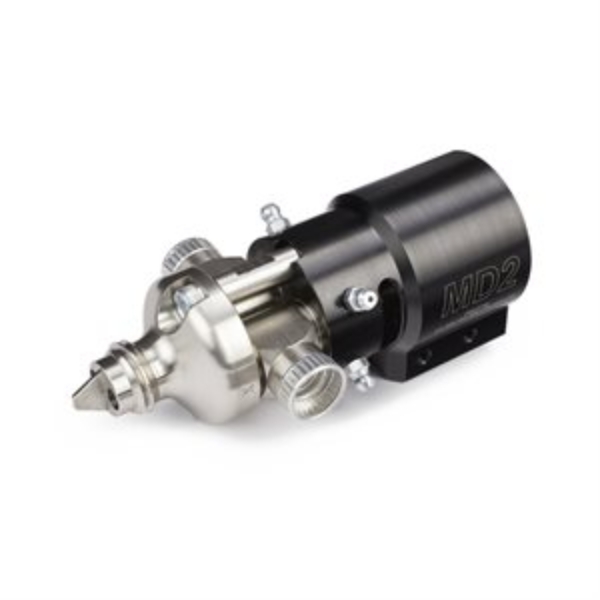

MD2 VALVE, DISPENSE, 10:1 HARD SEATS
GG 255182
GG 255182
MD2 VALVE, DISPENSE, 10:1 HARD SEATS
MD2 Valve, 10:1 Ratio, Hard Seat, Non-adjustable Snuff-back Mixing dispense (MD) valve for 2 component materials minimizes maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. 10:1 ratio nose handles a wide range of material. Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity. No unique tools are required for maintenance or repair. Grease isolation chamber protects moisture sensitive materials and has accessible grease fittings for easy maintenance
$6,040.00

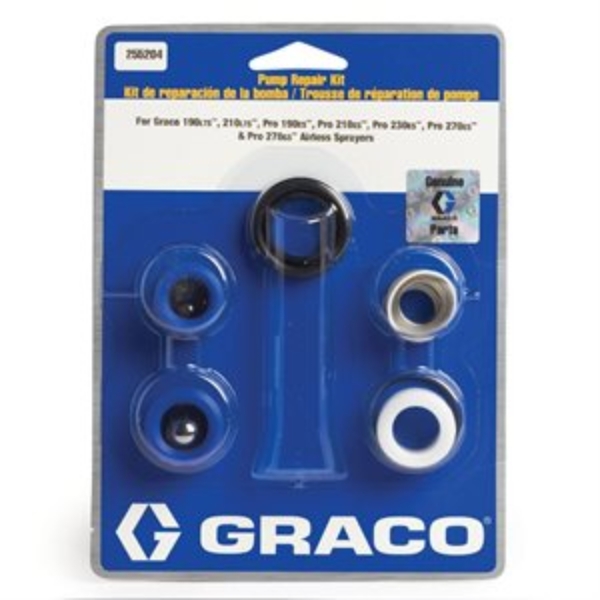

KIT, REPAIR, PUMP
GG 255204
GG 255204
KIT, REPAIR, PUMP
Graco 255204 210ES Pump Repair Kit
All packing&prime, s should be replaced at one time to keep wear even. For use with Graco models 190ES, 210ES or other Graco 200 series sprayers. Kit includes all components to replace the packing set for the pump
Application: The Graco Endurance Pump Repair Kit extends the life of your sprayer. Preventive maintenance lowers ownership costs and reduces downtime. Replace the wear parts in the pump when there is noticeable loss of pressure or if fluid is leaking out of the front of the sprayer.- All packing&prime, s should be replaced at one time to keep wear even
- For use with Graco models 190ES, 210ES or other Graco 200 series sprayers
- Keep a spare kit on hand to minimize sprayer downtime
- For Use With: Pro190ES Cart, Pro190ES Stand, Pro210ES Cart, Pro210ES Stand, Pro230ES Stand, Pro230ES Cart, Pro270ES Stand, Pro270ES Cart, Pro270GS
$96.50
HANDLE, 2K DISP. VALVE, ELEC.
GG 255208
GG 255208
HANDLE, 2K DISP. VALVE, ELEC.
Graco 255208 MD2 Valve Electric Switch Handle
Convert any MD2 valve to a hand held valve with an internal normally open switch
$1,125.00

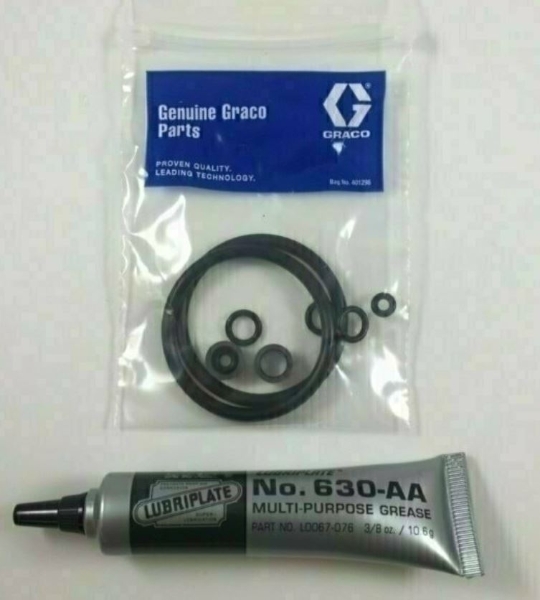

Kit, Seal, Cylinder, Air, Valve
GG 255217
GG 255217
KIT, SEAL,CYLINDER,AIR,VALVE
KIT INCLUDES: PACKING, O-RING [QTY. 3], PACKING, O-RING [QTY. 2], PACKING, O-RING, BUNA-N [QTY. 2], BEARING, SLEEVE 1/4, 3/8, 1/4NYL [QTY. 2], LUBRICANT, GREASE [QTY. 1]
$87.00

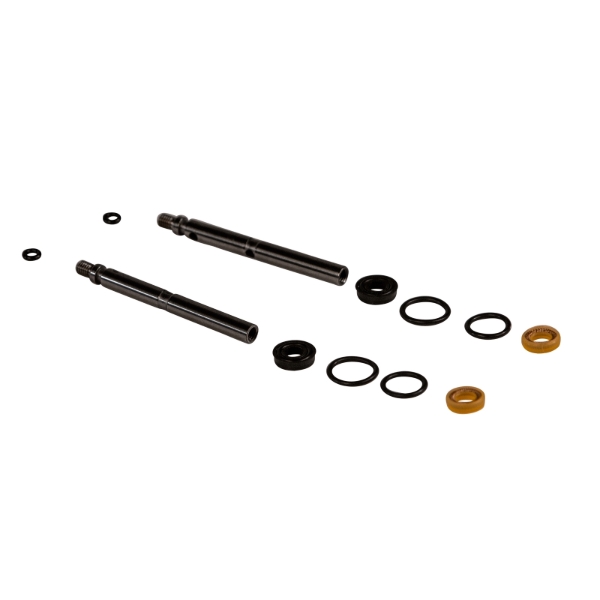

Kit, Seal, Lube, Valve
GG 255218
GG 255218
KIT, SEAL,LUBE,VALVE
KIT INCLUDES: PACKING, O-RING [QTY. 2], O-RING, [QTY. 2], SEAL, POSIPAK [QTY. 2], PACKING, O-RING, BUNA-N [QTY. 2], SHAFT, PRIMARY [QTY. 2], PACKING, U-CUP URT 1/4, 1/2, 1/8 UR [QTY. 2]
$385.00

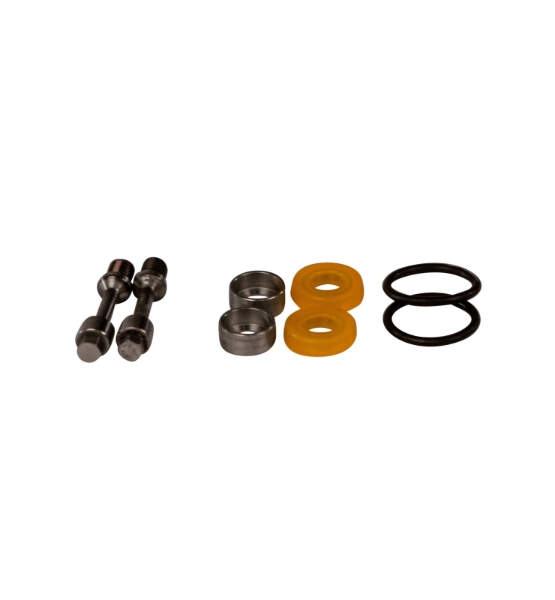

Kit, Seal, Nose, Glc, Valve
GG 255219
GG 255219
KIT, SEAL,NOSE,GLC,VALVE
KIT INCLUDES: O-RING, [QTY. 2], SEAL, POSIPAK [QTY. 2], NEEDLE, SNUFFBACK [QTY. 2], SEAT, NEEDLE [QTY. 2]
$340.00

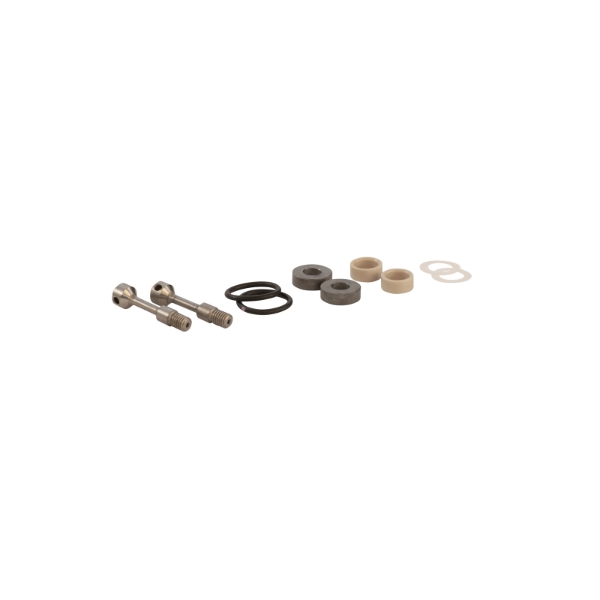

Kit, Seal, Nose, Ul2K
GG 255220
GG 255220
KIT, SEAL,NOSE,UL2K
KIT INCLUDES: O-RING, [QTY. 2], GASKET, SEAT [QTY. 2], SEAT, VALVE [QTY. 2], INSERT, SUFF-BACK, 2K2 [QTY. 2], NEEDLE, 2K2 SST HARDENED [QTY. 2]
$615.00

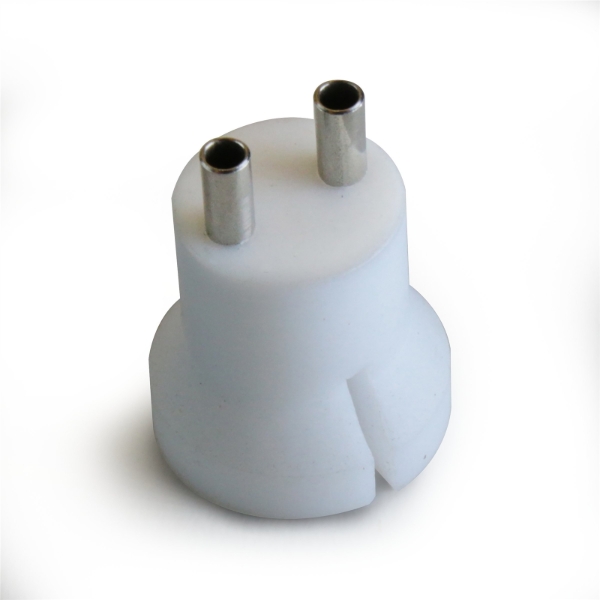

Adapter, 1:1 Ratio Check
GG 255247
GG 255247
ADAPTER,1:1 RATIO CHECK
Graco 255247 1:1 Ratio Check MD2 Adapter
Use this adapter to independently dispense the A and B materials in order to perform a ratio check
- Model: MD2
$159.00
LEVER, 2K DISPENSE VALVE
GG 255249
GG 255249
LEVER, 2K DISPENSE VALVE
Graco 255249 2K Dispense Valve Lever
- Model: PR70
- For Use With: MD2 Valve Handle
- Product Type: Actuated Lever
$1,930.00

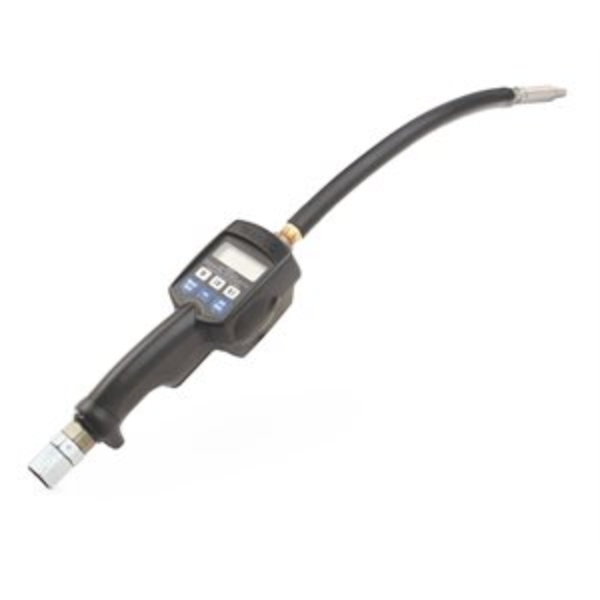

LDP5 VALVE, METERED, FLEX EXT
GG 255277
GG 255277
LDP5 VALVE, METERED, FLEX EXT
LDP5 Electronic Preset Meter - Flexible Extension - 1/2 in. (13 mm) Inlet - Trigger Guard and Swivel Cover Not Included - NPTGraco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.
Easy to read LCD screen keeps dispenses precise. Inlet 1/2 in. NPT with swivel. Rugged meter body is impact resistant for long life. Ergonomically-design, comfortable handle with two-finger trigger. Preset meter automatically shuts-off flow when preset quantity has been dispensed. 5 year warranty. See manufacturers website for details.
$1,125.00
8 L Twin Polyethylene Tanks and Lids with Shut-Off Valves
GG 255281
GG 255281
8 L Twin Polyethylene Tanks and Lids with Shut-Off Valves
$4,330.00
