GRACO INC. S10595
GRACO INC. S10595 branded products

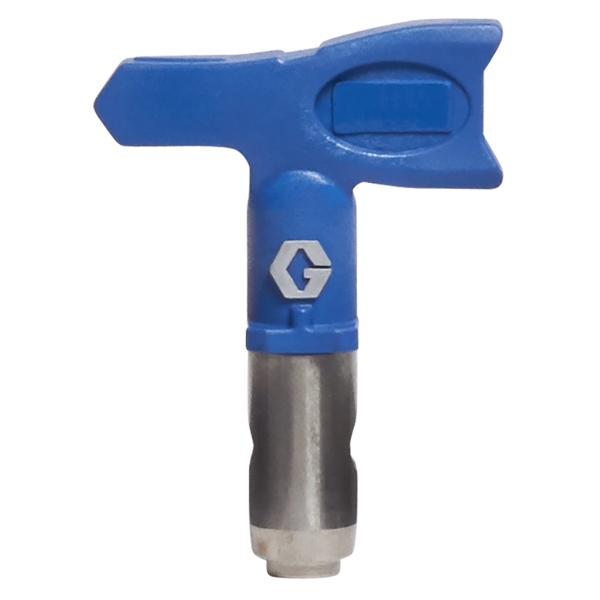

Fine Finish Spray Tip forG40 Guns, 0.023 inch (0.584 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
GG AAM523
GG AAM523
Fine Finish Spray Tip forG40 Guns, 0.023 inch (0.584 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
$165.00
Fusion Cs Gun, Round Spray Pattern, 0.052in (1.3mm) Mix Chamber
GG CS02RD
GG CS02RD
FUSION CS GUN, RD0202
Graco CS02RD Fusion CS Gun, Round Spray Pattern, 0.052 in (1.3 mm) Mix Chamber
ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.
Application: For high output spray polyurethane foam and polyurea applications.- New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
- Removes foam and keeps mix chamber clear
- Saves almost an hour of maintenance time each spray day
- Easy-to-insert cartridge fits into ergonomic handle
- Variable flow - an industry first
- First plural-component gun with variable flow
- Switch from large to small spray patterns in seconds
- Gives you more maneuverability to spray in small, tight areas
- Ten different settings
- Quick-change front - simpler and cleaner
- Swap out fluid heads in seconds
- Non-stick polymer cover keeps gun head cleaner
- " Air knife" reduces material build-up
- Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule
- Model: Fusion CS
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.132
- Fluid Orifice Size (in): 0.052
- Fluid Orifice Size (mm): 1.32
- For Use With: Non-Flammable Foam and Polyurea
- Gun Activation: Manual
- Gun Type: Liquid-Purge
- Gun Weight (g): 1180
- Gun Weight (kg): 1.18
- Gun Weight (lb): 2.6
- Gun Weight (oz): 41.6
- Impingement Port Size (in): 0.052
- Impingement Port Size (mm): 1.30
- Includes: Mix Chamber
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate (kg/min): 11.3
- Maximum Flow Rate (lb/min): 25
- Maximum Flow Rate @ PSI (lb/min): 25
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature ( degree C): 93
- Maximum Fluid Temperature ( degree F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
$4,020.00
Graco E-Flo DC Sealed 4-Ball Electric Circulation Pump, Advanced Controls, 2HP, 480V/3 Ph, 2000cc Lower, 1.5in Tri-Clamp, Stand, and Surge Tank (Color and Solvent)
GG EC4D71
GG EC4D71
Graco E-Flo DC Sealed 4-Ball Electric Circulation Pump, Advanced Controls, 2HP, 480V/3 Ph, 2000cc Lower, 1.5in Tri-Clamp, Stand, and Surge Tank (Color and Solvent)
$39,560.00
Reactor A25 Proportioner Package, 230/400 V
GG ES2572
GG ES2572
Reactor A25 Proportioner Package, 230/400 V
$22,940.00
Merkur Bellows System, Pump, 100, Std, Acid
GG G23B37
GG G23B37
Merkur Bellows System, Pump, 100, Std, Acid
$10,260.00
24:1 Merkur AA Package, 2.4 gpm (9 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter
GG G24C09
GG G24C09
MERKUR SYSTEM PUMP 24:1 150CC CART STD
Graco G24C09 24:1 Merkur AA Package, 2.4 gpm (9 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Model: Merkur
- Convertible: Non-Convertible
- Fluid Inlet Size (cm): 2.54
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 1.905
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Type: NPT
- Gun Included: 1
- Gun Model: PerformAA 50 Air Assist
- Gun Technology: Air-Assisted
- Gun Type: Air-Assisted
- Hose Inlet Diameter (cm): 0.4763
- Hose Inlet Diameter (in): 0.1875
- Hose Inlet Diameter (mm): 5
- Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
- Maximum Flow Rate (GPM): 2.4
- Maximum Hose Length (ft): 25
- Maximum Hose Length (m): 7.6
- Maximum Working Pressure (bar): 165
- Maximum Working Pressure (kPa): 16500
- Maximum Working Pressure (MPa): 16.5
- Maximum Working Pressure (psi): 2400
- Motor Type: Pneumatic
- Mount Type: Cart Mount
- Number of Guns: 1
- Power Source: Air
- Pressure Type: High Pressure
- Product Type: Spray Package
- Pump Ratio: 24:1
- Pump Type: Pneumatic Piston Pump
$10,890.00
