GRACO INC. S10595

GG CS02F2

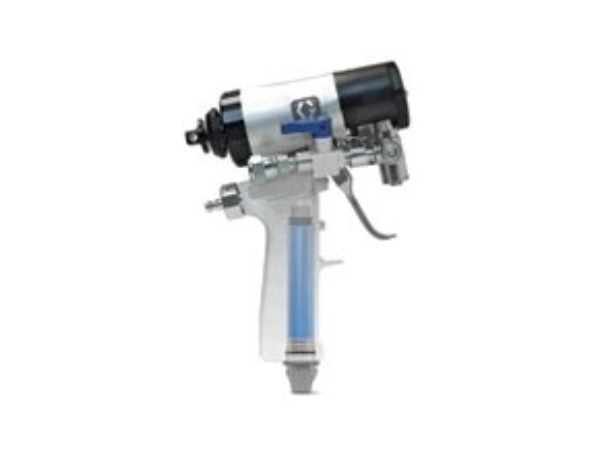

FUSION CS GUN, FL0202, FT0438

Graco CS02F2 Fusion CS Gun, 8-10 in (203-254 mm) Flat Spray Pattern, 0.038 in (0.96 mm) Spray Tip, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum

GG CS02F3

FUSION CS GUN, FL0202, FT0624

Graco CS02F3 Fusion CS Gun, 12-14 in (305-356 mm) Flat Spray Pattern, 0.024 in (0.61 mm) Spray Tip, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximu

GG CS02F4

FUSION CS GUN, FL0202, FT0638

Graco CS02F4 Fusion CS Gun, 12-14 in (305-356 mm) Flat Spray Pattern, 0.038 in (0.96 mm) Spray Tip, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximu

GG CS02F5

FUSION CS GUN, FL0202, FT0838

Graco CS02F5 Fusion CS Gun, 16-18 in (406-457 mm) Flat Spray Pattern, 0.038 in (0.96 mm) Spray Tip, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Foam, Polyurea
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Max

GG CS02F6

FUSION CS GUN, FL0202, FT0848

Graco CS02F6 Fusion CS Gun, 16-18 in (406-457 mm) Flat Spray Pattern, 0.048 in (1.2 mm) Spray Tip, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.132
• Fluid Orifice Size (in): 0.052
• Fluid Orifice Size (mm): 1.32

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum

GG CS02WD

FUSION CS GUN, WD0202

Graco CS02WD Fusion CS Gun, 18 in (457 mm) Wide Round Spray Pattern, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.117
• Fluid Orifice Size (in): 0.046
• Fluid Orifice Size (mm): 1.17

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.052
• Impingement Port Size (mm): 1.30
• Includes: Mix Chamber

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa):

GG CS03RD

FUSION CS GUN, RD0303

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

Variable flow - an industry first

• First plural-component gun with variable flow
• Switch from large to small spray patterns in seconds
• Gives you more maneuverability to spray in small, tight areas
• Ten different settings

Quick-change front - simpler and cleaner

• Swap out fluid heads in seconds
• Non-stick polymer cover keeps gun head cleaner
• "Air knife" reduces material build-up
• Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

GG CS2010

GG CS2011

GG CS20F1

FUSION CS GUN, FL2020, FT0424

Graco CS20F1 Fusion CS Gun, 8-10 in (203-254 mm) Flat Spray Pattern, 0.024 in (0.61 mm) Spray Tip, 0.020 in (0.51 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.061
• Fluid Orifice Size (in): 0.024
• Fluid Orifice Size (mm): 0.61

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 241

GG CS20F2

FUSION CS GUN, FL2020, FT0438

Graco CS20F2 Fusion CS Gun, 8-10 in (203-254 mm) Flat Spray Pattern, 0.038 in (0.96 mm) Spray Tip, 0.020 in (0.51 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Flat

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.051
• Fluid Orifice Size (in): 0.020
• Fluid Orifice Size (mm): 0.51

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50
• Includes: Mix Chamber, Flat Tip

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximu

GG CS20RD

FUSION CS GUN, RD2020

Graco CS20RD Fusion CS Gun, Round Spray Pattern, 0.020 in (0.51 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

• New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
• Removes foam and keeps mix chamber clear
• Saves almost an hour of maintenance time each spray day
• Easy-to-insert cartridge fits into ergonomic handle
• Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
• Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

• Model: Fusion CS
• Series: Round

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPT

• Compatible Material: Polyurethane, Polyurea, Spray Polyurethane Foam, No-Heat Foam
• Component A Inlet Size (cm): 1.27

• Component A Inlet Size (in): 1/2-20
• Component A Inlet Size (mm): 12.7
• Component A Inlet Thread Type: UNF
• Component B Inlet Size (cm): 1.42875
• Component B Inlet Size (in): 9/16-18
• Component B Inlet Size (mm): 14.2875
• Component B Inlet Thread Type: UNF
• Component Type: Plural-Component

• Fluid Orifice Size (cm): 0.051
• Fluid Orifice Size (in): 0.020
• Fluid Orifice Size (mm): 0.51

• For Use With: Non-Flammable Foam and Polyurea

• Gun Activation: Manual
• Gun Type: Liquid-Purge
• Gun Weight (g): 1180
• Gun Weight (kg): 1.18
• Gun Weight (lb): 2.6
• Gun Weight (oz): 41.6

• Impingement Port Size (in): 0.020
• Impingement Port Size (mm): 0.50
• Includes: Mix Chamber

• Maximum Air Inlet Pressure (bar): 9
• Maximum Air Inlet Pressure (kPa): 900
• Maximum Air Inlet Pressure (MPa): 0.9
• Maximum Air Inlet Pressure (psi): 130
• Maximum Air Pressure (bar): 9

• Maximum Air Pressure (kPa): 900
• Maximum Air Pressure (MPa): 0.9
• Maximum Air Pressure (psi): 130

• Maximum Flow Rate (kg/min): 11.3
• Maximum Flow Rate (lb/min): 25
• Maximum Flow Rate @ PSI (lb/min): 25

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Maximum Fluid Pressure (psi): 3500
• Maximum Fluid Temperature (°C): 93
• Maximum Fluid Temperature (°F): 200

• Maximum Fluid Pressure (bar): 241
• Maximum Fluid Pressure (kPa): 24100
• Maximum Fluid Pressure (MPa): 24.1
• Max

GG CS2110

GG CS2111

GG CS2572

GG CS2614

GG CS9082

REACTOR E-8P SYSTEM, FUSION CS

Graco CS9082 Reactor E-8P Proportioner Package, Fusion CS Gun, 120 V

Designed specifically for new no-heat foam insulation formulations, the Reactor E-8p produces an air-seal solution that's in demand by homeowners who want to make their homes more energy-efficient. Whether you're expanding your existing insulation application opportunities or just starting your business, the Reactor E-8p provides a quick return on investment. As a touch-up system, the Reactor E-8p frees up larger rigs for medium and large jobs, while enabling you to finish the job affordably.

• Best choice for portability and high-quality foam
  • Haul it in your van or pickup truck
  • Easy to move up and down stairs
  • Telescoping handle and wheels makes it easy to maneuver at the job site
  • Plugs into a standard residential outlet (120 VAC, 15 amp)
  • Weighs just 96 pounds (44 kg)
  • Easy to read pressure gauges ensure you're spraying on-ratio and delivering high-quality foam
  • An economical alternative to froth kits
• Electric Motor
  • Proven motor performance, uses standard residential outlet
• Telescoping Handle
  • Easy handling from your vehicle to the home
• Lightweight
  • Easy to maneuver up and down stairs – only 95 lb (43 kg)
• Threaded Bucket Spout Connection
  • Keeps your connection secure and prevents spills
• Pressure Balance Valves
  • Quick and easy balancing of system pressures enables correct start-up
• Simple User Controls
  • Intuitive start/stop with single control knob

• Model: Reactor
• Series: E-8P

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: Quick-Disconnect Pin

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Thread Type: NPSM

• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion CS

• Hose Length (ft): 50
• Hose Length (m): 15.2

• Includes: Proportioner, Fusion CS Gun, Insulated Hose Bundle

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 5.44
• Maximum Flow Rate (lb/min): 12

• Maximum Mix Ratio: 1:1

• Overall Depth (cm): 38.3
• Overall Depth (in): 15.06
• Overall Depth (mm): 383

• Overall Height (cm): 61.3
• Overall Height (in): 24.12
• Overall Height (mm): 613
• Overall Width (cm): 87.8
• Overall Width (in): 34.58
• Overall Width (mm): 878

• Power Source: Electric

• Pressure Type: Low Pressure
• Product Type: Plural Component

GG CS9083

REACTOR E-8P SYSTEM, 240V, FUSION CS

Graco CS9083 Reactor E-8P Proportioner Package, Fusion CS Gun, 240 V

The Reactor E-8p Portable Plural-Component Sprayer offers the mobility and efficiency you need to complete small to medium sized joint filling jobs with ease. With easy control and the ability to pump directly from five-gallon material pails, the Reactor E-8p can help you reduce work time and labor costs.

• Lightweight and Portable
  • Built in handles for easy carrying
  • Weighs just 95 pounds (43 kg)
  • Easy to maneuver
  • Simple siphon feeding from 5 gal (19 L) buckets
• Efficient and Fast
  • Simple user controls
  • Electric motor offers high performance while reducing operating costs
  • Recommended maximum output of 0.25 gpm (.95 lpm)
• Built for Maximum Usability
  • Simple, single control knob operation
  • Onboard hose wrap makes storing equipment simple and fast
  • Plugs into standard electrical wall outlet
  • Built-in suction lines allow for use with 5-gal (19 L) pails
• Lightweight and Portable
  • Easy to maneuver up and down stairs, wherever the job goes – only 95 lb (43 kg)
• Alarm / Status Indicator
  • Shuts down unit if off-ratio conditions exist – assures good quality foam at the job site
• Desiccant Air Dryer
  • Allows air to be drawn into pail, protects material from contamination.
• Pressure Balance Valves
  • Quick and easy balancing of system pressures enables correct start-up
• Threaded Bucket Spout Connection
  • Keeps your connection secure and prevents spills
• Electric Motor
  • Proven motor performance and reduced operating costs, plugs into a standard residential outlet
• Easy Controls
  • Intuitive start/stop with single knob operation
• Spray Guns
  • Uses standard Graco Fusion or P2 Guns, provides consistent spray patterns
• Non-heated Hose
  • Easy to maneuver – 70% lighter than standard Reactor heated hose
• Carrying Handle/Hose Wrap
  • Easy to transport, convenient hose storage

• Model: Reactor
• Series: E-8P

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: Quick-Disconnect Pin

• Air Outlet Size (cm): 0.635
• Air Outlet Size (in): 1/4
• Air Outlet Thread Type: NPSM

• Application: Spray Foam
• Applicator Type: Manual

• Compatible Material: Plural Components

• Component Type: Two Component

• Flush Type: Solvent

• Frequency (Hz): 50/60

• Gun Type: Fusion CS

• Hose Length (ft): 50
• Hose Length (m): 15.2

• Includes: Proportioner, Fusion CS Gun, Insulated Hose Bundle

• Material Application: Polyurethane Foam

• Maximum Flow Rate (kg/min): 5.44
• Maximum Flow Rate (lb/min): 12

• Maximum Mix Ratio: 1:1

• Overall Depth (cm): 38.3
• Overall Depth (i

GG CS9570

GG CS9571

GG CS9572

GG CSC200

GG CSC201

GG CSC202

GG CSH031

GG CSH032

GG CSH131

GG CSH132

GG CSR312

PACKAGE, E20, R3, ELITE, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CSR322

PACKAGE, EXP1, R3, ELITE, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CSR332

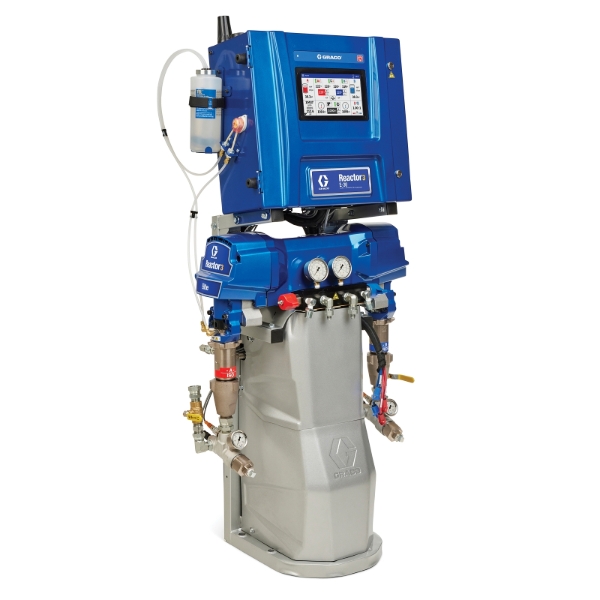

PACKAGE, E30, R3, ELITE, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CSR357

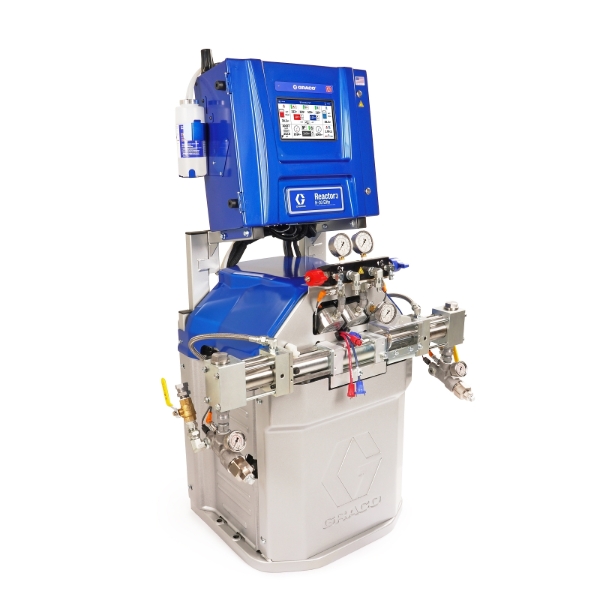

PACKAGE, H30, R3, 60HZ, ELITE, IS, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CSR342

PACKAGE, EXP2, R3, ELITE, IH, E1

• Katalyst full system communication and control that improves performance, ratio and yield. * Requires Core E1 pumps

• Automatically shuts down when you run out of material.
• Prevents air from entering the system that can cause off-ratio issues. * Requires Core E1 pumps

• Automatically monitors and adjusts fluid inlet pressures to compensate for high viscosity materials

• Automatically adjusts temperatures to optimize fluid pressures and maximize yield

• Select desired heater wattage for reduced power consumption

• Automatically stay up to date with the latest Reactor software

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen

• Control A and B materials to different temperatures for improved pressure balancing
• Optimizes yield

• Brushless motor for improved pressure/flow performance
• New temperature control boards for independent hose heat
• Voltage jumpers for easy changing between voltages
• Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly

• Reduced footprint provides additional room in your rig
• Compact design protects the flow meters and hose connections from being damaged in your rig

GG CSR367

PACKAGE, HXP2, R3, 60HZ, ELITE, IS, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CSR377

GG CSR378

GG CSR388

PACKAGE, HXP3, R3, 400V, ELITE, IS, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CSR387

PACKAGE, HXP3, R3, 230V, ELITE, IS, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CSR389

GG CSR390

GG CST227

GG CSR392

PACKAGE, HXP2, R3, 50HZ, ELITE, IS, CORE

• Simplified robust design eliminates fly wheel and belt system for reduced maintenance
• Smaller compact footprint
• Reduced noise

• Positive displacement pumps
• Easy service
• Long life
• Smooth changeovers and spray pattern
• Multiple pump sizes for non 1:1 dispensing

• Powerful fan to maintain optimal oil temperature for longer oil life

• Large new touchscreen interface
• Intuitive operation and navigation
• All spray operations from one screen
• Electronic pressure control (Elite models)

• Robust heating design
• Heats materials quickly and efficiently
• Maintains temperature set points at max flow rates

• Control A and B materials to different temperatures for improved pressure balancing and optimized yield

• Easy-to-access oil dip stick and oil drain valve simplifies preventive maintenance

• New easy-to-maintain design
• 2X larger filter area
• Separate temperature and pressure sensors for more accurate temperature readings
• Redesigned with side-mounted fluid valves for easier turning and improved control

• Real-time dashboard and reports via cellular connectivity
• Improved cellular antenna
• New GPS antenna
• GPS location available in Reactor Connect
• Job naming and reporting

• Verifies fluid ratio
• Provides real-time ratio data: displayed on the ADM and Reactor Connect
• Accurate for a wide range of fluid viscosities

GG CST231

GG CST321

GG CST651

GG 651809

HUSKY PUMP, 1050S-E, SS/PT/PS/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651811

HUSKY PUMP, 1050S-E, SS/PT/PO/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651817

GG 651818

GG 651820

HUSKY PUMP, 1050S-E, SS/PT/PO/4B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651838

GG 651845

HUSKY PUMP, 1050S-E, SS/PT/PS/4C

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651847

HUSKY PUMP, 1050S-E, SS/PT/PO/4C

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651854

HUSKY PUMP, 1050S-E, SS/PT/PS/4D

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651856

GG 651859

HUSKY PUMP, 1050S-E, SS/SS/PO/4D

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651863

HUSKY PUMP, 1050S-E, SS/PT/PS/4E

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651866

HUSKY PUMP, 1050S-E, SP/SP/SP/4E

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651872

HUSKY PUMP, 1050S-E, SS/PT/PS/4F

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651874

GG 651875

HUSKY PUMP, 1050S-E, SP/SP/SP/4F

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651883

HUSKY PUMP, 1050S-E, SS/PT/PO/4F

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651890

HUSKY PUMP, 1050S-E, SS/PT/PS/5A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651911

GG 651922

HUSKY PUMP, 1050S-E, SS/SS/PO/5B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651926

HUSKY PUMP, 1050S-E, SS/PT/PS/6A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651929

HUSKY PUMP, 1050S-E, SP/SP/SP/6A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651931

HUSKY PUMP, 1050S-E, SS/SS/PO/6A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651935

HUSKY PUMP, 1050S-E, SS/PT/PS/6A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651937

HUSKY PUMP, 1050S-E, SS/PT/PO/6A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651944

HUSKY PUMP, 1050S-E, SS/PT/PS/6B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651953

HUSKY PUMP, 1050S-E, SS/PT/PS/6B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651955

HUSKY PUMP, 1050S-E, SS/PT/PO/6B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651961

HUSKY PUMP, 1050S-E, FK/FK/FK/6B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651964

HUSKY PUMP, 1050S-E, SS/PT/PO/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651962

HUSKY PUMP, 1050S-E, SS/PT/PS/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651965

HUSKY PUMP, 1050S-E, SP/SP/SP/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651966

HUSKY PUMP, 1050S-E, SS/SP/SP/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651970

HUSKY PUMP, 1050S-E, FK/FK/FK/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651971

HUSKY PUMP, 1050S-E, SS/PT/PS/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651976

HUSKY PUMP, 1050S-E, SS/SS/PO/4A

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 651985

HUSKY PUMP, 1050S-E, SS/SS/PO/4B

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

• Handles slurries and abrasives all without damage to the pump
• Gentle on shear sensitive material

Diaphragm Pump

• Runs dry
• No rotating or moving fluid seals
• Self-priming

Electric Drive

• Reduce energy consumption and operating costs
• Increase pump control
• Accurately meter fluid

Fluid Section

• Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

• Increase diaphragm life without compromising your fluid
• Ability to reduce pulsation on fluid outlet
• Stalls under pressure without additional switches and controls

GG 652014

HUSKY PUMP, 3300A-PA01AA1SSSPSPBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652016

GG 652019

HUSKY PUMP, 3300A-PA01AA1SSBNBNBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652020

GG 652022

HUSKY PUMP, 3300A-PA01AA1SSPTSPBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652025

GG 652039

HUSKY PUMP, 3300A-PA01AA1SPPTSPBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652047

HUSKY PUMP, 3300A-PA01AA1GEGECRBN

Graco 652047 Husky 3300 (ANSI/DIN/NPT) AL Pump, AL Center Section, GE Seats, GE Balls & CR Diaphragm

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Offered in ATEX configuration.
• Expanded material offering to handle numerous applications
• Flow rates up to 300 gpm (1,135 lpm)
• Modular stall-resistant air valve design
• Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
• Heavy-duty construction
• Faster change over with spring loaded pilot valves

• Model: Husky
• Series: 3300

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: G.E.T. (Graco Engineered Thermoplastic)

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN, Threaded

• Diaphragm Compatible Material: Polychloroprene
• Diaphragm Material: Polychloroprene

• Fluid Inlet Size (cm): 7.62
• Fluid Inlet Size (in): 3
• Fluid Inlet Size (mm): 76.2
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 7.62
• Fluid Outlet Size (in): 3
• Fluid Outlet Size (mm): 76.2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: Buna-N
• Material: Aluminum

• Maximum Air Consumption (SCFM): 335
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 103

• Maximum Flow Rate (GPM): 300
• Maximum Flow Rate (L/min): 1136

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 652048

HUSKY PUMP, 3300A-PA01AA1GEGESPBN

Graco 652048 Husky 3300 (ANSI/DIN/NPT) AL Pump, AL Center Section, GE Seats, GE Balls & SP Diaphragm

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Offered in ATEX configuration.
• Expanded material offering to handle numerous applications
• Flow rates up to 300 gpm (1,135 lpm)
• Modular stall-resistant air valve design
• Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
• Heavy-duty construction
• Faster change over with spring loaded pilot valves

• Model: Husky
• Series: 3300

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: G.E.T. (Graco Engineered Thermoplastic)

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN, Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 7.62
• Fluid Inlet Size (in): 3
• Fluid Inlet Size (mm): 76.2
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 7.62
• Fluid Outlet Size (in): 3
• Fluid Outlet Size (mm): 76.2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: Buna-N
• Material: Aluminum

• Maximum Air Consumption (SCFM): 335
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 103

• Maximum Flow Rate (GPM): 300
• Maximum Flow Rate (L/min): 1136

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 652084

HUSKY PUMP, 3300A-PA01AA1ACACTPBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652090

HUSKY PUMP, 3300A-PA01AA2TPACTPBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652102

HUSKY PUMP, 3300A-PA01AA2SSSPSPBN

Graco 652102 Husky 3300 (ANSI/DIN/BSPT) AL Pump, AL Center Section, SS Seats, SP Balls & SP Diaphragm

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Offered in ATEX configuration.
• Expanded material offering to handle numerous applications
• Flow rates up to 300 gpm (1,135 lpm)
• Modular stall-resistant air valve design
• Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
• Heavy-duty construction
• Faster change over with spring loaded pilot valves

• Model: Husky
• Series: 3300

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN, Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 7.62
• Fluid Inlet Size (in): 3
• Fluid Inlet Size (mm): 76.2
• Fluid Inlet Thread Type: BSPT

• Fluid Outlet Size (cm): 7.62
• Fluid Outlet Size (in): 3
• Fluid Outlet Size (mm): 76.2
• Fluid Outlet Thread Type: BSPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: Buna-N
• Material: Aluminum

• Maximum Air Consumption (SCFM): 335
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 103

• Maximum Flow Rate (GPM): 300
• Maximum Flow Rate (L/min): 1136

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 652110

HUSKY PUMP, 3300A-PA01AA2SSPTSPBN

Graco 652110 Husky 3300 (ANSI/DIN/BSPT) AL Pump, AL Center Section, SS Seats, PTFE Balls & SP Diaphragm

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Offered in ATEX configuration.
• Expanded material offering to handle numerous applications
• Flow rates up to 300 gpm (1,135 lpm)
• Modular stall-resistant air valve design
• Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
• Heavy-duty construction
• Faster change over with spring loaded pilot valves

• Model: Husky
• Series: 3300

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN, Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 7.62
• Fluid Inlet Size (in): 3
• Fluid Inlet Size (mm): 76.2
• Fluid Inlet Thread Type: BSPT

• Fluid Outlet Size (cm): 7.62
• Fluid Outlet Size (in): 3
• Fluid Outlet Size (mm): 76.2
• Fluid Outlet Thread Type: BSPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: Buna-N
• Material: Aluminum

• Maximum Air Consumption (SCFM): 335
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 103

• Maximum Flow Rate (GPM): 300
• Maximum Flow Rate (L/min): 1136

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 652107

HUSKY PUMP, 3300A-PA01AA2SSBNBNBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652124

HUSKY PUMP, 3300A-PA01AA2SPSPSPBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652134

HUSKY PUMP, 3300A-PA01AA2GEGEGEBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652146

HUSKY PUMP, 3300A-PA01AA2BNBNBNBN

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

GG 652152

HUSKY PUMP, 3300A-PA01AA2FKFKFKPT

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
