GRACO INC. S10595
GRACO INC. S10595 branded products
Kit, Repair, Soft Seal NXT 6500
GG NXT600
GG NXT600
Kit, Repair, Soft Seal NXT 6500
Graco NXT600 NXT Model 6500 Air Motor Repair Kit
$234.00
DURA-FLO PUMP, 3400/1000
GG P06DCK
GG P06DCK
DURA-FLO PUMP, 3400/1000
Graco P06DCK Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, CS, UHM with Leather Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, De-Icing Exhaust Motor, UHMW / Leather Packings
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 43
- Maximum Working Pressure (kPa): 4300
- Maximum Working Pressure (MPa): 4.3
- Maximum Working Pressure (psi): 620
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 6:1
$12,950.00
DURA-FLO PUMP, 3400/1000
GG P06DSG
GG P06DSG
DURA-FLO PUMP, 3400/1000
Graco P06DSG Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, SST, PTFE/PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, PTFE / PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 43
- Maximum Working Pressure (kPa): 4300
- Maximum Working Pressure (MPa): 4.3
- Maximum Working Pressure (psi): 620
- Motor Type: De-Icing NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 6:1
$12,820.00
DURA-FLO PUMP, 3400/1000
GG P06ECK
GG P06ECK
DURA-FLO PUMP, 3400/1000
Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, DataTrak, CS, UHM with Leather PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
$14,340.00
Dura-Flo NXT 2-Ball Piston Pump, 10:1, De-Icing Exhaust Motor, DataTrak, CS, UHM W/Leather Packings
GG P10ECK
GG P10ECK
Dura-Flo NXT 2-Ball Piston Pump, 10:1, De-Icing Exhaust Motor, DataTrak, CS, UHM W/Leather Packings
Call for pricing
DURA-FLO PUMP, 3400/1000
GG P06LCK
GG P06LCK
DURA-FLO PUMP, 3400/1000
Graco P06LCK Dura-Flo NXT 2-Ball Piston Pump, 6:1, Low Noise Exhaust Motor, CS, UHM with Leather Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, Low Noise Exhaust Motor, UHMW / Leather Packings
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 17.4
- Maximum Flow Rate (L/min): 65.87
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 43
- Maximum Working Pressure (kPa): 4300
- Maximum Working Pressure (MPa): 4.3
- Maximum Working Pressure (psi): 620
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 6:1
Call for pricing
DURA-FLO PUMP, 6500/580
GG P23DSA
GG P23DSA
DURA-FLO PUMP, 6500/580
Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
$18,590.00
XTREME PUMP, 3400/290, NF
GG P25LC1
GG P25LC1
XTREME PUMP, 3400/290, NF
Graco P25LC1 Xtreme NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust, CS
Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Xtreme
- Series: 2-Ball
- Air Inlet Size (in): 3/4
- Air Inlet Size (mm): 19.05
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Carbon Steel Pump, Low Noise Exhaust Motor
- Material: Carbon Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 262
- Maximum Working Pressure (kPa): 26200
- Maximum Working Pressure (MPa): 26.2
- Maximum Working Pressure (psi): 3800
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1
$9,740.00
DURA-FLO PUMP, 3400/290
GG P25LSE
GG P25LSE
DURA-FLO PUMP, 3400/290
Graco P25LSE Dura-Flo NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE Packings
Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
- Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
- High pump pressure and flow performance to handle a broad range of paints and coatings
- Improved serviceability with fewer parts, faster repairs and lower ownership cost
- Model: Dura-Flo
- Series: 2-Ball
- Application: Supply
- Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 4 Leather/1 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4.6
- Maximum Flow Rate (L/min): 17.41
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Working Pressure (bar): 314
- Maximum Working Pressure (kPa): 31400
- Maximum Working Pressure (MPa): 31.4
- Maximum Working Pressure (psi): 4550
- Motor Type: Low Noise NXT
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 25:1
$13,950.00
DURA-FLO PUMP, 3400/580
GG P12ESA
GG P12ESA
DURA-FLO PUMP, 3400/580
Dura-Flo NXT 2-Ball Piston Pump, 12:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
$17,690.00
DURA-FLO PUMP, 6500/580
GG P23ESA
GG P23ESA
DURA-FLO PUMP, 6500/580
Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE PackingsGraco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.
Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak
$18,970.00
PRO XP GUN, ES, AUTO BOTTOM
GG LA2T10
GG LA2T10
PRO XP GUN, ES, AUTO BOTTOM
Graco LA2T10 Pro Xp Auto Air Spray Electrostatic Spray Gun, 85 kV, Standard, Bottom Manifold, 1.5 mm (0.055 in) Nozzle, Standard Coating
Pro Xp Auto Air Spray has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for low pressure, high quality spraying.
- Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
- Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
- 85 kV power supply and internal power so there&prime, s no electrical cord to worry about damaging or replacing
- Durable components reduce cost of ownership, supported by a three year warranty
- Model: Pro Xp
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Application: Electrostatic, Standard
- Applicator Type: Automatic
- Coating Type: Standard
- Compatible Paint Type: Solvent borne
- Display Type: Standard
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- For Use With: Pro Xp Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 1197
- Gun Weight (kg): 1.2
- Gun Weight (lb): 2.64
- Gun Weight (oz): 42.24
- Manifold Type: Bottom
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7.0
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 3
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 25.91
- Overall Length (in): 10.2
- Overall Length (mm): 259.1
$12,610.00
10 Pack 1/2 in x 36 Element Mixer with Shroud
GG LC0296
GG LC0296
10 Pack 1/2 in x 36 Element Mixer with Shroud
$2,640.00
PR70 HOSE, ASSY, FITTINGS, 1/4X120, SS
GG LC0805
GG LC0805
PR70 HOSE, ASSY, FITTINGS, 1/4X120, SS
1/4 in x 120 in PR70 Stainless Steel Hose Package
$970.00
PR70 HOSE, ASSY, FITTINGS, 1/4X30, SS
GG LC0804
GG LC0804
PR70 HOSE, ASSY, FITTINGS, 1/4X30, SS
1/4 in x 30 in PR70 Stainless Steel Hose Package
$655.00
Hose, Assy, Heated, 1/4 x 120 Inch, 240 V, 360 W, 1 R
GG LC0882
GG LC0882
Hose, Assy, Heated, 1/4 x 120 Inch, 240 V, 360 W, 1 R
$4,530.00
Hose, Assy, Heated, Fittings, 3/8 x 120, SS
GG LC0885
GG LC0885
Hose, Assy, Heated, Fittings, 3/8 x 120, SS
$4,660.00

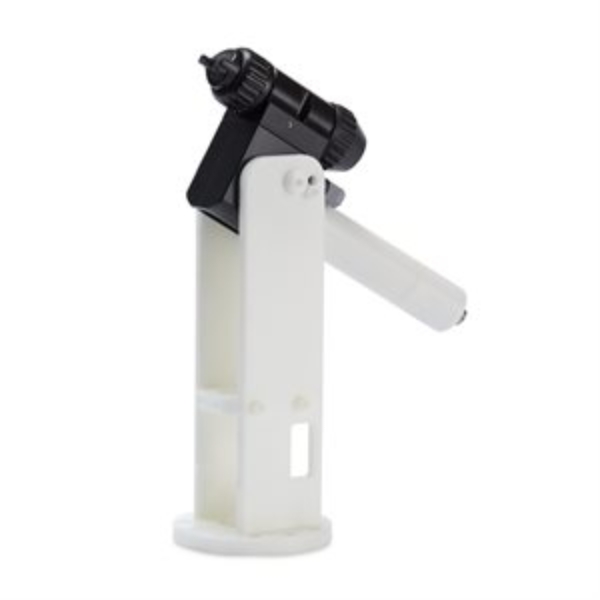

PRO XPC GUN, RECIPRICATOR, STD
GG LC1020
GG LC1020
PRO XPC GUN, RECIPRICATOR, STD
Graco LC1020 Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for Solvent borne material, 100 kV
Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes.
- Robot friendly with a weight and size that allows robots greater reach capabilities
- Improve processes with switch box that makes spraying flexible
- Invest in safer equipment with design features that reduce risks
- System integration with nozzle tips to assemble a robot movement system or fixture
- Model: Pro Xpc
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Electrostatic, Solvent borne
- Applicator Type: Automatic
- Coating Type: Solvent borne
- Compatible Paint Type: Solvent borne
- Fluid Inlet Size (in): 1/4
- For Use With: Pro Xpc Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 545
- Gun Weight (kg): 0.545
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.22
- Manifold Type: Rear
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 1
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 14.48
- Overall Length (in): 5.7
- Overall Length (mm): 144.8
$9,830.00
Meter, Assembly, Pr70, 084, Ss/Nyl, 10.34 mm , Unassembled
GG LC1084
GG LC1084
Meter, Assembly, Pr70, 084, Ss/Nyl, 10.34 mm , Unassembled
$3,140.00
PRO XPC GUN, WATERBORNE, STD-CABLE
GG LC1028
GG LC1028
PRO XPC GUN, WATERBORNE, STD-CABLE
Pro Xpc Automatic Electrostatic Air Spray Gun, rear manifold for waterborne material, 60 kV Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes. Robot friendly with a weight and size that allows robots greater reach capabilities Improve processes with switch box that makes spraying flexible Invest in safer equipment with design features that reduce risks Maximize profits with patent pending charge points for high transfer efficiency and reduced material usage System integration with nozzle tips to assemble a robot movement system or fixture
$11,280.00
Meter, Assembly, Pr70, 090, Ss/Nyl, 10.70
GG LC1090
GG LC1090
Meter, Assembly, Pr70, 090, Ss/Nyl, 10.70
$3,140.00
Meter, Assembly, Pr70, 100, Ss/Nyl, 11.28
GG LC1100
GG LC1100
Meter, Assembly, Pr70, 100, Ss/Nyl, 11.28
$1,585.00
Meter, Assembly, Pr70, 094, Ss/Nyl, 10.94 mm , Unassembled
GG LC1094
GG LC1094
Meter, Assembly, Pr70, 094, Ss/Nyl, 10.94 mm , Unassembled
$3,140.00
Meter Assembly, Pr70, 120, Ss/Nyl, 12.36 mm , Unassembled
GG LC1120
GG LC1120
Meter Assembly, Pr70, 120, Ss/Nyl, 12.36 mm , Unassembled
$1,525.00
Meter, Assembly, Pr70, 240, Ss/Nyl, 17.48
GG LC1240
GG LC1240
Meter, Assembly, Pr70, 240, Ss/Nyl, 17.48
$1,900.00
Meter Assembly, Pr70, 160, Ss/Nyl, 14.27 mm , Unassembled
GG LC1160
GG LC1160
Meter Assembly, Pr70, 160, Ss/Nyl, 14.27 mm , Unassembled
$1,730.00
Meter, Assembly, Pr70, 249, Ss/Nyl, 17.81 mm , Unasem
GG LC1249
GG LC1249
Meter, Assembly, Pr70, 249, Ss/Nyl, 17.81 mm , Unasem
$3,090.00
Meter Assembly, Pr70, 320, Ss/Nyl, 20.19 mm , Unassembled
GG LC1320
GG LC1320
Meter Assembly, Pr70, 320, Ss/Nyl, 20.19 mm , Unassembled
$1,765.00
Meter, Assembly, Pr70, 960, Ss/Nyl, 34.96
GG LC1960
GG LC1960
Meter, Assembly, Pr70, 960, Ss/Nyl, 34.96
$1,955.00

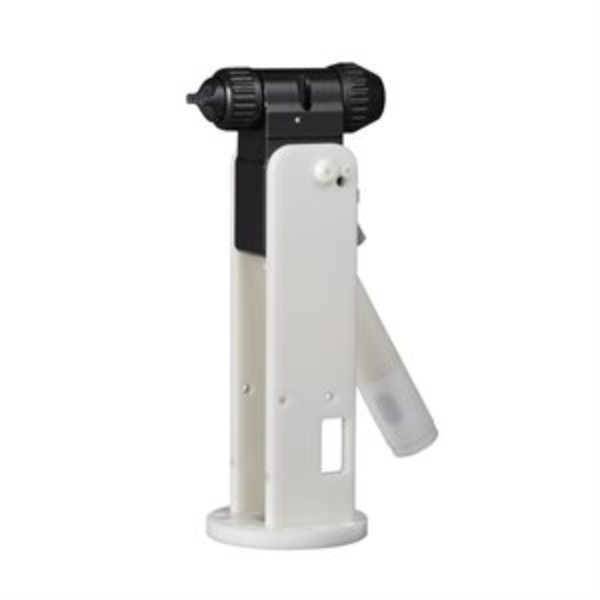

PRO XPC GUN, ROBOT, STD-CABLE
GG LC2020
GG LC2020
PRO XPC GUN, ROBOT, STD-CABLE
Graco LC2020 Pro Xpc Automatic Electrostatic Air Spray Gun, bottom manifold for Solvent borne material, 100 kV
Pro Xpc Auto is safe, durable, PLC controllable, designed for efficient system integration and comes with a serialized certificate of performance. The system has 250 user settable presets and maintenance reminders that can be controlled from a PLC or switchbox control. This improves the flexibility of the client, who can spray with a wide variety of shapes and sizes.
- Robot friendly with a weight and size that allows robots greater reach capabilities
- Improve processes with switch box that makes spraying flexible
- Invest in safer equipment with design features that reduce risks
- System integration with nozzle tips to assemble a robot movement system or fixture
- Model: Pro Xpc
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Electrostatic, Solvent borne
- Applicator Type: Automatic
- Coating Type: Solvent borne
- Compatible Paint Type: Solvent borne
- Fluid Inlet Size (in): 1/4
- For Use With: Pro Xpc Auto Control Module
- Gun Activation: Automatic
- Gun Type: Electrostatic
- Gun Weight (g): 545
- Gun Weight (kg): 0.545
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.22
- Manifold Type: Bottom
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 7
- Maximum Fluid Pressure (kPa): 700
- Maximum Fluid Pressure (MPa): 0.7
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Temperature (°C): 48
- Maximum Fluid Temperature (°F): 120
- Maximum Paint Resistivity (megohm/cm): Infinity
- Minimum Paint Resistivity (megohm/cm): 1
- Nozzle Size (cm): 0.15
- Nozzle Size (in): 0.055
- Nozzle Size (mm): 1.5
- Overall Length (cm): 14.48
- Overall Length (in): 5.7
- Overall Length (mm): 144.8
$9,830.00
PR70 554 mm Unassembled Piston Metering Package with UHMW Piston
GG LC2554
GG LC2554
PR70 554 mm Unassembled Piston Metering Package with UHMW Piston
Call for pricing
PR70 640 mm Unassembled Piston Metering Package with UHMW Piston
GG LC3640
GG LC3640
PR70 640 mm Unassembled Piston Metering Package with UHMW Piston
$5,100.00
PR70 Piston, S, 240, Nylon, 17.48 MM
GG LCB240
GG LCB240
PR70 Piston, S, 240, Nylon, 17.48 MM
$180.00
Tube, Pump, Pr70S, 260Ss, 18.19 mm
GG LCC260
GG LCC260
Tube, Pump, Pr70S, 260Ss, 18.19 mm
Call for pricing
Valve, 316 SST Check
GG 24T894
GG 24T894
VALVE, CHECK, 316 SST
Graco 24T894 Check Valve, 316 Stainless Steel
- Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC
$85.00
Kit, Soft Parts, 35Cc
GG 24T895
GG 24T895
KIT, SOFT PARTS, 35CC
Graco 24T895 35 cc Lower Seal Repair Kit for ProMix PD2K Electronic Positive Displacement Proportioning System Dosing Pumps, no tools included
$767.00
Kit, Soft Parts, 70Cc
GG 24T896
GG 24T896
KIT, SOFT PARTS, 70CC
Graco 24T896 70 cc Lower 24T793 Repair Kit for ProMix PD2K Electronic Positive Displacement Proportioning System Dosing Pumps
- Bleed Type: Non-Bleeder
- Compatible Material: Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne
$767.00
Kit, Sensor, Helical Meter
GG 24U114
GG 24U114
KIT,SENSOR,HELICAL METER
KIT INCLUDES: SENSOR, HELICAL METER [QTY. 1], KIT INCLUDES: HEATER, 240VAC, 200W, .5DIAX1.5LG [QTY. 1], FERRULE, WIRE, 18AWG, UNINSULATED [QTY. 2]
$1,475.00

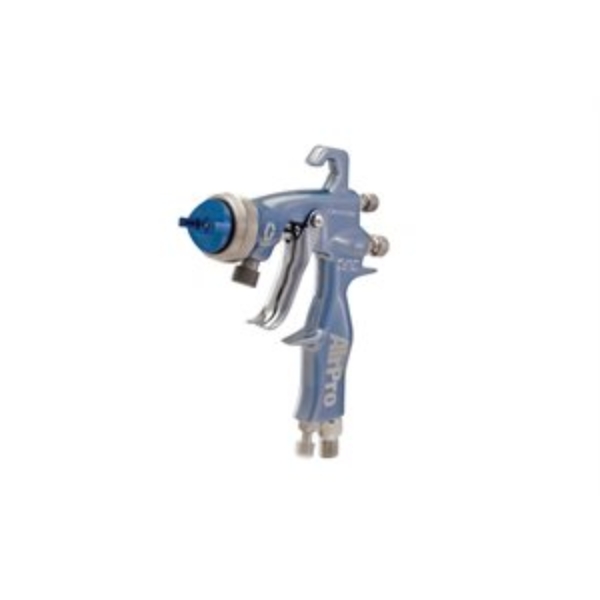

AIRPRO GUN, STAINLESS, CONV
GG 24U188
GG 24U188
AIRPRO GUN, STAINLESS, CONV
Graco 24U188 AirPro Air Spray Pressure Feed Gun, Conventional, 0.055 inch (1.4 mm) Nozzle, SST Tip, for General Metal Applications
The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.
- Even material distribution through the spray pattern for optimum coverage
- Improved transfer efficiency through reduced air consumption
- Enhanced atomization through material-specific aircaps
- Ultra-light trigger pull reduces operator muscle stress
- Ergonomic gun handle provides a comfortable grip
- Rounded control knobs for operator comfort
- Optimize spray performance with our cutting edge aircap and nozzle design
- Choose from a wide range of gun models to meet the needs of your specific application
- Model: AirPro
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: Metal
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (cm): 0.9525
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Size (mm): 9.525
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (cm): 0.14
- Fluid Orifice Size (in): 0.055
- Fluid Orifice Size (mm): 1.4
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Conventional Gun
- Gun Weight (g): 410
- Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 109
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 109
- Product Type: Spray Gun
Call for pricing
KIT, 25' FLUID&AIR HOSE FP295
GG 24U578
GG 24U578
KIT, 25' FLUID&AIR HOSE FP295
Graco 24U578 Super-Flex Material and Air Hose Set, 25 ft
By increasing flexibility and maneuverability, Graco’s Super-Flex Hose Set enables you to work in tight confines and helps you increase the quality of finish you’re laying down.
- Super-Flex Fluid and Air Hose Set
The flexibility to get into tight spaces – focus on the task, not the tool!
Extremely lightweight in hand, which reduces fatigue
Connects directly to the gun for maximum flexibility
Flex Wrap hose skin protects from material buildup and increases hose durability
- Model: Super-Flex
- Series: Hose
- Hose Length (cm): 762
- Hose Length (ft): 25
- Hose Length (in): 300
- Hose Length (m): 7.6
- Hose Length (mm): 7600
- Maximum Working Pressure (bar): 227
- Maximum Working Pressure (kPa): 22700
- Maximum Working Pressure (MPa): 22.7
- Maximum Working Pressure (psi): 3300
$276.50

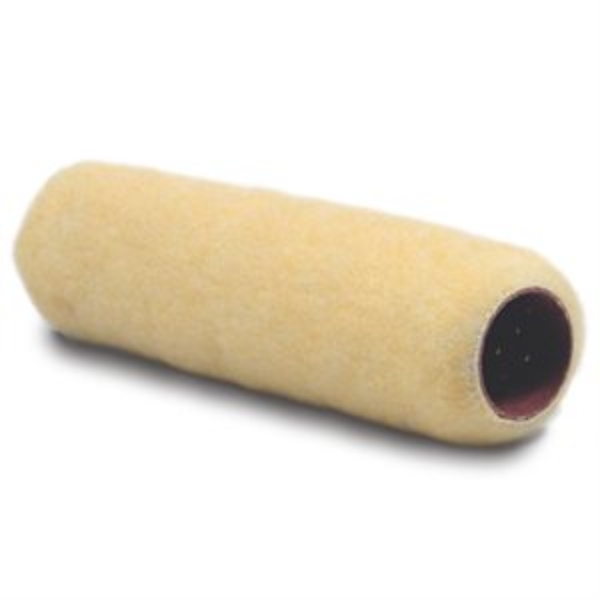

COVER, ROLLER, 9"X1/2", MAGNUM, 4PK
GG 24U668
GG 24U668
COVER, ROLLER, 9"X1/2", MAGNUM, 4PK
Roller Cover 1/2 in nap Graco Roller Covers are specially designed for use with high-pressure rolling applications. Use the ½ in nap for painting smooth surfaces with few flaws.
$17.50
Control Board Replacement Kits, Electric 1HP Control Board, for E-Flo DC Basic Motors, EM002X
GG 24U936
GG 24U936
Control Board Replacement Kits, Electric 1HP Control Board, for E-Flo DC Basic Motors, EM002X
$3,790.00
Encoder Replacement Kit for E-Flo DC Motors
GG 24U938
GG 24U938
Encoder Replacement Kit for E-Flo DC Motors
$631.00

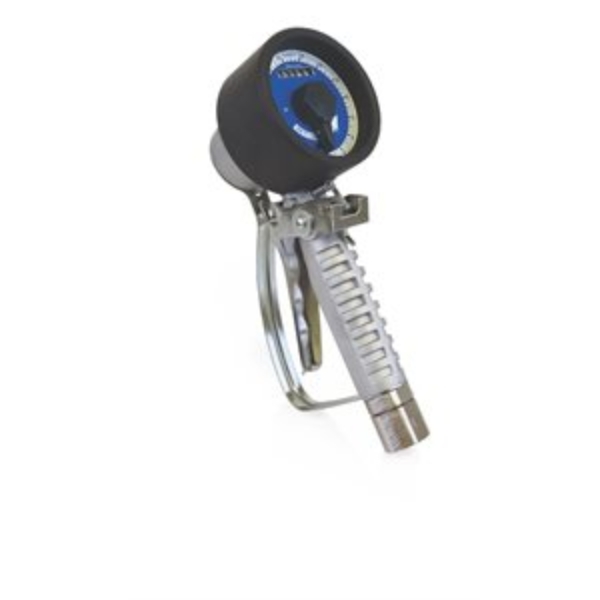

METER, PRESET, 60 QUART, NPT
GG 24U947
GG 24U947
METER, PRESET, 60 QUART, NPT
Graco 24U947 60 Quart Preset Meter - Bare Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in quarts
- Bare meter without extension or nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Mechanical
- Extension Type: Bare
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: None
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
$797.00

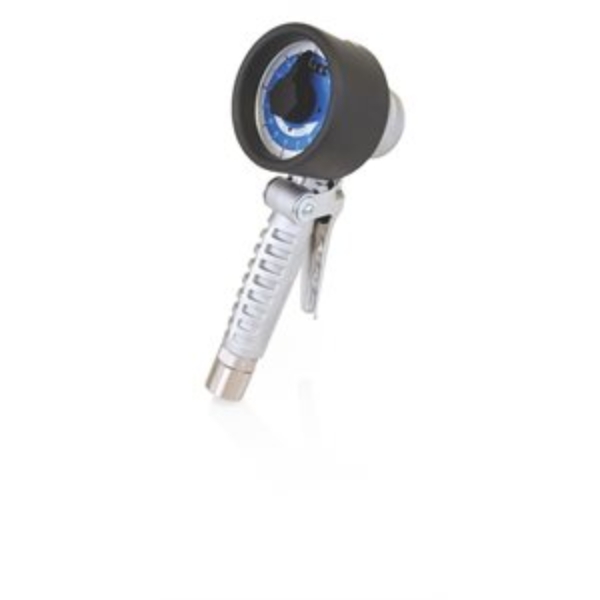

METER, MANUAL, 4/16 QUART, NPT
GG 24U959
GG 24U959
METER, MANUAL, 4/16 QUART, NPT
Graco 24U959 4/16 Quart Manual Meter - Bare Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Manual meter easily resettable to show amount of fluid dispensed.
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in quarts
- Bare meter without extension or nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Manual
- Display Type: Mechanical
- Extension Type: Bare
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.55
- Metering Gun Weight (lb): 3.42
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: None
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
$517.00
Transducer, I/P
GG 24V001
GG 24V001
TRANSDUCER, I/P
Graco 24V001 Back Pressure Regulator Controller Kit
- Channels: 6
$2,290.00

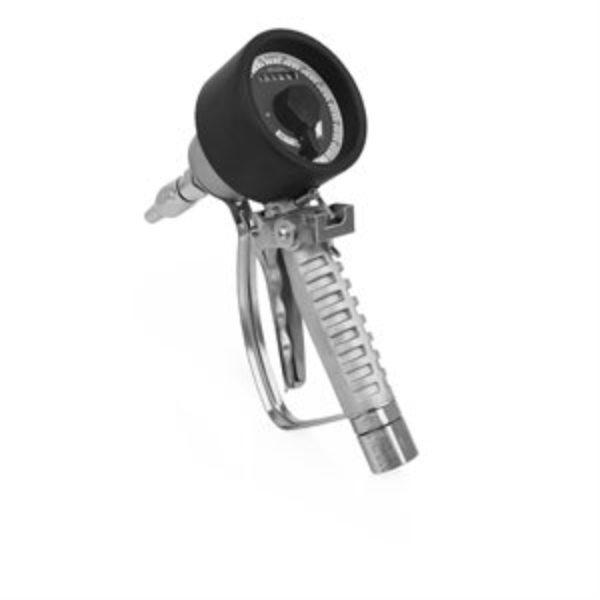

METER, PRESET, 60 QRT, RIG, NPT
GG 24V052
GG 24V052
METER, PRESET, 60 QRT, RIG, NPT
Graco 24V052 60 Quart Preset Meter - Includes Nozzle/Extension Kit - Short Rigid Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in quarts
- Features short extension with oil nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Mechanical
- Extension Type: Rigid
- Includes: Bare Meter, Nozzle Kit
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: Manual
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
Call for pricing

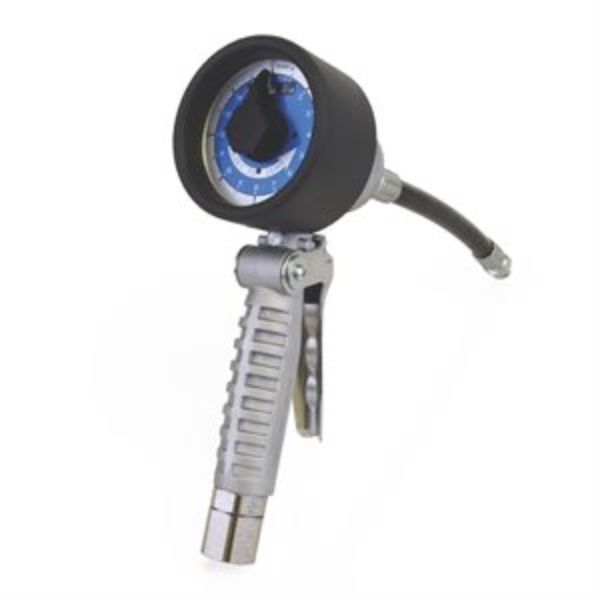

METER, MANUAL, 4/16 QRT, FLEX, NPT
GG 24V034
GG 24V034
METER, MANUAL, 4/16 QRT, FLEX, NPT
4/16 Quart Manual Meter Package - Includes Nozzle/Extension Kit - Flexible Extension - NPTMechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining. Manual meter easily resettable to show amount of fluid dispensed. Impact-resistant shroud resists against scratches and protects knob and dial from damage Dial and face design made simple, easy to read and set Durable aluminum cast housing is balanced and lightweight for a comfortable grip Built-in totalizer to manage material usage Inlet 1/2 in. NPT with swivel Measures fluid in quarts Features flexible extension with oil nozzle 5 Year Warranty
$565.00
METER, PRESET, 60 GAL, RIG, NPT
GG 24V055
GG 24V055
METER, PRESET, 60 GAL, RIG, NPT
Graco 24V055 60 Gallon Preset Meter - Includes Nozzle/Extension Kit - Short Rigid Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in gallons
- Features short extension with oil nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Mechanical
- Extension Type: Rigid
- Includes: Bare Meter, Nozzle Kit
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: Manual
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
Call for pricing

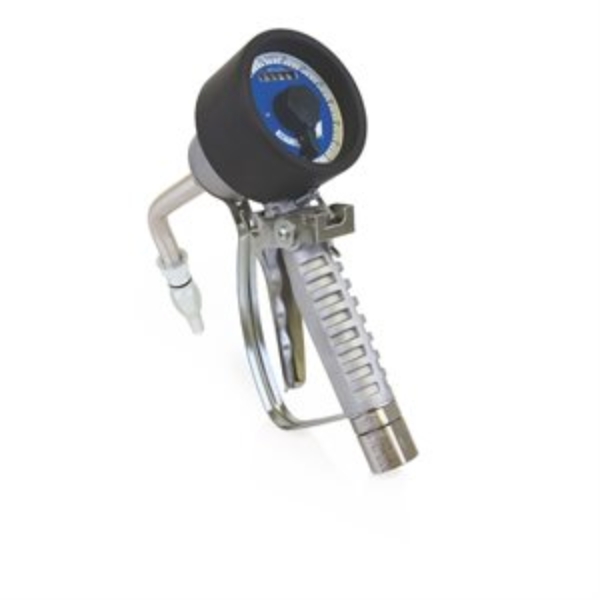

METER, PRESET, 60 LIT, RIG, NPT
GG 24V058
GG 24V058
METER, PRESET, 60 LIT, RIG, NPT
Graco 24V058 60 Liter Preset Meter - Includes Nozzle/Extension Kit - Short Rigid Extension - NPT
Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in liters
- Features short extension with oil nozzle
- 5 Year Warranty
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Mechanical
- Extension Type: Rigid
- Includes: Bare Meter, Nozzle Kit
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 8
- Maximum Flow Rate (L/min): 30
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 160
- Maximum Working Pressure (bar): 103.4
- Maximum Working Pressure (kPa): 10340
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1500
- Meter Accuracy (%): ±1%
- Meter Pressure Loss (bar): 2
- Meter Pressure Loss (kPa): 200
- Meter Pressure Loss (psi): 30
- Metering Gun Weight (kg): 1.58
- Metering Gun Weight (lb): 3.5
- Minimum Operating Temperature (°C): -45
- Minimum Operating Temperature (°F): -50
- Nozzle Type: Manual
- Outlet Size (cm): 1.27
- Outlet Size (in): 0.75
- Outlet Size (mm): 12.7
- Outlet Thread Type: ORB
- Recommended Environment: Indoor, Outdoor
Call for pricing
KIT, DIAPHRAGM-J1 SP
GG 24V242
GG 24V242
KIT, DIAPHRAGM-J1 SP
Santoprene Diaphragm Kit for 2-inch Pump
$143.00
