GRACO INC. S10595
GRACO INC. S10595 branded products
CONTRACTOR FLAT TIP, SPRAY
GG 269625
GG 269625
CONTRACTOR FLAT TIP, SPRAY
Graco 269625 Contractor Flat Tip, 625
The 625 Contractor Flat Tip produces a 12 to 14 inch fan and has a 0.025 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.025
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
$11.40
CONTRACTOR FLAT TIP, SPRAY 715
GG 269715
GG 269715
CONTRACTOR FLAT TIP, SPRAY 715
Graco 269715 Contractor Flat Tip, 715
The 715 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.015 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 35
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.015
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
$11.40
CONTRACTOR FLAT TIP, SPRAY 717
GG 269717
GG 269717
CONTRACTOR FLAT TIP, SPRAY 717
Graco 269717 Contractor Flat Tip, 717
The 717 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.017 inch orifice.
- Model: Contractor
- Series: Flat Tip
- Compatible Material: Architectural Coating
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 35
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 406
- Maximum Flow Rate (GPM): 0.31
- Maximum Flow Rate (L/min): 1.17
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 14
- Minimum Fan Width (mm): 356
- Orifice Diameter (in): 0.017
- Pattern Size (in): 14 to 16
- Pattern Size (mm): 355.6 to 406.4
$11.40

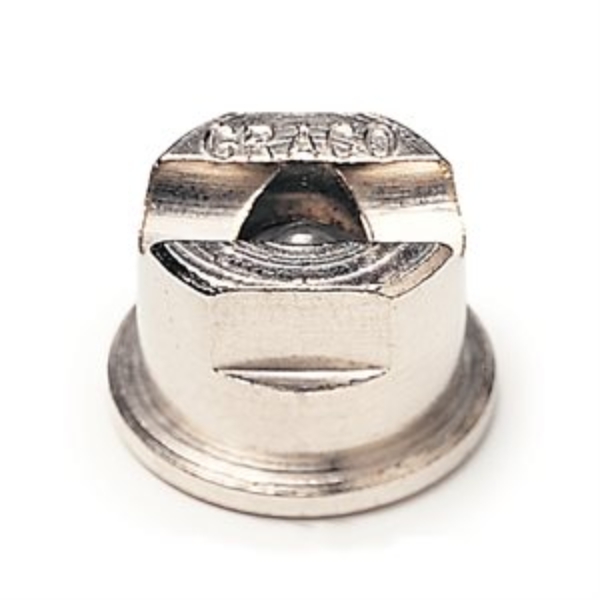

CONTRACTOR FLAT TIP, SPRAY 719
GG 269719
GG 269719
CONTRACTOR FLAT TIP, SPRAY 719
Contractor Flat Tip, 719 The 719 Contractor Flat Tip produces a 14 to 16 inch fan and has a 0.019 inch orifice.
$11.40
PERFORMAA GUN, AA, 1500, GF
GG 26B500
GG 26B500
PERFORMAA GUN, AA, 1500, GF
Graco 26B500 PerformAA 1500 Air Assist Gun with General Finishing air cap
Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
- High quality 1500 psi air assist spray gun
- General finishing air cap for a wide range of materials
- Indexing air cap for accurate spray position
- Clicking fan pattern adjustment knob for accurate adjustment
- Model: PerformAA 15
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
- Compatible Spray Tip: AXM, AXF
- Feed Type: Pressure Feed
- Fluid Adjustment Knob: Clicking
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 453
- Gun Weight (kg): 0.45
- Gun Weight (lb): 1
- Gun Weight (oz): 16
- Gun Weight with Tip and Guard (g): 480
- Gun Weight with Tip and Guard (oz): 17.1
- Gun Weight without Tip and Guard (g): 460
- Gun Weight without Tip and Guard (oz): 16.2
- Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Maximum Fluid Pressure (bar): 105
- Maximum Fluid Pressure (kPa): 10500
- Maximum Fluid Pressure (MPa): 10.5
- Maximum Fluid Pressure (psi): 1500
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 110
- Overall Height (cm): 20.8
- Overall Height (in): 8.2
- Overall Height (mm): 208
- Overall Length (cm): 15.25
- Overall Length (in): 6
- Overall Length (mm): 152
- Product Type: Spray Gun
$1,140.00

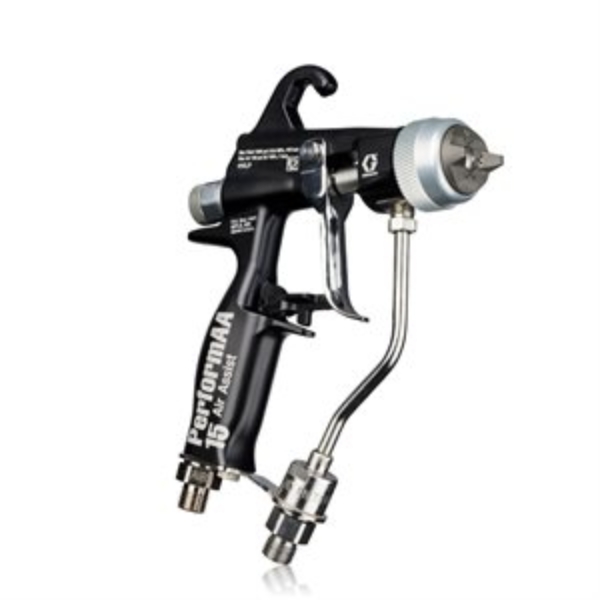

PERFORMAA GUN, AA, 1500, GF, SWIVEL
GG 26B501
GG 26B501
PERFORMAA GUN, AA, 1500, GF, SWIVEL
PerformAA 1500 Air Assist Gun with General Finishing air cap and fluid swivel Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics. High quality 1500 psi air assist spray gun General finishing air cap for a wide range of materials Includes a low profile fluid swivel Fine finish, AXM, or pre-orifice, AXF, spray tip included as tip of choice Indexing air cap for accurate spray position
$1,205.00

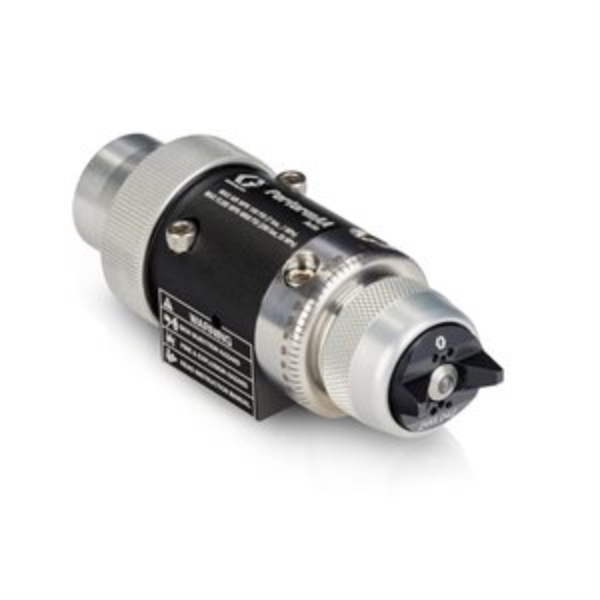

PERFORMAA GUN, AA, AUTO, WL
GG 26B571
GG 26B571
PERFORMAA GUN, AA, AUTO, WL
Graco 26B571 PerformAA Auto Air Assist Spray Gun with Wood Lacquer (WL) air cap
Automatic air-assisted spray gun delivers performance above all when spraying wood lacquer.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying lacquer on wood products.
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Lacquer, Latex, Plural Component Materials, Solvent borne, Topcoats, Varnish
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
$1,500.00
PERFORMAA GUN, AA, AUTO, GF, ACID
GG 26B572
GG 26B572
PERFORMAA GUN, AA, AUTO, GF, ACID
Graco 26B572 PerformAA Auto Air Assist Spray Gun with General Finishing (GF) air cap for acid-catalyzed material
Automatic air-assisted spray gun delivers performance above all when spraying acid-catalyzed material for general finishing applications.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Acid Catalysts
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
$1,585.00
PERFORMAA GUN, AA, AUTO, RAC
GG 26B573
GG 26B573
PERFORMAA GUN, AA, AUTO, RAC
Graco 26B573 PerformAA Auto Air Assist Spray Gun with Reverse-A-Clean (RAC) air cap
Automatic air-assisted spray gun delivers performance above all when spraying a wide variety of coatings. For quick cleaning with minimal downtime, simply turn the reversible tip to the clean position and spray.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Manifold options, including a rear port for robots or compact spaces, have the same tool center point as legacy Graco automatic air-assisted spray guns.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish,
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
$1,500.00
Kit, O-Ring-D2 Pt-4
GG 26B690
GG 26B690
KIT, O-RING-D2 PT-4
Graco 26B690 1-inch PTFE Seal Kit for FG Pump Models
$49.00
Gun, AA, Auto Gun wth Low Viscosity Air Cap, with tip of choice
GG 26B574
GG 26B574
PERFORMAA GUN, AA, AUTO, LV
Graco 26B574 PerformAA Auto Air Assist Spray Gun with Low Viscosity (LV) air cap
Automatic air-assisted spray gun delivers performance above all when spraying low viscosity material.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying coatings with low viscosity.
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Stains, Sealer, Solventborne, Toner
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature ( degree C): 49
- Maximum Fluid Temperature ( degree F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature ( degree C): 49
- Maximum Fluid Temperature ( degree F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
$1,600.00
AGITATOR, 6:1
GG 26B630
GG 26B630
AGITATOR, 6:1
Graco 26B630 Back-Geared Radial Piston Agitator, heavy duty
Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
Application: For agitating 500 cP to 3000 cP viscosity materials- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 83
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
- Power Rating (HP): 0.16
$4,490.00
AGITATOR, 6:1 GEAR REDUCTION, SIPHON
GG 26B633
GG 26B633
AGITATOR, 6:1 GEAR REDUCTION, SIPHON
Graco 26B633 Back-Geared Radial Piston Agitator, heavy duty, with elevator, drum cover and siphon kit
Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
Application: For agitating 500 cP to 3000 cP viscosity materials
- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Includes: Elevator, drum cover and siphon kit
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 83
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
- Power Rating (HP): 0.16
$7,750.00
PERFORMAA GUN, AA, AUTO, WB
GG 26B575
GG 26B575
PERFORMAA GUN, AA, AUTO, WB
Graco 26B575 PerformAA Auto Air Assist Spray Gun with Waterborne (WB) air cap
Automatic air-assisted spray gun delivers performance above all when spraying waterborne material, water-based coating.
- Automatic air-assisted sprayer is easy to set up, use and service on flat lines, robots, reciprocators and other automated systems
- Air cap is geometrically designed for the finest atomization with the least amount of guesswork when spraying waterborne coatings of water-based material.
- Air cap angle indicators help operators and maintenance technicians set and quickly repeat the exact angle needed to optimize spray. For greater accuracy and ease, especially with flat line finishing, add the Graco Gauge kit 26B736.
- Series: Auto
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Automatic
- Bleed Type: Bleeder
- Body Material: Metal
- Compatible Material: Latex, Plural Component Materials, Polyurethane, Urethane, UV Coating, Varnish, Waterborne, Latex Paint
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Type: NPSM
- Gun Activation: Automatic
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 544
- Gun Weight (kg): 0.544
- Gun Weight (lb): 1.2
- Gun Weight (oz): 19.2
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature (°C): 49
- Maximum Fluid Temperature (°F): 120
- Overall Height (cm): 7.6
- Overall Height (in): 3
- Overall Height (mm): 76.2
- Overall Length (cm): 13
- Overall Length (in): 5.3
- Overall Length (mm): 135
- Overall Width (cm): 5.1
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Product Type: Spray Gun
- Purge Method: Air
$1,500.00
AGITATOR, 6:1 DRUM MOUNT, 1.5IN
GG 26B619
GG 26B619
AGITATOR, 6:1 DRUM MOUNT, 1.5IN
Graco 26B619 Back-Geared Radial Piston Agitator, In-Drum, heavy duty, 1.5 inch Bung Mount
Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.
Application: For agitating 500 cP to 3000 cP viscosity materials- Installs quickly for immediate cost savings
- Needs no air line lubrication to keep running well
- Operates more quietly than comparable rotary vane agitator air motors
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- For Use With: 55 Gallon (208 Liter) Drum
- Maximum Air Inlet Pressure (bar): 5
- Maximum Air Inlet Pressure (kPa): 500
- Maximum Air Inlet Pressure (psi): 70
- Maximum Speed (RPM): 83
- Maximum Viscosity (cP): 3000
- Maximum Working Pressure (bar): 5
- Maximum Working Pressure (kPa): 500
- Maximum Working Pressure (psi): 70
- Motor Type: Pneumatic - Radial Piston
- Power Rating (HP): 0.16
$4,100.00
REGULATOR, BP, AIRPILOT, LOW-FLOW
GG 25R487
GG 25R487
REGULATOR, BP, AIRPILOT, LOW-FLOW
Graco 25R487 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Pneumatic, high wear, sanitary inlet/outlet
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear
- Ultralife series ceramic coated parts resist wear and increase service life
- Low profile, compact design and backwards compatibility mean easy installation and replacement
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 3.8
- Inlet Size (in): 1.5
- Inlet Size (mm): 38
- Inlet Thread Type: Sanitary Flange
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 10
- Maximum Flow Rate (L/min): 38
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 17.6
- Maximum Regulated Pressure (kg/cm²): 17.6
- Maximum Regulated Pressure (kPa): 1724
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21.1
- Maximum Working Pressure (kg/cm²): 21.1
- Maximum Working Pressure (kPa): 2068
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 1.8
- Minimum Regulated Pressure (kg/cm²): 1.8
- Minimum Regulated Pressure (kPa): 172
- Minimum Regulated Pressure (MPa): 0.17
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.8
- Outlet Size (in): 1.5
- Outlet Size (mm): 38
- Outlet Thread Type: Sanitary Flange
$2,270.00
REGULATOR, BP, MECHANICAL, LOW-FLOW
GG 25R488
GG 25R488
REGULATOR, BP, MECHANICAL, LOW-FLOW
Graco 25R488 Low Shear Fluid Back Pressure Regulator, 300 Max psi, 10 gpm Max flow rate, SST, Mechanical, high wear, sanitary inlet/outlet
Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
- Innovative flow path geometry provides industry-leading low shear capability
- Ultralife series ceramic coated seat and flow directors significantly increase wear resistance capability and service life
- Best-in-class performance holds pressure constant while flow rate changes
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 3.8
- Inlet Size (in): 1.5
- Inlet Size (mm): 38
- Inlet Thread Type: Sanitary Flange
- Maximum Flow Rate (GPM): 10
- Maximum Flow Rate (L/min): 38
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 17.6
- Maximum Regulated Pressure (kg/cm²): 17.6
- Maximum Regulated Pressure (kPa): 1724
- Maximum Regulated Pressure (psi): 250
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21.1
- Maximum Working Pressure (kg/cm²): 21.1
- Maximum Working Pressure (kPa): 2068
- Maximum Working Pressure (psi): 300
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 1.8
- Minimum Regulated Pressure (kg/cm²): 1.8
- Minimum Regulated Pressure (kPa): 172
- Minimum Regulated Pressure (MPa): 0.17
- Minimum Regulated Pressure (psi): 25
- Outlet Size (cm): 3.8
- Outlet Size (in): 1.5
- Outlet Size (mm): 38
- Outlet Thread Type: Sanitary Flange
$1,225.00
REGULATOR, BACK PRES, MP, AIR, 30 TO 1
GG 25R490
GG 25R490
REGULATOR, BACK PRES, MP, AIR, 30 TO 1
Graco 25R490 Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Pneumatic
Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
- Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
- Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 0.95
- Inlet Size (in): 0.375
- Inlet Size (mm): 9.5
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 207
- Maximum Regulated Pressure (kg/cm²): 207
- Maximum Regulated Pressure (kPa): 20700
- Maximum Regulated Pressure (psi): 3000
- Maximum Viscosity (cP): 250
- Maximum Working Pressure (bar): 211
- Maximum Working Pressure (kg/cm²): 211
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (psi): 3000
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kg/cm²): 17
- Minimum Regulated Pressure (kPa): 1720
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 0.95
- Outlet Size (in): 0.375
- Outlet Size (mm): 9.5
- Outlet Thread Type: NPT
$3,940.00
5 Gallon (20L) Heated Platen with EPDM Wiper
GG 25R535
GG 25R535
5 Gallon (20L) Heated Platen with EPDM Wiper
$3,410.00
REGULATOR, BACK PRESS, MP, MECHANICAL
GG 25R491
GG 25R491
REGULATOR, BACK PRESS, MP, MECHANICAL
Graco 25R491 Medium Pressure Fluid Back Pressure Regulator, 3000 Max psi, 5 gpm Max flow rate, SST, Mechanical with locking nut
Improve fluid control without having to add a compressed air line with this spring-operated back pressure regulator (BPR).
- Easy installation is another benefit of the mechanical medium pressure BPR.
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 0.95
- Inlet Size (in): 0.375
- Inlet Size (mm): 9.5
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 207
- Maximum Regulated Pressure (kg/cm²): 207
- Maximum Regulated Pressure (kPa): 20700
- Maximum Regulated Pressure (psi): 3000
- Maximum Viscosity (cP): 250
- Maximum Working Pressure (bar): 211
- Maximum Working Pressure (kg/cm²): 211
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (psi): 3000
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kg/cm²): 17
- Minimum Regulated Pressure (kPa): 1720
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 0.95
- Outlet Size (in): 0.375
- Outlet Size (mm): 9.5
- Outlet Thread Type: NPT
$2,010.00
G-MINI PUMP, 24V, 1L, CONTROLLER
GG 25R801
GG 25R801
G-MINI PUMP, 24V, 1L, CONTROLLER
Graco 25R801 G-Mini® Grease Lubrication Pump with Controller, 24 VDC, 1 Liter
Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It’s rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
- Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element &Prime, loading chamber&Prime, is always full.
- M12 Input - M12 cycle or proximity switch input standard on all pumps with a controller.
- 5-Wire CPC Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- One Pump Element - 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
- Easy-to-program controller can be utilized for both time based and cycle based systems and provides low level alert and alarm.
- Rugged Construction - Designed to withstand the harshest of environments, IP69K rated.
- Model: G-Mini
- Application: Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy
- Approvals: CE, EAC
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Control Options: Internal Controller
- Fluid Inlet Type: Zerk Fitting to Fill Reservoir
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPSF
- IP Rating: IP69K
- Maximum Flow Rate (ci/min): 3
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Voltage (V dc): 32
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (psi): 4061
- Minimum Operating Temperature (°C): -15
- Minimum Operating Temperature (°F): 5
- Minimum Voltage (V dc): 18
- Number of Pump Elements: Up to 2
- Number of Sensor Inputs: 1
- Overall Depth (in): 6.57
- Overall Height (in): 12.2
- Overall Width (in): 6.97
- Power Connection Type: CPC
$1,085.00
IQ Valve Outlet Manifold, 200MM Nozzle
GG 25R639
GG 25R639
IQ Valve Outlet Manifold, 200MM Nozzle
$802.00
IQ VALVE OUTLET MANIFOLD 60MM NOZZLE
GG 25R632
GG 25R632
IQ VALVE OUTLET MANIFOLD 60MM NOZZLE
$419.00
G-MINI PUMP, 24V, 1L, NC
GG 25R800
GG 25R800
G-MINI PUMP, 24V, 1L, NC
Graco 25R800 G-Mini® Grease Lubrication Pump, 24 VDC, 1 Liter
Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication in a small footprint to fit more types of machines. Use it to simplify everyday maintenance, extend lifecycles and optimize uptime. It’s rugged and tough, perfect for handling the daily, 24/7 rigors of any job, both big and small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
- Follower Plate and Stir Paddle - This unique combination combats oil separation while ensuring the pump element &Prime, loading chamber&Prime, is always full.
- 5-Wire CPC Power Cable - Multifunction cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- 1 liter reservoir option
- No Controller: pair with either an external controller or PLC.
- Rugged Construction - Designed to withstand the harshest of environments, IP69K rated.
- Model: G-Mini
- Application: Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy
- Approvals: CE, EAC
- Compatible Material: Grease
- Compatible Metering Device: Series Progressive
- Control Options: External Controller
- Fluid Inlet Type: Zerk Fitting to Fill Reservoir
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPSF
- For Use With: Series Progressive
- IP Rating: IP69K
- Maximum Flow Rate (ci/min): 3
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 70
- Maximum Operating Temperature (°F): 158
- Maximum Voltage (V dc): 32
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (psi): 4061
- Minimum Operating Temperature (°C): -15
- Minimum Operating Temperature (°F): 5
- Minimum Voltage (V dc): 18
- Number of Pump Elements: Up to 2
- Overall Depth (in): 6.57
- Overall Height (in): 12.2
- Overall Width (in): 6.97
- Power Connection Type: CPC
$930.00
VALVE, DMV
GG 25T670
GG 25T670
VALVE, DMV
Voltex Two-Component Dynamic Mix Valve The Voltex Dynamic Mix Valve is a rotary static valve that consistently mixes and dispenses materials requiring exceptional mixing energy. Engineered with rugged components and precision controls that eliminate dispensing inconsistencies, reduce maintenance downtime, and optimize material usage. Reliably mixes and dispenses difficult foaming polyurethanes, low viscosity silicones, and other hard to blend two component chemistries. Easily integrates with Graco meter, mix, and dispense systems like the PR70 for a complete dispensing solution. Control system delivers precision RPM control, and real time monitoring for dispensing process stability. Built with durable check valves and disposable mixers that reduce maintenance and downtime.
$12,620.00
MONITOR, TLM, ULTRASONIC, CEL
GG 25T461
GG 25T461
MONITOR, TLM, ULTRASONIC, CEL
Graco 25T461 Pulse® Level Ultrasonic Cellular Tank Monitor
You deliver more than fluids. You’re delivering insight. Graco Pulse Level offers highly intuitive tank-level-visibility options to help you optimize deliveries, margins and customer service. Track tank levels, capture and apply data, and assign distribution routes quickly, accurately and confidently from the industry’s leading fluid management expert. Pulse Level is compatible with 4G LTE networks, so you don’t have to worry about investing in soon-to-be-obsolete technology.
- Cellular Communication - No need for local network connection.
- Long Battery Life - 5 year battery life with replaceable C batteries
- Ultrasonic Sensor - Measure tanks 13 ft tall.
- Model: Pulse
- Approvals: FCC, CE
- Battery Chemistry: Alkaline
- Battery Life (h): 5 years
- Battery Size: C
- Cylindrical Tank Maximum Height (ft): 13
- Cylindrical Tank Maximum Height (m): 4
- Cylindrical Tank Maximum Volume (gal): 999999
- Cylindrical Tank Maximum Volume (L): 999999
- Fluid Level Measurement Accuracy (%): +/-1 in. (+/- 2 cm)
- For Use With: Pulse Level
- Maximum Ambient Temperature (°F): 140
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum RF Operating Temperature (°F): 122
- Maximum Storage Temperature (°C): 60
- Maximum Storage Temperature (°F): 140
- Minimum Ambient Temperature (°F): -22
- Minimum RF Operating Temperature (°F): 0
- Minimum Storage Temperature (°C): -30
- Minimum Storage Temperature (°F): -22
- Number of Batteries: 4
- Obround Tank Maximum Height (ft): 13
- Obround Tank Maximum Height (m): 4
- Obround Tank Maximum Length (ft): Any
- Obround Tank Maximum Length (m): Any
- Obround Tank Maximum Volume (gal): 999999
- Obround Tank Maximum Volume (L): 999999
- Overall Height (cm): 15
- Overall Height (ft): 0.49
- Overall Height (in): 5.9
- Overall Height (m): 0.015
- Overall Height (mm): 150
- Overall Length (cm): 9.3
- Overall Length (ft): 0.305
- Overall Length (in): 3.66
- Overall Length (m): 0.093
- Overall Length (mm): 93
- Overall Width (cm): 10.1
- Overall Width (ft): 0.333
- Overall Width (in): 4
- Overall Width (m): 0.0101
- Overall Width (mm): 101
- Product Type: Tank Level Monitor (TLM)
$950.00
REGULATOR, BACK PRESS, MP, 20:1
GG 25T477
GG 25T477
REGULATOR, BACK PRESS, MP, 20:1
Graco 25T477 Medium Pressure Fluid Back Pressure Regulator, 2000 Max psi, 5 gpm Max flow rate, SST, Pneumatic
Improve finishing process control with this medium pressure, pneumatic back pressure regulator (BPR).
- Gain better resolution than other BPR brands, adjusting more accurately to keep fluid pressure at desired levels.
- Interface with Graco’s Intelligent Paint Kitchen (IPK), controlling pressure and flow without human intervention.
- Compatible Material: Waterborne, Solvent borne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Inlet Size (cm): 0.95
- Inlet Size (in): 0.375
- Inlet Size (mm): 9.5
- Inlet Thread Type: NPT
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kg/cm²): 7
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Flow Rate (GPM): 5
- Maximum Flow Rate (L/min): 19
- Maximum Operating Temperature (°C): 50
- Maximum Operating Temperature (°F): 122
- Maximum Regulated Pressure (bar): 138
- Maximum Regulated Pressure (kg/cm²): 138
- Maximum Regulated Pressure (kPa): 13800
- Maximum Regulated Pressure (psi): 2000
- Maximum Viscosity (cP): 250
- Maximum Working Pressure (bar): 211
- Maximum Working Pressure (kg/cm²): 211
- Maximum Working Pressure (kPa): 20680
- Maximum Working Pressure (psi): 3000
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Minimum Regulated Pressure (bar): 17
- Minimum Regulated Pressure (kg/cm²): 17
- Minimum Regulated Pressure (kPa): 1720
- Minimum Regulated Pressure (psi): 250
- Outlet Size (cm): 0.95
- Outlet Size (in): 0.375
- Outlet Size (mm): 9.5
- Outlet Thread Type: NPT
$3,970.00
