GRACO INC. S10595

GG 24K991

GG 24K992

GG 24K995

GG 24K996

GG 24K997

GG 24K837

KIT, 5:1 TANK PACKAGE NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Three Inch Air Motor -Provides more power to create better flow.

Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

GG 24K838

KIT, 3:1 TANK PACKAGE NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Three Inch Air Motor -Provides more power to create better flow.

Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

GG 24K841

KIT, 5:1 TANK PACKAGE NPT

Graco 24K841 LD Series 5:1 Universal Pump Package with Hose Reel - Manual Meter, Rigid Extension, NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

• Three Inch Air Motor -Provides more power to create better flow.
• Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
• Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
• Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

• Model: LD

• Air Inlet Size (in): 0.25

• Application: Oil

• Compatible Material: Oil

• Fluid Inlet Size (cm): 2.5400
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4000

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7

• Maximum Flow Rate (GPM): 6.7

• Maximum Working Pressure (bar): 52
• Maximum Working Pressure (kPa): 5200
• Maximum Working Pressure (MPa): 5.2
• Maximum Working Pressure (psi): 750

• Power Type: Pneumatic

• Pump Ratio: 5:1

GG 24K842

KIT, 3:1 TANK PACKAGE NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Three Inch Air Motor -Provides more power to create better flow.

Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.

Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

GG 24K843

KIT, 5:1 TANK PACKAGE NPT

Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

Three Inch Air Motor -Provides more power to create better flow.

Engineered for Durability -Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.

Extended Seal Life -In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.

Pilot Valves -Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.

Built-In Thermal Relief and Inlet Strainer -Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

GG 24K851

GG 24K852

GG 24K853

GG 24K854

GG 24K856

GG 24K858

GG 24K861

GG 24K864

GG 24K866

GG 24K867

GG 24K868

GG 24K869

GG 24K870

GG 24P313

XD SERIES 40 REEL, BARE, D SPRING, BLUE

Graco 24P313 XD40â„¢, Air/Water, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Metallic Blue

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water

• Bare Reel: 1

• Color: Metallic Blue

• Dry Weight (lb): 116

• Frame Type: Box Frame

• Hose Inside Diameter (in): 1
• Hose Inside Diameter (mm): 25.4
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Bare Reel
• Includes Hose: No
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 600

• Outlet Size (in): 1
• Outlet Size (mm): 25.4

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water

GG 24P315

XD SERIES 40 REEL, BARE, D SPRING, YEL

GG 24P316

XD SERIES 40 REEL, BARE, D SPRING, WHT

GG 24P317

XD SERIES 40 REEL, BARE, C SPRING, BLU

GG 24P318

XD SERIES 40 REEL, BARE, C SPRING, YEL

GG 24P319

XD SERIES 40 REEL, BARE, C SPRING, WHT

Graco 24P319 XD40â„¢, Air/Water/Diesel Fuel/WOE, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water, Diesel Fuel, WOE

• Bare Reel: 1

• Color: White

• Dry Weight (lb): 125

• Frame Type: Box Frame

• Hose Inside Diameter (in): 1
• Hose Inside Diameter (mm): 25.4
• Hose Length (ft): 50
• Hose Length (m): 15

• Hose Reel Type: Bare Reel
• Includes Hose: No
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 600

• Outlet Size (in): 1
• Outlet Size (mm): 25.4

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water, Diesel Fuel, WOE

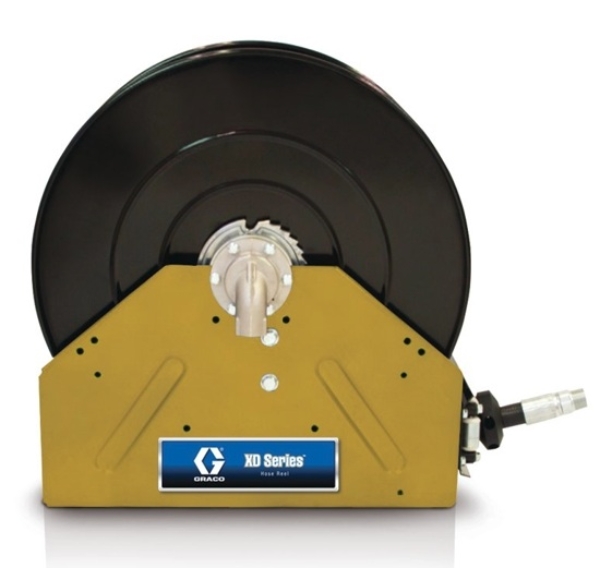

GG 24P322

XD SERIES 40 REEL, BARE, C SPRING, MP, YEL

GG 24P324

XD SERIES 40 REEL, BARE, A SPRING, BLU

Graco 24P324 XD40â„¢, Oil, 1 in. (25 mm) Inlet, Bare Reel (3/4 in. X 100 ft. (19 mm X 30 m) Capacity), NPT, Metallic Blue

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Oil

• Bare Reel: 1

• Color: Metallic Blue

• Dry Weight (lb): 152

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Bare Reel
• Includes Hose: No
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 2000

• Outlet Size (in): 1
• Outlet Size (mm): 25.4

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 17.47
• Overall Width (mm): 444

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

GG 24P325

XD SERIES 40 REEL, BARE, A SPRING, YEL

Graco 24P325 XD40â„¢, Oil, 1 in. (25 mm) Inlet, Bare Reel (3/4 in. X 100 ft. (19 mm X 30 m) Capacity), NPT, Yellow

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Oil

• Bare Reel: 1

• Color: Yellow

• Dry Weight (lb): 152

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Bare Reel
• Includes Hose: No
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 2000

• Outlet Size (in): 1
• Outlet Size (mm): 25.4

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 17.47
• Overall Width (mm): 444

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

GG 24P326

XD SERIES 40 REEL, BARE, A SPRING, WHT

Graco 24P326 XD40â„¢, Oil, 1 in. (25 mm) Inlet, Bare Reel (3/4 in. X 100 ft. (19 mm X 30 m) Capacity), NPT, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Oil

• Bare Reel: 1

• Color: White

• Dry Weight (lb): 152

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Bare Reel
• Includes Hose: No
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 2000

• Outlet Size (in): 1
• Outlet Size (mm): 25.4

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 17.47
• Overall Width (mm): 444

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

GG 24P327

XD SERIES 40 REEL, 1/2 X 100 A/W, BLUE

GG 24P328

XD SERIES 40 REEL, 1/2 X 100 A/W, YEL

GG 24P329

XD SERIES 40 REEL, 1/2 X 100 A/W, WHT

Graco 24P329 XD40â„¢, Air/Water, 1 in. (25 mm) Inlet, 1/2 in. X 100 ft. (13 mm X 30 m) Hose, NPT, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water

• Color: White

• Dry Weight (lb): 116

• Frame Type: Box Frame

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 300

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water

GG 24P330

XD SERIES 40 REEL, 3/4 X 75 A/W, BLUE

GG 24P331

XD SERIES 40 REEL, 3/4 X 75 A/W, YEL

GG 24P333

XD SERIES 40 REEL, 3/4 X 100 A/W, BLUE

Graco 24P333 XD40â„¢, Air/Water, 1 in. (25 mm) Inlet, 3/4 in. X 100 ft. (19 mm X 30 m) Hose, NPT, Metallic Blue

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water

• Color: Metallic Blue

• Dry Weight (lb): 125

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 300

• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water

GG 24P332

XD SERIES 40 REEL, 3/4 X 75 A/W, WHT

Graco 24P332 XD40â„¢, Air/Water, 1 in. (25 mm) Inlet, 3/4 in. X 75 ft. (19 mm X 23 m) Hose, NPT, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water

• Color: White

• Dry Weight (lb): 116

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 75
• Hose Length (m): 23

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 300

• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water

GG 24P334

XD SERIES 40 REEL, 3/4 X 100 A/W, YEL

Graco 24P334 XD40â„¢, Air/Water, 1 in. (25 mm) Inlet, 3/4 in. X 100 ft. (19 mm X 30 m) Hose, NPT, Yellow

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water

• Color: Yellow

• Dry Weight (lb): 125

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 300

• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water

GG 24P335

XD SERIES 40 REEL, 3/4 X 100 A/W, WHT

Graco 24P335 XD40â„¢, Air/Water, 1 in. (25 mm) Inlet, 3/4 in. X 100 ft. (19 mm X 30 m) Hose, NPT, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Air, Water

• Color: White

• Dry Weight (lb): 125

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 300

• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Air, Water

GG 24P336

XD SERIES 40 REEL, 1 X 50 A/W, BLUE

GG 24P337

XD SERIES 40 REEL, 1 X 50 A/W, YEL

GG 24P338

XD SERIES 40 REEL, 1 X 50 A/W, WHT

GG 24P339

XD SERIES 40 REEL, 1/2 X 100 OIL, BLUE

GG 24P340

XD SERIES 40 REEL, 1/2 X 100 OIL, YEL

GG 24P341

XD SERIES 40 REEL, 1/2 X 100 OIL, WHT

Graco 24P341 XD40â„¢, Oil, 1 in. (25 mm) Inlet, 1/2 in. X 100 ft. (13 mm X 30 m) Hose, NPT, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Oil

• Color: White

• Dry Weight (lb): 152

• Frame Type: Box Frame

• Hose Inside Diameter (in): 1/2
• Hose Inside Diameter (mm): 12.7
• Hose Length (ft): 100
• Hose Length (m): 30

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 2000

• Outlet Size (in): 1/2
• Outlet Size (mm): 12.7

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 17.47
• Overall Width (mm): 444

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

GG 24P342

XD SERIES 40 REEL, 3/4 X 75 OIL, BLUE

GG 24P343

XD SERIES 40 REEL, 3/4 X 75 OIL, YEL

GG 24P344

XD SERIES 40 REEL, 3/4 X 75 OIL, WHT

Graco 24P344 XD40â„¢, Oil, 1 in. (25 mm) Inlet, 3/4 in. X 75 ft. (19 mm X 23 m) Hose, NPT, Truck/Bench Only, White

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

• Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
• Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
• Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul

• Model: XD
• Series: 40

• Application: Oil

• Color: White

• Dry Weight (lb): 125

• Frame Type: Box Frame

• Hose Inside Diameter (in): 3/4
• Hose Inside Diameter (mm): 19.05
• Hose Length (ft): 75
• Hose Length (m): 23

• Hose Reel Type: Reel with Hose
• Includes Hose: Yes
• Inlet Size (in): 1
• Inlet Size (mm): 25.4

• Inlet Thread Type: NPT

• Maximum Working Pressure (psi): 1500

• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05

• Overall Height (in): 26.13
• Overall Height (mm): 664
• Overall Length (in): 26.4
• Overall Length (mm): 671
• Overall Width (in): 16.54
• Overall Width (mm): 420

• Recommended Environment: Indoor, Outdoor
• Recommended Fluid Type: Oil

GG 24P346

XD SERIES 40 REEL, 3/4 X 100 OIL, YEL

GG 24P348

XD SERIES 40 REEL, 1 X 50 OIL, BLUE

GG 24V469

GG 24V473

GG 24V474

GG 24V499

GG 24V500

GG 24V504

GG 24V505

GG 24V522

GG 24V532

GG 24V533

GG 24V539

GG 24V540

GG 24V560

GG 24V561

GG 24V562

GG 24V563

GG 24V564

GG 24V565

GG 24V566

GG 24V582

GG 24V596

GG 24Y499

LUBEPRO H1900 PUMP, LL

Graco 24Y499 LubePro H1900 Horizontal Oil Pump, Low Level - NPT

Without proper lubrication your factory's machines can suffer from downtime and reduced life, which impacts your company's bottom line. Avoid the hassle. LubePro series leverages the same proven quality and leading technology as Graco's Fire-Ball® pump - the leader in durability and quality for over 50 years.

• LubePro H1900 is compatible with GL-42 and GL-43 injectors
• Pressure Ratio of 19:1
• H1900 delivers a greater output than competitive models at 3.0 in³ (49.2 cm³) per stroke
• Pneumatic power makes it easy to install into existing air line
• Optional Low Level Detection available, factory installed
• Built with high-quality seals tested to outperform the competition
• Optimally lubricates while your machines are running
• Provides accurate, reliable lubrication for every lube point
• Provides higher lube output and faster lubrication cycle

• Model: LubePro
• Series: H1900

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Application: In-Plant Machinery

• Compatible Material: Oil
• Compatible Metering Device: Series Progressive, Single Line Parallel

• Fluid Outlet Size (in): 0.25
• Fluid Outlet Size (mm): 6.3500
• Fluid Outlet Thread Type: NPT

• Includes: Low Level

• Maximum Air Inlet Pressure (bar): 12.76
• Maximum Air Inlet Pressure (kPa): 1276
• Maximum Air Inlet Pressure (psi): 185

• Maximum Fill Inlet Pressure (bar): 5.52
• Maximum Fill Inlet Pressure (kPa): 552
• Maximum Fill Inlet Pressure (psi): 80

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24.1
• Maximum Working Pressure (psi): 3500

• Minimum cST Grade (cST): 40

• Overall Width (cm): 39.4
• Overall Width (in): 15.5
• Overall Width (mm): 394

• Power Type: Pneumatic

GG 24Y509

GG 24Y510

GG 24Y511

GG 24Y513

GG 24Y520

GG 24Y521

GG 24Y522

GG 24Y526

KIT, CENTER SCECTION (SST)

GG 24Y527

GG 24Y531

GG 24Y532

GG 24Y533

GG 24Y534

GG 24Y536

GG 24Y537

GG 24Y538

GG 24Y540

GG 24Y543

GG 24Y544

GG 24Y545

GG 24Y547

GG 24Y549

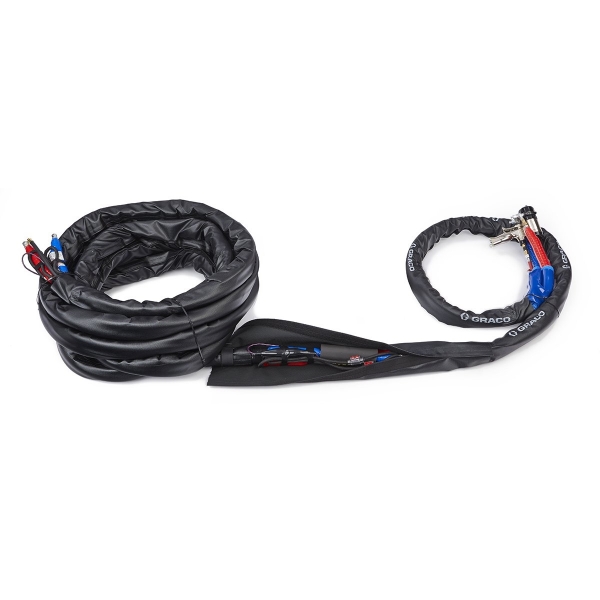

REACTOR HEATED HOSE, X-WRAP, 3/8, 50'

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

New multi-strand copper heating element has greatly increased hose quality:

• Provides 10-times* the flex life compared to previous flat copper heating element
• Long-term, even heating without hot spots
• Backwards compatible with existing Reactor heated hoses

New Xtreme-Wrap Scuff Guard

• Form fitting to the hose, no more baggy excess material
• Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
• Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
• Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors

Joint Protectors

• Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.

GG 24Y565

GG 24Y566

GG 24Y575
