MHH VALVE, CHECK, 1/8 NPT, REV, 5000

GG 563200

MHH VALVE, CHECK, 1/8 NPT, REV, 5000

Graco 563200 Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPSF (F) x 1/8 in NPTF (M), Steel, 5,000 psi

Lubriquip part number 509-355-030
Trabon part number 9355-35

Application: Compressor Equipment

Ball Material: Steel
Body Material: Steel
Compatible Material: Oil, Grease
Inlet Size (cm): 0.3175
Inlet Size (in): 1/8
Inlet Size (mm): 3.175
Inlet Thread Gender: Female
Inlet Thread Type: NPT
Maximum Working Pressure (bar): 345
Maximum Working Pressure (kPa): 34500
Maximum Working Pressure (MPa): 34.5
Maximum Working Pressure (psi): 5000
Number of Balls: Single Ball
Outlet Size (cm): 0.3175
Outlet Size (in): 1/8
Outlet Size (mm): 3.175
Outlet Thread Gender: Female
Outlet Thread Type: NPS

$52.00

VALVE, CHECK 1/8 250 PSI

GG 563198

VALVE, CHECK 1/8 250 PSI

Single Ball Check Valve - 250 psi Nominal Cracking Pressure, 1/8 in NPTF (M) x 1/8 in NPSF (F), Steel, 5,000 psi

Single Ball Check Valve

250 psi nominal cracking pressure

1/8 inch (3.2 mm) NPTF (M) x 1/8 inch (3.2 mm) NPSF (F)

steel body/ball

5,000 psi max

Lubriquip part number 509-350-250 Trabon part number 9350-250

$27.90

VALVE, CHECK, 1/4 NPT, 35

GG 563207

VALVE, CHECK, 1/4 NPT, 35

Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/4 in NPTF (M) x 1/4 in NPSF (F), Steel, 5,000 psi

Double Ball Check Valve

35 psi nominal cracking pressure

1/4 inch (6.4 mm) NPTF (M) x 1/4 inch (6.4 mm) NPSF (F)

steel body/ball

5,000 psi max

Lubriquip part number 509-360-030 Trabon part number 9360-35

$33.20

SWIVEL, 180 1/8 PORT NITRILE

GG 563150

SWIVEL, 180 1/8 PORT NITRILE

Compact 180º Straight Swivel - 1/8 inch, Nitrile

180º Compact Swivel - 1/8 inch (3.2 mm)

Lubriquip part number 501-258-000 Trabon part number 1258

$39.00

FILTER, SPIN-ON 25 MICRON NPT

GG 563096

FILTER, SPIN-ON 25 MICRON NPT

Spin-On Filter Assembly - 25 Micron, NPT, External 150 psi Relief

25 micron Spin-On Filter Assembly, NPT, External 150 psi (10.3 bar) Relief

Lubriquip part number 473-000-275

$178.50

Automatic Relief Indicator for MSP, MXP, MHH and MJ Divider Valves, 2000 PSI

GG 563167

Automatic Relief Indicator for MSP, MXP, MHH and MJ Divider Valves, 2000 PSI

$31.60

SWIVEL, BALL 1/8 180

GG 563213

SWIVEL, BALL 1/8 180

Graco 563213 180º Straight Swivel - 1/8 inch (3.2 mm)

180º Straight Swivel - 1/8 inch (3.2 mm)
Lubriquip part number 509-402-000
Trabon part number 9402

Angle (°): 180

Connection Type: Threaded
For Use With: Pipe
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 20.7
Maximum Working Pressure (psi): 3000

$66.75

TUBE, RESV REPLACE 12LB PLSTC

GG 562902

TUBE, RESV REPLACE 12LB PLSTC

Modu-Flo and E-Pump Spare Parts and Accessories - 12 pt./lb. Plastic Replacement Reservoir Assembly, 6 in OD x 13 in long

Reservoir Repair Kits - Plastic tube with u-cup seal for part numbers 562892 and 562896

Lubriquip part number 185-100-730

$419.00

VALVE, CHECK REVERSE 1/4 35 PSI

GG 563211

VALVE, CHECK REVERSE 1/4 35 PSI

Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/4 in NPSF (F) x 1/4 in NPTF (M), Steel, 5,000 psi

Single Ball Check Valve

35 psi nominal cracking pressure

1/4 inch (6.4 mm) NPSF (F) x 1/4 inch (6.4 mm) NPTF (M)

steel body/ball

5,000 psi max

Lubriquip part number 509-365-030 Trabon part number 9365-35

$43.90

MSA-100 PUMP, ASSY

GG 562855

MSA-100 PUMP, ASSY

MSA-100™ Pneumatic Pump

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.

Ideal for applications where space is a premium Handles high pressure lubricant feed of direct line intake Used with or without a reservoir for the ultimate flexibility Lubriquip part number 140-000-171

$2,690.00

VALVE, RESTRICTOR VLV

GG 563072

VALVE, RESTRICTOR VLV

Graco 563072 Air Inlet Restrictor Valve for MSA-10 and MSA-100

Application: For use with MSA-10 and MSA-100 Pumps.

Air Inlet Restrictor Valve
Lubriquip part number 463-410-080

$151.00

VALVE, CHECK, 1/8 NPT, 5000

GG 563196

VALVE, CHECK, 1/8 NPT, 5000

Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPTF (M) x 1/8 in NPSF (F), Steel, 5,000 psi

Single Ball Check Valve

35 psi nominal cracking pressure

1/8 inch (3.2 mm) NPTF (M) x 1/8 inch (3.2 mm) NPSF (F)

steel body/ball

5,000 psi max

Lubriquip part number 509-350-030 Trabon part number 9350-35

$26.80

MODEL 25 PUMP, ASSY, .312, DIA

GG 562950

MODEL 25 PUMP, ASSY, .312, DIA

Graco 562950 Manzel® Model 25 Compressor Lubricator Replacement Pump, 5/16 in (7.9 mm), 1000 psi (69 bar)

Provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.

General-purpose lubrication: automatic, precision metering for all types of machinery
Clear-Vue pumping unit shows amount of lubricant being pumped
Self-contained, removable pumping unit. All units interchangeable - remove two pump screws and lift out
Lubriquip part number 321-410-015
Manzel part number 60050-B

Model: Manzel
Series: Model 25

Compatible Material: Oil
Drive Option: Direct Rotary
Lubricator Feed Type: Force Feed
Maximum Drive Speed (RPM): 60
Maximum Fluid Viscosity (SUS): 5000
Maximum Number of Drops Per Stroke (drops/stroke): 12
Maximum Working Pressure (bar): 69
Maximum Working Pressure (kPa): 6900
Maximum Working Pressure (psi): 1000
Minimum Drive Speed (RPM): 3
Minimum Fluid Viscosity (SUS): 100
Minimum Number of Drops Per Stroke (drops/stroke): 0.25
Outlet Size (cm): 0.635
Outlet Size (in): 1/4
Outlet Size (mm): 6.35
Outlet Thread Gender: Female
Outlet Thread Type: NPS
Overall Depth (cm): 65
Overall Depth (in): 25.59
Overall Depth (mm): 650
Overall Height (cm): 21.6
Overall Height (in): 8.50
Overall Height (mm): 215.9
Overall Width (cm): 15.24
Overall Width (in): 6
Overall Width (mm): 152.4
Piston Size (cm): 0.79
Piston Size (in): 0.31
Piston Size (mm): 7.9
Pump Size (cm): 0.8
Pump Size (in): 5/16
Pump Size (mm): 8

$700.00

SWIVEL, BALL 1/4 90

GG 563214

SWIVEL, BALL 1/4 90

Graco 563214 90º Angle Swivel - 1/4 inch (6.4 mm)

90º Angle Swivel - 1/4 inch (6.4 mm)
Lubriquip part number 509-405-000
Trabon part number 9405

Angle (°): 90

Connection Type: Threaded

$69.75

SWIVEL, BALL 1/4 180

GG 563215

SWIVEL, BALL 1/4 180

Graco 563215 180º Straight Swivel - 1/4 inch (6.4 mm)

180º Straight Swivel - 1/4 inch (6.4 mm)
Lubriquip part number 509-406-000
Trabon part number 9406

Angle (°): 180

$76.75

INDICATOR, RUPTURE PIN, 1/8 NPSF-ORB, 6400 PSI

GG 563226

INDICATOR, RUPTURE PIN, 1/8 NPSF-ORB, 6400 PSI

Trabon® Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 6400 psi (441 bar)

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).

High pressure from blockage causes a disc to rupture Lubricant forces an indicator pin to protrude, indicating the blockage High pressure backs up through the system and trips a switch to shut the system off When fault is corrected, disc must be replaced and pin reset Lubriquip part number 509-499-165

$75.75

SWIVEL, BALL 1/8 90

GG 563212

SWIVEL, BALL 1/8 90

90º Angle Swivel - 1/8 inch (3.2 mm)

Lubriquip part number 509-400-000 Trabon part number 9400

$62.75

INDICATOR, RUPTURE PIN, 1/8 NPTF, 5500 PSI

GG 563223

INDICATOR, RUPTURE PIN, 1/8 NPTF, 5500 PSI

Trabon® Replacement Rupture Indicator, 1/8-27 NPTF, 5500 psi (379 bar)

Trabon Performance Indicators are pressure-sensitive devices that pinpoint excessive pressure in Trabon series progressive lubricating systems. These devices, which are installed in the alternate outlet ports of divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant to the atmosphere. All Performance Indicators respond quickly to protect the lube system and locate lube line blockage.

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar). High pressure from blockage causes a disc to rupture. Lubricant forces an indicator pin to protrude, indicating the blockage. High pressure backs up through the system and trips a switch to shut the system off. When fault is corrected, disc must be replaced and pin reset. Divider Valve Rupture Indicators w/Memory - 5,500 psi (379 bar) Lubriquip part number 509-499-140 Trabon part number 9499-14

$68.00

MHH VALVE, BALANCING, 1/8-27

GG 563230

MHH VALVE, BALANCING, 1/8-27

Graco 563230 Balancing Valve, 1/8-27

Lubriquip part number 509-510-000
Trabon part number 9510

Adjustable: Adjustable

Compatible Material: Oil
Inlet Size (cm): 0.3175
Inlet Size (in): 1/8
Inlet Size (mm): 3.175
Inlet Thread Type: NPSF
Material: Steel
Maximum Working Pressure (bar): 448
Maximum Working Pressure (kPa): 44800
Maximum Working Pressure (MPa): 44.8
Maximum Working Pressure (psi): 6500
Outlet Size (cm): 0.3175
Outlet Size (in): 1/8
Outlet Size (mm): 3.175
Outlet Thread Type: NPSF
Overall Height (cm): 3.81
Overall Height (in): 1.5
Overall Height (mm): 38.1
Overall Length (cm): 10
Overall Length (in): 3.834
Overall Length (mm): 97
Overall Width (cm): 2.54
Overall Width (in): 1
Overall Width (mm): 25.4

$537.00

INDICATOR, MAN RESET 1500 PS MJ/MSP

GG 563235

INDICATOR, MAN RESET 1500 PS MJ/MSP

Reset Indicator with Memory, 1500 psi (103 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

Provides quick troubleshooting tool with visual indication No tools for reset or parts to replace after indication Easy information on blocked lines, high system pressure or blocked bearings Lubriquip part number 509-931-050

$26.70

INDICATOR, MAN RESET 500 PS MJ/MSP

GG 563232

INDICATOR, MAN RESET 500 PS MJ/MSP

Graco 563232 Reset Indicator with Memory, 500 psi (35 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

Provides quick troubleshooting tool with visual indication
No tools for reset or parts to replace after indication
Easy information on blocked lines, high system pressure or blocked bearings

Model: Trabon

Application: On-Road Vehicles, Off-Road Equipment
Compatible Material: Oil, Grease
Connection Size (in): 0.125
Indicator Type: Reset Indicator with Memory
Maximum Working Pressure (bar): 34
Maximum Working Pressure (kPa): 3400
Maximum Working Pressure (MPa): 3
Maximum Working Pressure (psi): 500

$26.70

INDICATOR, MAN RESET 2500 PS MJ/MSP

GG 563237

INDICATOR, MAN RESET 2500 PS MJ/MSP

Reset Indicator with Memory, 2500 psi (172 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

$26.70

INDICATOR, MAN RESET 1000 PS MJ/MSP

GG 563234

INDICATOR, MAN RESET 1000 PS MJ/MSP

Graco 563234 Reset Indicator with Memory, 1000 psi (69 bar), 1/8 NPTF - MJ, MH, MS, MXP Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

Provides quick troubleshooting tool with visual indication
No tools for reset or parts to replace after indication
Easy information on blocked lines, high system pressure or blocked bearings

Model: Trabon

Application: On-Road Vehicles, Off-Road Equipment
Compatible Material: Oil, Grease
Connection Size (in): 0.125
Indicator Type: Reset Indicator with Memory
Maximum Working Pressure (bar): 69
Maximum Working Pressure (kPa): 6900
Maximum Working Pressure (MPa): 7
Maximum Working Pressure (psi): 1000

$26.70

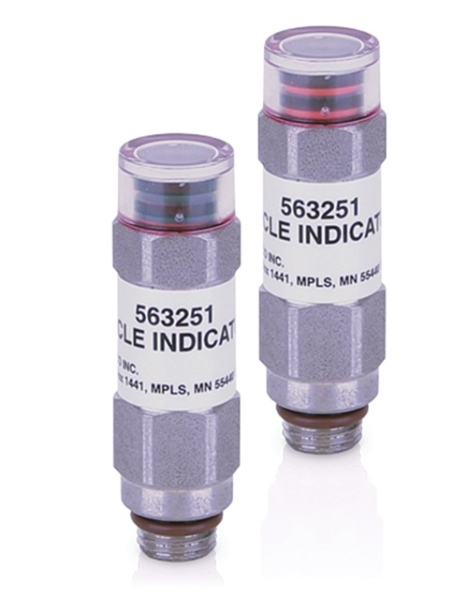

INDICATOR, CYCLE

GG 563251

INDICATOR, CYCLE

MSP and MHH Divider Valves - Visual Cycle Indicator

The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.

For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar). Makes physical contact with valve piston Polycarbonate housing allows for clear view of red indicator ring All parts are captured FKM o-ring seal for broad compatibility with synthetic oils and greases Replaces Lubriquip part number 509-932-522

$125.00

INDICATOR, MANUAL RESET, O-RING, 2500 PSI

GG 563258

INDICATOR, MANUAL RESET, O-RING, 2500 PSI

Graco 563258 Reset Indicator with Memory, 2500 psi (172 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

Provides quick troubleshooting tool with visual indication
No tools for reset or parts to replace after indication
Easy information on blocked lines, high system pressure or blocked bearings

Model: Trabon

Application: On-Road Vehicles, Off-Road Equipment, Compressor Equipment
Compatible Material: Oil, Grease
Connection Size (in): 0.125
For Use With: MSP, MXP, and MHH Divider Valves
Indicator Type: Reset Indicator with Memory
Maximum Working Pressure (bar): 172
Maximum Working Pressure (kPa): 17200
Maximum Working Pressure (MPa): 17
Maximum Working Pressure (psi): 2500

$26.70

SWITCH, SW BLOWOUT HI PRESS P3

GG 563326

SWITCH, SW BLOWOUT HI PRESS P3

Graco 563326 High Pressure Blowout Switch for 5.68 liter (12 pt.) and 9.46 liter (20 pt.) or 5.44 kg (12 lb.) and 9.06 kg (20 lb.) Reservoirs

Application: For use with Modu-Flo Pneumatic Pumps.

High Pressure Blowout Switch for 5.68 litre (12 pt.) and 9.46 litre (20 pt.) or 5.44 kg (12 lb.) and 9.06 kg (20 lb.) Reservoirs
Lubriquip part number 521-001-200

Model: Modu-Flo

Compatible Material: Oil, Grease
For Use With: Modu-Flo 12 and 20 pt (5.7 and 9.5 L) or 12 and 20 lb (5.4 and 9.1 kg) cylindrical reservoirs
Maximum Working Pressure (bar): 100
Maximum Working Pressure (kPa): 10000
Maximum Working Pressure (MPa): 10
Maximum Working Pressure (psi): 1450

$619.00

INDICATOR, MANUAL RESET, O-RING, 2000 PSI

GG 563257

INDICATOR, MANUAL RESET, O-RING, 2000 PSI

Reset Indicator with Memory, 2000 psi (138 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

$26.70

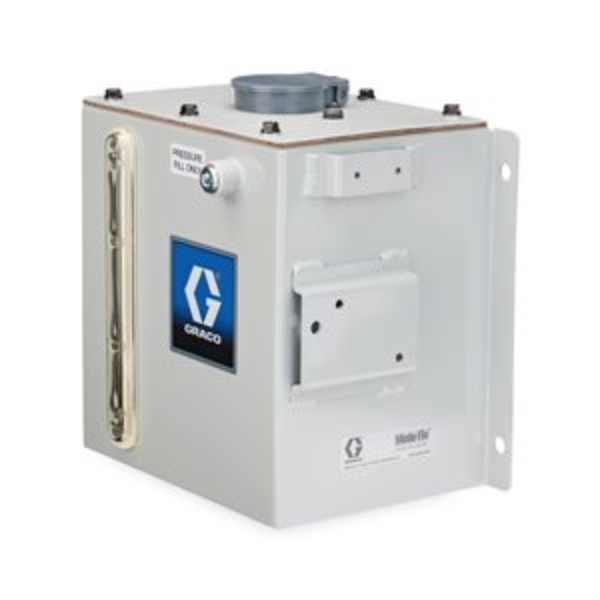

RESERVOIR, TANK 12PT T1

GG 563319

RESERVOIR, TANK 12PT T1

Graco 563319 12 pt. (5.67 liter) Rectangular Oil Reservoir - Metal

Application: For use with Modu-Flo and E-Series Pumps.

12 pt (5.67 liter) Rectangular - Metal
Lubriquip part number 521-001-060

Model: Trabon

Application: Compressor Equipment
Compatible Material: Oil
Material: Metal

$959.00

KIT, ACCESSORY, L/L, 5/12 PT

GG 563316

KIT, ACCESSORY, L/L, 5/12 PT

Modu-Flo Low Level Switch Assemblies - 15 Amp Low Level Switch for 5 and 12 pt. Cylindrical Oil Reservoirs, SPDT

15 amp Low Level Switch for 5 and 12 pt Cylindrical Oil Reservoirs, SPDT

Lubriquip part number 521-001-030

$377.00

INDICATOR, RESET 3000 PSI 1/8 NPSF

GG 563261

INDICATOR, RESET 3000 PSI 1/8 NPSF

Graco 563261 Reset Indicator with Memory, 3000 psi (207 bar), 1/8 NPSF with O-Ring - MH, MS, MXP Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

Provides quick troubleshooting tool with visual indication
No tools for reset or parts to replace after indication
Easy information on blocked lines, high system pressure or blocked bearings

Model: Trabon

Application: On-Road Vehicles, Off-Road Equipment, Compressor Equipment
Compatible Material: Oil, Grease
Connection Size (in): 0.125
Indicator Type: Reset Indicator with Memory
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20700
Maximum Working Pressure (MPa): 21
Maximum Working Pressure (psi): 3000

$27.90

SWITCH, BLOWOUT HI PRESS P4

GG 563327

SWITCH, BLOWOUT HI PRESS P4

Graco 563327 High Pressure Blowout Switch for all Rectangular Reservoirs

Application: For use with Modu-Flo Pumps.

High Pressure Blowout Switch for all Rectangular Reservoirs
Lubriquip part number 521-001-210

Model: Modu-Flo

Compatible Material: Oil, Grease
For Use With: Modu-Flo Tanks and Reservoirs
Maximum Working Pressure (bar): 100
Maximum Working Pressure (kPa): 10000
Maximum Working Pressure (MPa): 10
Maximum Working Pressure (psi): 1450

$648.00

INDICATOR, MANUAL RESET, O-RING, 1000 PSI

GG 563255

INDICATOR, MANUAL RESET, O-RING, 1000 PSI

Reset Indicator with Memory, 1000 psi (69 bar), 1/8 NPSF with O-Ring for MSP, MXP, and MHH Divider Valves

Easy information on blocked lines, high system pressure or blocked bearings.

$26.70

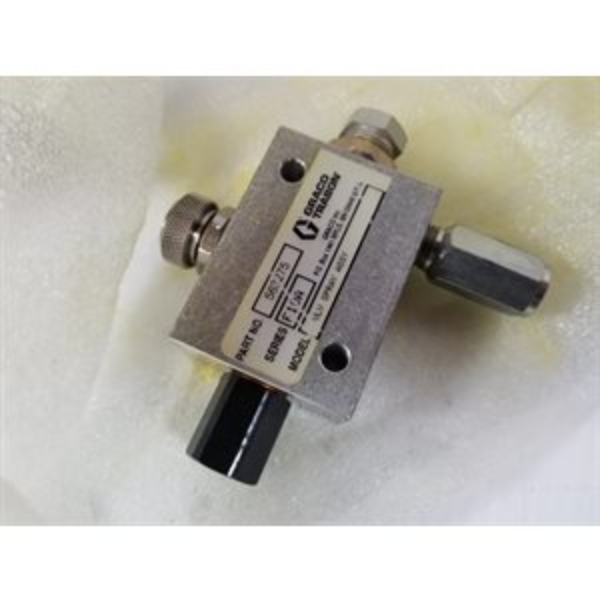

SPRA VALVE, SPRAY 4 IN DIA

GG 563275

SPRA VALVE, SPRAY 4 IN DIA

Graco 563275 Air-lube Control Valve and Nozzle Assembly - 4 in. spray diameter, normal

Conserves air–air required only during spray interval
Versatile–can be used with any centralized lube system or mechanical oiler and will handle grease or oil
External mix nozzle purges itself and prevents clogging
4 in. spray diameter, normal
Lubriquip part number 510-652-000
Trabon part number 10652

Compatible Material: Oil, Grease

Maximum Air Pressure (bar): 11
Maximum Air Pressure (kPa): 1100
Maximum Air Pressure (psi): 150
Maximum Fan Width (in): 4
Maximum Fan Width (mm): 102
Maximum NLGI Grade: #2
Overall Width (cm): 2.54
Overall Width (in): 1
Overall Width (mm): 25.4

$884.00

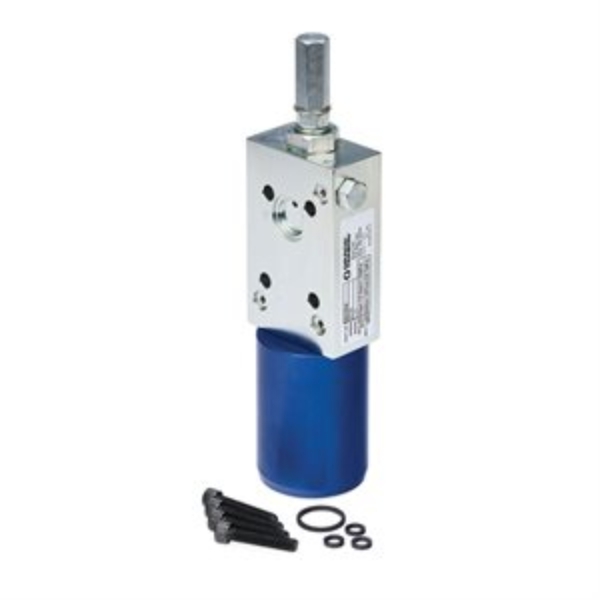

MODU-FLO PUMP, ASSEMBLY, AL-5M

GG 563304

MODU-FLO PUMP, ASSEMBLY, AL-5M

Modu-Flo® AL-5M Pneumatic Pump without Reservoir

Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.

Easy to standardize on components and reduce inventory Adjustable pump output for fast, convenient customizing Lubriquip part number 521-000-001

$903.00

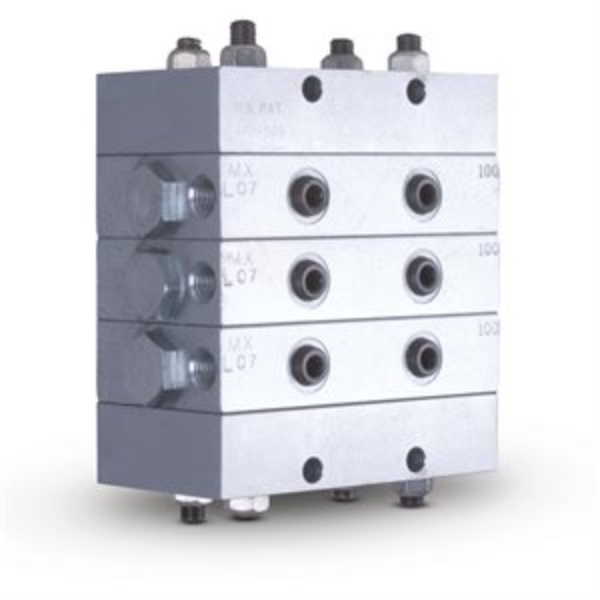

BLOCK, END MACH MX

GG 563287

BLOCK, END MACH MX

Graco 563287 Trabon® MX Divider Valve - MX End

Application: For use with Trabon® MX Divider Valves.

MX end
Lubriquip part number 510-921-004

Model: Trabon
Series: MX

Application: In-Plant Machinery

$368.00

MODU-FLO PUMP, ASSY, AL-50

GG 563308

MODU-FLO PUMP, ASSY, AL-50

Graco 563308 Modu-Flo® AL-50 Pneumatic Pump without Reservoir

Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.

Easy to standardize on components and reduce inventory
Adjustable pump output for fast, convenient customizing
Lubriquip part number 521-000-041

Model: Modu-Flo
Series: AL-50

Application: In-Plant Machinery
Compatible Material: Oil, Grease
Compatible Metering Device: Series Progressive
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Cycle Rate (CPM): 30
Maximum Fluid Output Pressure (bar): 241
Maximum Fluid Output Pressure (psi): 3500
Maximum Fluid Output Pressure (bar): 241
Maximum Fluid Output Pressure (psi): 3500
Maximum NLGI Grade: #2
Maximum Working Pressure (bar): 207
Maximum Working Pressure (kPa): 20680
Maximum Working Pressure (MPa): 31
Maximum Working Pressure (psi): 3000
Overall Depth (cm): 8.1
Overall Depth (in): 3.188
Overall Depth (mm): 81
Overall Height (cm): 8.1
Overall Height (in): 3.188
Overall Height (mm): 81
Overall Width (cm): 32.5
Overall Width (in): 12.812
Overall Width (mm): 325
Power Type: Pneumatic

$1,380.00

VALVE, SOL ASSY 3-WAY

GG 563315

VALVE, SOL ASSY 3-WAY

Graco 563315 Trabon® Accessories - 3-way pneumatic solenoid valve, 115 VAC

Application: For use with LubriSystem®, Modu-Flo and E-Series Pneumatic Pumps.

3-Way Pneumatic Solenoid Valve, 115 VAC
Lubriquip part number 521-001-020

Compatible Material: Oil, Grease

Maximum NLGI Grade: #2

$510.00

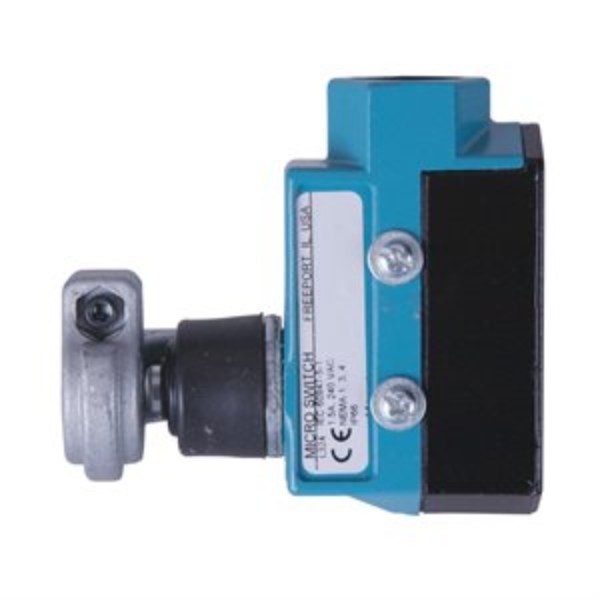

SWITCH, CYCLE, SPDT

GG 563272

SWITCH, CYCLE, SPDT

Graco 563272 Cycle Switch (SPDT) and Bracket Assembly - MJ, MSP and MXP Divider Valves

Monitors piston movement to ensure completed lubrication cycle–must have cycle indicator pin

Provides positive feedback based on actual metering piston movement
Mounts to MJ, MSP, MXP, or MX divider with cycle pin option with simple install
Able to be set for normally open or normally closed operation
Trabon part number 10599

$310.00

MODU-FLO PUMP, ASSY AL-25

GG 563306

MODU-FLO PUMP, ASSY AL-25

Modu-Flo® AL-25 Pneumatic Pump without Reservoir

Mix and match pumps, reservoir and manifolds in any configuration to meet any application. Replace the pump or reservoir without disconnecting lubrication lines.

Easy to standardize on components and reduce inventory Adjustable pump output for fast, convenient customizing Lubriquip part number 521-000-021

$925.00

MANIFOLD, ASSY RESV TO PUMP

GG 563324

MANIFOLD, ASSY RESV TO PUMP

Graco 563324 Pump-to-Reservoir Manifold for Modu-Flo Pumps, NPT, Dry Gauge, Fill Check, Outlet Check, Blowout

Application: For use with Modu-Flo Pumps.

Pump/Reservoir Manifold (NPT) w/Outlet Check Valve, System Fill Check Valve, Blowout Assembly, 0-3,000 psi Pressure Gauge
Lubriquip part number 521-001-180

Model: Trabon

Includes: Outlet Check Valve, System Fill Check Valve, Blowout Assembly, Pressure Gauge

$378.00

SWITCH, LL GRS RESV

GG 563322

SWITCH, LL GRS RESV

Graco 563322 Low Level Switch, 15 Amp, for all Grease Reservoirs

Application: For use with Modu-Flo, E-Series, LubriSystem and Lube Master Pumps.

Low Level Switch for 5, 6, 12 and 20 pt Cylindrical Grease Reservoirs
Lubriquip part number 521-001-110

Inlet Size (cm): 1.2700
Inlet Size (in): 0.5
Inlet Size (mm): 12.7000

Inlet Thread Type: NPT

$184.50

Modu-Flo Pump, Assembly, Hlj-25M

GG 563307

Modu-Flo Pump, Assembly, Hlj-25M

$991.00

VALVE, SOL ASSY 24VDC

GG 563332

VALVE, SOL ASSY 24VDC

Graco 563332 Trabon® Accessories - 3-way pneumatic solenoid valve, 24 VDC

Application: For use with LubriSystem®, Modu-Flo and E-Series Pneumatic Pumps.

3-Way, 24 VDC Solenoid Valve
Lubriquip part number 521-002-100

Compatible Material: Oil, Grease

Maximum NLGI Grade: #2

$510.00

KIT, ACCESSORY, L/L, 12/24/40 PT

GG 563318

KIT, ACCESSORY, L/L, 12/24/40 PT

Modu-Flo Low Level Switch Assemblies - 15 Amp Low Level Switch for 6 pt. Cylindrical Oil Reservoirs and all Tank Reservoirs, SPDT

15 amp Low Level Switch for 6 pt Cylindrical Oil Reservoirs and all Tank Reservoirs, SPDT

Lubriquip part number 521-001-050

$364.00

E-SERIES PUMP, 1/4NPSF

GG 563358

E-SERIES PUMP, 1/4NPSF

Graco 563358 E-Series™ Pump Only - with 1750 psi (121 bar) Rupture Disc

The E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products. This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve. Great for any application where price is a concern and installation time is at a premium.

Easy field installation of accessories without disturbing existing plumbing
Smart pump design with few moving parts ensures long-lasting dependability
Lubriquip part number 521-300-180

Model: E-Series

Application: In-Plant Machinery
Compatible Material: Oil, Grease
Compatible Metering Device: Series Progressive
Fluid Outlet Size (in): 0.5
Fluid Outlet Size (mm): 12.7000
Fluid Outlet Thread Type: NPSF
Includes: E-Series Pump, Rupture Disc
Material: Aluminum, Plastic
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum cST Grade (cST): 30000
Maximum Cycle Rate (CPM): 10
Maximum Fluid Output Pressure (bar): 138
Maximum Fluid Output Pressure (psi): 2000
Maximum Fluid Output Pressure (bar): 138
Maximum Fluid Output Pressure (psi): 2000
Maximum NLGI Grade: #2
Maximum Working Pressure (bar): 137.9
Maximum Working Pressure (kPa): 13790
Maximum Working Pressure (MPa): 13.8
Maximum Working Pressure (psi): 2000
Power Type: Pneumatic

$484.00

SWITCH, SUBMERSIBLE, SPDT

GG 563273

SWITCH, SUBMERSIBLE, SPDT

Graco 563273 Cycle Switch (SPDT) and Bracket Assembly, Moisture-Resistant - MJ, MS, MHH and MXP Divider Valves

Monitors piston movement to ensure completed lubrication cycle–must have cycle indicator pin

Provides positive feedback based on actual metering piston movement
Mounts to MJ, MSP, MXP, or MX divider with cycle pin option with simple install
Able to be set for normally open or normally closed operation

$648.00

E-SERIES PUMP, RESV ASSY GRS LL

GG 563360

E-SERIES PUMP, RESV ASSY GRS LL

Graco 563360 E-Series™ Pump and Reservoir Assembly - 5 lb (2.26 kg) Plastic Grease, 1/4 in. NPSF, Low Level Switch

Easy field installation of accessories without disturbing existing plumbing
Smart pump design with few moving parts ensures long-lasting dependability
Lubriquip part number 521-300-360

Model: E-Series

Air Inlet Size (in): 0.2502
Air Inlet Size (mm): 6.35
Application: In-Plant Machinery
Compatible Material: Grease
Maximum Working Pressure (bar): 24
Maximum Working Pressure (kPa): 2400
Maximum Working Pressure (MPa): 2.4
Maximum Working Pressure (psi): 350
Power Type: Pneumatic

$1,515.00

MAXI-FLO PUMP, 115 VAC REMOTE

GG 563376

MAXI-FLO PUMP, 115 VAC REMOTE

Graco 563376 Maxi-Flo™ Electric Pump, 115 VAC, 4 pt. (1.89 liter) Plastic Rectangular Oil Reservoir, Remote Control

Compact design with everything you need to get your single line resistive oil lubrication system installed and running quickly. A standard package comes complete with reservoir, pump, gear motor, and choice of internal or remote control. Simple slide switches allow for easy setup of pump run cycle time. Bright LED indicators for low level and power allow for easy troubleshooting and verification.

Integrated control with manual run button for easy setup
Compact design fits anywhere
500 psi (34 bar) rating for using with various orifice metering devices

Model: Maxi-Flo

Application: In-Plant Machinery
Compatible Material: Oil
Compatible Metering Device: Series Progressive
Fluid Outlet Size (in): 0.125
Fluid Outlet Size (mm): 3.1750
Fluid Outlet Thread Type: NPSF
Includes: 4 pt Plastic Rectangular Oil Reservoir, Remote Control
Material: Plastic
Maximum Flow Rate (ci/min): 0.12
Maximum Fluid Output Pressure (bar): 34
Maximum Fluid Output Pressure (psi): 500
Maximum Fluid Output Pressure (bar): 34
Maximum Fluid Output Pressure (psi): 500
Maximum SUS Grade (SUS): 30000
Maximum Working Pressure (bar): 34.5
Maximum Working Pressure (kPa): 3450
Maximum Working Pressure (MPa): 3.5
Maximum Working Pressure (psi): 500
Minimum SUS Grade (SUS): 60
Overall Depth (cm): 16.4
Overall Depth (in): 6.44
Overall Depth (mm): 164
Overall Height (cm): 24.1
Overall Height (in): 9.5
Overall Height (mm): 241
Power Type: Electric

Call for pricing

E-SERIES PUMP, RESV ASSY GRS LL

GG 563364

E-SERIES PUMP, RESV ASSY GRS LL

Graco 563364 E-Series™ Pump with 6 lb. (2.72 kg) Plastic Cylindrical Grease Reservoir, Low Level Switch with 2350 psi (162 bar) Rupture Disc

Easy field installation of accessories without disturbing existing plumbing
Smart pump design with few moving parts ensures long-lasting dependability
Lubriquip part number 521-300-670

Model: E-Series

Application: In-Plant Machinery
Compatible Material: Grease
Compatible Metering Device: Series Progressive
Fluid Outlet Size (in): 0.5
Fluid Outlet Size (mm): 12.7000
Fluid Outlet Thread Type: NPSF
Includes: E-Series Pump, Plastic Cylindrical Grease Reservoir, Low Level Switch, Rupture Disc
Material: Aluminum, Plastic
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum cST Grade (cST): 30000
Maximum Cycle Rate (CPM): 10
Maximum Fluid Output Pressure (bar): 138
Maximum Fluid Output Pressure (psi): 2000
Maximum Fluid Output Pressure (bar): 138
Maximum Fluid Output Pressure (psi): 2000
Maximum NLGI Grade: #2
Maximum Working Pressure (bar): 137.9
Maximum Working Pressure (kPa): 13790
Maximum Working Pressure (MPa): 13.8
Maximum Working Pressure (psi): 2000
Minimum Air Inlet Pressure (psi): 40
Overall Depth (cm): 22.4
Overall Depth (in): 8.81
Overall Depth (mm): 224
Overall Height (cm): 26.7
Overall Height (in): 10.5
Overall Height (mm): 267
Overall Width (cm): 18.4
Overall Width (in): 7.25
Overall Width (mm): 184
Power Type: Pneumatic

$1,480.00

BODY, PUMP ASSY

GG 563380

BODY, PUMP ASSY

Lube Master® Pump Body For use with Electric and Mechanical Lube Master Pumps. Bare Pump Lubriquip part number 521-700-000

$3,840.00

CLUTCH, DRIVE

GG 563383

CLUTCH, DRIVE

Clutch drive with Ratchet Arm for Lube Master® Pumps For use with Lube Master Pump Packages.

Clutch drive with ratchet arm

Lubriquip part number 521-700-300

$1,180.00

BLOCK, BASE, MSP/MHH, NPSF

GG 563425

BLOCK, BASE, MSP/MHH, NPSF

Trabon® MSP Divider Valve - Intermediate Base Plate - 1/8-27 NPSF For use with Trabon® MSP/MHH Divider Valves. Intermediate base plate NPSF Lubriquip part number 527-000-871

$31.30

BLOCK, END, MSP/MHH

GG 563424

BLOCK, END, MSP/MHH

Trabon® MSP/Manzel® MHH Divider Valve Standard End Section For use with Trabon® MSP/MHH Divider Valves. Standard end section (Must be ordered in multiples of five) Must be ordered in multiples of 5 Lubriquip part number 527-000-851

$38.10

KIT, CROSSPORT, MSP, RH, CS

GG 563469

KIT, CROSSPORT, MSP, RH, CS

Trabon® MSP Divider Valve - Right Cross Port Bar For use with Trabon® MSP Divider Valves. Right Cross Port Bar - 1 outlet port plug is required for each cross port bar Lubriquip part number 527-005-320

$66.75

KIT, CROSSPORT, MSP, LH, CS

GG 563470

KIT, CROSSPORT, MSP, LH, CS

Trabon® MSP Divider Valve - Left Cross Port Bar For use with Trabon® MSP Divider Valves. Left Cross Port Bar - 1 outlet port plug is required for each cross port bar Lubriquip part number 527-005-330

$66.75

KIT, CROSSPORT, MSP, LH/RH, CS

GG 563471

KIT, CROSSPORT, MSP, LH/RH, CS

Trabon® MSP Divider Valve - Right and Left Cross Port Bar For use with Trabon® MSP Divider Valves. Left and Right Cross Port Bar - 2 outlet port plugs are required for each double cross port bar Lubriquip part number 527-005-340

$75.50

SWITCH, PROX MXP 3-PIN W/ IND

GG 563486

SWITCH, PROX MXP 3-PIN W/ IND

Graco 563486 Field Sensitive Mechanical Proximity Cycle, 20-32 VDC, 3-Pin - MXP, MX and MXO Divider Valves

Magnetically-operated sensing devices for sending system data to the controller or PLC.

Available in 115 VAC or 12-32 VDC
Available for all series progressive families to provide cycle rates up to 200 CPM
Pressure ratings up to 10,000 psi (690 bar)
Select models available with UL and CSA approvals
Lubriquip part number 527-006-130

Compatible Material: Oil, Grease

Material: 303 Stainless Steel, Viton
Maximum Working Pressure (bar): 517
Maximum Working Pressure (kPa): 51700
Maximum Working Pressure (MPa): 52
Maximum Working Pressure (psi): 7500
Power Connection Type: 3-Pin BH Mini

Call for pricing

FILTER, 138 MICRON INLINE 1/4 NPT

GG 563507

FILTER, 138 MICRON INLINE 1/4 NPT

Graco 563507 In-Line Oil and Grease Strainers - High Pressure, 7500 psi, 1/4-18 NPTF, 149 Micron

Application: For High Pressure In-Line Oil and Grease Filters.

149 micron, 100 Mesh In-Line Block Strainer (NPT)
Lubriquip part number 527-100-380

Maximum Working Pressure (bar): 517
Maximum Working Pressure (kPa): 51700
Maximum Working Pressure (MPa): 5170
Maximum Working Pressure (psi): 7500

Port Size (cm): 0.635
Port Size (in): 1/4
Port Size (mm): 6.35

$434.00

FILTER, 10 MICRON PLUG END

GG 563509

FILTER, 10 MICRON PLUG END

Graco 563509 End Plug Filter Assembly with 10 micron Filter Element, Lubriquip part number 527-100-540

Application: For use with High Pressure In-Line Oil Filters.

10 micron Replacement Filter Element for Graco part numbers 563511, 563513, 563516
Replacement filter element for Lubriquip part numbers 527-100-230, 527-100-580, 527-100-581, 527-100-780, 527-101-120, 527-101-223

For Use With: In-Line Oil Filters

$140.00

FILTER, 10 MICRON INLINE 1/4 NPT

GG 563511

FILTER, 10 MICRON INLINE 1/4 NPT

In-Line Oil Filters - High Pressure, 7500 psi, 1/4-18 NPTF, 10 Micron Lubriquip part number 527-100-581 Direct replacement for Lubriquip part number 527-100-230, 527-100-480, 527-100-580 Replacement element is Graco part number 563509

$320.00

FILTER, 25 MICRON PLUG END

GG 563510

FILTER, 25 MICRON PLUG END

Graco 563510 End Plug Filter Assembly with 25 micron Filter Element, Lubriquip part number 527-100-550

Application: For use with High Pressure In-Line Oil Filters.

25 micron Replacement Filter Element for Graco part numbers 563512, 563514, 563515
Replacement filter element for Lubriquip part numbers 527-100-240, 527-100-590 527-100-591, 527-100-790, 527-100-830, 527-101-224

For Use With: In-Line Oil Filters

$140.00

FILTER, 25 MICRON INLINE 1/4 NPT

GG 563512

FILTER, 25 MICRON INLINE 1/4 NPT

In-Line Oil Filters - High Pressure, 7500 psi, 1/4-18 NPTF, 25 Micron For use with High Pressure In-Line Oil Filters.

25 micron In-Line Oil Filter, NPT

Lubriquip part number 527-100-591 Direct replacement for Lubriquip part number 527-100-240 and 527-100-590 Replacement element is Graco part number 563510

$306.00

BLOCK, SECT END ASSY MXP

GG 563518

BLOCK, SECT END ASSY MXP

Trabon® MXP Divider Valve - End Section For use with Trabon® MXP Divider Valves. End section Lubriquip part number 527-300-090

$175.50

LUBRISYSTEM PUMP, AIR (NO RES)

GG 563579

LUBRISYSTEM PUMP, AIR (NO RES)

LubriSystem Standard Air Operated Pump without Reservoir

Easy to design, modify and adjust for oil or grease applications large or small. Great for operation of piston distributors. Rugged construction maximizes your productivity - upgrading to the internal timer control completely automates the system. All packages include internal pressure relief, so no need to install extra parts with additional costs. Combine with LubriSystem injectors for easy, low cost system design solutions.

Air Operated Pump for Single Line Parallel Systems

Ability to serve large systems - up to 100 lube points or more

Efficient design promotes increased productivity and less downtime

No reservoir included

Lubriquip part number 550-000-280

$1,105.00

BLOCK, BSPLT INTERM MXP 1/4 NPSF

GG 563519

BLOCK, BSPLT INTERM MXP 1/4 NPSF

Graco 563519 Trabon® MXP Divider Valve - Intermediate Base Plate - NPSF

Application: For use with Trabon® MXP Divider Valves.

Intermediate Base
Must be ordered in multiples of 2
1/4-18 NPSF

Model: Trabon
Series: MXP

Application: In-Plant Machinery
Inlet Size (cm): 0.635
Inlet Size (in): 1/4
Inlet Size (mm): 6.35
Inlet Thread Type: NPSF
Outlet Size (cm): 0.635
Outlet Size (in): 1/4
Outlet Size (mm): 6.35
Outlet Thread Type: NPSF

$116.00

LUBRISYSTEM PUMP, HAND

GG 563580

LUBRISYSTEM PUMP, HAND

LubriSystem Hand-Operated Pump - Pump Body without Reservoir

Sturdy construction of aluminum and steel to provide years of service. Compact design can be used in areas where space is limited. Rugged bracket allows the pump package to be mounted in place in any application.

The LubriSystem hand pump package offers versatility for use in any application, large or small. Great for operation with Injectors or Piston Distributors, with oil or grease.

General machinery lubrication where power is limited or not available

Bracket-mount design for easy installation

Rugged design for years of operation

Built-in pressure venting for use with injectors

Lubriquip part number 550-000-520

$1,445.00

TUBE, 3 BUNDLE 30 FT LG

GG 563796

TUBE, 3 BUNDLE 30 FT LG

$115.50

TUBE, 2 BUNDLE 15FT PRECHARGE

GG 563799

TUBE, 2 BUNDLE 15FT PRECHARGE

Graco 563799 15 ft. Pre-Charged Tube - 2 Tube Bundle, 3/16 in. OD - Orange, Black

Lubriquip part number 550-450-989

Application: On-Road Vehicles

Color: Black, Orange
Compatible Material: Grease
Material: Nylon
Maximum Working Pressure (bar): 56
Maximum Working Pressure (kPa): 560
Maximum Working Pressure (psi): 800
Overall Length (ft): 15
Overall Length (m): 5

$62.50

KIT, REPAIR PUMP AL-5M

GG 563902

KIT, REPAIR PUMP AL-5M

Modu-Flo Pump Assembly Repair Kits - AL-5, Single or Double Acting Repair Kit For use with Modu-Flo Pumps.

AL-5M seal kit

Lubriquip part number 560-001-021

$111.00

TUBE, 3 BUNDLE 10FT PRECHARGE

GG 563800

TUBE, 3 BUNDLE 10FT PRECHARGE

10 ft. Pre-Charged Tube - 3 Tube Bundle, 3/16 in. OD - Blue, Orange, Black Lubriquip part number 550-450-990

$68.00

KIT, REPAIR PUMP AL-25M

GG 563903

KIT, REPAIR PUMP AL-25M

Graco 563903 Modu-Flo Pump Assembly Repair Kits - AL-25, Single or Double Acting Repair Kit

Application: For use with Modu-Flo Pumps.

AL-25M seal kit
Lubriquip part number 560-001-031

For Use With: AL-25M Pumps

Includes: Piston Spring Retainer, Check Valve Spring, Check Valve Seat, Hardware
Kit Type: Repair Kit

$111.00

KIT, REPAIR PUMP HL-25M

GG 563906

KIT, REPAIR PUMP HL-25M

Graco 563906 HL-25M Seal Kit

Application: For use with Modu-Flo Pumps.

HL-25M seal kit
Lubriquip part number 560-001-061

For Use With: HL-25M Pumps

Includes: Check Valve Spring, Check Valve Seat, Hardware
Kit Type: Repair Kit

$85.75

Kit, Piston 1/4 Mvb Pump

GG 563918

Kit, Piston 1/4 Mvb Pump

$999.00

KIT, REPAIR PUMP E-SERIES

GG 563909

KIT, REPAIR PUMP E-SERIES

Graco 563909 E-Series Pump Repair Kit (Fixed Output)

Application: For use with E-Series Pumps.

Pump Repair Kit (fixed output)
Lubriquip part number 560-001-210

For Use With: E-Series Pumps

Includes: Check Valve Spring, Check Valve Seat, O-Rings, Hardware
Kit Type: Repair Kit

$68.50

Kit, Gage Glass Spare Parts

GG 563923

Kit, Gage Glass Spare Parts

$63.50

KIT, REPAIRI ND CYCLE MSP

GG 563928

KIT, REPAIRI ND CYCLE MSP

Trabon® MSP Mounting Accessories and Spare Parts - MSP Cycle Pin Indicator Repair Kit, Gasket For use with Trabon® MSP Divider Valves.

MSP cycle pin indicator repair kit, gasket

Lubriquip part number 560-002-050

$157.50

KIT, REPAIR IND CYC

GG 563929

KIT, REPAIR IND CYC

Trabon® MSP Mounting Accessories and Spare Parts - MSP Cycle Pin Indicator Repair Kit, O-Ring For use with Trabon® MSP Divider Valves.

MSP cycle pin indicator repair kit, O-ring

Lubriquip part number 560-002-055

$117.00

KIT, BURST DISK 1450 PS1 YELLOW 6PK

GG 563962

KIT, BURST DISK 1450 PS1 YELLOW 6PK

Blowout Disc Kit - (6) Yellow, 1450 psi, 11/16 in.

Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.

Requires replacement of the rupture disc to restart the lube system.

Easy information on blocked lines, high system pressure or blocked bearings.

Replacement Rupture Packs of 6 (11/16 inch / 17.5 mm diameter discs)

1,450 psi - yellow

Lubriquip part number 560-900-270

$27.90

Kit, Accessory, 650 Cc Cup

GG 289797

Kit, Accessory, 650 Cc Cup

$99.75

Kit, Accessory, 1000 Cc Cup

GG 289802

Kit, Accessory, 1000 Cc Cup

$121.50

Kit, Needle

GG 289786

Kit, Needle

$39.90

Bushing, Rod

GG 295031

Bushing, Rod

$123.00

Plate, Retainer

GG 295029

Plate, Retainer

$107.50

Ring, Retainer

GG 295228

Ring, Retainer

$4.00

BLOCK, COUPLING, GX7

GG 295383

BLOCK, COUPLING, GX7

Graco 295383 GX-7 Coupling Block

Genuine Graco replacement parts for GX-7 Coupling Block. Refer to the parts manual for your sprayer to ensure part compatibility

Application: Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.

Graco Tech Support can further assist with troubleshooting sprayer operation

$859.00

Ring, Retaining

GG 295313

Ring, Retaining

$4.00

Fitting, Elbow, 3/8Mpt X 1/2in

GG 295397

Fitting, Elbow, 3/8Mpt X 1/2in

$34.10

Chamber, Round Mixing

GG 295390

Chamber, Round Mixing

$616.00

Fitting, Y, Strainer

GG 295402

Fitting, Y, Strainer

$140.00

Spring, Piston

GG 295416

Spring, Piston

$27.60

GX-7 GUN, GX-7 400

GG 295540

GX-7 GUN, GX-7 400

Graco 295540 Gusmer GX-7 400 Spray Gun

The GX7-400 Gun is the same as a standard GX-7, but features a shorter stroke length. This is important for fast-setting polyureas because the material spends less time in the gun.

Application: Ideal for low to medium output foam applications.

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
Lightweight, easy to operate and maintain
Mechanically self-cleaning so you eliminate costly solvent-flushing
Lightweight design reduces operator fatigue
Pattern control knob allows for fine tune adjustments

Model: GX-7
Series: 400

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Gun Activation: Manual
Gun Model: GX-7
Gun Type: Mechanical-Purge
Gun Weight (g): 1860
Gun Weight (kg): 1.9
Gun Weight (lb): 4.1
Gun Weight (oz): 65.6
Includes: Mix Module, Tip
Maximum Air Inlet Pressure (bar): 8.6
Maximum Air Inlet Pressure (kPa): 860
Maximum Air Inlet Pressure (MPa): 0.86
Maximum Air Inlet Pressure (psi): 125
Maximum Air Pressure (bar): 8.6
Maximum Air Pressure (kPa): 860
Maximum Air Pressure (MPa): 0.86
Maximum Air Pressure (psi): 125
Maximum Flow Rate (kg/min): 3.6
Maximum Flow Rate (lb/min): 8
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Working Pressure (bar): 240
Maximum Fluid Working Pressure (MPa): 24
Maximum Fluid Working Pressure (psi): 3500
Minimum Air Inlet Pressure (bar): 6.9
Minimum Air Inlet Pressure (kPa): 690
Minimum Air Inlet Pressure (MPa): 0.69
Minimum Air Inlet Pressure (psi): 100
Minimum Flow Rate (kg/min): 1.6
Minimum Flow Rate (lb/min): 3.5
Overall Height (cm): 24
Overall Height (in): 9.5
Overall Height (mm): 240
Overall Length (cm): 23
Overall Length (in): 9
Overall Length (mm): 230
Overall Width (cm): 11
Overall Width (in): 4.5
Overall Width (mm): 110
Pattern Size (in): 16 in @ 18 in from target
Pattern Size (mm): 40

$5,080.00

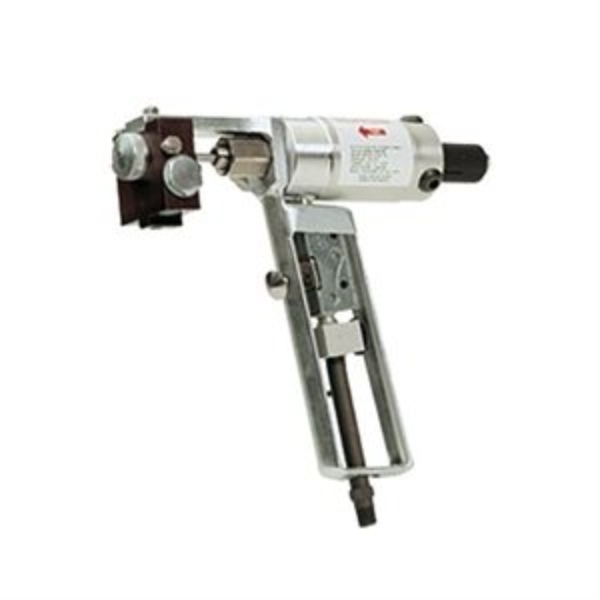

GUN, D-55

GG 295530

GUN, D-55

Graco 295530 D-Gun D-55 Standard Spray Gun

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application. Lightweight, easy to operate and maintain. Mechanically self-cleaning so you eliminate costly solvent-flushing.

Application: The Graco D-Gun is ideal for small to midrange output foam applications such as interior stud-wall spraying.

Air cap allows for easy cleaning of the purge rod
Lightweight design reduces operator fatigue
Pattern control knob allows for fine tune adjustments

Model: D-Gun
Series: Standard

Air Inlet Size (cm): 0.3175
Air Inlet Size (in): 1/8
Air Inlet Size (mm): 3.175
Air Inlet Thread Type: NPT
Compatible Material: Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Gun Activation: Manual
Gun Type: Mechanical-Purge
Gun Weight (g): 1406
Gun Weight (kg): 1.4
Gun Weight (lb): 3.1
Gun Weight (oz): 49.6
Maximum Air Inlet Pressure (bar): 7.6
Maximum Air Inlet Pressure (kPa): 760
Maximum Air Inlet Pressure (MPa): 0.76
Maximum Air Inlet Pressure (psi): 110
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Flow Rate (kg/min): 7.2
Maximum Flow Rate (lb/min): 16
Maximum Fluid Pressure (bar): 70
Maximum Fluid Pressure (kPa): 7000
Maximum Fluid Pressure (MPa): 7
Maximum Fluid Pressure (psi): 1000
Maximum Fluid Pressure (bar): 70
Maximum Fluid Pressure (kPa): 7000
Maximum Fluid Pressure (MPa): 7
Maximum Fluid Pressure (psi): 1000
Maximum Fluid Working Pressure (bar): 69
Maximum Fluid Working Pressure (MPa): 6.9
Maximum Fluid Working Pressure (psi): 1000
Minimum Air Inlet Pressure (bar): 6.2
Minimum Air Inlet Pressure (kPa): 620
Minimum Air Inlet Pressure (MPa): 0.62
Minimum Air Inlet Pressure (psi): 90
Minimum Flow Rate (kg/min): 0.9
Minimum Flow Rate (lb/min): 2
Overall Height (cm): 24
Overall Height (in): 9.25
Overall Height (mm): 240
Overall Length (cm): 20
Overall Length (in): 8
Overall Length (mm): 200
Overall Width (cm): 6
Overall Width (in): 2.4
Overall Width (mm): 60
Pattern Size (in): 8 in @ 18-20 in from target
Pattern Size (mm): 203.2
Pressure Type: Low Pressure
Purge Method: Mechanical

$4,770.00

GX-7 GUN, GX-7A 5/70

GG 295545

GX-7 GUN, GX-7A 5/70

Graco 295545 Gusmer GX-7A Spray Gun - 5/70

Graco’s GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.

Application: Ideal for low to medium output foam applications.

Designed for construction, bedlining, roofing and other plural-component spraying
Hardened steel side seals and mix chamber for long-lasting performance
No adjustments necessary

Model: GX-7
Series: Standard

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2-20
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Gun Activation: Manual
Gun Model: GX-7
Gun Type: Mechanical-Purge
Gun Weight (g): 1860
Gun Weight (kg): 1.9
Gun Weight (lb): 4.1
Gun Weight (oz): 65.6
Includes: Mix Module, Tip
Maximum Air Inlet Pressure (bar): 8.6
Maximum Air Inlet Pressure (kPa): 860
Maximum Air Inlet Pressure (MPa): 0.86
Maximum Air Inlet Pressure (psi): 125
Maximum Air Pressure (bar): 8.6
Maximum Air Pressure (kPa): 860
Maximum Air Pressure (MPa): 0.86
Maximum Air Pressure (psi): 125
Maximum Flow Rate (kg/min): 18
Maximum Flow Rate (lb/min): 40
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Working Pressure (bar): 240
Maximum Fluid Working Pressure (MPa): 24
Maximum Fluid Working Pressure (psi): 3500
Minimum Air Inlet Pressure (bar): 6.9
Minimum Air Inlet Pressure (kPa): 690
Minimum Air Inlet Pressure (MPa): 0.69
Minimum Air Inlet Pressure (psi): 100
Minimum Flow Rate (kg/min): 1.6
Minimum Flow Rate (lb/min): 3.5
Overall Height (cm): 24
Overall Height (in): 9.5
Overall Height (mm): 240
Overall Length (cm): 23
Overall Length (in): 9
Overall Length (mm): 230
Overall Width (cm): 11
Overall Width (in): 4.5
Overall Width (mm): 110
Pattern Size (in): 14 in @ 24 in from target
Pattern Size (mm): 355.6
Pressure Type: High Pressure
Purge Method: Mechanical

$5,080.00

GX-7 GUN, GX-7A 1/90

GG 295542

GX-7 GUN, GX-7A 1/90

Graco 295542 Gusmer GX-7A Spray Gun - 1/90

Graco’s GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.

Application: Ideal for low to medium output foam applications.

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
Lightweight, easy to operate and maintain
Mechanically self-cleaning so you eliminate costly solvent-flushing
Lightweight design reduces operator fatigue
Pattern control knob allows for fine tune adjustments

Model: GX-7
Series: Standard

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: NPT
Applicator Type: Manual
Bleed Type: Bleeder
Compatible Material: Polyurethane, Roof Coating, Plural Component Protective Coating, Polyurea, Elastomeric Coating, Spray Polyurethane Foam
Component A Inlet Size (cm): 1.27
Component A Inlet Size (in): 1/2
Component A Inlet Size (mm): 12.7
Component A Inlet Thread Type: UNF
Component B Inlet Size (cm): 1.42875
Component B Inlet Size (in): 9/16-18
Component B Inlet Size (mm): 14.2875
Component B Inlet Thread Type: UNF
Component Type: Plural-Component
For Use With: Mobile Spray Rig
Gun Activation: Manual
Gun Included: 1
Gun Model: GX-7
Gun Type: Mechanical-Purge
Gun Weight (g): 1860
Gun Weight (kg): 1.9
Gun Weight (lb): 4.1
Gun Weight (oz): 65.6
Includes: Mix Module, Tip
Maximum Air Inlet Pressure (bar): 8.6
Maximum Air Inlet Pressure (kPa): 860
Maximum Air Inlet Pressure (MPa): 0.86
Maximum Air Inlet Pressure (psi): 125
Maximum Air Pressure (bar): 8.6
Maximum Air Pressure (kPa): 860
Maximum Air Pressure (MPa): 0.86
Maximum Air Pressure (psi): 125
Maximum Flow Rate (kg/min): 18
Maximum Flow Rate (lb/min): 40
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Pressure (bar): 241
Maximum Fluid Pressure (kPa): 24100
Maximum Fluid Pressure (MPa): 24.1
Maximum Fluid Pressure (psi): 3500
Maximum Fluid Working Pressure (bar): 240
Maximum Fluid Working Pressure (MPa): 24
Maximum Fluid Working Pressure (psi): 3500
Minimum Air Inlet Pressure (bar): 6.9
Minimum Air Inlet Pressure (kPa): 690
Minimum Air Inlet Pressure (MPa): 0.69
Minimum Air Inlet Pressure (psi): 100
Minimum Flow Rate (kg/min): 1.6
Minimum Flow Rate (lb/min): 3.5
Overall Height (cm): 24
Overall Height (in): 9.5
Overall Height (mm): 240
Overall Length (cm): 23
Overall Length

$5,080.00

Kit, Repair, Air Control Valve

GG 289796

KIT,REPAIR,AIR CONTROL VALVE

Graco 289796 Air Control Valve Assembly for AirPro Siphon Feed Airspray Gun

$42.10

T2 Pump, Transfer, 2:1

GG 295616

T2 Pump, Transfer, 2:1

Graco 295616 T2 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

Graco&prime, s family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

Application: Ideal for moving A and B materials to Reactor spray machines.

Provide consistent feed pressures and flow rates for dependable results
Lower pressure drops with higher viscosity materials at any ambient temperature
Designed and manufactured by the worldwide leader in pump technology
Quick-release bung adapter for easy drum removal without interference from hose connections
Stainless steel wetted parts for corrosion-resistance
PTFE seals for improved performance and less maintenance

Model: T2

Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Compatible Material: Polyurethane Foam, Polyurea
Cycles Per Gallon: 15.9
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 12.5
Maximum Air Inlet Pressure (kPa): 1250
Maximum Air Inlet Pressure (MPa): 1.2
Maximum Air Inlet Pressure (psi): 180
Maximum Continuous Cycle Rate (CPM): 100
Maximum Flow Rate (GPM): 5
Maximum Flow Rate (L/min): 20
Maximum Operating Temperature (°C): 88
Maximum Operating Temperature (°F): 190
Maximum Working Pressure (bar): 28
Maximum Working Pressure (kPa): 2800
Maximum Working Pressure (MPa): 2.8
Maximum Working Pressure (psi): 405
Package Options: Bare
Pump Ratio: 2:1
