GRACO INC. S10595

GG 237596

KIT, NEEDLE,TAPER,VALVE SEAT

Graco 237596 7.5 degree Carbide Needle, Seat, Urethane seal

KIT INCLUDES: SEAT, VALVE ASSY [QTY. 1], STEM, VALVE, ASSY [QTY. 1], PACKING, O-RING [QTY. 1], SEAL, BLOCK VEE, .375 ODX.125 ID [QTY. 1], NUT [QTY. 1], PACKING, O RING [QTY. 1], RING, RETAINING [QTY. 2], ROD, [QTY. 1]

• Compatible Material: Sealants, Adhesives

GG 237602

GG 237604

GG 237606

GG 237534

VALVE, BALL

Graco 237534 Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 3/8 in. npt(f) x 3/8 in. npt(m)

Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.

• Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
• Many different connection options to meet your specific needs

• Handle Type: Lever

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 35
• Maximum Working Pressure (kPa): 3500
• Maximum Working Pressure (MPa): 3.5
• Maximum Working Pressure (psi): 500

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPT

GG 237905

GG 237948

GG 237713

GG 237840

KIT, STRAINER

Graco 237840 Inlet Strainer, SST Cap, 1 1/4 in

Using an Inlet Strainer is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time.

• Model: Graco

• For Use With: HydraMax 300/350, GM/GMAX 10000, GH 733, GH 833

• Inlet Size (cm): 3.175
• Inlet Size (in): 1-1/2
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

GG 237978

GG 238008

COVER, DRUM, ASSEMBLY

• Compatible Material: Catalyst, Waterborne

GG 237909

GG 238108

FIREBALL 425 PUMP, 6:1

Graco 238108 Fire-Ball 425 Series 6:1 Universal Size Oil Pump

With a large 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!

• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated dirtyair environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 425

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT
• Air Motor Effective Diameter (in): 4.25

• Application: Industrial

• Compatible Material: Oil

• Cycles Per Gallon: 12

• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• For Use With: Petroleum- and synthetic-based oils (motor, gear and ATF)

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 66

• Maximum Intermittent Cycle Rate (CPM): 66

• Maximum Working Pressure (bar): 76
• Maximum Working Pressure (kPa): 7600
• Maximum Working Pressure (MPa): 7.6
• Maximum Working Pressure (psi): 1100

• Power Type: Pneumatic

• Pump Ratio: 6:1

GG 23768-01

GG 238157

AGITATOR, HEAVY DUTY, SST

Graco 238157 Heavy Duty Back-Geared Drum Agitator, air driven, 1/2 HP, 32 inches (81.25 cm) tall. Drum Cover (238283) and Siphon Kit (238250) not included

• Drum cover and siphon kit are not included, but they can be ordered separately as these part numbers: 238283 (drum cover), 238250 (siphon kit)
• Leak-free and oil-less gearbox prevents material contamination
• Stainless steel agitator is corrosion resistant and waterborne compatible
• Access port for easy sampling and inspection of material during operation

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• For Use With: 55 Gallon (208 Liter) Drum

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Speed (RPM): 1200

• Maximum Viscosity (cP): 3000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 0.25

GG 237608

GG 238049

TSL FLUID, 4 OZ

Graco 238049 TSL Throat Seal Liquid, 4 oz

Throat Seal Liquid (TSL) prevents paint and coatings from drying onto the displacement rod and packings, extending the life of the pump.

• Model: TSL
• Series: Throat Seal Liquid

• For Use With: Airless Sprayer, Magnum A100 ProPlus

GG 237649

ULTRA-LITE 4000 GUN, FLOW, SWIVEL INLET

Graco 237649 Ultra-Lite 4000 SD with Swivel

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

• Operating pressures to 4000 psi (276 bar, 27.6 MPa).
• 150 degree head/handle angle is more comfortable for operator
• Changeable tips for a variety of dispensing needs

• Model: Ultra-Lite
• Series: 4000

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kg/cm 2): 281
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Nozzle Size (cm): 0.508
• Nozzle Size (in): 0.2
• Nozzle Size (mm): 5.08

GG 207945

GUN, FLO

GG 207946

GG 207947

SWIVEL, STRAIGHT, 1/2 NPTF X 1/2 NPTM

Graco 207947 High Pressure Straight Swivel, Series B, 1/2 npt (m) x 1/2 npt (f)

• Provides free movement of hose sections and guns without kinking.

• Swivels maintain a high pressure seal while providing fully rotational movement between hoses, guns, siphon tubes and other equipment.

GG 207953

GG 207962

GG 207994

FILTER, LIQUID HP

Graco 207994 High Pressure Red Alert Filter, 30 mesh (590 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 3.18
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 3.18
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

• Overall Depth (cm): 17
• Overall Depth (in): 6.56
• Overall Depth (mm): 167

• Overall Height (cm): 33
• Overall Height (in): 13.08
• Overall Height (mm): 335
• Overall Width (cm): 17
• Overall Width (in): 6.56
• Overall Width (mm): 167

GG 207995

FILTER, LIQUID HP

Graco 207995 High Pressure Red Alert Filter, 60 mesh (250 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 3.18
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 3.18
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

• Overall Depth (cm): 17
• Overall Depth (in): 6.56
• Overall Depth (mm): 167

• Overall Height (cm): 33
• Overall Height (in): 13.08
• Overall Height (mm): 335
• Overall Width (cm): 17
• Overall Width (in): 6.56
• Overall Width (mm): 167

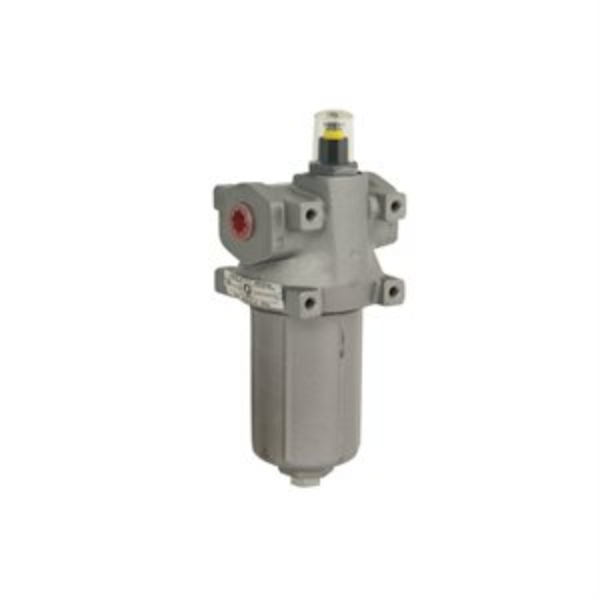

GG 207996

FILTER, LIQUID HP

Graco 207996 High Pressure Red Alert Filter, 100 mesh (149 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 3.18
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 3.18
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

• Overall Depth (cm): 17
• Overall Depth (in): 6.56
• Overall Depth (mm): 167

• Overall Height (cm): 33
• Overall Height (in): 13.08
• Overall Height (mm): 335
• Overall Width (cm): 17
• Overall Width (in): 6.56
• Overall Width (mm): 167

GG 207998

FILTER, LIQUID HP

Graco 207998 High Pressure Red Alert Filter, 200 mesh (74 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 3.18
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 3.18
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

• Overall Depth (cm): 17
• Overall Depth (in): 6.56
• Overall Depth (mm): 167

• Overall Height (cm): 33
• Overall Height (in): 13.08
• Overall Height (mm): 335
• Overall Width (cm): 17
• Overall Width (in): 6.56
• Overall Width (mm): 167

GG 207997

FILTER, LIQUID HP

Graco 207997 High Pressure Red Alert Filter, 150 mesh (95 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 3.18
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 3.18
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

• Overall Depth (cm): 17
• Overall Depth (in): 6.56
• Overall Depth (mm): 167

• Overall Height (cm): 33
• Overall Height (in): 13.08
• Overall Height (mm): 335
• Overall Width (cm): 17
• Overall Width (in): 6.56
• Overall Width (mm): 167

GG 208000

FILTER, LIQUID HP

Graco 208000 High Pressure Red Alert Filter, 0.050 in (1.3 mm) stab point element mesh (590 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 66

• Inlet Size (cm): 3.18
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 3.18
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

• Overall Depth (cm): 17
• Overall Depth (in): 6.56
• Overall Depth (mm): 167

• Overall Height (cm): 33
• Overall Height (in): 13.08
• Overall Height (mm): 335
• Overall Width (cm): 17
• Overall Width (in): 6.56
• Overall Width (mm): 167

GG 208178

GG 208048

GG 208314

GG 208393

GG 208520

CONVERSION KIT

Graco 208520 Packing Repair Kit

GG 208536

GG 207730

KIT, REPAIR, MOTOR, AIR

Graco 207730 King Air Motor Repair Kit

GG 208855

GAUGE, PRESS, FL, DMP

Graco 208855 Stainless Steel Fluid Gauge with Dampener, 0-300 psi (0-21 bar)

• Dampener protects gauge from severe pressure pulsation
• Corrosion Resistant
• 2.5 in (63mm) diameter dial

• Dial Diameter (cm): 5
• Dial Diameter (in): 2
• Dial Diameter (mm): 51

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Working Pressure (bar): 14
• Maximum Working Pressure (kPa): 1400
• Maximum Working Pressure (MPa): 1.4
• Maximum Working Pressure (psi): 200

GG 209030

REGULATOR, PRESS, FLUID

Graco 209030 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port

Use on circulating line drops to regulate fluid pressure to one air spray gun or dispensing valve

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.3

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0.4
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male

GG 20A727

GG 20A007

GG 20B473

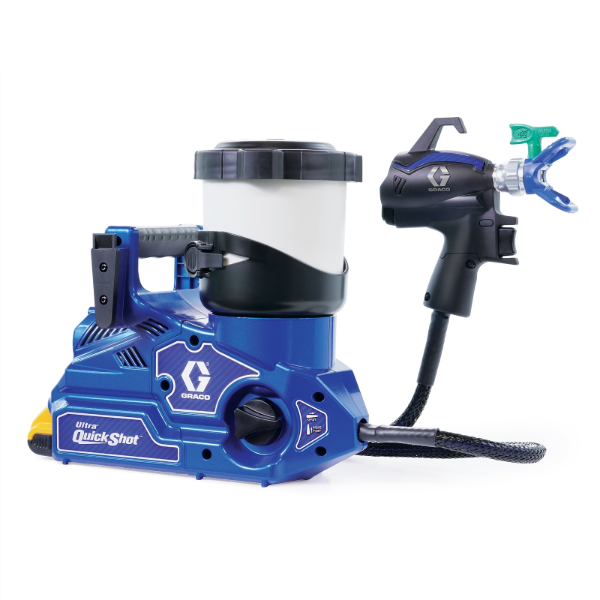

SPRAYER, ULTRA, QUICKSHOT, NA

Graco 20B473 Ultra QuickShot Airless Sprayer

The Ultra QuickShot is breakthrough technology, designed to deliver higher quality and provide results faster. Created for the perfect airless finish, while virtually eliminating spits. Built with extreme spray control to quickly adjust pressure for every application.

• Instant Response Electric Powered Gun Virtually Eliminates Spits

  Reduce fatigue with industrys lightest trigger pull

  Smallest, lightest airless gun ever built

  Responds instantly to produce the best finish

• On-Demand Precision Flow-Control System

  Quickly adjust material flow for extreme airless spray control

  Easily dial-in to your desired pressure from 100-2,000 psi

• 6 ft Flexible Hose For Full Reach & Easy Hose Management

  Easily prime, change colors, and clean in seconds

  Gun and hose hold only 1 oz of coating

• 32 oz Pour-N-Go Cup

  Easy fill design - refill on your hip

  Spray small amounts FAST

• Power to Take on Every Small Job

  Comes with two DEWALT 20V Lithium-ion batteries

  Spray up to one gallon on each battery

• Ultimate Hands-Free Portability With Belt and Holster Attachment

• Model: Ultra
• Series: QuickShot

• Battery Voltage (V): 20

• Maximum Operating Temperature ( degree C): 32
• Maximum Operating Temperature ( degree F): 90

• Maximum Storage Temperature ( degree C): 45
• Maximum Storage Temperature ( degree F): 113

• Maximum Tip Size (in): 0.016

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (MPa): 14
• Maximum Working Pressure (psi): 2000

• Minimum Operating Temperature ( degree C): 4
• Minimum Operating Temperature ( degree F): 40

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Overall Height (cm): 26.7
• Overall Height (in): 10.5
• Overall Length (cm): 30.5
• Overall Length (in): 12
• Overall Width (cm): 15.2
• Overall Width (in): 6

• Power Source: Battery Powered

GG 20A903

GG 210068

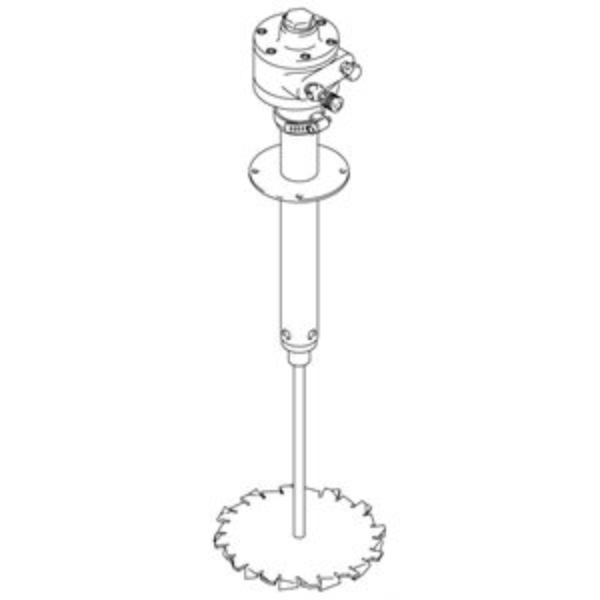

AGITATOR, DIRECT DRIVE

Graco 210068 Air-Driven Agitator for 30 Gallon (114 Liter) Mix Tank with Sawblade Prop, 3/4 HP, 33.87 inches (86 cm), SST

Waterborne compatible

• Agitators mount directly to mix tank or drum covers
• Dual propeller ensures efficient and thorough mixing
• Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters

• Air Inlet Size (cm): 0.3175
• Air Inlet Size (in): 1/8
• Air Inlet Size (mm): 3.175
• Air Inlet Thread Type: NPT

• For Use With: 30 Gallon Mix Tanks

• Maximum Speed (RPM): 3000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 0.75

GG 210092

FILTER, LIQUID, HP, 200 MESH

Graco 210092 High Pressure, Medium Volume, Red Alert Filter, 200 mesh (74 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 37.9

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 11.7
• Overall Depth (in): 4.62
• Overall Depth (mm): 117

• Overall Height (cm): 29
• Overall Height (in): 11.3
• Overall Height (mm): 287
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 114

GG 210091

FILTER, LIQUID, HP, 100 MESH

Graco 210091 High Pressure, Medium Volume, Red Alert Filter, 100 mesh (149 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 37.9

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 11.7
• Overall Depth (in): 4.62
• Overall Depth (mm): 117

• Overall Height (cm): 29
• Overall Height (in): 11.3
• Overall Height (mm): 287
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 114

GG 210575

GG 210500

FILTER, IN-LINE

Graco 210500 Gun Filter Housing

Add a gun filter housing to any airless spray gun for additional filtration. 1/4 in npsm (m), 1/4 in npsm (f), Maximum Working Pressure of 5000 psi (345 bar)

• For Use With: FinishPro 390 Airless/Air-Assisted Sprayer, FinishPro 395 Airless/Air-Assisted Sprayer

• Inlet Size (in): 1/4

• Inlet Thread Type: NPSM

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000

• Outlet Size (in): 1/4
• Outlet Thread Type: NPSM

GG 210731

GG 21191-F

GG 21192-00

GG 21040-00

GG 210877

GG 210208

PUMP, DISPL, RECIP

Graco 210208 Displacement Pump, maximum of 1500 psi (10 MPa, 103 bar) hydraulic input pressure

GG 210867

GG 210658

GG 210532

KIT, REPAIR, GUN

GG 21197-00

GG 210659

GG 21201-00

GG 21218-00

GG 212030

GG 21203-00

GG 21228-00

GG 21230-00

CYLINDER, LOWER

Graco 21230-00 Lower Cylinder

GG 21261-00

GG 210090

FILTER, LIQUID HP 60

Graco 210090 High Pressure, Medium Volume, Red Alert Filter, 60 mesh (250 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Integrated mounting holes make installation to frame and equipment easy
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Carbon Steel

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 37.9

• Maximum Working Pressure (bar): 210
• Maximum Working Pressure (kPa): 21000
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 11.7
• Overall Depth (in): 4.62
• Overall Depth (mm): 117

• Overall Height (cm): 29
• Overall Height (in): 11.3
• Overall Height (mm): 287
• Overall Width (cm): 11
• Overall Width (in): 4.5
• Overall Width (mm): 114

GG 210786

KIT, COUPLING, SE

GG 213012

GG 213057

FILTER, LIQUID LP 30

Graco 213057 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 30 mesh (590 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 9.5
• Overall Depth (in): 3.75
• Overall Depth (mm): 95

• Overall Height (cm): 22
• Overall Height (in): 8.75
• Overall Height (mm): 220
• Overall Width (cm): 10
• Overall Width (in): 4
• Overall Width (mm): 100

GG 213058

FILTER, LIQUID LP, 60

Graco 213058 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 60 mesh (250 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 9.5
• Overall Depth (in): 3.75
• Overall Depth (mm): 95

• Overall Height (cm): 22
• Overall Height (in): 8.75
• Overall Height (mm): 220
• Overall Width (cm): 10
• Overall Width (in): 4
• Overall Width (mm): 100

GG 21194-00

GG 213059

FILTER, LIQUID LP, 100

Graco 213059 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 100 mesh (149 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

GG 213060

FILTER, LIQUID LP, 150

Graco 213060 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 9.5
• Overall Depth (in): 3.75
• Overall Depth (mm): 95

• Overall Height (cm): 22
• Overall Height (in): 8.75
• Overall Height (mm): 220
• Overall Width (cm): 10
• Overall Width (in): 4
• Overall Width (mm): 100

GG 213061

FILTER, LIQUID LP, 200

Graco 213061 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 200 mesh (74 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 9.5
• Overall Depth (in): 3.75
• Overall Depth (mm): 95

• Overall Height (cm): 22
• Overall Height (in): 8.75
• Overall Height (mm): 220
• Overall Width (cm): 10
• Overall Width (in): 4
• Overall Width (mm): 100

GG 213062

FILTER, LIQUID LP, 30

Graco 213062 Low Pressure Red Alert Filter, 20 gpm (75.7 lpm), 30 mesh (590 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 14
• Overall Depth (in): 5.5
• Overall Depth (mm): 140

• Overall Height (cm): 28
• Overall Height (in): 11
• Overall Height (mm): 280
• Overall Width (cm): 15
• Overall Width (in): 6.06
• Overall Width (mm): 154

GG 213063

FILTER, LIQUID LP, 60

Graco 213063 Low Pressure Red Alert Filter, 20 gpm (75.7 lpm), 60 mesh (250 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 14
• Overall Depth (in): 5.5
• Overall Depth (mm): 140

• Overall Height (cm): 28
• Overall Height (in): 11
• Overall Height (mm): 280
• Overall Width (cm): 15
• Overall Width (in): 6.06
• Overall Width (mm): 154

GG 213064

FILTER, LIQUID LP, 100

Graco 213064 Low Pressure Red Alert Filter, 20 gpm (75.7 lpm), 100 mesh (149 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in sqrd): 225

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 20
• Maximum Flow Rate (L/min): 75.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 14
• Overall Depth (in): 5.5
• Overall Depth (mm): 140

• Overall Height (cm): 28
• Overall Height (in): 11
• Overall Height (mm): 280
• Overall Width (cm): 15
• Overall Width (in): 6.06
• Overall Width (mm): 154

GG 214001

GG 21402-00

GG 214036

KIT, MOTOR AIR

Graco 214036 Piston Assembly for Monark Air Motor (Includes screw, clip, and piston)

GG 21433-01

GG 214697

HOSE, COUPLED, 3/16" X 50'

Graco 214697 BlueMax II Airless Hose, 3/16 in x 50 ft

To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight

  Over 10% lighter weight and increased hose flexibility improves usability while spraying under pressure

• Highest Safety Standards

  Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs

• Minimal Hose Coil Memory

  BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling

• Model: BlueMax II
• Series: Hose

• Connection Type: JIC

• Hose Diameter (in): 3/16
• Hose Length (cm): 1524
• Hose Length (ft): 50
• Hose Length (in): 600
• Hose Length (m): 15.2
• Hose Length (mm): 15200

• Inside Diameter (cm): 0.4763
• Inside Diameter (in): 3/16
• Inside Diameter (mm): 4.7625

• Material: Nylon

• Maximum Working Pressure (bar): 227
• Maximum Working Pressure (kPa): 22700
• Maximum Working Pressure (MPa): 22.7
• Maximum Working Pressure (psi): 3300

GG 214706

REGULATOR, PRESS FLUID SST

Graco 214706 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

GG 214711

GG 214724

GG 214841

KIT, REPAIR VALVE,AUTO

GG 214847

GG 214895

REGULATOR, FLUID PRESS

Graco 214895 Low Pressure Fluid Regulator, 250 Max psi, 5-100 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Regulator Only
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 7
• Maximum Regulated Pressure (kPa): 700
• Maximum Regulated Pressure (MPa): 0.7
• Maximum Regulated Pressure (psi): 100

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 34
• Minimum Regulated Pressure (MPa): 0.034
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

GG 214925

SWIVEL , HOSE

Graco 214925 3/8 npt(f) x 1/4 npsm(f) Swivel with Leather Seal

• Provides free movement of hose sections and guns without kinking.

• Swivels maintain a high pressure seal while providing fully rotational movement between hoses, guns, siphon tubes and other equipment.

GG 214926

GG 214955

GG 214966

SEAT, VALVE

Graco 214966 Diffuser-Seat for Golden Gun Repair Kit 214969

• Compatible Material: Sealants, Adhesives

GG 214959

GG 214961

HOSE, COUPLED

Graco 214961 Nylon Suction Hose for Wall Mount Air Assisted Packages, 6 ft (1.8 m) long

GG 214968

KIT, REPAIR VALVE

Graco 214968 Hydra Spray Gun Repair Kit

GG 214972

GG 214979

GG 215255

GG 214570

GG 214981

HOSE, COUPLED, 3/16" X 15'

Graco 214981 BlueMax II Airless Hose, 3/16 in x 15 ft

To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight

  Over 10% lighter weight and increased hose flexibility improves usability while spraying under pressure

• Highest Safety Standards

  Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs

• Minimal Hose Coil Memory

  BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling

• Model: BlueMax II
• Series: Hose

• Hose Diameter (in): 3/16
• Hose Length (cm): 457
• Hose Length (ft): 15
• Hose Length (in): 180
• Hose Length (m): 4.6
• Hose Length (mm): 4560

• Inside Diameter (cm): 0.4763
• Inside Diameter (in): 3/16
• Inside Diameter (mm): 4.7625

• Material: Nylon

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3300
