Filter, Liquid Lp, 150

GG 213060

FILTER, LIQUID LP, 150

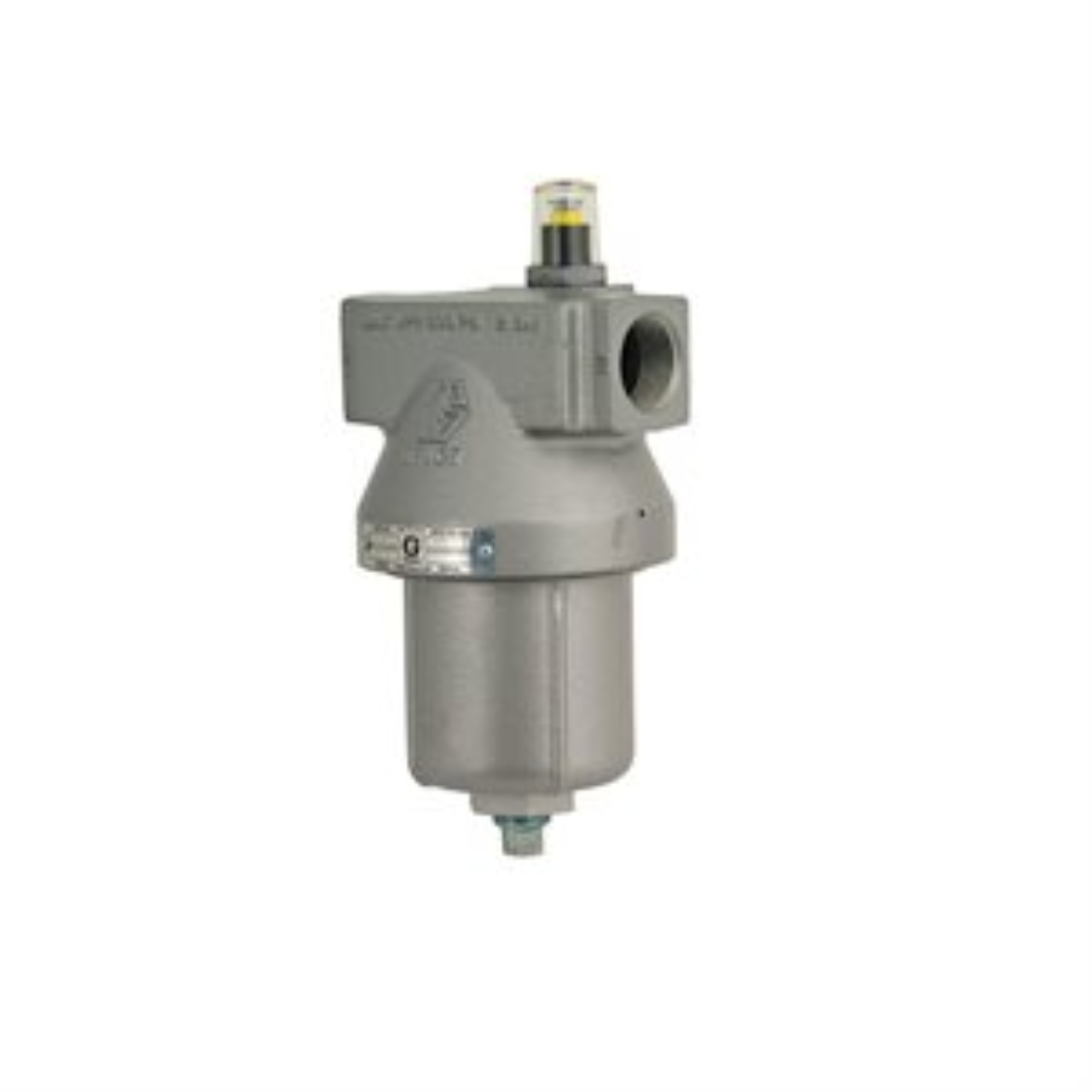

Graco 213060 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

• Red Alert indicator signals filter element replacement to ensure efficient filtration
• Bottom port for installing quick flush ball valve

• Filter Area (in²): 36

• Inlet Size (cm): 1.905
• Inlet Size (in): 3/4
• Inlet Size (mm): 19.05

• Inlet Thread Type: NPT

• Material: Aluminum

• Maximum Flow Rate (GPM): 6
• Maximum Flow Rate (L/min): 22.7

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (MPa): 2.1
• Maximum Working Pressure (psi): 300

• Outlet Size (cm): 1.905
• Outlet Size (in): 3/4
• Outlet Size (mm): 19.05
• Outlet Thread Type: NPT

• Overall Depth (cm): 9.5
• Overall Depth (in): 3.75
• Overall Depth (mm): 95

• Overall Height (cm): 22
• Overall Height (in): 8.75
• Overall Height (mm): 220
• Overall Width (cm): 10
• Overall Width (in): 4
• Overall Width (mm): 100
