GG 213063
FILTER, LIQUID LP, 60

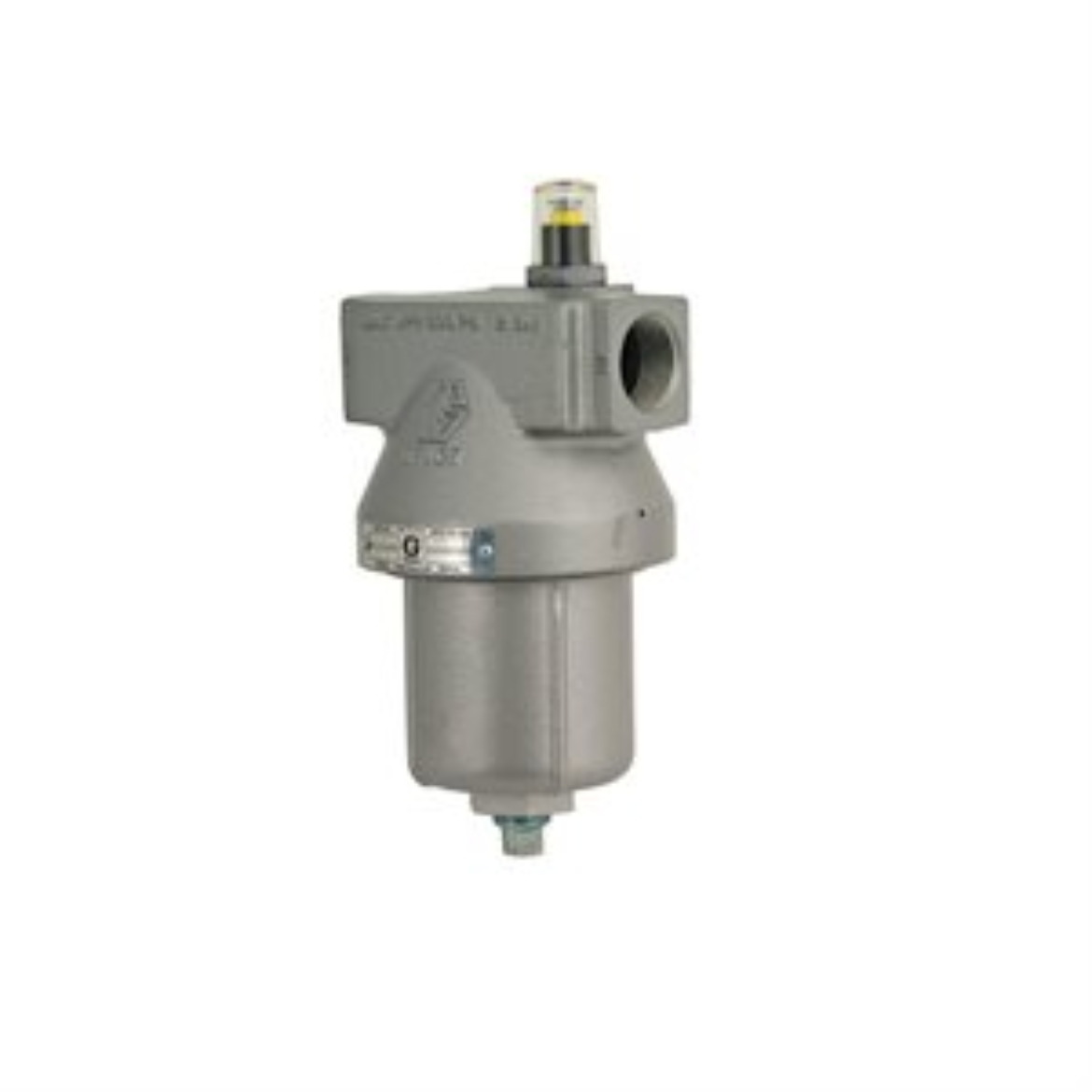

Graco 213063 Low Pressure Red Alert Filter, 20 gpm (75.7 lpm), 60 mesh (250 micron) element, 3/4 npt
Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.
Application: Large flow capacity is ideal for large circulation and supply systems.
- Red Alert indicator signals filter element replacement to ensure efficient filtration
- Bottom port for installing quick flush ball valve
- Inlet Size (cm): 1.905
- Inlet Size (in): 3/4
- Inlet Size (mm): 19.05
- Maximum Flow Rate (GPM): 20
- Maximum Flow Rate (L/min): 75.7
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (MPa): 2.1
- Maximum Working Pressure (psi): 300
- Outlet Size (cm): 1.905
- Outlet Size (in): 3/4
- Outlet Size (mm): 19.05
- Outlet Thread Type: NPT
- Overall Depth (cm): 14
- Overall Depth (in): 5.5
- Overall Depth (mm): 140
- Overall Height (cm): 28
- Overall Height (in): 11
- Overall Height (mm): 280
- Overall Width (cm): 15
- Overall Width (in): 6.06
- Overall Width (mm): 154
