GRACO INC. S10595
Kit, Drive Linkage Rebuild
GG 15H873
KIT,DRIVE LINKAGE REBUILD
Graco 15H873 Drive Linkage Rebuild Kit
Application: To rebuild one drive linkage assembly on E-Flo 4-Ball Piston Pumps
Heater, Machined, 1 Zone, 3500 PSI Obsolete
GG 15J090
Heater, Machined, 1 Zone, 3500 PSI
FITTING, ELBOW, SAE SHORT 1/8
GG 15K783
FITTING, ELBOW, SAE SHORT 1/8
Graco 15K783 Pipe Fitting - 90° Street Elbow, 1/8 in Female x 1/8 in Male threads, Steel
Application: These quality-produced tube and pipe fittings are designed for use with GRACO® lubricating systems.- 90º Elbow
- 1/8 inch (3.2 mm) NPTF Male/Female, PTF SAE Short
- Lubriquip part number 509-110-000
Shield, 2KS and PR70 Operator Station, This is a Pack of 10
GG 15M483
Shield, 2KS and PR70 Operator Station, This is a Pack of 10 IQ VALVE HEATER COVER (200MM and 60MM) Obsolete
GG 15N015
IQ VALVE HEATER COVER (200MM and 60MM)
BLOCK, INLET, MXP
GG 15R993
BLOCK, INLET, MXP
Trabon® MXP Divider Valve - Inlet Section - 3/8-18 NPSF Inlet Block Must be ordered in multiples of 2 3/8-18 NPSF Lubriquip part number 527-300-000
Manifold, Rear Fitting, Inch
GG 288160
MANIFOLD, REAR FITTING, INCH
Graco 288160 Rear port manifold, North America
REGULATOR, BACK PRESSURE
GG 288117
REGULATOR, BACK PRESSURE
Graco 288117 Pneumatic Corrosion Resistant Fluid Back Pressure Regulator, 20 gpm, 300 psi max fluid pressure, 1-1/4 npt inlet/outlet, with gauge
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Air operated for remote automated control to eliminate operator interference
Kit, Repair, Fluid, Aa
GG 288136
KIT, REPAIR,FLUID,AA
Graco 288136 Fluid Repair Kit for Automatic G40 Air-Assisted Spray Guns
Kit, Needle Assy, Carb/Carb
GG 288191
KIT, NEEDLE ASSY, CARB/CARB
Graco 288191 Fluid Needle, carbide ball, standard viscosity/standard flow
Kit, Needle Assy (Sst/Delrin)
GG 288190
KIT, NEEDLE ASSY (SST/DELRIN)
Graco 288190 Fluid Needle, SST ball, acid catalyzed materials/very low viscosity materials
Kit, Diffuser Airless
GG 288196
KIT, DIFFUSER AIRLESS
Graco 288196 Ball Seat Diffuser- 3/16 in
Kit, Aircap Assy, H.P.
GG 288194
KIT, AIRCAP ASSY, H.P.
Graco 288194 Standard Air Cap used with AAP, GG4, GG5, and AAM Series
- Compatible Material: Solvents, Paint, Coating, Lubrication-Fluid
Kit, Diffuser Assy
GG 288192
KIT, DIFFUSER ASSY
Graco 288192 Diffuser-Seat, carbide seat, standard viscosity/standard flow
Manifold, Bottom Inlet (In)
GG 288221
MANIFOLD, BOTTOM INLET (IN)
Graco 288221 Manifold with bottom fluid ports
Manifold, Adjustable, Delta, High Prs
GG 288224
MANIFOLD, ADJUSTABLE,DELTA,HIGH PRS
Graco 288224 High Pressure Air Assisted Manifold with side fluid ports and manual fan adjustment valve
Manifold, Side Inlet (In)
GG 288217
MANIFOLD, SIDE INLET (IN)
Graco 288217 North America Manifold with Side Fluid Ports
REGULATOR, BACK PRESSURE
GG 288311
REGULATOR, BACK PRESSURE
Graco 288311 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 1-1/2 npt
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Air operated for remote automated control to eliminate operator interference
REGULATOR, BACK PRESSURE
GG 288262
REGULATOR, BACK PRESSURE
Graco 288262 Pneumatic Back Pressure Regulator, 20 gpm (75 lpm), 300 psi (20.6 bar) max fluid pressure, 2 inch tri-clamp
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Air operated for remote automated control to eliminate operator interference
CONTRACTOR GUN, RAC X(PKGD)
GG 288420
CONTRACTOR GUN, RAC X(PKGD)
Contractor Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip The Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard. Exclusive FlexSeal Needle- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Simply remove the trigger cross pin and unthread front housing to change out needle
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
FTX GUN, 2FINGER, RAC X 515, PKG
GG 288429
FTX GUN, 2FINGER, RAC X 515, PKG
Contractor FTx Airless Spray Gun, 2 Finger Trigger, RAC X 515 SwitchTip The Contractor FTx Airless Spray Gun is the economical choice for everyday use while delivering the reliability and performance to achieve a professional finish. Includes a 2-finger trigger and a RAC X 515 SwitchTip and Guard. Exclusive FlexSeal Needle- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Simply remove the trigger cross pin and unthread front housing to change out needle
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
FTX GUN, RAC 5(PKGD)
GG 288431
FTX GUN, RAC 5(PKGD)
Contractor FTx Airless Spray Gun, 4 Finger Trigger, RAC 5 515 SwitchTip The Contractor FTx Airless Spray Gun is the economical choice for everyday use while delivering the reliability and performance to achieve a professional finish. Includes a 4-finger trigger and a RAC 5 515 SwitchTip and Guard. Exclusive FlexSeal Needle- Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
- Fluid pushes on seal to quickly shut off needle and reduce spitting
- Spring is located outside fluid path for better flow
- Helps eliminate pack out and slow needle shut-off
- Repositioned seat is closer to the tip, eliminating 60% of the dead space
- Less paint left between needle and tip results in less spitting
- Form-fitted handle provides maximum control and comfort
- Detachable trigger guard swings clear of gun handle for easy filter access
- Lightweight design reduces operator fatigue
- Smooth, lightweight trigger pull with simple, thumb-engaged safety lock
- Simply remove the trigger cross pin and unthread front housing to change out needle
- Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Filters from the inside out to prevent filter from collapsing
- Interchangeable with all Contractor series guns
KIT, GUN/HOSE, CONT, RACX, 1/4 X
GG 288489
KIT, GUN/HOSE, CONT, RACX, 1/4 X
Contractor Airless Spray Gun, RAC X LTX 517, BlueMax II Airless Hose 1/4 in x 50 ft, BlueMax II Airless Whip Hose 3/16 in x 3 ft Get up and spraying quickly on everyday applications with industry-proven performance. Keep a spare kit on hand to always be prepared for large projects where dual gun applications are required.Contractor Airless Spray Gun
- The industry standard for performance and durability for over a decade
RAC X LTX 517 SwitchTip
- Provides a 10 inch spray pattern
- Ideal for larger surfaces such as houses/buildings, walls and ceilings
- 100% tested for flow rate
- The lightest, most flexible hoses on the market
- Easy to connect and maintain
- The highest level of performance from the sprayer to the gun
- Contractor Airless Spray Gun
- RAC X LTX 517 SwitchTip and Guard
- 3/8 inch diameter by 50 feet BlueMax II Hose
- 3 foot BlueMax II Whip Hose
Kit, Accessory, Guard, Rac, Aa
GG 288839
KIT, ACCESSORY,GUARD,RAC,AA
Graco 288839 AA RAC Guard for Flat Tip RAC Tip Air Cap Conversion Kit
Sharpe Finex 2 Conventional Gravity Gun, 1.8
GG 288887
Sharpe Finex 2 Conventional Gravity Gun, 1.8
KIT, FLTR, SG20/SG PRO, 60 MESH
GG 288749
KIT, FLTR, SG20/SG PRO, 60 MESH
60 Mesh Gun Filter Spray gun filters improve the look of the final finish by removing unwanted debris from the paint. 60 mesh filter is for material such as primer and latex paint. Gun filters help remove debris from the coating protecting the pump, reducing tip clogging and providing a better quality finish Replace the filter if clogged more than 20% Prolong pump life and reduce tip clogging by cleaning and replacing the filter regularly Used for latex, enamels (latex) coatings Clean after every use For use with Graco spray gun models SG10, SG20, SG Pro, SG2 and SG3
KIT, GUN/HOSE, CONT, FF, 3/16 X 25'
GG 288501
KIT, GUN/HOSE, CONT, FF, 3/16 X 25'
Contractor Airless Spray Gun, RAC X FF LP 210 & 312, BlueMax II Airless Hose 3/16 in x 25 ft, 10 in Extension, 2-100 Mesh FiltersGet up and spraying quickly on fine finish applications with industry-proven performance. Keep a spare kit on hand to always be prepared for large projects where dual gun applications are required.
Contractor Airless Spray Gun
- The industry standard for performance and durability for over a decade
RAC X FF LP 210 & 312 SwitchTips
- Provides the industry’s best fine finish at the lowest airless spray pressure
- Reduced overspray
- Longer pump life
BlueMax II Airless Hoses
- The lightest, most flexible hoses on the market
- Easy to connect and maintain
- The highest level of performance from the sprayer to the gun
Kit Includes:
- Contractor Airless Spray Gun
- RAC X FF LP 210 and 312 SwitchTips
- BlueMax II Airless Hose 3/16 in x 25 ft
- 10 in Extension
- 2 - 100 Mesh Filters
- Solvent Seal Kit
- Cleaning Brush
Kit, Gun Rebuild, Finex Full Size Gravity
GG 288896
Kit, Gun Rebuild, Finex Full Size Gravity

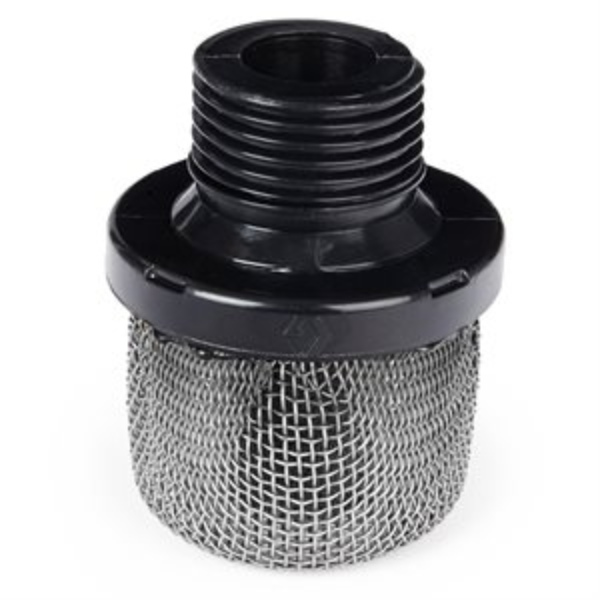

STRAINER, INLET, MAGNUM
GG 288716
STRAINER, INLET, MAGNUM
Inlet Strainer Removes unwanted debris from the paint and reduces tip clogging. Clean and replace the inlet strainer regularly for long pump life and superior finish. Inlet strainer removes debris from the coating protecting the pump, reducing tip clogging and providing a better quality finish Prolong pump life and reduce tip clogging by cleaning and replacing the inlet strainer regularly Damaged or worn inlet strainers can let unwanted debris to enter into the pump Use with Magnum models project painter plus, X5, X7, ProX17, ProX19, ProX17 and ProX19 airless paint sprayers
