ENERPAC S100272

EP DC9700900SR

MPE IND 2P -10K 205-725

• Type: ERP

• SubTypes: Repair Part

EP DC9661066

WAVEY WASHER 40MM ZU4
ZU4-Series

• Type: Service Kit

• SubTypes: Washer

EP DC9705900SR

MPE IND 3P-10K, 204-1450

• Type: ERP

• SubTypes: Repair Part

EP PJ3P

Planer Jack, 6 ton (53,4 kN) Sustaining Capacity, 2.25 in (57,2 mm) Operable Rise

• Side locking screw keeps the jack extended and prevents lowering due to vibration.
• Screw operation provides countless adjustments for exact leveling.
• Ideal jack for leveling plane beds, millers and machinery.
• Ball and socket cap swivels to center load forces.
• Notched base fastens easily to machine beds.
• CE Compliant - Our Jack design specifications meet or exceed ANSI /ASME B30.1 Safety Standards.
• Slotted load cap prevents the load from possible slippage with inline applications.

• Type: Jack

• Product Line: Mechanical Tools
• Series: PJ
• Stroke Inches: 2.25
• Stroke MM: 57.2
• SubTypes: Planer Jack

• Capacity Imperial Tons: 6
• Capacity KN: 53,4

EP PMB2

Pump Mounting Bracket for Large Hand and Electric Pumps

• Type: Press Accessory

• Product Group: Presses
• Product Line: Industrial Tools
• Series: A
• SubTypes: Press Pump Mounting Bracket

• Heavy duty steel brackets to allow conversion to one of the Enerpac Power Sources to power your press.
• Both mounting brackets are pre-drilled to accept a number of different pump models

EP PME10427K

REPAIR KIT
PU/PMU/WU-Series

• Type: Service Kit

• Product Group: Pumps
• Series: PME repair kit
• SubTypes: Repair Kit

EP PP179017

RETAINING RING
PA-Series

• Type: Service Kit

• SubTypes: Retaining Ring

EP PRASA10016L

100 Ton, 16 in Stroke, Pneumatic POW'R-RISER Lifting Jack
Applications: Lift, Lower

• Type: Wheeled Jack
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: PR
• Stroke Inches: 16
• Stroke MM: 406
• SubTypes: POW'R-RISER Jack Pneumatic

• Capacity Imperial Tons: 100
• Capacity KN: 889

• 4-inch ground clearance for transport over rail and rough terrain
• Three-position handle provides easy tilt back and transport
• Complies with ASME/ANSI B30.1:2015 & CE specifications
• Easy-to-change external filter minimizes down time
• Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
• SUP-R-STACK™ Extension System allows lifting at all heights without blocking

• Accessories: PRTS60, PRU13, PRU14, PRU110, PRUS126, PRE5, PRE7, PRE9, PRE11, PRE14, PRE18, PRES6024, PRS1, PRS2, PRS3, PRS4

EP PRASA10027L

100 Ton, 27 in Stroke, Pneumatic POW'R-RISER Lifting Jack
Applications: Lift, Lower

• Type: Wheeled Jack
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: PR
• Stroke Inches: 27
• Stroke MM: 686
• SubTypes: POW'R-RISER Jack Pneumatic

• Capacity Imperial Tons: 100
• Capacity KN: 889

• 4-inch ground clearance for transport over rail and rough terrain
• Three-position handle provides easy tilt back and transport
• Complies with ASME/ANSI B30.1:2015 & CE specifications
• Easy-to-change external filter minimizes down time
• Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
• SUP-R-STACK™ Extension System allows lifting at all heights without blocking

• Accessories: PRTS60, PRU13, PRU14, PRU110, PRUS137, PRE5, PRE7, PRE9, PRE11, PRES6024, PRS1, PRS2, PRS3, PRS4

EP PRASA15027L

150 Ton, 26.5 in Stroke, Pneumatic POW'R-RISER Lifting Jack
Applications: Lift, Lower

• Type: Wheeled Jack
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: PR
• Stroke Inches: 26.5
• Stroke MM: 673
• SubTypes: POW'R-RISER Jack Pneumatic

• Capacity Imperial Tons: 150
• Capacity KN: 1333

• 4-inch ground clearance for transport over rail and rough terrain
• Three-position handle provides easy tilt back and transport
• Complies with ASME/ANSI B30.1:2015 & CE specifications
• Easy-to-change external filter minimizes down time
• Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
• SUP-R-STACK™ Extension System allows lifting at all heights without blocking

• Accessories: PRTS150, PRU151, PRU153, PRU155, PRU1510, PRUS1537, PRE5, PRE7, PRE9, PRE11, PRES6024, PRS1, PRS2, PRS3, PRS4

EP PTW1000C

Pneumatic Torque Wrench, FRL included, 1000 ft. lbs. Torque, 1 in. Square Drive
Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: PTW
• SubTypes: Pneumatic Torque Wrench with FRL

Productivity, Safety, Convenience

• High speed continuous rotation for constant torque output
• Low friction planetary gearbox design minimizes wear and extends uptime
• Ergonomic, low vibration design reduces fatigue and the risk of vibration related injuries for the operator
• Low noise air motor provides quiet, consistent performance for indoor and outdoor applications
• Provided with standard reaction arm; wide assortment of custom arms and accessories are available
• Available with or without Filter-Regulator-Lubricator (FRL)
• Unique calibration certificate provided with each tool

• Set Includes: RATWS, FRL120C
• Accessories: ED6TWS, ED12TWS, ED18TWS, RATWS, ERATWS, SLRATWS, DSATWS, SRATWS, BLTWS

EP PTW2000C

Pneumatic Torque Wrench, FRL included, 2000 ft. lbs. Torque, 1 in. Square Drive
Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: PTW
• SubTypes: Pneumatic Torque Wrench with FRL

Productivity, Safety, Convenience

• High speed continuous rotation for constant torque output
• Low friction planetary gearbox design minimizes wear and extends uptime
• Ergonomic, low vibration design reduces fatigue and the risk of vibration related injuries for the operator
• Low noise air motor provides quiet, consistent performance for indoor and outdoor applications
• Provided with standard reaction arm; wide assortment of custom arms and accessories are available
• Available with or without Filter-Regulator-Lubricator (FRL)
• Unique calibration certificate provided with each tool

• Set Includes: RATWS, FRL120C
• Accessories: ED6TWS, ED12TWS, ED18TWS, RATWS, ERATWS, SLRATWS, DSATWS, SRATWS, BLTWS

EP PUD1100B

Two Speed, Economy Electric Hydraulic Pump, Dump Valve, 115V, For use with Single-Acting Cylinders

PU Series electric over hydraulic pumps combine economy with high-performance - ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools.

All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments.

Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.

PUD1100 Series

• For advance and retract of single-acting cylinders
• For applications not requiring load holding
• Ideal for punching applications

PUD1300 Series

• Providing advance, hold, and retract of single-acting cylinders
• Ideal for applications requiring load holding
• For applications requiring solenoid valves

PUJ-Series

• Manual valves provide advance, hold, and retract operation
• 3 and 4-way valves for single or double-acting cylinders

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: PU
• SubTypes: Electric Pump - Economy

• The economic choice for small to medium sized tools.
• Lightweight, compact, and portable.
• Two-speed operation reduces cycle times for improved productivity.
• Ideal for intermittent duty cycles.
• Works well with long extension cords or generator-driven electrical power supplies.
• 115 VAC 50/60-cycle universal motor will operate under poor voltage supply.
• 24 VAC remote motor control with 10 ft (3 m) cord for operator safety.
• Starts under full load.
• High-strength shroud with integral handle protects the motor from contamination and damage.

• Spare Part(s): PUD1100BK

EP PREMB10016L

100 Ton, 16 in Stroke, Electric, 115 VAC, POW'R-RISER Lifting Jack
Applications: Lift, Lower

• Type: Wheeled Jack
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: PR
• Stroke Inches: 16
• Stroke MM: 406
• SubTypes: POW'R-RISER Jack Electric

• Capacity Imperial Tons: 100
• Capacity KN: 889

• 4-inch ground clearance for transport over rail and rough terrain
• Three-position handle provides easy tilt back and transport
• Complies with ASME/ANSI B30.1:2015 & CE specifications
• Easy-to-change external filter minimizes down time
• Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
• SUP-R-STACK™ Extension System allows lifting at all heights without blocking

• Accessories: PRTS60, PRU13, PRU14, PRU110, PRUS126, PRE5, PRE7, PRE9, PRE11, PRE14, PRE18, PRES6024, PRS1, PRS2, PRS3, PRS4

EP PRAMA10016L

100 Ton, 16 in Stroke, Pneumatic POW'R-RISER Lifting Jack
Applications: Lift, Lower

• Type: Wheeled Jack
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: PR
• Stroke Inches: 16
• Stroke MM: 406
• SubTypes: POW'R-RISER Jack Pneumatic

• Capacity Imperial Tons: 100
• Capacity KN: 889

• 4-inch ground clearance for transport over rail and rough terrain
• Three-position handle provides easy tilt back and transport
• Complies with ASME/ANSI B30.1:2015 & CE specifications
• Easy-to-change external filter minimizes down time
• Rugged, fully enclosed 24-inch wide frame with no exposed fittings or hoses
• SUP-R-STACK™ Extension System allows lifting at all heights without blocking

• Accessories: PRTS60, PRU13, PRU14, PRU110, PRUS126, PRE5, PRE7, PRE9, PRE11, PRE14, PRE18, PRES6024, PRS1, PRS2, PRS3, PRS4

EP PUD1100BK

REPAIR KIT
PU/PMU/WU-Series

• Type: Service Kit

• Product Group: Pumps
• Series: PU (service kit)
• SubTypes: Repair Kit

EP PUD1300B

Two Speed, Economy Electric Hydraulic Pump, 3/2 Solenoid Valve, 115V, For use with Single-Acting Cylinders

PU Series electric over hydraulic pumps combine economy with high-performance - ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools.

All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments.

Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.

PUD1100 Series

• For advance and retract of single-acting cylinders
• For applications not requiring load holding
• Ideal for punching applications

PUD1300 Series

• Providing advance, hold, and retract of single-acting cylinders
• Ideal for applications requiring load holding
• For applications requiring solenoid valves

PUJ-Series

• Manual valves provide advance, hold, and retract operation
• 3 and 4-way valves for single or double-acting cylinders

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: PU
• SubTypes: Electric Pump - Economy

• The economic choice for small to medium sized tools.
• Lightweight, compact, and portable.
• Two-speed operation reduces cycle times for improved productivity.
• Ideal for intermittent duty cycles.
• Works well with long extension cords or generator-driven electrical power supplies.
• 115 VAC 50/60-cycle universal motor will operate under poor voltage supply.
• 24 VAC remote motor control with 10 ft (3 m) cord for operator safety.
• Starts under full load.
• High-strength shroud with integral handle protects the motor from contamination and damage.

• Spare Part(s): PUD1100BK

EP PUJ1200BK1

REPAIR KIT
PU/PMU/WU-Series

• Type: Service Kit

• Product Group: Pumps
• Series: PU (service kit)
• SubTypes: Repair Kit

EP PUJ1400BK

REPAIR KIT BOM
PU/PMU/WU-Series

• Type: Service Kit

• Product Group: Pumps
• Series: PU (service kit)
• SubTypes: Repair Kit

EP PUJ1400B

Two Speed, Economy Electric Hydraulic Pump, 4/3 Manual Valve, 115V, For use with Double-Acting Cylinders

PU Series electric over hydraulic pumps combine economy with high-performance - ideal for intermittent use when working with small to medium size cylinders and other hydraulic tools.

All models in the series are 2-speed for enhanced productivity, and each is supplied with a 10 ft (3 m) cord and control pendant for operator safety. The high-strength molded shroud with integral handle protects the motor from contamination and damage in industrial environments.

Within the PU Series is a selection of pumps that offer a choice of reservoir capacities, valve functions and voltage.

PUD1100 Series

• For advance and retract of single-acting cylinders
• For applications not requiring load holding
• Ideal for punching applications

PUD1300 Series

• Providing advance, hold, and retract of single-acting cylinders
• Ideal for applications requiring load holding
• For applications requiring solenoid valves

PUJ-Series

• Manual valves provide advance, hold, and retract operation
• 3 and 4-way valves for single or double-acting cylinders

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: PU
• SubTypes: Electric Pump - Economy

• The economic choice for small to medium sized tools.
• Lightweight, compact, and portable.
• Two-speed operation reduces cycle times for improved productivity.
• Ideal for intermittent duty cycles.
• Works well with long extension cords or generator-driven electrical power supplies.
• 115 VAC 50/60-cycle universal motor will operate under poor voltage supply.
• 24 VAC remote motor control with 10 ft (3 m) cord for operator safety.
• Starts under full load.
• High-strength shroud with integral handle protects the motor from contamination and damage.

• Spare Part(s): PUJ1400BK

EP R102

10 ton (89,0 kN) Capacity, 2.19 in (55,6 mm) Stroke, Single-Acting, General Purpose Hydraulic Cylinder

Simplex R-Series Single Acting Hydraulic Cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of cylinder tonnages and strokes available it's easy to find a cylinder perfectly matched to your application.

Threaded collars offer versatility in fixturing to give you many more application possibilities. Included inside R Series Cylinders is a positive stop to limit piston travel at the end of the stroke, adding extra strength and safety to your cylinder, and cylinder life is extended by the wiper seal.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: R
• Stroke Inches: 2.19
• Stroke MM: 55.6
• SubTypes: General Purpose Cylinder

• Capacity Imperial Tons: 10
• Capacity KN: 89,0

• Single acting with heavy-duty internal retraction spring
• Solid and plated piston resists scoring & corrosion
• Heat treated grooved saddles are provided as standard
• Stop ring limits piston travel at the end of the stroke to prevent blow-out
• High flow couplers are plated to resist corrosion
• Polyurethane wipers clean the piston surface during retraction - protecting the inner cylinder assembly from dirt, moisture, and other contaminants.
• Meets ANSI/ASME B30.1 Safety Standards
• Load tested under 125% of the nominal capacity
• For working pressures up to 10,000 psi (700 bar)

• Accessories: BA10, 18348, ATS10, BR10, BCR10, BC10

EP R515245-2

PLUG
Flow and Pressure Control Valves (V-Series)

• Type: Service Kit

• SubTypes: Plug

EP RA106

10 TON S/A CYLINDER
Single-Acting Cylinders (RC-Series and equivalent)

• Type: Hydraulic Cylinders

• Product Group: Cylinders and Jacks

EP R57

5 ton (44,5 kN) Capacity, 7.18 in (182,4 mm) Stroke, Single-Acting, General Purpose Hydraulic Cylinder

Simplex R-Series Single Acting Hydraulic Cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of cylinder tonnages and strokes available it's easy to find a cylinder perfectly matched to your application.

Threaded collars offer versatility in fixturing to give you many more application possibilities. Included inside R Series Cylinders is a positive stop to limit piston travel at the end of the stroke, adding extra strength and safety to your cylinder, and cylinder life is extended by the wiper seal.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: R
• Stroke Inches: 7.18
• Stroke MM: 182.4
• SubTypes: General Purpose Cylinder

• Capacity Imperial Tons: 5
• Capacity KN: 44,5

• Single acting with heavy-duty internal retraction spring
• Solid and plated piston resists scoring & corrosion
• Heat treated grooved saddles are provided as standard
• Stop ring limits piston travel at the end of the stroke to prevent blow-out
• High flow couplers are plated to resist corrosion
• Polyurethane wipers clean the piston surface during retraction - protecting the inner cylinder assembly from dirt, moisture, and other contaminants.
• Meets ANSI/ASME B30.1 Safety Standards
• Load tested under 125% of the nominal capacity
• For working pressures up to 10,000 psi (700 bar)

• Accessories: 18347, BCR5, BR5

EP RAC20K50

RAC20 SERIES REPAIR KIT
Single-Acting Cylinders (RAC-Series and equivalent)

• Type: Service Kit

• SubTypes: Repair Kit

EP RAC50K50

RAC50 SERIES REPAIR KIT
Single-Acting Cylinders (RAC-Series and equivalent)

• Type: Service Kit

• SubTypes: Repair Kit

EP QDH120

13800 lbs Capacity, 0.32 in Stroke, Hollow Plunger Hydraulic Cylinder
Applications: Push, Pull

• Type: Hydraulic Cylinders
• Max Bar: 350
• Max PSI: 5000

• Product Group: Cylinders and Jacks
• Product Line: Work Holding Tools
• Series: QDH
• Stroke Inches: 0.32
• Stroke MM: 8.1
• SubTypes: Workholding Hollow Plunger Cylinder

• Load can be attached to either end of the cylinder, providing a choice of push or pull actions - both realizing full cylinder capacity
• Very high cylinder capacities contained within small dimensions allow compact fixture designs
• Spring return operation allows for easy unloading of the workpiece
• Threaded collars and base mounting holes allow mounting flexibility, including table-top surfaces and T-slots
• Nickel-plated plungers, plunger wipers and internal venting prevent corrosion and support longer operation life on allHCS models

EP RACD3010

30 ton (266,9 kN) Capacity, 10 in (254 mm) Stroke, Double-Acting, Aluminum Center Hole Hydraulic Cylinder

• Technical coating reduces wear & corrosion.
• Steel piston for protection against load damage.
• Chrome plated sleeve for extra protection.
• Stop rings for piston blow-out protection.
• Rod wiper protects inner cylinder from dirt.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: RACD
• Stroke Inches: 10
• Stroke MM: 254
• SubTypes: Aluminum Center Hole Cylinder

• Capacity Imperial Tons: 30
• Capacity KN: 266,9

EP RACD10010

100 ton (889,6 kN) Capacity, 10 in (254 mm) Stroke, Double-Acting, Aluminum Center Hole Hydraulic Cylinder

• Technical coating reduces wear & corrosion.
• Steel piston for protection against load damage.
• Chrome plated sleeve for extra protection.
• Stop rings for piston blow-out protection.
• Rod wiper protects inner cylinder from dirt.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: RACD
• Stroke Inches: 10
• Stroke MM: 254
• SubTypes: Aluminum Center Hole Cylinder

• Capacity Imperial Tons: 100
• Capacity KN: 889,6

EP R59

5 ton (44,5 kN) Capacity, 9.18 in (233,2 mm) Stroke, Single-Acting, General Purpose Hydraulic Cylinder

Simplex R-Series Single Acting Hydraulic Cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of cylinder tonnages and strokes available it's easy to find a cylinder perfectly matched to your application.

Threaded collars offer versatility in fixturing to give you many more application possibilities. Included inside R Series Cylinders is a positive stop to limit piston travel at the end of the stroke, adding extra strength and safety to your cylinder, and cylinder life is extended by the wiper seal.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: R
• Stroke Inches: 9.18
• Stroke MM: 233.2
• SubTypes: General Purpose Cylinder

• Capacity Imperial Tons: 5
• Capacity KN: 44,5

• Single acting with heavy-duty internal retraction spring
• Solid and plated piston resists scoring & corrosion
• Heat treated grooved saddles are provided as standard
• Stop ring limits piston travel at the end of the stroke to prevent blow-out
• High flow couplers are plated to resist corrosion
• Polyurethane wipers clean the piston surface during retraction - protecting the inner cylinder assembly from dirt, moisture, and other contaminants.
• Meets ANSI/ASME B30.1 Safety Standards
• Load tested under 125% of the nominal capacity
• For working pressures up to 10,000 psi (700 bar)

• Accessories: 18347, BCR5, BR5

EP RACH1006005

CENTER TUBE 100 TON 150MM STROKE
Single-Acting Hollow Plunger Cylinders (RACH-Series and equivalent)

• Type: Service Kit

• SubTypes: Tube

EP RACH1006

127.5 ton Capacity, 5.91 in Stroke, Aluminum Hollow Plunger Hydraulic Cylinder

RACH-Series Hollow Plunger Hydraulic Cylinders (sometimes called center-hole cylinders) feature a hollow plunger with an internal thread to allow fixing to the component to be pulled. This makes them the ideal choice for when you need a lighter, more portable cylinder for applications such as tensioning, testing, pulling, and lifting. Each RACH Cylinder is rated for up to 10,000 psi (700 bar) and compliant with ASME B30.1.

Each RACH Cylinder is single-acting and uses a high-strength return spring for rapid retraction. All are equipped with bolt-on hardened steel saddles and a steel base plate for increased durability.

Aluminum is not only lightweight, but also inherently less corrosive than steel, which makes it a great material for use in many caustic environments. For enhanced protection, RACH Aluminum Cylinders are finished with an anodized hard coat finish to resist damage and extend cylinder life.

Applications: Lift, Push, Pull, Tension

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RACH
• Stroke Inches: 5.91
• Stroke MM: 150
• SubTypes: Aluminum Hollow Plunger Cylinder

• Hollow plunger design allows for both pull and push forces
• Composite bearings increase cylinder life and side load resistance
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Handles included on all models
• Floating center tube increases seal life
• Steel baseplate and saddle for protection against load-induced damage
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• High-strength return spring for rapid cylinder retraction
• CR400 coupler and dustcap included on all models
• All cylinders meet ASME B-30.1 standards

EP RACH1006040

PLUNGER 100 TON 150MM STROKE
Single-Acting Hollow Plunger Cylinders (RACH-Series and equivalent)

• Type: Service Kit

• SubTypes: Plunger Kit

EP RACD5010

50 ton (444,8 kN) Capacity, 10 in (254 mm) Stroke, Double-Acting, Aluminum Center Hole Hydraulic Cylinder

• Technical coating reduces wear & corrosion.
• Steel piston for protection against load damage.
• Chrome plated sleeve for extra protection.
• Stop rings for piston blow-out protection.
• Rod wiper protects inner cylinder from dirt.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: RACD
• Stroke Inches: 10
• Stroke MM: 254
• SubTypes: Aluminum Center Hole Cylinder

• Capacity Imperial Tons: 50
• Capacity KN: 444,8

EP RACH100K50

RACH100 SERIES REPAIR KIT
Single-Acting Hollow Plunger Cylinders (RACH-Series and equivalent)

• Type: Service Kit

• SubTypes: Repair Kit

EP RACH2010

25.4 ton Capacity, 9.84 in Stroke, Aluminum Hollow Plunger Hydraulic Cylinder

RACH-Series Hollow Plunger Hydraulic Cylinders (sometimes called center-hole cylinders) feature a hollow plunger with an internal thread to allow fixing to the component to be pulled. This makes them the ideal choice for when you need a lighter, more portable cylinder for applications such as tensioning, testing, pulling, and lifting. Each RACH Cylinder is rated for up to 10,000 psi (700 bar) and compliant with ASME B30.1.

Each RACH Cylinder is single-acting and uses a high-strength return spring for rapid retraction. All are equipped with bolt-on hardened steel saddles and a steel base plate for increased durability.

Aluminum is not only lightweight, but also inherently less corrosive than steel, which makes it a great material for use in many caustic environments. For enhanced protection, RACH Aluminum Cylinders are finished with an anodized hard coat finish to resist damage and extend cylinder life.

Applications: Lift, Push, Pull, Tension

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RACH
• Stroke Inches: 9.84
• Stroke MM: 250
• SubTypes: Aluminum Hollow Plunger Cylinder

• Hollow plunger design allows for both pull and push forces
• Composite bearings increase cylinder life and side load resistance
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Handles included on all models
• Floating center tube increases seal life
• Steel baseplate and saddle for protection against load-induced damage
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• High-strength return spring for rapid cylinder retraction
• CR400 coupler and dustcap included on all models
• All cylinders meet ASME B-30.1 standards

EP RACH20K50

RACH20 SERIES REPAIR KIT
Single-Acting Hollow Plunger Cylinders (RACH-Series and equivalent)

• Type: Service Kit

• SubTypes: Repair Kit

EP RACH602005

CENTER TUBE 60 TON 50MM STROKE
Single-Acting Hollow Plunger Cylinders (RACH-Series and equivalent)

• Type: Service Kit

• SubTypes: Tube

EP RACL504

54.9 ton Capacity, 3.94 in Stroke, Aluminum Lock Nut Hydraulic Cylinder

RACL-Series Aluminum Cylinders include a lock nut that gives the reassurance of safe mechanical load holding for extended periods. Each cylinder is single-acting with a high-strength return spring for rapid retraction. The integral stop ring prevents plunger over-travel. All are equipped with bolt-on hardened steel saddles and a steel base plate for increased durability.

Enerpac RACL Lock Nut Aluminum Hydraulic Cylinders can change the way you think about your cylinder applications. With approximately half of the weight of equivalent steel models, they combine an impressive power to weight ratio with the convenience of easier transport and positioning. RACL cylinders are rated for 10,000 psi (700 bar) and comply with ASME B30.1.

Aluminum is not only lightweight, but also inherently less corrosive than steel, which makes it a great material for use in many caustic environments. For enhanced protection, Enerpac RACL Aluminum Cylinders are finished with an anodized hard coat finish to resist damage and extend cylinder life.

Applications: Lift, Push, Hold

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RACL
• Stroke Inches: 3.94
• Stroke MM: 100
• SubTypes: Aluminum Lock Nut Cylinder

• Aluminum Lock Nut provides mechanical load holding for extended periods
• Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Composite bearings increase cylinder life and side load resistance
• Handles included on all models
• Steel base plate and saddle for protection against load-induced damage
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• High-strength return spring for rapid cylinder retraction
• CR400 coupler and dustcap included on all models
• All cylinders meet ASME B-30.1 standards

• Accessories: CATS50

EP RACL204

24.2 ton Capacity, 3.94 in Stroke, Aluminum Lock Nut Hydraulic Cylinder

RACL-Series Aluminum Cylinders include a lock nut that gives the reassurance of safe mechanical load holding for extended periods. Each cylinder is single-acting with a high-strength return spring for rapid retraction. The integral stop ring prevents plunger over-travel. All are equipped with bolt-on hardened steel saddles and a steel base plate for increased durability.

Enerpac RACL Lock Nut Aluminum Hydraulic Cylinders can change the way you think about your cylinder applications. With approximately half of the weight of equivalent steel models, they combine an impressive power to weight ratio with the convenience of easier transport and positioning. RACL cylinders are rated for 10,000 psi (700 bar) and comply with ASME B30.1.

Aluminum is not only lightweight, but also inherently less corrosive than steel, which makes it a great material for use in many caustic environments. For enhanced protection, Enerpac RACL Aluminum Cylinders are finished with an anodized hard coat finish to resist damage and extend cylinder life.

Applications: Lift, Push, Hold

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RACL
• Stroke Inches: 3.94
• Stroke MM: 100
• SubTypes: Aluminum Lock Nut Cylinder

• Aluminum Lock Nut provides mechanical load holding for extended periods
• Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Composite bearings increase cylinder life and side load resistance
• Handles included on all models
• Steel base plate and saddle for protection against load-induced damage
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• High-strength return spring for rapid cylinder retraction
• CR400 coupler and dustcap included on all models
• All cylinders meet ASME B-30.1 standards

EP RAR1004

100 ton Capacity, 3.94 in Stroke, Double-Acting, Aluminum Hydraulic Cylinder

RAR-Series Double Acting Hydraulic Cylinders provide a rapid and more controlled plunger retraction than spring return or load return types. The hydraulic return method continues to work effectively regardless of hose lengths and system losses, maintaining efficiency and productivity. Each RAR Cylinder is rated for up to 10,000 psi (700 bar) and compliant with ASME B30.1.

The aluminum construction of RAR Cylinders means they are not only lightweight, but also less corrosive than steel equivalents. This helps to maintain durability in many caustic environments. For enhanced protection, RAR Aluminum Cylinders are finished with an anodized hard coat finish to resist damage and extend cylinder life. Handles featured on all models enhance their portability.

Each RAR Cylinder is equipped with a bolt-on hardened steel saddle and a steel base plate for increased durability. Optional Tilt Saddles can help to support the load evenly and alleviate unwanted side-load.

Applications: Lift, Lower, Push

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: RAR
• Stroke Inches: 3.94
• Stroke MM: 100
• SubTypes: Aluminum Cylinder

• Double-acting for rapid retraction, regardless of hose lengths and system losses
• Composite bearings increase cylinder life and side load resistance
• Hard coat finish on all surfaces resists damage and extends cylinder life
• Handles included on all models
• Steel base plate and saddle for protection against load- induced damage
• Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
• Built-in safety valve prevents accidental over-pressurization

• Accessories: CATS101

EP RAL502

50 ton (444,8 kN) Capacity, 2 in (50,8 mm) Stroke, Single-Acting, Aluminum Locknut Hydraulic Cylinder

Simplex RAL Series Aluminum Hydraulic Cylinders feature lock nut that provide the reassurance of safe mechanical load holding for extended periods. These are approximately half the weight of steel equivalents and are expertly engineered to withstand tough applications in harsh conditions.

Aluminum is not only lighter, but also inherently less corrosive than steel, which makes it a great material for use in many caustic environments. A carrying handle provided on all RAL cylinders also enhance portability.

Inside the cylinder is a high-strength return spring for plunger retraction and stop rings for protection against blow out. The cylinder exterior is finished with an anodized hard coat to extend cylinder life, and a wiper protects the inner cylinder assembly from dirt, moisture, and other contaminants.

• Type: Hydraulic Cylinders
• Max Bar: 700
• Max PSI: 10000

• Product Line: Hydraulic Tools
• Series: RAL
• Stroke Inches: 2
• Stroke MM: 50.8
• SubTypes: Aluminum Locknut Cylinder

• Capacity Imperial Tons: 50
• Capacity KN: 444,8

• Approximately half the weight of steel cylinders
• Lock nut for mechanical load holding for extended periods
• Heavy duty spring delivers fast and full retraction
• Hard anodized coating reduces wear and corrosion
• Stop rings prevent piston blow-out
• Wiper protects inner cylinder from dirt.
• Meets ANSI/ASME B30.1 Safety Standards
• Load tested under 125% of the nominal capacity
• For working pressures up to 10,000 psi (700 bar)

EP W2114X

W2000X Imperial Cassette, 1 7/8 in. Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial

• Accessories: WTE20, WRP20

EP W2103X

W2000X Imperial or Metric Cassettes, 1 3/16 in. / 30 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: WTE20, WRP20

EP W35000X

Low Profile Hydraulic Torque Wrench Drive Unit, 35000 ft. lbs Torque

W -Series Low Profile Hydraulic Torque Wrenches provide a superior strength to size ratio. Built for heavy-duty bolting and enduring durability, these powerful tools provide low total cost of ownership.

A low-profile torque wrench uses interchangeable cassettes and is the ideal choice where clearance around the nut is restricted (such as in the oil and gas industry). For working in these environments, W-Series drive units and cassettes offer the reassurance of ATEX certification to ensure they meet the necessary safety standards in potentially explosive environments.

Choose this W-Series Drive Unit and compatible cassettes for the ultimate in productivity, durability, reliability in challenging environments. With a product at this level, you can expect hassle-free ownership, superior quality, and extra features, such as quick-change cassettes.

Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Drive Unit
• SubTypes: Low Profile Drive Unit

• Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• 30 degree rotation angle and rapid return stroke provide fast operation
• Tough manifold design with added safety feature for enhanced operator safety
• Fast release drive unit enables rapid exchange of cassettes, no tools required
• Quick and easy disassembly for maintenance without special tools
• Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
• Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
• Drive unit compatible with W-Series and UltraSlim Cassettes
• Constant torque output provides accuracy of +/-3% across full stroke
• ATEX declared. All W-Series X-edition drive units are CE - ATEX declared.

• Accessories: BUS05, BUS06, BUS07, BUS08, BUS09, BUS10, BUS11, BUS12, SWH10EA, WTE350, WRP350, TPS300

EP W2200X

W2000X Imperial or Metric Cassettes, 2 in. / 50 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: W2200R107, W2200R110, WTE20, WRP20

EP W4000PX

Low Profile Hydraulic Torque Wrench Drive Unit with Pro Series Swivel, 4000 ft. lbs Torque
Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Drive Unit
• SubTypes: Low Profile Drive Unit

• Fitted with the TSP swivel X-Edition hexagon hydraulic torque wrenches set a new standard in safety, simplicity and performance
• Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• 30° rotation angle and rapid return stroke provide fast operation
• Tough manifold design with added safety feature for enhanced operator safety
• Fast release drive unit enables rapid exchange of cassettes, no tools required
• Quick and easy disassembly for maintenance without special tools
• Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
• Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
• X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
• Drive unit compatible with UltraSlim and WCR-Series cassettes
• Constant torque output provides accuracy of +/-3% across full stroke
• ATEX declared. All W-Series X-edition drive units are CE - ATEX declared.

• Set Includes: SWH6A
• Accessories: BUS02, BUS03, BUS04, BUS05, BUS06, BUS07, BUS08, BUS09, SWH6S, WTE40, WRP40

EP W4107X

W4000X Imperial or Metric Cassettes, 1 7/16 in. / 36 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: WTE40, WRP40

EP W4113X

W4000X Imperial or Metric Cassettes, 1 13/16 in. / 46 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: WTE40, WRP40

EP W4203X

W4000X Imperial or Metric Cassettes, 2 3/16 in. / 55 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: W4203R104, W4203R107, W4203R110, WTE40, WRP40

EP W4200X

W4000X Imperial or Metric Cassettes, 2 in. / 50 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: W4200R107, WTE40, WRP40

EP W4204X

W4000X Imperial Cassette, 2 1/4 in. Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial

• Accessories: WTE40, WRP40

EP W8000PX

Low Profile Hydraulic Torque Wrench Drive Unit with Pro Series Swivel, 8000 ft. lbs Torque
Applications: Torque

• Type: Torque Wrench

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Drive Unit
• SubTypes: Low Profile Drive Unit

• Fitted with the TSP swivel X-Edition hexagon hydraulic torque wrenches set a new standard in safety, simplicity and performance
• Superior strength to size ratio provides easy access to difficult to reach applications without sacrificing endurance
• 30° rotation angle and rapid return stroke provide fast operation
• Tough manifold design with added safety feature for enhanced operator safety
• Fast release drive unit enables rapid exchange of cassettes, no tools required
• Quick and easy disassembly for maintenance without special tools
• Includes robust handles which mount on both sides, and the tops of cassettes to allow for extra maneuverability
• Available with optional enhanced tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability
• X-Edition drive units, cassettes and most accessories are compatible with standard edition tools.
• Drive unit compatible with UltraSlim and WCR-Series cassettes
• Constant torque output provides accuracy of +/-3% across full stroke
• ATEX declared. All W-Series X-edition drive units are CE - ATEX declared.

• Set Includes: SWH10A
• Accessories: BUS03, BUS04, BUS05, BUS06, BUS07, BUS08, BUS09, BUS10, BUS11, SWH10S, WTE80, WRP80

EP W8212X

W8000X Imperial or Metric Cassettes, 2 3/4 in. / 70 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: W8212R203, WTE80, WRP80

EP W8308X

W8000X Imperial Cassette, 3 1/2 in. Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial

• Accessories: W8308R212, W8308R215, W8308R300, WTE80, WRP80

EP W8302X

W8000X Imperial or Metric Cassettes, 3 1/8 in. / 80 mm Hexagon Size

W-Series Low Profile Hexagon Cassettes work with your compatible drive unit, giving you the access needed for hassle-free bolting in tight spaces.

ATEX declared. Calibration certificate included. All W-Series X-edition cassettes are CE - ATEX declared and are shipped complete with a calibration certificate.

Robustly constructed from steel especially for heavy use and enduring durability, these robust cassettes are designed to ensure a low total cost of ownership. Fast release in the compatible drive units enable rapid exchange of cassettes - no tools required and no pins to lose!

The optimum nose radius in each cassette offers the ideal strength to size ratio for restricted clearance applications. (For exceptionally tight spaces consider the UltraSlim Cassettes).

Constant torque output provides accuracy of plus/minus 3% across full stroke.

Applications: Torque

• Type: Torque Wrench
• Max PSI: 10000

• Product Group: Torque Wrenches, Torque Wrench Pumps
• Product Line: Bolting Tools
• Series: W - Cassette
• SubTypes: Cassette - Imperial or Metric

• Accessories: W8302R200, W8302R203, W8302R206, W8302R209, WTE80, WRP80

EP WHC1250

20 Ton Capacity, Hydraulic Cutterhead
Applications: Cut

• Type: Cutter
• Max Bar: 700
• Max PSI: 10000

• Product Group: Cutters
• Product Line: Industrial Tools
• Series: WHC
• SubTypes: Cutterhead

• Capacity Imperial Tons: 20

• Rotating heads for operator convenience
• Guillotine action for efficient operation
• Carrying bag included for easy carrying and tool protection
• Velcro straps to secure handles on larger models for easy transportation
• Spring return on all models
• Lightweight, self-contained tool, can be used anywhere

• Set Includes: CR400
• Accessories: WCB1250

EP WM1584054

M5X5 SCREW
Integral Hydraulic Cutters (WMC-Series)

• Type: Service Kit

• SubTypes: Repair Part

EP WM1584057

BODY HANDLE GRIP
Integral Hydraulic Cutters (WMC-Series)

• Type: Service Kit

• SubTypes: Grip

EP WM581655

P-26 O RING
Integral Hydraulic Cutters (WMC-Series)

• Type: Service Kit

• SubTypes: O-Ring Kit

EP WM1584207

OIL RESERVOIR
Integral Hydraulic Cutters (WMC-Series)

• Type: Service Kit

• SubTypes: Oil Reservoir

EP WPFR300V

8,500 lbs Force, Collet-Lok Swing Cylinder, Lower Flange, Right Turn
Applications: Clamp, Hold

• Type: Hydraulic Cylinders
• Max PSI: 5000
• Min PSI: 1400

• Product Group: Cylinders and Jacks
• Product Line: Work Holding Tools
• Series: WPF
• Stroke Inches: 1.65
• SubTypes: Collet Lok Swing Cylinder

• Double acting Collet-Lok action allows fully automated operation
• Additional level of safety since live hydraulics are not required to maintain clamping force
• Collet-Lok swing cylinders can be mounted by the flange or threaded into the fixture. Flanged models have manifold ports and tubing ports.
• Viton seals are standard

• Accessories: CA3070

EP WPFL300V

8,500 lbs Force, Collet-Lok Swing Cylinder, Lower Flange, Left Turn
Applications: Clamp, Hold

• Type: Hydraulic Cylinders
• Max PSI: 5000
• Min PSI: 1400

• Product Group: Cylinders and Jacks
• Product Line: Work Holding Tools
• Series: WPF
• Stroke Inches: 1.65
• SubTypes: Collet Lok Swing Cylinder

• Double acting Collet-Lok action allows fully automated operation
• Additional level of safety since live hydraulics are not required to maintain clamping force
• Collet-Lok swing cylinders can be mounted by the flange or threaded into the fixture. Flanged models have manifold ports and tubing ports.
• Viton seals are standard

• Accessories: CA3070

EP WR15K

WEDGIE CYLINDER KIT
Wedgie and Spread Cylinders (A and WR-Series)

• Type: Service Kit

• SubTypes: Repair Part

EP WUD1300B

Economy Electric Hydraulic Pump, Dump Valve, .5 gallon Usable Oil, 115V

• Type: Hydraulic Pump
• Max Bar: 350
• Max PSI: 5000

• Product Group: Pumps
• Product Line: Work Holding Tools
• Series: WU
• SubTypes: Electric Pump - Economy

• The Economy pump is best suited to power small to medium size fixtures. Its lightweight and compact design makes it ideal for applications which require easy transport of the pump. The universal motor works well on long extension cords.
• Provides advance/auto-retract of singleacting cylinders
• 10-foot pendant controls motor and valve operation
• Use with AP500
• Lightweight and compact design
• Large easy-carry handle for maximum portability
• Two-speed operation reduces cycle times for improved productivity
• 24 VDC remote motor control, 10-ft length for operator safety
• Starts under full load
• High strength molded shroud with integral handle, protects motor from contamination and damage
• Designed for intermittent duty cycle

EP XA1AMK

Air Motor, XA-Series

• Type: Service Kit

• SubTypes: Repair Part

EP XA1AVK

AIR VALVE, XA
XA-Series

• Type: Service Kit

• SubTypes: Air Valve

EP XA1B2LK

BLADDER, 2L, XA
XA-Series

• Type: Service Kit

• SubTypes: Repair Part

EP FZ-1616

3/8 STREET ELBOW

EP HC-9206C

6 HOSE W/TWO CH-604, .25 I.D.

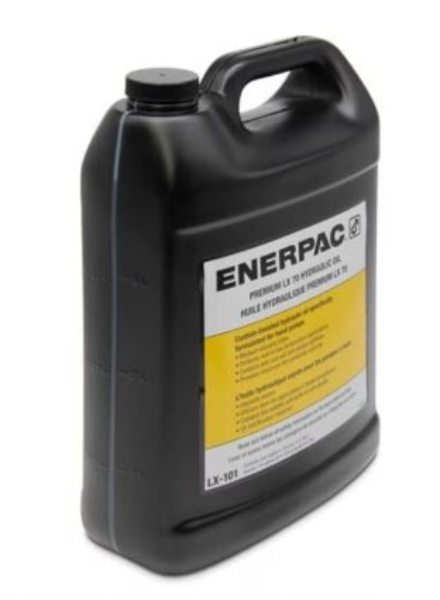

EP LX-101

HYD OIL FOR HAND PUMPS, GALLON

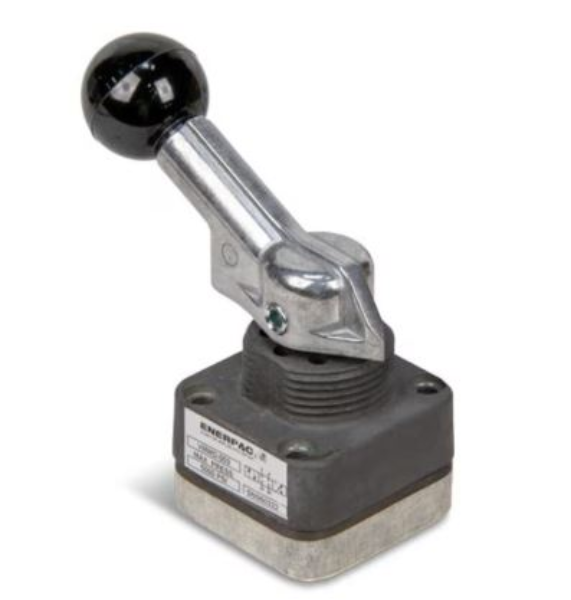

EP VMMD-003

4-Way Valve, D03, Closed Center

EP XA-11

AIR DRIVEN PUMP S/A 1L

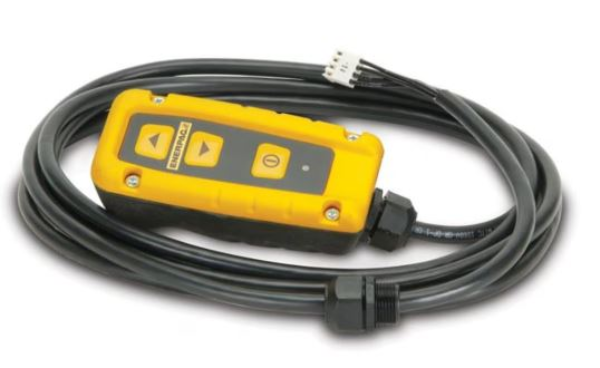

EP ZCP-3

Pendant for Pumps with a VE32, VE33, or VE43 Valve

EP RCS-101

10 Ton Cylinder S/A

EP VM43

Pump Mounted Directional Control Valve, Manual, 4-way, 3-position, Tandem Center

• Type: Valve
• Max Bar: 700
• Max PSI: 10000

• Product Group: Valves, Pumps
• Product Line: Industrial Tools, Work Holding Tools
• Series: VM
• SubTypes: Directional Control Valve

• Advance/Retract operation of single-acting cylinders
• Manual Operation
• Pump mounting will retrofit on most Enerpac Pumps
• User adjustable relief valves allow the operator to easily set the working pressure

EP PRASA20027L

200 Ton, 26.5 in Stroke, Pneumatic POW'R-RISER Lifting Jack

EP A150

V-Block for 50 ton H-Frame Press

EP DA5493900SR

Relief Valve Assembly

EP P80K50

P80/P801 Standard Repair Kit

EP RSQ11000ST

RSL11000, Sq. Dr. Wrench Set, 1-1/2in - Max, 11154 Ft.Lbs/15123 Nm

EP DA4265110

Spring

EP DC9736960

POWER CORD ZE 115V
ZE/ZW-Series

• Type: Service Kit

• SubTypes: Power Cord

EP DC9740969

FERRITE
ZE/ZW-Series

• Type: Service Kit

• SubTypes: Repair Part

EP DC9951405

VELCRO 2" Z
ZE/ZW-Series

• Type: Service Kit

• SubTypes: Repair Part

EP DD1116380

CIRCUIT BREAKER MANUAL RESET 15AMP
PE/WE-Series

• Type: Service Kit

• SubTypes: Circuit Breaker

EP DD1184110SR

SPRING REPAIR KIT, RC2514
Enerpac Fasteners

• Type: Service Kit

• SubTypes: Spring Kit

EP DD1246660SR

115VAC SLIDER VALVE ASM

• Type: ERP

• SubTypes: Slider Valve

EP DD1273960

CABLE ASSY, SOLENOID, NON-RECTIFIED W/ MOLDED DIN
ZU4-Series

• Type: Service Kit

• SubTypes: Cable

EP DD1468900SR

REPAIR PARTS KIT PUARV BLOCK, TW PRO

• Type: ERP

• SubTypes: Repair Kit

EP DD1467900SR

REPAIR PARTS KIT PUARV, TW PRO
S-Series

• Type: Service Kit

• SubTypes: Repair Part

EP DD1721021

PLUG NUT
11 Series

• Type: Service Kit

• SubTypes: Nut

EP DD1722006

PLUG
11 Series

• Type: Service Kit

• SubTypes: Plug

EP DD1774271

THREAD PROTECTOR
Single-Acting Cylinders (RC-Series and equivalent)

• Type: Service Kit

• SubTypes: Thread Protector

EP DD1773271

THREAD PROTECTOR
Single-Acting Cylinders (RC-Series and equivalent)

• Type: Service Kit

• SubTypes: Thread Protector

EP DD2538185

PLUG, VALVE

• Type: ERP

• SubTypes: Repair Part

EP DD2539070

TUBING, HANDLE

• Type: ERP

• SubTypes: Repair Part

EP DD2686900SR

PENDANT ASM 115V 1 BUTTON P/WUJ, P/WUD1100, PUN

• Type: ERP

• SubTypes: Pendant

EP DD3082028

M6 X 1.0 CUP POINT SET SCREW
PA-Series

• Type: Component

• SubTypes: Screw

EP DD3030040

SPINDLE

• Type: ERP

• SubTypes: Repair Part
