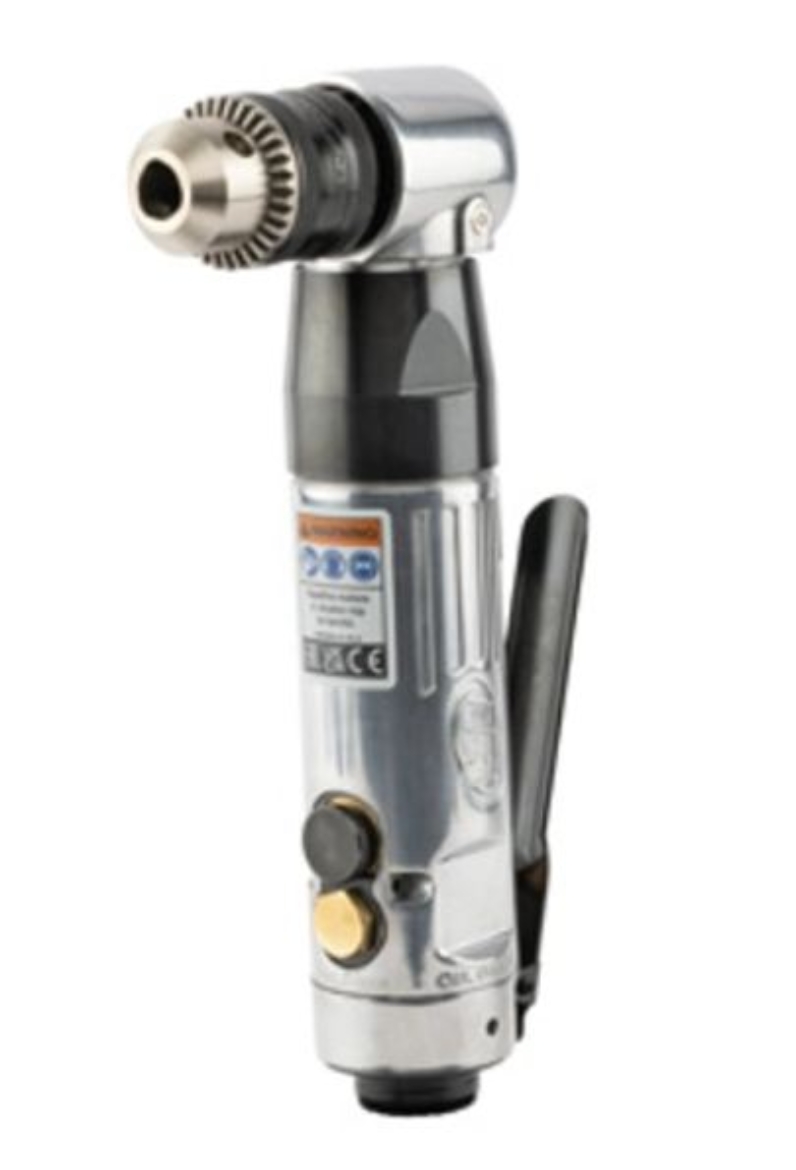

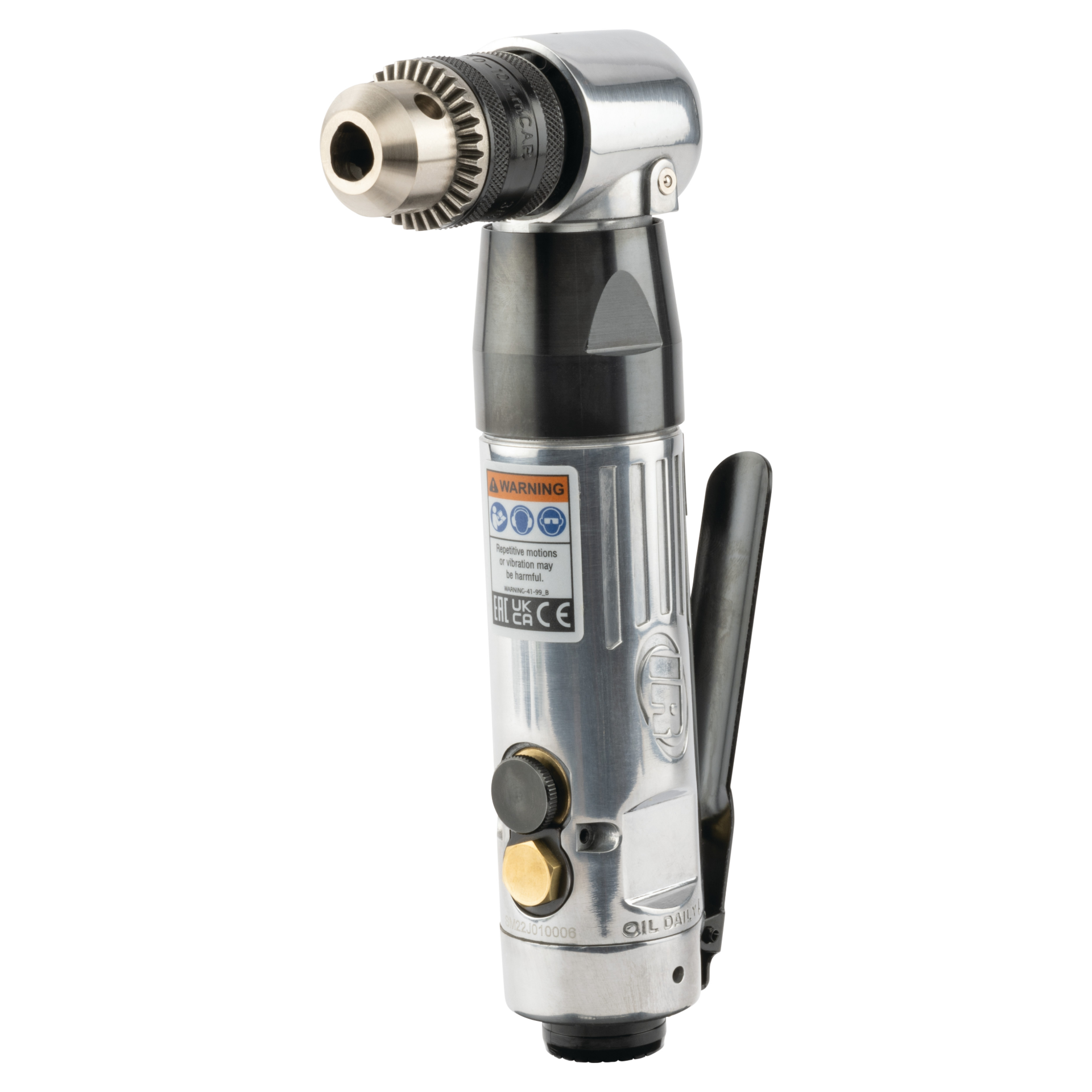

IR 7807R-A
3/8" Keyed Chuck Angle Air Drill, 1800 RPM, 0.33 HP
The 3/8" Right Angle Air Drill is a durable, reliable tool that’s great for drilling in all types of materials, including sheet metal, wood and composites.
Features And Benefits
- Performance: .33HP and 1,800 RPM
- Precision: With an angle configuration that allows easier reach and access with an easy-to-control speed lever, you’ll be able to use this air drill with precision and get every job done right.
- Durability: With aluminum housing, this tool is sturdy and durable, and can withstand repeated drops and harsh environments with ease.
- Reliability: You can count on this drill to work time and time again.
Includes: 3/8 Chuck
Product Application and Uses: Great for drilling in all types of materials, including sheet metal, wood and composites.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Right Angle
Duty Rating: General Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Housing Material: Aluminum
Max Free Speed (rpm): 1800
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.06
Product Width (in): 1.65
Product Height (in): 4.12
Product Weight (lb): 2.5
Rated Power (hp): 0.33
Rated Power (kW): 0.25
Reversible: Reversible
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): <2.5
Warranty: 1-year
