Diaphragm

GG 649398

HUSKY PUMP, 1050F-PP01AF2PVPTPTPT

Graco 649398 Husky 1050 PVDF Pump, End Flange, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life

  Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve

    Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section

      Eliminates air leaks for more efficient operation

      • Multiple Ports

        Increased number of ports for installation flexibility

        • Optional Features

          DataTrak - Runaway protection and tracks material usage

          Pulse Output - Cycle count capability

          • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
          • 30% more efficient than the market leader
          • 20% increase in fluid flow compared to the Husky 1040




          • Model: Husky
          • Series: 1050
          • Air Exhaust Port Size (in): 3/4
          • Air Exhaust Port Thread Gender: Female
          • Air Exhaust Port Thread Type: NPT
          • Air Inlet Size (in): 1/2
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Application: Industrial
          • Ball Material: PTFE
          • Center Section Material: Polypropylene
          • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
          • Connection Type: End Flange ANSI/DIN
          • Diaphragm Compatible Material: PTFE
          • Diaphragm Material: PTFE/EPDM 2-Piece
          • Fluid Inlet Size (cm): 2.54
          • Fluid Inlet Size (in): 1
          • Fluid Inlet Size (mm): 25.4
          • Fluid Outlet Size (cm): 2.54
          • Fluid Outlet Size (in): 1
          • Fluid Outlet Size (mm): 25.4
          • Fluid Section Material: PVDF (Kynar)
          • Manifold Configuration: End Port
          • Manifold O-Ring Material: PTFE
          • Material: PVDF
          • Maximum Air Consumption (SCFM): 67
          • Maximum Air Pressure (bar): 8.6
          • Maximum Air Pressure (kPa): 860
          • Maximum Air Pressure (MPa): 0.86
          • Maximum Air Pressure (psi): 125
          • Maximum Cycle Rate (CPM): 280
          • Maximum Flow Rate (GPM): 50
          • Maximum Flow Rate (L/min): 189
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Operating Temperature (°C): 104
          • Maximum Operating Temperature (°F): 220
          • Maximum Solid Size (cm): 0.3175
          • Maximum Solid Size (in): 0.125
          • Maximum Solid Size (mm): 3.175
          • Overall Height (in): 17.8
          • Power Source: Air

GG 650307

HUSKY PUMP, 1050P-E, BN/BN/BN/6A

Graco 650307 Husky 1050 PP Pump, 240V Compressor, AC Motor, End Flange, SS Center Section, BN Seats, BN Balls & BN Diaphragm

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

• Durable Pump Technology

  Handles slurries and abrasives all without damage to the pump

  Gentle on shear sensitive material

  • Diaphragm Pump

    Runs dry

    No rotating or moving fluid seals

    Self-priming

    • Electric Drive

      Reduce energy consumption and operating costs

      Increase pump control

      Accurately meter fluid

      • Patent Pending Air Charged Drive

        Increase diaphragm life without compromising your fluid

        Ability to reduce pulsation on fluid outlet

        Stalls under pressure without additional switches and controls

        • Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
        • Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions




        • Model: Husky
        • Series: 1050e
        • Air Inlet Size (in): 3/8
        • Air Inlet Thread Gender: Female
        • Air Inlet Thread Type: NPT
        • Application: Industrial
        • Ball Material: Buna-N
        • Center Section Material: Stainless Steel
        • Compatible Material: Antifreeze, Detergent, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink
        • Connection Type: End Flange ANSI/DIN
        • Diaphragm Compatible Material: Buna
        • Diaphragm Material: Buna-N
        • Fluid Inlet Size (cm): 2.54
        • Fluid Inlet Size (in): 1
        • Fluid Inlet Size (mm): 25.4
        • Fluid Outlet Size (cm): 2.54
        • Fluid Outlet Size (in): 1
        • Fluid Outlet Size (mm): 25.4
        • Fluid Section Material: Polypropylene
        • Manifold Configuration: End Port
        • Material: Polypropylene
        • Maximum Air Pressure (bar): 5.5
        • Maximum Air Pressure (kPa): 550
        • Maximum Air Pressure (MPa): 0.55
        • Maximum Air Pressure (psi): 80
        • Maximum Amperage (A): 5.7
        • Maximum Cycle Rate (CPM): 280
        • Maximum Flow Rate (GPM): 42
        • Maximum Flow Rate (L/min): 159
        • Maximum Fluid Pressure (bar): 4.8
        • Maximum Fluid Pressure (kPa): 480
        • Maximum Fluid Pressure (MPa): 0.48
        • Maximum Fluid Pressure (psi): 70
        • Maximum Fluid Pressure (bar): 4.8
        • Maximum Fluid Pressure (kPa): 480
        • Maximum Fluid Pressure (MPa): 0.48
        • Maximum Fluid Pressure (psi): 70
        • Maximum Motor Speed (RPM): 1800
        • Maximum Operating Temperature (°C): 40
        • Maximum Operating Temperature (°F): 104
        • Maximum Solid Size (cm): 0.3175
        • Maximum Solid Size (in): 0.125
        • Maximum Solid Size (mm): 3.175
        • Maximum Storage Temperature (°C): 40

GG 651005

HUSKY PUMP, 1050S-PA01AS1SSSSPOPT

Graco 651005 Husky 1050 SS 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SS Balls & PO Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life

  Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve

    Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section

      Eliminates air leaks for more efficient operation

      • Multiple Ports

        Increased number of ports for installation flexibility

        • Optional Features

          DataTrak - Runaway protection and tracks material usage

          Pulse Output - Cycle count capability

          • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
          • 30% more efficient than the market leader
          • 20% increase in fluid flow compared to the Husky 1040




          • Model: Husky
          • Series: 1050
          • Air Exhaust Port Size (in): 3/4
          • Air Exhaust Port Thread Gender: Female
          • Air Exhaust Port Thread Type: NPT
          • Air Inlet Size (in): 1/2
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Application: Industrial
          • Ball Material: 316 Stainless Steel
          • Center Section Material: Aluminum
          • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
          • Connection Type: Threaded
          • Diaphragm Compatible Material: PTFE
          • Diaphragm Material: PTFE Overmold
          • Fluid Inlet Size (cm): 2.54
          • Fluid Inlet Size (in): 1
          • Fluid Inlet Size (mm): 25.4
          • Fluid Inlet Thread Gender: Female
          • Fluid Inlet Thread Type: NPT
          • Fluid Outlet Size (cm): 2.54
          • Fluid Outlet Size (in): 1
          • Fluid Outlet Size (mm): 25.4
          • Fluid Outlet Thread Gender: Female
          • Fluid Outlet Thread Type: NPT
          • Fluid Section Material: Stainless Steel
          • Manifold Configuration: End Port, Center Port
          • Manifold O-Ring Material: PTFE
          • Material: Stainless Steel
          • Maximum Air Consumption (SCFM): 67
          • Maximum Air Pressure (bar): 8.6
          • Maximum Air Pressure (kPa): 860
          • Maximum Air Pressure (MPa): 0.86
          • Maximum Air Pressure (psi): 125
          • Maximum Cycle Rate (CPM): 280
          • Maximum Flow Rate (GPM): 50
          • Maximum Flow Rate (L/min): 189
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Solid Size (cm): 0.3175
          • Maximum Solid Size (in): 0.125
          • Maximum Solid Size (mm): 3.175
          • Power Source: Air

GG 651301

HUSKY PUMP, 1050S-PC01AS1SSSSPOPT

Graco 651301 Husky 1050 SS 1 in. (25.4 mm) NPT Pump, Conductive PP Center Section, SS Seats, SS Balls & PO Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life

  Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve

    Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section

      Eliminates air leaks for more efficient operation

      • Multiple Ports

        Increased number of ports for installation flexibility

        • Optional Features

          DataTrak - Runaway protection and tracks material usage

          Pulse Output - Cycle count capability

          • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
          • 30% more efficient than the market leader
          • 20% increase in fluid flow compared to the Husky 1040




          • Model: Husky
          • Series: 1050
          • Air Exhaust Port Size (in): 3/4
          • Air Exhaust Port Thread Gender: Female
          • Air Exhaust Port Thread Type: NPT
          • Air Inlet Size (in): 1/2
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Application: Industrial
          • Ball Material: 316 Stainless Steel
          • Center Section Material: Conductive Polypropylene
          • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
          • Connection Type: Threaded
          • Diaphragm Compatible Material: PTFE
          • Diaphragm Material: PTFE Overmold
          • Fluid Inlet Size (cm): 2.54
          • Fluid Inlet Size (in): 1
          • Fluid Inlet Size (mm): 25.4
          • Fluid Inlet Thread Gender: Female
          • Fluid Inlet Thread Type: NPT
          • Fluid Outlet Size (cm): 2.54
          • Fluid Outlet Size (in): 1
          • Fluid Outlet Size (mm): 25.4
          • Fluid Outlet Thread Gender: Female
          • Fluid Outlet Thread Type: NPT
          • Fluid Section Material: Stainless Steel
          • Manifold Configuration: Center Port, End Port
          • Manifold O-Ring Material: PTFE
          • Material: Stainless Steel
          • Maximum Air Consumption (SCFM): 67
          • Maximum Air Pressure (bar): 8.6
          • Maximum Air Pressure (kPa): 860
          • Maximum Air Pressure (MPa): 0.86
          • Maximum Air Pressure (psi): 125
          • Maximum Cycle Rate (CPM): 280
          • Maximum Flow Rate (GPM): 50
          • Maximum Flow Rate (L/min): 189
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Solid Size (cm): 0.3175
          • Maximum Solid Size (in): 0.125
          • Maximum Solid Size (mm): 3.175
          • Power Source: Air

GG 651502

HUSKY PUMP, 1050S-PA01AS1SSPTPTSPT

Graco 651502 Husky 1050 SS 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, PTFE Balls & PTFE/SP Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Longer Diaphragm Life

  Up to 5x longer diaphragm life for less maintenance and downtime

  • Modular Air Valve

    Stall-free, low pulsation operation provides smooth and rapid changeover

    • One-Piece Center Section

      Eliminates air leaks for more efficient operation

      • Multiple Ports

        Increased number of ports for installation flexibility

        • Optional Features

          DataTrak - Runaway protection and tracks material usage

          Pulse Output - Cycle count capability

          • Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation
          • 30% more efficient than the market leader
          • 20% increase in fluid flow compared to the Husky 1040




          • Model: Husky
          • Series: 1050
          • Air Exhaust Port Size (in): 3/4
          • Air Exhaust Port Thread Gender: Female
          • Air Exhaust Port Thread Type: NPT
          • Air Inlet Size (in): 1/2
          • Air Inlet Thread Gender: Female
          • Air Inlet Thread Type: NPT
          • Application: Industrial
          • Ball Material: PTFE
          • Center Section Material: Aluminum
          • Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
          • Connection Type: Threaded
          • Diaphragm Compatible Material: PTFE
          • Diaphragm Material: PTFE/Santoprene 2-Piece
          • Fluid Inlet Size (cm): 2.54
          • Fluid Inlet Size (in): 1
          • Fluid Inlet Size (mm): 25.4
          • Fluid Inlet Thread Gender: Female
          • Fluid Inlet Thread Type: NPT
          • Fluid Outlet Size (cm): 2.54
          • Fluid Outlet Size (in): 1
          • Fluid Outlet Size (mm): 25.4
          • Fluid Outlet Thread Gender: Female
          • Fluid Outlet Thread Type: NPT
          • Fluid Section Material: Stainless Steel
          • Manifold Configuration: Center Port, End Port
          • Manifold O-Ring Material: PTFE
          • Material: Stainless Steel
          • Maximum Air Consumption (SCFM): 67
          • Maximum Air Pressure (bar): 8.6
          • Maximum Air Pressure (kPa): 860
          • Maximum Air Pressure (MPa): 0.86
          • Maximum Air Pressure (psi): 125
          • Maximum Cycle Rate (CPM): 280
          • Maximum Flow Rate (GPM): 50
          • Maximum Flow Rate (L/min): 189
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 8.6
          • Maximum Fluid Pressure (kPa): 860
          • Maximum Fluid Pressure (MPa): 0.86
          • Maximum Fluid Pressure (psi): 125
          • Maximum Solid Size (cm): 0.3175
          • Maximum Solid Size (in): 0.125
          • Maximum Solid Size (mm): 3.175
          • Power Source: Air

GG 653500

HUSKY PUMP, 2200P, P1, PP/SP/SP/A

Graco 653500 Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

• Overall improved air efficiency
• Highest fluid flow rate in its class
• Expanded material offering to handle endless applications
• 2 in (50.8 mm) ANSI center and end-porting options available
• High flow - 200 gpm (757 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 2200

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 140
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 125

• Maximum Flow Rate (GPM): 200
• Maximum Flow Rate (L/min): 757

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.9525
• Maximum Solid Size (in): 0.375
• Maximum Solid Size (mm): 9.525

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 653505

HUSKY PUMP, 2200P, P1, PP/PT/PO/J

Graco 653505 Husky 2200 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PO Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

• Overall improved air efficiency
• Highest fluid flow rate in its class
• Expanded material offering to handle endless applications
• 2 in (50.8 mm) ANSI center and end-porting options available
• High flow - 200 gpm (757 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 2200

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 157
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 155

• Maximum Flow Rate (GPM): 200
• Maximum Flow Rate (L/min): 757

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.9525
• Maximum Solid Size (in): 0.375
• Maximum Solid Size (mm): 9.525

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 653507

HUSKY PUMP, 2200P, P2, PP/SP/SP/A

Graco 653507 Husky 2200 PP Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

• Overall improved air efficiency
• Highest fluid flow rate in its class
• Expanded material offering to handle endless applications
• 2 in (50.8 mm) ANSI center and end-porting options available
• High flow - 200 gpm (757 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 2200

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: End Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 140
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 125

• Maximum Flow Rate (GPM): 200
• Maximum Flow Rate (L/min): 757

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.9525
• Maximum Solid Size (in): 0.375
• Maximum Solid Size (mm): 9.525

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 653526

HUSKY PUMP, 2200P, P1, SP/SP/SP/A

Graco 653526 Husky 2200 PP Pump, Center Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

• Overall improved air efficiency
• Highest fluid flow rate in its class
• Expanded material offering to handle endless applications
• 2 in (50.8 mm) ANSI center and end-porting options available
• High flow - 200 gpm (757 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 2200

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 140
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 125

• Maximum Flow Rate (GPM): 200
• Maximum Flow Rate (L/min): 757

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.9525
• Maximum Solid Size (in): 0.375
• Maximum Solid Size (mm): 9.525

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 653544

HUSKY PUMP, 2200F, F2, PV/FK/FK/A

Graco 653544 Husky 2200 PVDF Pump, PP Center Section, PVDF Seats, FKM Balls & FKM Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

• Overall improved air efficiency
• Highest fluid flow rate in its class
• Expanded material offering to handle endless applications
• 2 in (50.8 mm) ANSI center and end-porting options available
• High flow - 200 gpm (757 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 2200

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: FKM (Viton)

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: End Flange ANSI/DIN

• Diaphragm Compatible Material: FKM
• Diaphragm Material: FKM (Viton)

• Fluid Inlet Size (cm): 5.08
• Fluid Inlet Size (in): 2
• Fluid Inlet Size (mm): 50.8

• Fluid Outlet Size (cm): 5.08
• Fluid Outlet Size (in): 2
• Fluid Outlet Size (mm): 50.8
• Fluid Section Material: PVDF (Kynar)

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: PVDF

• Maximum Air Consumption (SCFM): 140
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 125

• Maximum Flow Rate (GPM): 200
• Maximum Flow Rate (L/min): 757

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.9525
• Maximum Solid Size (in): 0.375
• Maximum Solid Size (mm): 9.525

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 654500

HUSKY PUMP, 15120P, P1, PP/SP/SP/PT

Graco 654500 Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• 1-1/2 in (38.1 mm) ANSI center and end-porting options available
• High flow - 120 gpm (454 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 15120

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 85
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 183

• Maximum Flow Rate (GPM): 120
• Maximum Flow Rate (L/min): 454

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

GG 654526

HUSKY PUMP, 15120P, P1, SP/SP/SP/PT

Graco 654526 Husky 15120 PP Pump, Center Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• 1-1/2 in (38.1 mm) ANSI center and end-porting options available
• High flow - 120 gpm (454 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 15120

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 85
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 183

• Maximum Flow Rate (GPM): 120
• Maximum Flow Rate (L/min): 454

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air

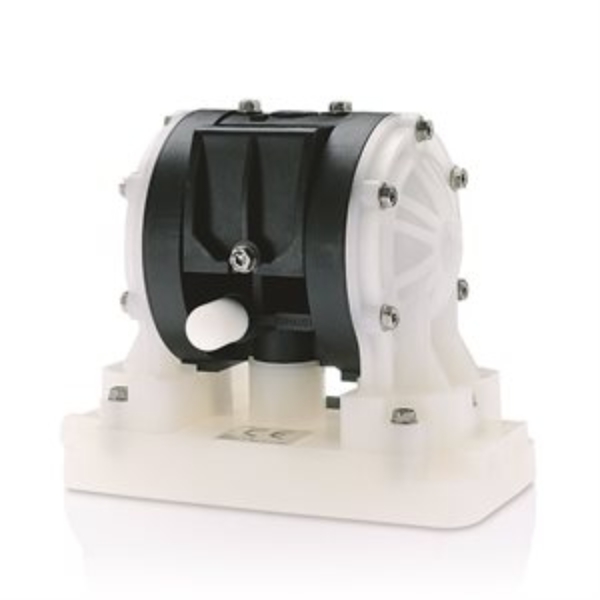

GG D22096

HUSKY PUMP, 205P-PP01DP5--PPSPPT-FK

Graco D22096 Husky 205 PP Pump, Remote PP Center Section, PP Balls & SP Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

• True-formed PTFE and Santoprene diaphragms for enhanced performance
• Spring loaded checks allow the diaphragm pump to work in any orientation
• Inlet and Outlet are interchangeable
• 1/4-in (6.35 mm) end-porting double diaphragm pump

• Model: Husky
• Series: 205

• Air Exhaust Port Size (in): 1/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT, BSP
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT, BSP

• Application: Industrial

• Ball Material: Polypropylene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT, BSPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT, BSPT
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE Encapsulated Fluoroelastomer
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 9
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 320

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 18.9

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Solid Size (cm): 0.15
• Maximum Solid Size (in): 0.06
• Maximum Solid Size (mm): 1.5

• Power Source: Air

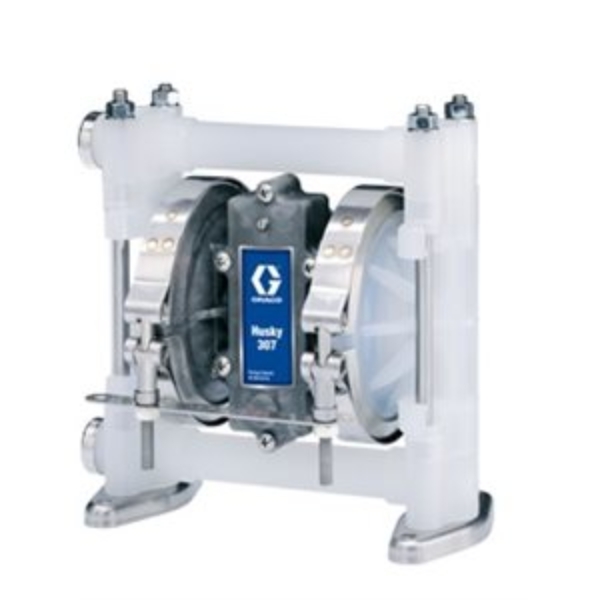

GG D32977

HUSKY PUMP, 307P-PP01AP3PPBNBNPT

Graco D32977 Husky 307 PP 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, PP Seats, BN Balls & BN Diaphragm

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

• Quick and easy assembly and disassembly design
• Easy to service air valve and ball checks
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Every pump is tested prior to shipping
• 3/8 in (9.52 mm) end porting
• Delivery up to 7 gpm (26.5 lpm)
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 307

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Buna-N

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Buna
• Diaphragm Material: Buna-N

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 5.5
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 330

• Maximum Flow Rate (GPM): 6.5
• Maximum Flow Rate (L/min): 24.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.1588
• Maximum Solid Size (in): 0.0625
• Maximum Solid Size (mm): 1.5875

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Power Source: Air

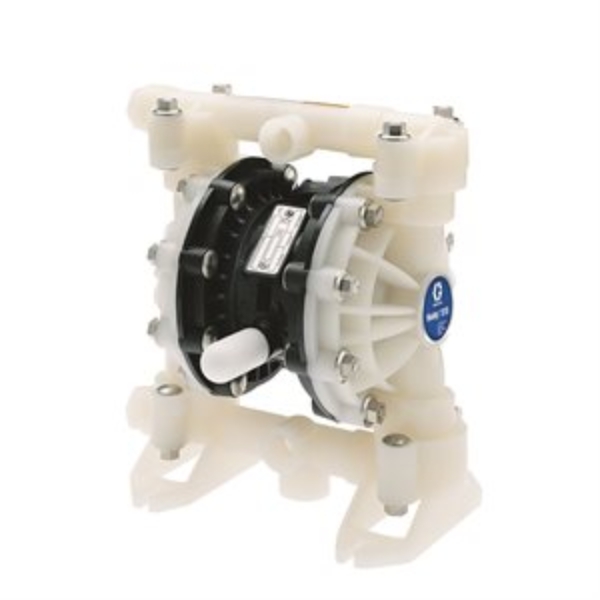

GG D51266

HUSKY PUMP, 515AC-PP01AAC3ACSPSPPT0

Graco D51266 Husky 515AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, SP Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance

• Model: Husky
• Series: 515

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Acetal

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Acetal

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.63

• Power Source: Air

GG D52955

HUSKY PUMP, 515P-PP01AP3PPTPTPPT0

Graco D52955 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, TPE Balls & TPE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance

• Model: Husky
• Series: 515

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: TPE (Hytrel)

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: TPE
• Diaphragm Material: TPE (Hytrel)

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.63

• Power Source: Air

GG D53355

HUSKY PUMP, 716A-PP01AA1SSTPTPPT0

Graco D53355 Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, TPE Balls & TPE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: TPE (Hytrel)

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: TPE
• Diaphragm Material: TPE (Hytrel)

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.43

• Power Source: Air

GG D53366

HUSKY PUMP, 716A-PP01AA1SSSPSPPT0

Graco D53366 Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SP Balls & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.43

• Power Source: Air

GG D53377

HUSKY PUMP, 716A-PP01AA1SSBNBNPT0

Graco D53377 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, Buna Ball, & Buna Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Buna-N

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Buna
• Diaphragm Material: Buna-N

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Power Source: Air

GG D53966

HUSKY PUMP, 716A-PP01AA1PPSPSPPT0

Graco D53966 Husky 716 AL AODD Metal Pump with NPT Standard Air Valve, PP Seat, SP Ball, & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 6.9

• Maximum Air Pressure (kPa): 690
• Maximum Air Pressure (MPa): 0.69
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.69
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Power Source: Air

GG D54366

HUSKY PUMP, 716S-PP01AS1SSSPSPPT0

Graco D54366 Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SP Balls & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Stainless Steel

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Stainless Steel

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.43

• Power Source: Air

GG D54388

HUSKY PUMP, 716S-PP01AS1SSFKFKPT0

Graco D54388 Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, FKM Balls & FKM Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

• Center- and end-porting
• No mechanical seals which causes fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• 3/4 in (19.05 mm) center- and end-porting
• No seals to leak or fail
• Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Easy-to-service air valve and ball checks

• Model: Husky
• Series: 716

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Fluoroelastomer

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: FKM
• Diaphragm Material: Fluoroelastomer

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.905
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Stainless Steel

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Stainless Steel

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 16
• Maximum Flow Rate (L/min): 60.6

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 107
• Maximum Operating Temperature (°F): 225

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature (°C): 4
• Minimum Operating Temperature (°F): 40

• Overall Height (in): 10.43

• Power Source: Air

GG D73811

GG DB3888

HUSKY PUMP, 1590A-PA01AA1FKFKFK

Graco DB3888 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
• Expanded material offering to handle endless applications
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 1-1/2 in. (38.1 mm) ANSI end-porting
• High flow - 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Available in polypropylene, aluminum and stainless steel
• Epoxy-coated air section for tough environmental conditions

• Model: Husky
• Series: 1590

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Fluoroelastomer

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Threaded

• Diaphragm Compatible Material: FKM
• Diaphragm Material: Fluoroelastomer

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Aluminum

• Manifold Configuration: End Port
• Material: Aluminum

• Maximum Air Consumption (SCFM): 125
• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 200

• Maximum Flow Rate (GPM): 100
• Maximum Flow Rate (L/min): 379

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.4763
• Maximum Solid Size (in): 0.1875
• Maximum Solid Size (mm): 4.763

• Power Source: Air

GG DF6GGG
