Diaphragm

GG D52D01

HUSKY PUMP, 515P-PP01AP3UD0PT-0

Husky 515 PP Pump, PP Center Section, Urethane Duckbill Seats & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance

GG D53338

HUSKY PUMP, 716A-PP01AA1SSSSFKPT0

Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SS Balls & FKM Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks

GG D54966

HUSKY PUMP, 716S-PP01AS1PPSPSPPT0

Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, PP Seats, SP Balls & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks

GG D53388

HUSKY PUMP, 716A-PP01AA1SSFKFKPT0

Husky 716 AL AODD Metal Pump with NPT Standard Air Valve, SS Seat, FKM Ball, & FKM Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks

GG D53D07

HUSKY PUMP, 716A-PP01AA1UD0BN-0

Husky 716 (3/4 in. NPT) AL Pump, PP Center Section, Urethane Duckbill Seats & BN Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks

GG DBC346

HUSKY PUMP, 1590A-PA01AA2SSSDSPPT

Graco DBC346 Husky 1590 Al 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with SS Seats, Hardened SS Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
• Expanded material offering to handle endless applications
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 1-1/2 in. (38.1 mm) ANSI end-porting
• High flow - 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Available in polypropylene, aluminum and stainless steel
• Epoxy-coated air section for tough environmental conditions

• Model: Husky
• Series: 1590

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: 440C Stainless Steel

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Type: BSPT

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Type: BSPT
• Fluid Section Material: Aluminum

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Aluminum

• Maximum Air Consumption (SCFM): 125
• Maximum Air Pressure (bar): 8

• Maximum Air Pressure (kPa): 800
• Maximum Air Pressure (MPa): 0.8
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 200

• Maximum Flow Rate (GPM): 100
• Maximum Flow Rate (L/min): 379

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8
• Maximum Fluid Pressure (kPa): 800
• Maximum Fluid Pressure (MPa): 0.8
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.4763
• Maximum Solid Size (in): 0.1875
• Maximum Solid Size (mm): 4.763

• Power Source: Air

GG DB5666

HUSKY PUMP, 1590F-PA01AF2SPSPSPPT

Graco DB5666 Husky 1590 PVDF 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
• Expanded material offering to handle endless applications
• Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
• 1-1/2 in. (38.1 mm) ANSI end-porting
• High flow - 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Lube-free operation
• Available in polypropylene, aluminum and stainless steel
• Epoxy-coated air section for tough environmental conditions

• Model: Husky
• Series: 1590

• Air Exhaust Port Size (in): 3/4
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Aluminum

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Threaded

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: PVDF (Kynar)

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: PVDF

• Maximum Air Consumption (SCFM): 125
• Maximum Air Pressure (bar): 8.4

• Maximum Air Pressure (kPa): 840
• Maximum Air Pressure (MPa): 0.84
• Maximum Air Pressure (psi): 120

• Maximum Cycle Rate (CPM): 200

• Maximum Flow Rate (GPM): 100
• Maximum Flow Rate (L/min): 379

• Maximum Fluid Pressure (bar): 8.4
• Maximum Fluid Pressure (kPa): 840
• Maximum Fluid Pressure (MPa): 0.84
• Maximum Fluid Pressure (psi): 120

• Maximum Fluid Pressure (bar): 8.4
• Maximum Fluid Pressure (kPa): 840
• Maximum Fluid Pressure (MPa): 0.84
• Maximum Fluid Pressure (psi): 120

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 0.4763
• Maximum Solid Size (in): 0.1875
• Maximum Solid Size (mm): 4.763

• Power Source: Air

GG DB3616

HUSKY PUMP, 1590A-PA01AA1SPPTSPPT

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, PTFE Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

GG DBC341

HUSKY PUMP, 1590A-PA01AA2SSSDPTPT

Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

GG DB5A11

HUSKY PUMP, 1590F-PA01AF2PVPTPTPT

Husky 1590 PVDF 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

GG DF3341

HUSKY PUMP, 2150A-PA01AA1SSSDPTPT

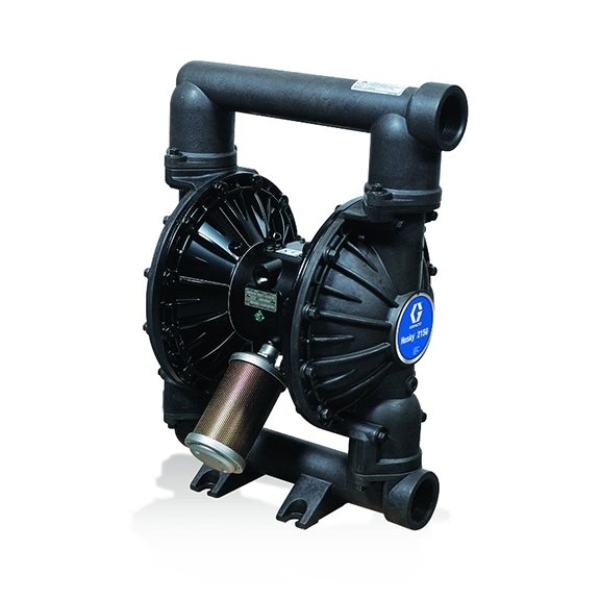

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened Steel Balls & PTFE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

GG TE80-1305

QUANTM PUMP, QTD-PPFE7SPSPSPPTP200

QUANTM i80, 1.5"Flange, Polypropylene Electric Diaphragm Pump, 380 - 480 VAC 3Ph, FEP AL Center, SP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Designed with a chemical-resistant polypropylene fluid section that provides high corrosion resistance, this groundbreaking electric pump is built to efficiently handle fluid transfer applications involving most chemicals and detergents, sump evacuation applications, as well as applications involving high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, this powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP Coated Aluminum electric drive
• 380-480 VAC 3Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• Polypropylene fluid section with Flange End Flange
• Internal components include Santoprene seats, Santoprene balls, and Santoprene diaphragms
