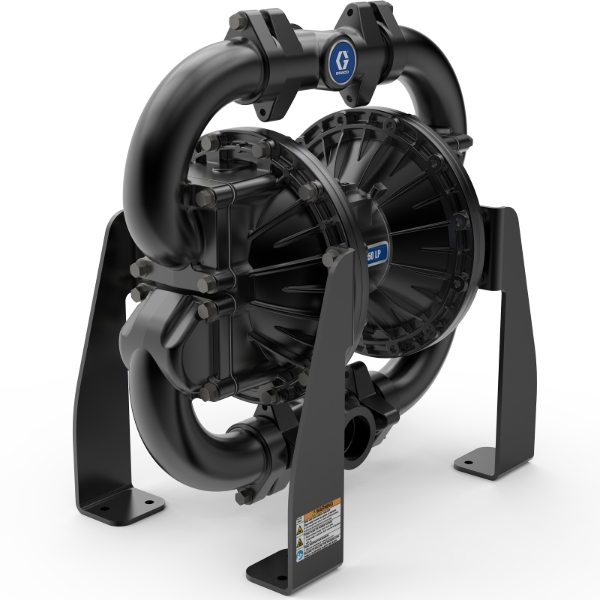

HUSKY PUMP, 2150LP-PA01AA1FB-BCRBN

GG 25U613

HUSKY PUMP, 2150LP-PA01AA1FB-BCRBN

Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch NPT Porting, Flapper Valve, CR Diaphragms Waste Transfer, Simplified. Built for waste and trash transfer in mines, sumps, and in-plant Pump solids up to 1.8-inches in diameter without clogging Durable powder-coated finish protects your pump in the harshest environments External air valve is replacable without pump dissassembly Fluid flow up to 150 gpm (568 lpm) Made in the USA Self-priming and runs dry Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps

$4,050.00

HUSKY PUMP, 2150LP-PA01AA2FB-BBNBN

GG 25U614

HUSKY PUMP, 2150LP-PA01AA2FB-BBNBN

Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, BN Diaphragms Waste Transfer, Simplified. Built for waste and trash transfer in mines, sumps, and in-plant Pump solids up to 1.8-inches in diameter without clogging Durable powder-coated finish protects your pump in the harshest environments External air valve is replacable without pump dissassembly Fluid flow up to 150 gpm (568 lpm) Made in the USA Self-priming and runs dry Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps

$4,050.00

HUSKY PUMP, 2150LP-PA01AA2FB-BSPBN

GG 25U615

HUSKY PUMP, 2150LP-PA01AA2FB-BSPBN

Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, SP Diaphragms Waste Transfer, Simplified. Built for waste and trash transfer in mines, sumps, and in-plant Pump solids up to 1.8-inches in diameter without clogging Durable powder-coated finish protects your pump in the harshest environments External air valve is replacable without pump dissassembly Fluid flow up to 150 gpm (568 lpm) Made in the USA Self-priming and runs dry Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps

$4,050.00

HUSKY PUMP, 2150LP-PA01AA2FB-BGEBN

GG 25U617

HUSKY PUMP, 2150LP-PA01AA2FB-BGEBN

Husky 2150LP Large Particle Aluminum Air Diaphragm Pump, 150 gpm, 2 inch BSPT Porting, Flapper Valve, GE Diaphragms Waste Transfer, Simplified. Built for waste and trash transfer in mines, sumps, and in-plant Pump solids up to 1.8-inches in diameter without clogging Durable powder-coated finish protects your pump in the harshest environments External air valve is replacable without pump dissassembly Fluid flow up to 150 gpm (568 lpm) Made in the USA Self-priming and runs dry Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps

$4,050.00

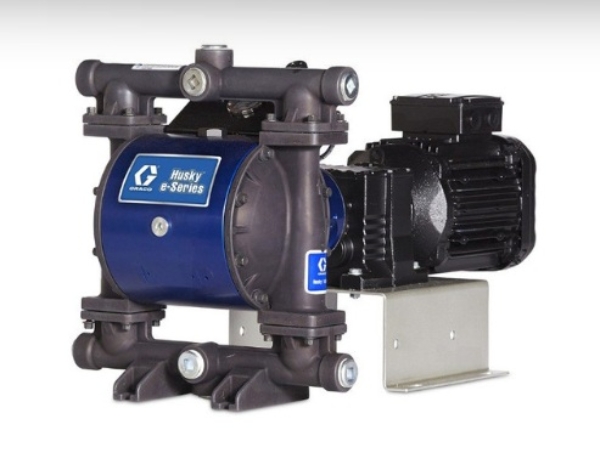

HUSKY PUMP, 1050A-E, SS/PT/PS/4C

GG 648062

HUSKY PUMP, 1050A-E, SS/PT/PS/4C

Husky 1050e AL (NPT) Pump, ATEX AC Motor, AL Center Section, SS Seats, PTFE Balls & PTFE/SP Diaphragm

Our Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air charged drive allows for the elimination or reduction of pulsation WITHOUT expensive pulsation dampeners or surge tanks.

Durable Pump Technology

Handles slurries and abrasives all without damage to the pump
Gentle on shear sensitive material

Diaphragm Pump

Runs dry
No rotating or moving fluid seals
Self-priming

Electric Drive

Reduce energy consumption and operating costs
Increase pump control
Accurately meter fluid

Fluid Section

Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

Increase diaphragm life without compromising your fluid
Ability to reduce pulsation on fluid outlet
Stalls under pressure without additional switches and controls

Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions

$9,260.00

HUSKY PUMP, 1050A-E, BN/BN/BN/4D

GG 648097

HUSKY PUMP, 1050A-E, BN/BN/BN/4D

Husky 1050e AL (NPT) Pump, C1D1 Flame Proof Motor, AL Center Section, BN Seats, BN Balls & BN Diaphragm

Durable Pump Technology

Handles slurries and abrasives all without damage to the pump
Gentle on shear sensitive material

Diaphragm Pump

Runs dry
No rotating or moving fluid seals
Self-priming

Electric Drive

Reduce energy consumption and operating costs
Increase pump control
Accurately meter fluid

Fluid Section

Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

Increase diaphragm life without compromising your fluid
Ability to reduce pulsation on fluid outlet
Stalls under pressure without additional switches and controls

$7,510.00

HUSKY PUMP, 1050A-E, BN/BN/BN/5B

GG 648187

HUSKY PUMP, 1050A-E, BN/BN/BN/5B

Husky 1050e Al (NPT) Pump, 120V Compressor, BLDC Motor, AL Center Section, BN Seats, BN Balls & BN Diaphragm

Durable Pump Technology

Handles slurries and abrasives all without damage to the pump
Gentle on shear sensitive material

Diaphragm Pump

Runs dry
No rotating or moving fluid seals
Self-priming

Electric Drive

Reduce energy consumption and operating costs
Increase pump control
Accurately meter fluid

Fluid Section

Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

Increase diaphragm life without compromising your fluid
Ability to reduce pulsation on fluid outlet
Stalls under pressure without additional switches and controls

$9,740.00

HUSKY PUMP, 1050P-PP01AP1SPSPSPPT

GG 649021

HUSKY PUMP, 1050P-PP01AP1SPSPSPPT

Husky 1050 PP (NPT) Pump, Center Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Longer Diaphragm Life

Up to 5x longer diaphragm life for less maintenance and downtime

Modular Air Valve

Stall-free, low pulsation operation provides smooth and rapid changeover

One-Piece Center Section

Eliminates air leaks for more efficient operation

Four Bolt Joint Design

Bolted design provides even sealing pressure for leak-free operation

Multiple Ports

Increased number of ports for installation flexibility

Optional Features

DataTrak™ - Runaway protection and tracks material usage
Pulse Output - Cycle count capability

Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040

$1,875.00

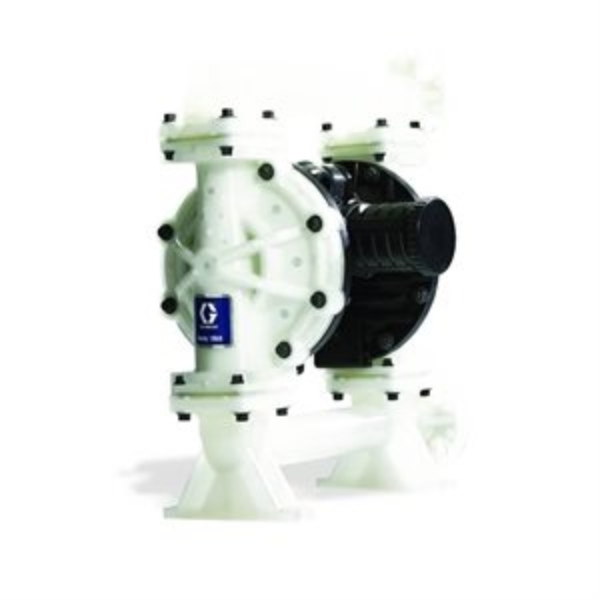

Husky Pump, 1050P-Pp01Cp2Ppspsppt Obsolete

GG 649117

Husky Pump, 1050P-Pp01Cp2Ppspsppt

$3,110.00

HUSKY PUMP, 1050C-PC01AC1PPPTPOPT

GG 649177

HUSKY PUMP, 1050C-PC01AC1PPPTPOPT

Husky 1050 Conductive PP Pump, Center Flange, Conductive PP Center Section, PP Seats, PTFE Balls & PO Diaphragm

Longer Diaphragm Life

Up to 5x longer diaphragm life for less maintenance and downtime

Modular Air Valve

Stall-free, low pulsation operation provides smooth and rapid changeover

One-Piece Center Section

Eliminates air leaks for more efficient operation

Four Bolt Joint Design

Bolted design provides even sealing pressure for leak-free operation

Multiple Ports

Increased number of ports for installation flexibility

Optional Features

DataTrak™ - Runaway protection and tracks material usage
Pulse Output - Cycle count capability

Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040

$3,340.00

Husky Pump, 1050P-E, Pp/Sp/Sp/4A

GG 650012

Husky Pump, 1050P-E, Pp/Sp/Sp/4A

$7,610.00

HUSKY PUMP, 1050S-E, SS/SS/PO/5A

GG 651895

HUSKY PUMP, 1050S-E, SS/SS/PO/5A

Graco 651895 Husky 1050 1 in. (25.4 mm) NPT SS Pump, 120V Compressor, Standard AC Motor, AL Center Section, SS Seats, SS Balls & PO Diaphragm

Durable Pump Technology
- Diaphragm Pump
  - Electric Drive
    - Patent Pending Air Charged Drive
      - Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
      - Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
      Air Inlet Size (in): 3/8
      Air Inlet Thread Gender: Female
      Air Inlet Thread Type: NPT
      Application: Industrial
      Ball Material: 316 Stainless Steel
      Center Section Material: Aluminum
      Compatible Material: Antifreeze, Detergent, Gel-Coat, Polyurethane, Windshield Washer Fluid, Diesel Exhaust Fluid, Motor Oil, Grease & Oil, Used Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Oil, Water - Wastewater Treatment, Water - Wastewater Transfer, Water, Waterborne, Solvent borne, High Solids, Plural Components, CARC, Metallics, Topcoats, Stains, Varnish, Lacquer, Ceramics, Enamel, Epoxies, Ink
      Connection Type: Threaded
      Diaphragm Compatible Material: PTFE
      Diaphragm Material: PTFE/EPDM Overmold
      Fluid Inlet Size (cm): 2.54
      Fluid Inlet Size (in): 1
      Fluid Inlet Size (mm): 25.4
      Fluid Inlet Thread Gender: Female
      Fluid Inlet Thread Type: NPT
      Fluid Outlet Size (cm): 2.54
      Fluid Outlet Size (in): 1
      Fluid Outlet Size (mm): 25.4
      Fluid Outlet Thread Gender: Female
      Fluid Outlet Thread Type: NPT
      Fluid Section Material: Stainless Steel
      Manifold Configuration: End Port
      Manifold O-Ring Material: PTFE
      Material: Stainless Steel
      Maximum Air Pressure (bar): 5.5
      Maximum Air Pressure (kPa): 550
      Maximum Air Pressure (MPa): 0.55
      Maximum Air Pressure (psi): 80
      Maximum Amperage (A): 5.7
      Maximum Cycle Rate (CPM): 280
      Maximum Flow Rate (GPM): 42
      Maximum Flow Rate (L/min): 159
      Maximum Fluid Pressure (bar): 4.8
      Maximum Fluid Pressure (kPa): 480
      Maximum

$10,590.00

HUSKY PUMP, 1050S-E, SS/PT/PS/6A

GG 651935

HUSKY PUMP, 1050S-E, SS/PT/PS/6A

Husky 1050 1 in. (25.4 mm) BSPT SS Pump, 240V Compressor, Standard AC Motor, AL Center Section, SS Seats, PTFE Balls & PTFE/SP Diaphragm

Durable Pump Technology

Handles slurries and abrasives all without damage to the pump
Gentle on shear sensitive material

Diaphragm Pump

Runs dry
No rotating or moving fluid seals
Self-priming

Electric Drive

Reduce energy consumption and operating costs
Increase pump control
Accurately meter fluid

Fluid Section

Create the pump you need with multiple material offerings for manifolds, seats, balls, and diaphragms

Patent Pending Air Charged Drive

Increase diaphragm life without compromising your fluid
Ability to reduce pulsation on fluid outlet
Stalls under pressure without additional switches and controls

$10,480.00

HUSKY PUMP, 3300P, PP/SP/SP/PT

GG 652400

HUSKY PUMP, 3300P, PP/SP/SP/PT

Husky 3300 PP Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Offered in ATEX configuration. Expanded material offering to handle numerous applications Flow rates up to 300 gpm (1,135 lpm) Modular stall-resistant air valve design Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections Heavy-duty construction Faster change over with spring loaded pilot valves

$13,100.00

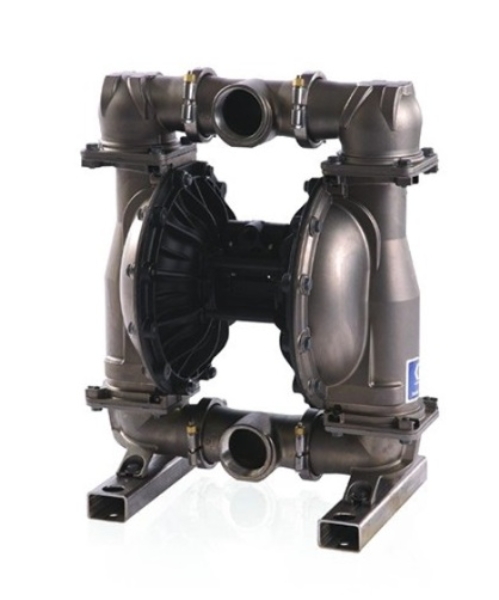

HUSKY PUMP, 3300S, SP/SP/SP/A

GG 652838

HUSKY PUMP, 3300S, SP/SP/SP/A

Husky 3300 (3 in. NPT) SS Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

$15,290.00

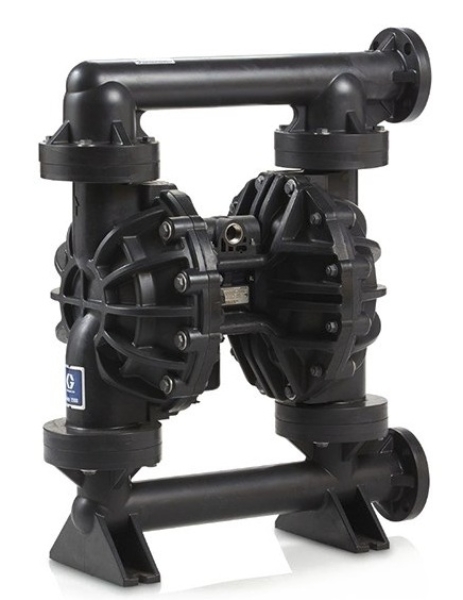

HUSKY PUMP, 2200F, F2, SP/SP/SP/A

GG 653550

HUSKY PUMP, 2200F, F2, SP/SP/SP/A

Husky 2200 PVDF Pump, PP Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.

Overall improved air efficiency Highest fluid flow rate in its class Expanded material offering to handle endless applications Available with Overmolded diaphragms (up to 5 times longer diaphragm life) 2 in (50.8 mm) ANSI center and end-porting options available High flow - 200 gpm (757 lpm) in a compact, portable size Fluid pressure to 125 psi (8.6 bar, 0.86 MPa) Lube-free operation Available in polypropylene and PVDF

$17,100.00

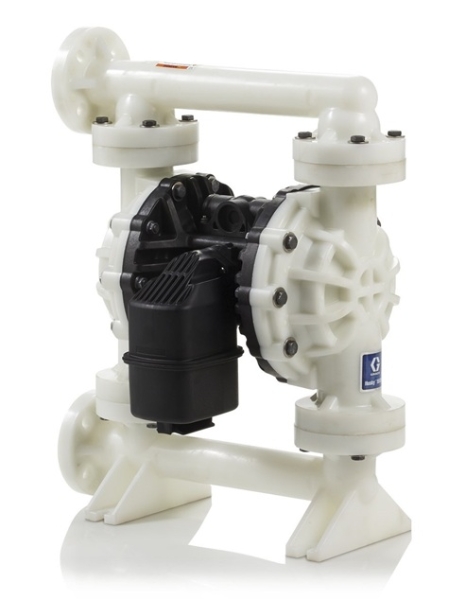

HUSKY PUMP, 15120P, P1, PP/PT/PT/PT

GG 654504

HUSKY PUMP, 15120P, P1, PP/PT/PT/PT

Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications 1-1/2 in (38.1 mm) ANSI center and end-porting options available High flow - 120 gpm (454 lpm) in a compact, portable size Fluid pressure to 125 psi (8.6 bar, 0.86 MPa) Lube-free operation Available in polypropylene and PVDF

$5,250.00

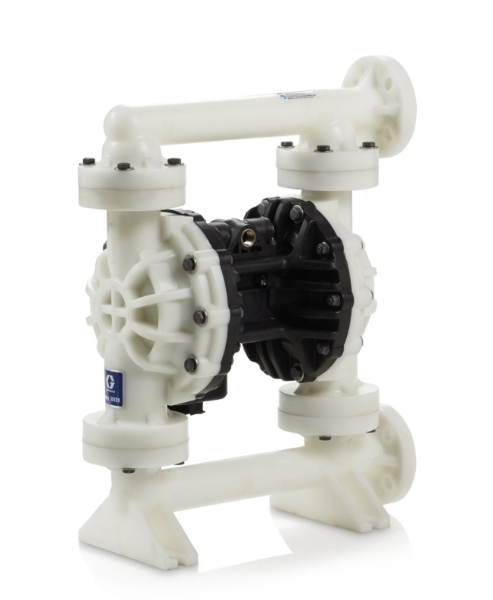

HUSKY PUMP, 15120P, P2, PP/FK/FK/PT

GG 654509

HUSKY PUMP, 15120P, P2, PP/FK/FK/PT

Husky 15120 PP Pump, End Flange, PP Center Section, PP Seats, FKM Balls & FKM Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications 1-1/2 in (38.1 mm) ANSI center and end-porting options available High flow - 120 gpm (454 lpm) in a compact, portable size Fluid pressure to 125 psi (8.6 bar, 0.86 MPa) Lube-free operation Available in polypropylene and PVDF

$5,970.00

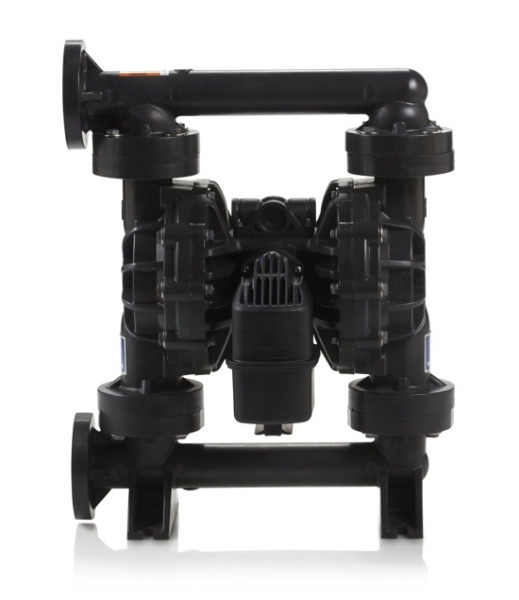

HUSKY PUMP, 15120F, F2, SP/SP/SP/PT

GG 654550

HUSKY PUMP, 15120F, F2, SP/SP/SP/PT

Husky 15120 PVDF Pump, PP Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications 1-1/2 in (38.1 mm) ANSI center and end-porting options available High flow - 120 gpm (454 lpm) in a compact, portable size Fluid pressure to 125 psi (8.6 bar, 0.86 MPa) Lube-free operation Available in polypropylene and PVDF

$9,920.00

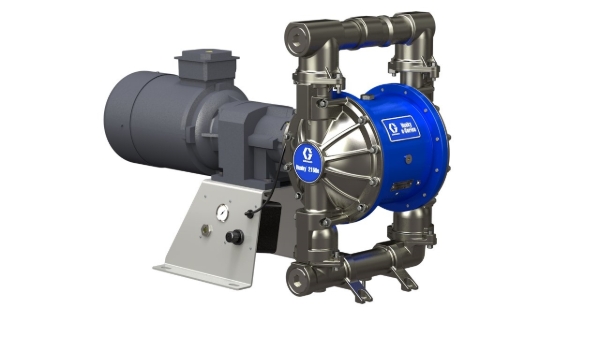

HUSKY PUMP, 2150S-E, A94GS1SSPTPTPTC31

GG 657401C31

HUSKY PUMP, 2150S-E, A94GS1SSPTPTPTC31

Husky 2150e 2 in. (51 mm) SS Electric Diaphragm Pump; -- No Motor, No CMPSR, End Port NPT, AL Center, SS Seat, PT Ball, PT Diaphragm High energy costs coupled with air diaphragm pumps powered by compressors have a huge negative impact on your profitability. The impact to operating costs is even larger when running high flow pumps. The Graco Husky 2150e electric diaphragm pump will reduce energy consumption by up to 80%. In addition to energy costs savings, Graco’s durable diaphragm pumps reduce maintenance costs and plant downtime. Energy Efficient Electric Drive - reduce energy consumption up to 80% compared to traditional air operated diaphragm pumps Stall Under Pressure - prevent pump failures from clogged lines or closed valves Seal-Less Diaphragm Pump Design - eliminate leaking and failures due to run-dry pump conditions Low pulsation and smooth flow - Consistent material quality Durable Component Materials -Transfer slurries and abrasives with no pump damage Favorite Diaphragm Pump Features - Gentle on shear sensitive material, runs dry, self-primes

$19,450.00

HUSKY PUMP, 205AC-PP01AAC5--ACSPPT-FK

GG D11026

HUSKY PUMP, 205AC-PP01AAC5--ACSPPT-FK

Husky 205 AC Pump, PP Center Section, AC Balls & SP Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration. True-formed PTFE and Santoprene diaphragms for enhanced performance Spring loaded checks allow the diaphragm pump to work in any orientation Inlet and Outlet are interchangeable Remote control option using an external controller 1/4-in (6.35 mm) end-porting double diaphragm pump

$633.00

HUSKY PUMP, 205F-PP01AF5--PVSPPT-FK

GG D150A6

HUSKY PUMP, 205F-PP01AF5--PVSPPT-FK

Husky 205 PVDF Pump, PP Center Section, PVDF Balls & SP Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

$862.00

HUSKY PUMP, 205AC-PP01DAC5--ACPTPT-FK

GG D21021

HUSKY PUMP, 205AC-PP01DAC5--ACPTPT-FK

Husky 205 AC Pump, Remote PP Center Section, AC Balls & PTFE Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

$809.00

HUSKY PUMP, 205AC-PP01DAC5--ACSPPT-FK

GG D21026

HUSKY PUMP, 205AC-PP01DAC5--ACSPPT-FK

Husky 205 AC Pump, Remote PP Center Section, AC Balls & SP Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

$582.00

HUSKY PUMP, 205P-PP01DP5--PPPTPT-FK

GG D22091

HUSKY PUMP, 205P-PP01DP5--PPPTPT-FK

Husky 205 PP Pump, Remote PP Center Section, PP Balls & PTFE Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money.

$635.00
