Husky Pump,3300P,Pp/Sp/Sp/Pt

GG 652400

HUSKY PUMP, 3300P, PP/SP/SP/PT

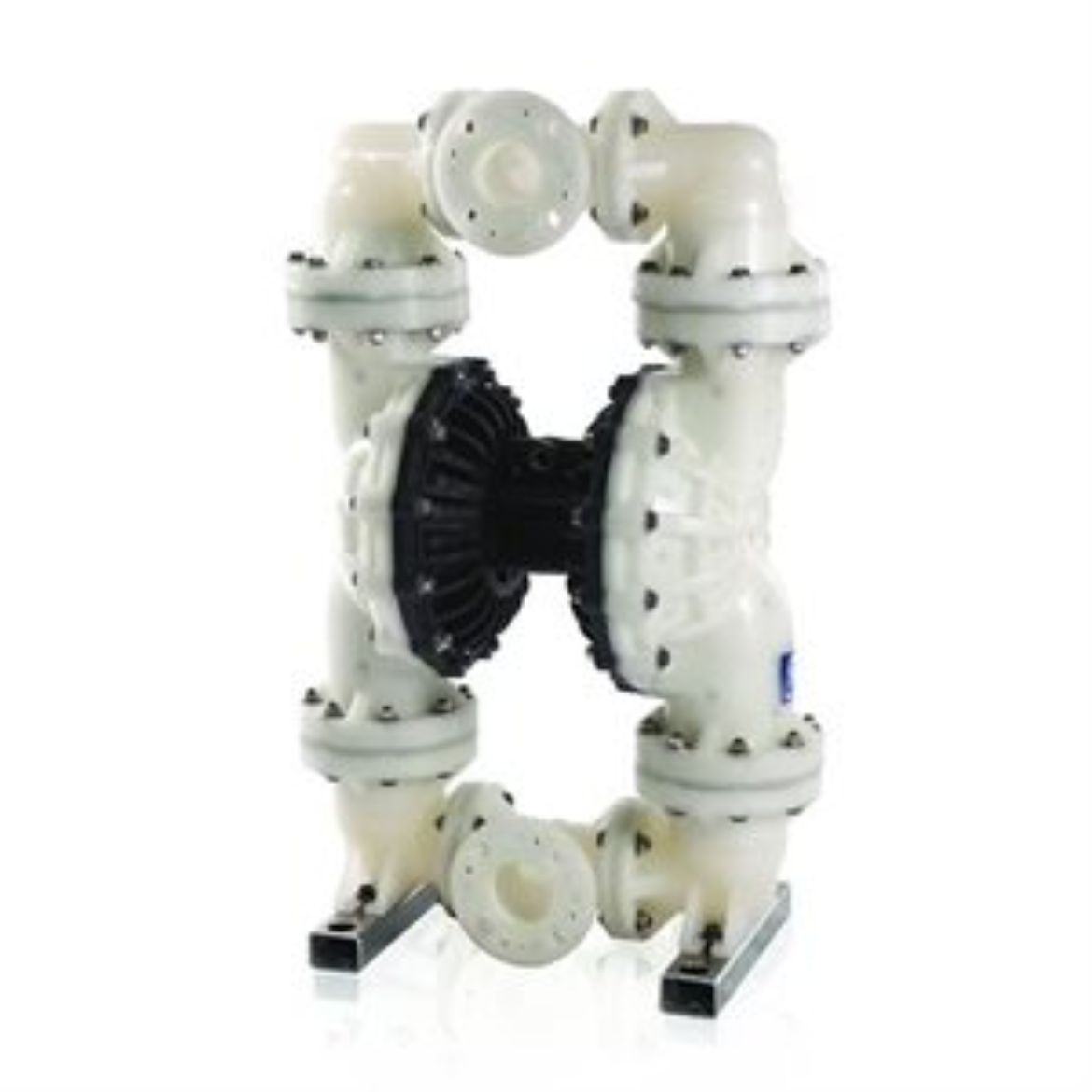

Graco 652400 Husky 3300 PP Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• Offered in ATEX configuration.
• Expanded material offering to handle numerous applications
• Flow rates up to 300 gpm (1,135 lpm)
• Modular stall-resistant air valve design
• Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
• Heavy-duty construction
• Faster change over with spring loaded pilot valves

• Model: Husky
• Series: 3300

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer

• Connection Type: Center Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 7.62
• Fluid Inlet Size (in): 3
• Fluid Inlet Size (mm): 76.2

• Fluid Outlet Size (cm): 7.62
• Fluid Outlet Size (in): 3
• Fluid Outlet Size (mm): 76.2
• Fluid Section Material: Polypropylene

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 275
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 103

• Maximum Flow Rate (GPM): 280
• Maximum Flow Rate (L/min): 1060

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 6.9
• Maximum Fluid Pressure (kPa): 690
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature (°C): 66
• Maximum Operating Temperature (°F): 150

• Maximum Solid Size (cm): 1.27
• Maximum Solid Size (in): 0.5
• Maximum Solid Size (mm): 12.7

• Minimum Operating Temperature (°C): 0
• Minimum Operating Temperature (°F): 32

• Minimum Storage Temperature (°C): 0
• Minimum Storage Temperature (°F): 32

• Power Source: Air
