Diaphragm

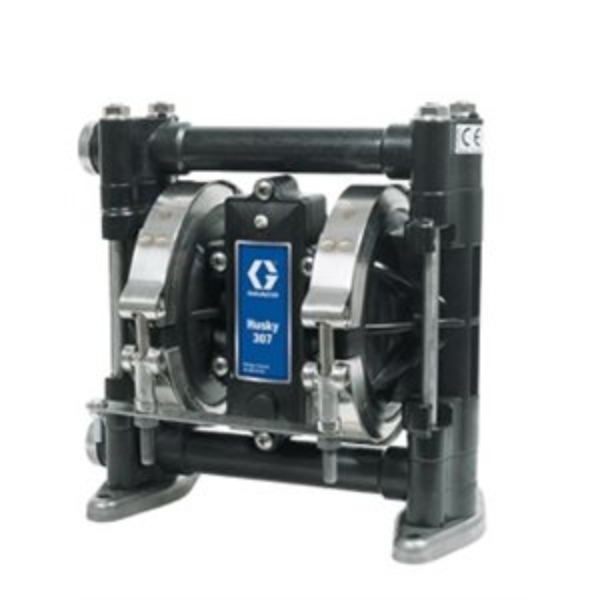

HUSKY PUMP, 307AC-PP01AAC3ACBNBNPT
GG D31277
GG D31277
HUSKY PUMP, 307AC-PP01AAC3ACBNBNPT
Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, AC Seats, BN Balls & BN DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$903.00

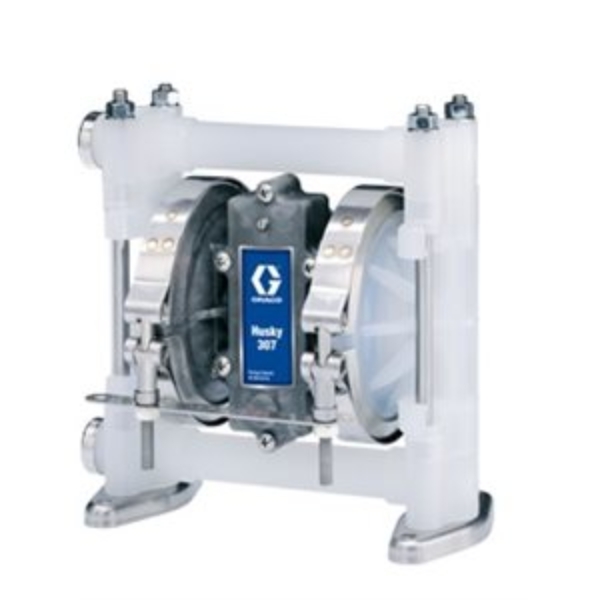

HUSKY PUMP, 307P-PP01AP3SSSSPTPT
GG D32331
GG D32331
HUSKY PUMP, 307P-PP01AP3SSSSPTPT
Graco D32331 Husky 307 PP 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm
The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Application: Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.- Quick and easy assembly and disassembly design
- Easy to service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Every pump is tested prior to shipping
- 3/8 in (9.52 mm) end porting
- Delivery up to 7 gpm (26.5 lpm)
- Easy-to-service air valve and ball checks
- Model: Husky
- Series: 307
- Air Exhaust Port Size (in): 3/8
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: 316 Stainless Steel
- Center Section Material: Polypropylene
- Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
- Connection Type: Threaded
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE/EPDM 2-Piece
- Fluid Inlet Size (cm): 0.9525
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Size (mm): 9.525
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (cm): 0.9525
- Fluid Outlet Size (in): 3/8
- Fluid Outlet Size (mm): 9.525
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Polypropylene
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Polypropylene
- Maximum Air Consumption (SCFM): 5.5
- Maximum Air Pressure (bar): 6.9
- Maximum Air Pressure (kPa): 690
- Maximum Air Pressure (MPa): 0.69
- Maximum Air Pressure (psi): 100
- Maximum Cycle Rate (CPM): 330
- Maximum Flow Rate (GPM): 6.5
- Maximum Flow Rate (L/min): 24.6
- Maximum Fluid Pressure (bar): 6.9
- Maximum Fluid Pressure (kPa): 690
- Maximum Fluid Pressure (MPa): 0.69
- Maximum Fluid Pressure (psi): 100
- Maximum Fluid Pressure (bar): 6.9
- Maximum Fluid Pressure (kPa): 690
- Maximum Fluid Pressure (MPa): 0.69
- Maximum Fluid Pressure (psi): 100
- Maximum Operating Temperature (°C): 66
- Maximum Operating Temperature (°F): 150
- Maximum Solid Size (cm): 0.1588
- Maximum Solid Size (in): 0.0625
- Maximum Solid Size (mm): 1.5875
- Minimum Operating Temperature (°C): 4
- Minimum Operating Temperature (°F): 40
$1,085.00
HUSKY PUMP, 307P-PP01AP3SSSSSPPT
GG D32336
GG D32336
HUSKY PUMP, 307P-PP01AP3SSSSSPPT
Husky 307 PP 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, SS Balls & SP DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$809.00
HUSKY PUMP, 307AC-PP01AAC4ACTPTPPT
GG D3A255
GG D3A255
HUSKY PUMP, 307AC-PP01AAC4ACTPTPPT
Husky 307 AC (3/8 in. BSP) Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$763.00
HUSKY PUMP, 307AC-PP01AAC4ACBNBNPT
GG D3A277
GG D3A277
HUSKY PUMP, 307AC-PP01AAC4ACBNBNPT
Husky 307 AC (3/8 in. BSP) Standard Pump, PP Center Section, AC Seats, BN Balls & BN DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$1,115.00
HUSKY PUMP, 307AC-PP01AAC4SSSSPTPT
GG D3A331
GG D3A331
HUSKY PUMP, 307AC-PP01AAC4SSSSPTPT
Husky 307 AC (3/8 in. BSP) Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$1,105.00
HUSKY PUMP, 307P-PP01AP4SSSSPTPT
GG D3B331
GG D3B331
HUSKY PUMP, 307P-PP01AP4SSSSPTPT
Husky 307 PP (3/8 in. BSP) Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$1,105.00
HUSKY PUMP, 307P-PP01AP4PPPTPTPT
GG D3B911
GG D3B911
HUSKY PUMP, 307P-PP01AP4PPPTPTPT
Husky 307 PP (3/8 in. BSP) Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$909.00
HUSKY PUMP, 307P-PP01AP4PPTPTPPT
GG D3B955
GG D3B955
HUSKY PUMP, 307P-PP01AP4PPTPTPPT
Husky 307 PP (3/8 in. BSP) Standard Pump, PP Center Section, PP Seats, TPE Balls & TPE DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$743.00
HUSKY PUMP, 307P-PP01AP4PPSPSPPT
GG D3B966
GG D3B966
HUSKY PUMP, 307P-PP01AP4PPSPSPPT
Husky 307 PP (3/8 in. BSP) Standard Pump, PP Center Section, PP Seats, SP Balls & SP DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$802.00
HUSKY PUMP, 307P-PP01AP4PPBNBNPT
GG D3B977
GG D3B977
HUSKY PUMP, 307P-PP01AP4PPBNBNPT
Husky 307 PP (3/8 in. BSP) Standard Pump, PP Center Section, PP Seats, BN Balls & BN DiaphragmThe Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil. Quick and easy assembly and disassembly design Easy to service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Every pump is tested prior to shipping 3/8 in (9.52 mm) end porting Delivery up to 7 gpm (26.5 lpm) Easy-to-service air valve and ball checks
$769.00
HUSKY PUMP, 515P-PP01DP3PPPTPTPT0
GG D42911
GG D42911
HUSKY PUMP, 515P-PP01DP3PPPTPTPT0
Husky 515 PP 1/2 in. (13 mm) BSP Remote Pump, PP Center Section, PP Seats, PTFE Balls & PTFE DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,260.00
HUSKY PUMP, 515AC-PP01AAC3ACFKFKPT0
GG D51288
GG D51288
HUSKY PUMP, 515AC-PP01AAC3ACFKFKPT0
Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, FKM Balls & FKM DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,520.00
HUSKY PUMP, 515AC-PP01AAC3UD0SP-0
GG D51D06
GG D51D06
HUSKY PUMP, 515AC-PP01AAC3UD0SP-0
Husky 515 1/2 in NPT AC Pump, PP Center Section, Urethane Duckbill Seats & SP DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,065.00
HUSKY PUMP, 515P-PP01AP3SSSPSPPT0
GG D52366
GG D52366
HUSKY PUMP, 515P-PP01AP3SSSPSPPT0
Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, SS Seats, SP Balls & SP DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$943.00
HUSKY PUMP, 515P-PP01AP3UD0PT-0
GG D52D01
GG D52D01
HUSKY PUMP, 515P-PP01AP3UD0PT-0
Husky 515 PP Pump, PP Center Section, Urethane Duckbill Seats & PTFE DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$907.00
HUSKY PUMP, 716A-PP01AA1ACSPSPPT0
GG D53266
GG D53266
HUSKY PUMP, 716A-PP01AA1ACSPSPPT0
Husky 716 AL Air Operated Double Diaphragm Metal Pump with Open Downward PortThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,165.00
HUSKY PUMP, 716A-PP01AA1SSSSFKPT0
GG D53338
GG D53338
HUSKY PUMP, 716A-PP01AA1SSSSFKPT0
Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SS Balls & FKM DiaphragmThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,620.00
HUSKY PUMP, 716A-PP01AA1SSFKFKPT0
GG D53388
GG D53388
HUSKY PUMP, 716A-PP01AA1SSFKFKPT0
Husky 716 AL AODD Metal Pump with NPT Standard Air Valve, SS Seat, FKM Ball, & FKM DiaphragmThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,535.00
HUSKY PUMP, 716A-PP01AA1UD0BN-0
GG D53D07
GG D53D07
HUSKY PUMP, 716A-PP01AA1UD0BN-0
Husky 716 (3/4 in. NPT) AL Pump, PP Center Section, Urethane Duckbill Seats & BN DiaphragmThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$1,255.00
HUSKY PUMP, 716S-PP01AS1PPSPSPPT0
GG D54966
GG D54966
HUSKY PUMP, 716S-PP01AS1PPSPSPPT0
Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, PP Seats, SP Balls & SP DiaphragmThe Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.
Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks
$2,490.00
HUSKY PUMP, 515F-PP01AF3PVPTSPPT0
GG D55A16
GG D55A16
HUSKY PUMP, 515F-PP01AF3PVPTSPPT0
Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & SP DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,945.00
HUSKY PUMP, 515F-PP01AF3PVFKFKPT0
GG D55A88
GG D55A88
HUSKY PUMP, 515F-PP01AF3PVFKFKPT0
Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, FKM Balls & FKM DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$2,130.00
HUSKY PUMP, 515AC-PP01AAC4ACTPTPPT0
GG D5A255
GG D5A255
HUSKY PUMP, 515AC-PP01AAC4ACTPTPPT0
Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,240.00
HUSKY PUMP, 515AC-PP01AAC4ACSPSPPT0
GG D5A266
GG D5A266
HUSKY PUMP, 515AC-PP01AAC4ACSPSPPT0
Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, SP Balls & SP DiaphragmThe Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance
$1,375.00
