Spray Gun Maintenance
XHD RAC TIP, SPRAY, CYLINDER, 333
GG XHD333
XHD RAC TIP, SPRAY, CYLINDER, 333
XHD RAC SwitchTip, .333With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 337
GG XHD337
XHD RAC TIP, SPRAY, CYLINDER, 337
XHD RAC SwitchTip, .337With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 341
GG XHD341
XHD RAC TIP, SPRAY, CYLINDER, 341
Graco XHD341 XHD RAC SwitchTip, .341
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 20.3
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 1.80
- Maximum Flow Rate (L/min): 6.81
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.041
XHD RAC TIP, SPRAY, CYLINDER, 409
GG XHD409
XHD RAC TIP, SPRAY, CYLINDER, 409
XHD RAC SwitchTip, .409With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 427
GG XHD427
XHD RAC TIP, SPRAY, CYLINDER, 427
XHD RAC SwitchTip, .427With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 535
GG XHD535
XHD RAC TIP, SPRAY, CYLINDER, 535
Graco XHD535 XHD RAC SwitchTip, .535
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.035
XHD RAC TIP, SPRAY, CYLINDER, 615
GG XHD615
XHD RAC TIP, SPRAY, CYLINDER, 615
XHD RAC SwitchTip, .615With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 625
GG XHD625
XHD RAC TIP, SPRAY, CYLINDER, 625
Graco XHD625 XHD RAC SwitchTip, .625
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.025

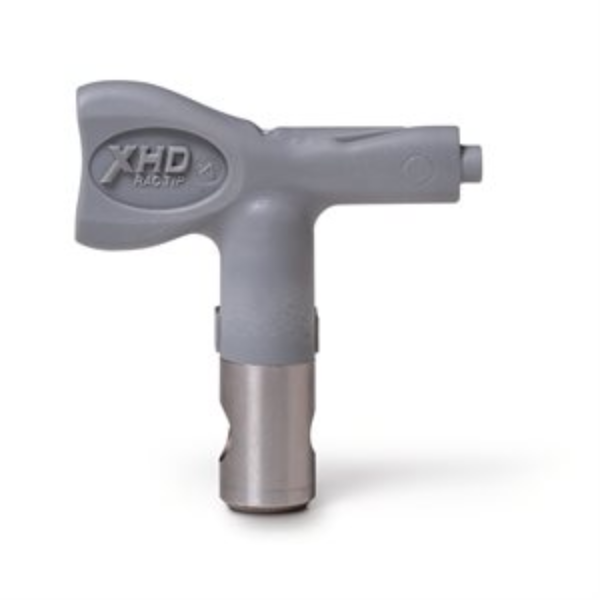

XHD RAC TIP, SPRAY, CYLINDER, 651
GG XHD651
XHD RAC TIP, SPRAY, CYLINDER, 651
Graco XHD651 XHD RAC SwitchTip, .651
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 2.79
- Maximum Flow Rate (L/min): 10.56
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.051
XHD RAC TIP, SPRAY, CYLINDER, 671
GG XHD671
XHD RAC TIP, SPRAY, CYLINDER, 671
XHD RAC SwitchTip, .671With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 771
GG XHD771
XHD RAC TIP, SPRAY, CYLINDER, 771
XHD RAC SwitchTip, .771With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 815
GG XHD815
XHD RAC TIP, SPRAY, CYLINDER, 815
XHD RAC SwitchTip, .815With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 819
GG XHD819
XHD RAC TIP, SPRAY, CYLINDER, 819
Graco XHD819 XHD RAC SwitchTip, .819
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 45.7
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 0.38
- Maximum Flow Rate (L/min): 1.44
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.019
XHD RAC TIP, SPRAY, CYLINDER, 821
GG XHD821
XHD RAC TIP, SPRAY, CYLINDER, 821
Graco XHD821 XHD RAC SwitchTip, .821
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 45.7
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.021
XHD RAC TIP, SPRAY, CYLINDER, 825
GG XHD825
XHD RAC TIP, SPRAY, CYLINDER, 825
XHD RAC SwitchTip, .825With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 827
GG XHD827
XHD RAC TIP, SPRAY, CYLINDER, 827
XHD RAC SwitchTip, .827With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 831
GG XHD831
XHD RAC TIP, SPRAY, CYLINDER, 831
Graco XHD831 XHD RAC SwitchTip, .831
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 45.7
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 1.03
- Maximum Flow Rate (L/min): 3.90
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.031
XHD RAC TIP, SPRAY, CYLINDER, 861
GG XHD861
XHD RAC TIP, SPRAY, CYLINDER, 861
XHD RAC SwitchTip, .861With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 867
GG XHD867
XHD RAC TIP, SPRAY, CYLINDER, 867
XHD RAC SwitchTip, .867With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
Flush Box Saddle For Sata 3000 Gun
BB 240-3198-Q
Flush Box Saddle For Sata 3000 Gun
